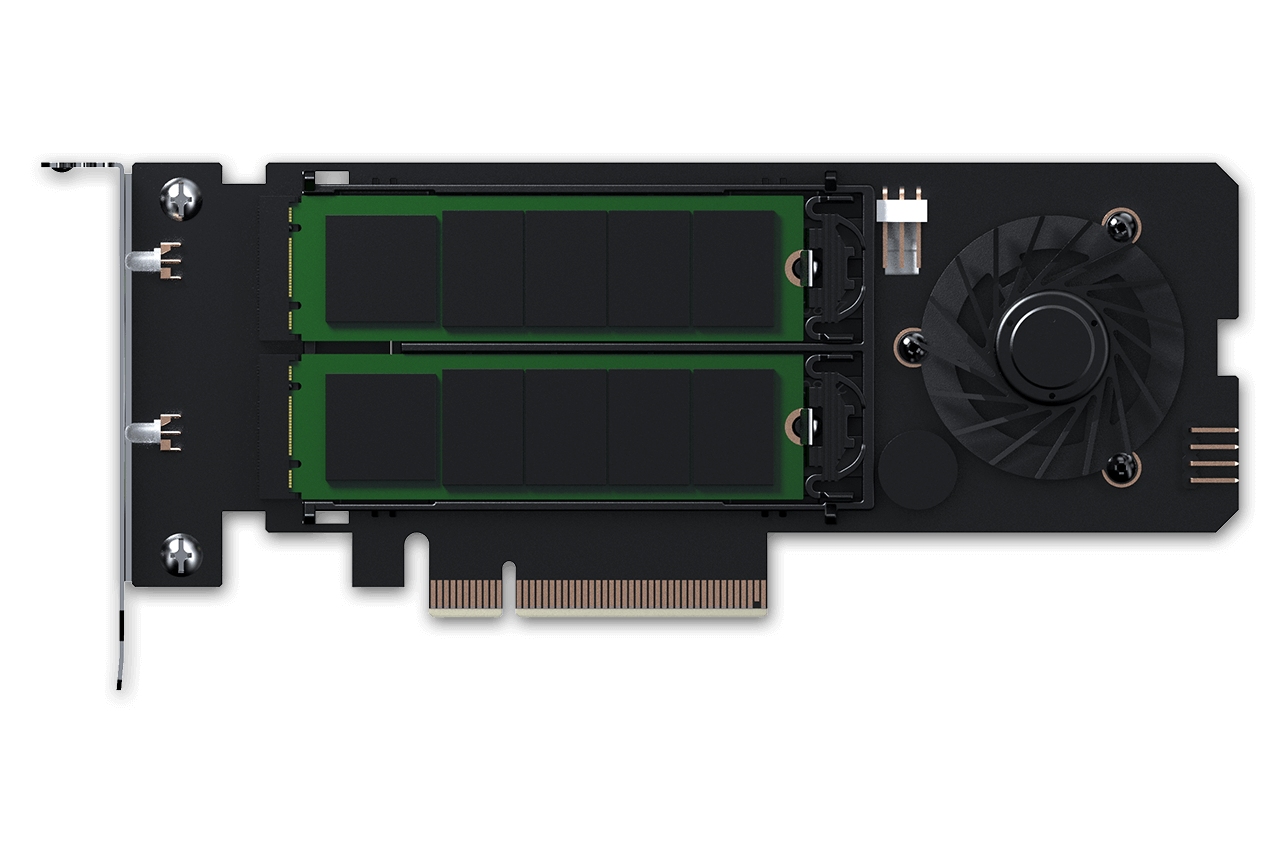

| • | Fits 2 x M.2 NVMe SSD (2230 / 2242 / 2260 / 2280) in a single x8 / x16 PCIe expansion slot |

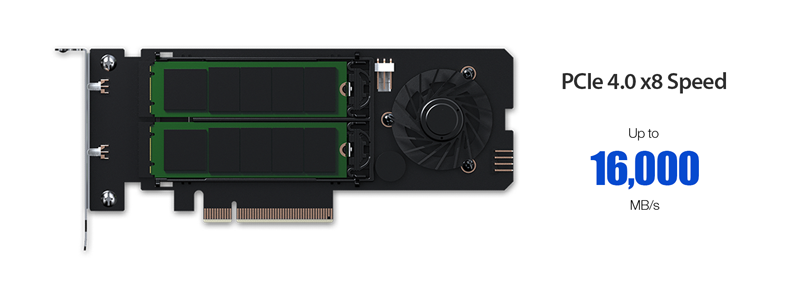

| • | Support PCIe 4.0 x8 with transfer speeds up to 8,000MB/s per drive slot |
| • | PCIe interface provides both power and data transfer which ultimately reduce cable clutter |
| • | Includes heatsink and thermal pad for maximum heat dissipation |
| • | Equipped with a 50mm blower fan provides maximum cooling to M.2 NVMe SSD |
| • | Drive activity lights indicate drive activities include overheating |
| • | Optional 4-pin header to connect chassis’ front LED to monitor drive activity |
| • | Honeycomb-like I/O panel for optimal passive cooling |
| • | Active Power Technology (APT) – LED and cooling fan only powers up when the drive is installed into the drive slot |
| Model Number： | CP073 |
| Colors： | Black |
| Host Interface： | 1 x PCIe 4.0 x8 Golden Finger |
| Drive Fit： | 2 x M.2 NVMe PCIe 4.0 x4 SSD (Compatible with 2230 / 2242 / 2260 / 2280) |
| Device Fit： | 1 x Single PCIe x8 / x16 Slot |
| Maximum Transfer Rate： | PCIe 4.0 x8 up to 16GB/s |
| Power Input： | 1 x PCIe Golden Finger |
| Structure ： | Device Power: Solid Green Device Activity: Flashing Green Empty: LED Off |
| Alarm Indication： | Audio & Visual (Overheat LED indication: Solid Red) |
| Cooling System： | 1 x 50mm Blower Fan |
| Heatsink： | Aluminum (Black) |
| Structure： | Metal IO Bracket with PCBA and Plastic Shield |
| Package Content： | Device, User Manual, 2 x Thermal Pad |
| Dimension (W x H x D)： | 128.3 x 52 x 254 mm |
| Weight： | 250 g(TBD) |
