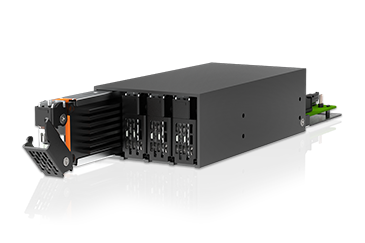

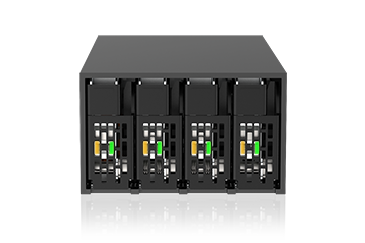

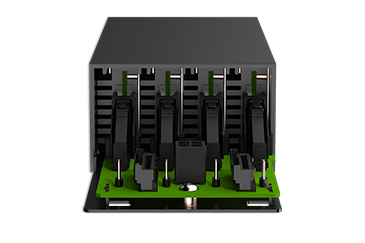

• Ultra-compact, non-standard module size tailored for OEM and rackmount system integration • Supports 4 × 15mm E1.S NVMe SSDs • PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance) • 2 × MCIO 8i (SFF-TA-1016) host interfaces • Open rear-panel ventilation design for reduced airflow restriction • Horizontal PCB layout optimized for rackmount airflow

• Supports 1 × M.2 NVMe SSD (2230 / 2242 / 2260 / 2280 / 22110)
• Removable tray design for simplified SSD maintenance and replacement
• Tool-less SSD installation design
• PCIe 5.0 x4 interface up to 128Gbps (depending on SSD performance)
• MCIO 4i host interface
• Ultra-slim enclosure optimized for non-standard installation spaces

• Supports 1× 7mm / 15mm U.2/U.3 NVMe SSD (enterprise-class, higher-capacity drive support)
• PCIe 5.0 x4 interface, up to 128Gbps bandwidth (depending on SSD speed)
• Side-swappable design for more efficient drive serviceability

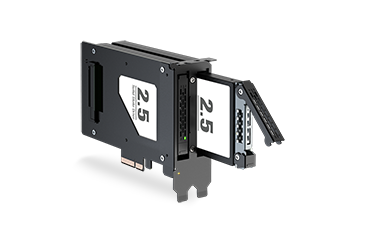

• Single-slot PCIe form factor for space-limited and high-density builds
• Hot Swap support
• Designed to use the PCIe slot as the primary data + power path, simplifying cable routing

• Fits 2 × 2.5" SATA SSD/HDD (up to 9.5mm height)
• Rear-swappable removable tray design for maintenance without card removal
• Built-in PCIe RAID 1 / JBOD support for data protection or flexible storage
• PCIe x4 interface for power and data, eliminating extra cables
• Ideal for automation systems, semiconductor manufacturing, industrial PCs, edge servers, media editing workstations
• Fanless design for silent operation and improved reliability
• Occupies dual PCIe slot space for compact integration

•SlimSAS 4i Connectivity: Delivers PCIe 4.0 x4 performance with data transfer rates up to 64Gbps
•Supports 1 x M.2 PCIe NVMe SSD in 2230, 2242, 2260, and 2280 form factors
•Install into a single-width full-height or half-height PCIe expansion slot
•Tool-less removable M.2 NVMe SSD tray for quick and easy SSD maintenance
•Quick release knob for fast SSD tray removal and installation
•Aluminum heatsink lid and included thermal pad for optimal heat dissipation
