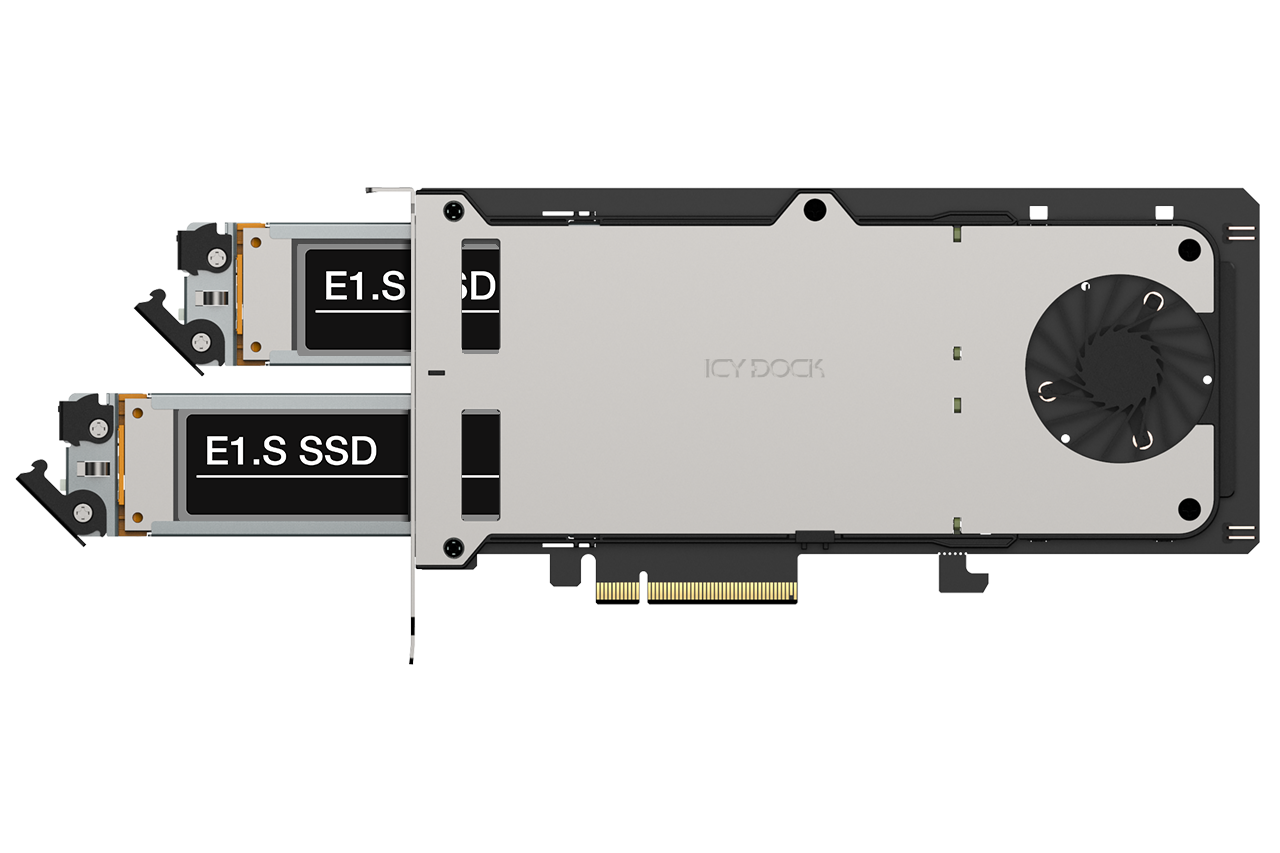

•Supports RAID 0 / 1 / JBOD / BIG
•Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
•Adapts two 9.5mm height E1.S SSDs within a single PCIe slot space
•Single slot, full-height 3/4 length card specifications
•Includes a 50mm frameless fan for effective heat dissipation
•Sealed space design for maximized cooling efficiency
•Removable SSD caddy design for quick drive maintenance and replacements

•Designed for a 3.5" floppy bay in either a computer case or rackmount.
•Holds 2 x EDSFF E1.S NVMe SSDs (compatible with 9.5mm and 15mm heights).
•Uses a MCIO 8i connector, supporting PCIe 5.0 x4 with transfer speeds up to 128GB/s.
•Features a removable drive tray with tool-less SSD installation for user-friendly maintenance.
•Comes equipped with two 25mm fans, which can be replaced without disassembling the entire unit.
•Supports hot-swap functionality for EDSFF E1.S SSD (dependent on host environment).

•Fits 2 x E1.S NVMe SSD, compatible with 9.5mm thickness.
•Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
•Supports hot-swap/hot-plug E1.S NVMe SSD.
•Removable drive tray with tool-less drive installation for easy drive maintenance.
•The eagle-hook lock system keeps the drive secured in the enclosure.
•Equipped with a 50mm blower fan for maximum thermal performance.

•Fits 1x EDSFF E1.S SSD with a maximum drive thickness of 5.9mm
•Use 1x PCIe 4.0 x4 interface, also supports installation into PCIe 1.0/2.0/3.0/4.0 x4, x8, and x16 slots
•Support PCIe 4.0 x4 with transfer rates up to 64Gbps
•Includes half-height and full-height PCIe brackets
•Removable drive tray with tool-less drive installation design for easy drive maintenance
•Low profile design allows for multiple bays to be installed side-by-side in a modular design
