Using an MCIO 4i connection, the CP168 supports PCIe 5.0 x4 bandwidth up to 128Gbps (depending on SSD performance), enabling high-speed EDSFF NVMe storage deployment in compact and thermally constrained environments.
Its ultra-slim removable enclosure design is particularly suitable for systems where traditional E1.S backplanes or standard drive bays cannot be accommodated.
The enclosure also includes flexible mounting points, allowing integrators to install the CP168 into custom chassis layouts, embedded platforms, or specialized rackmount integrations.

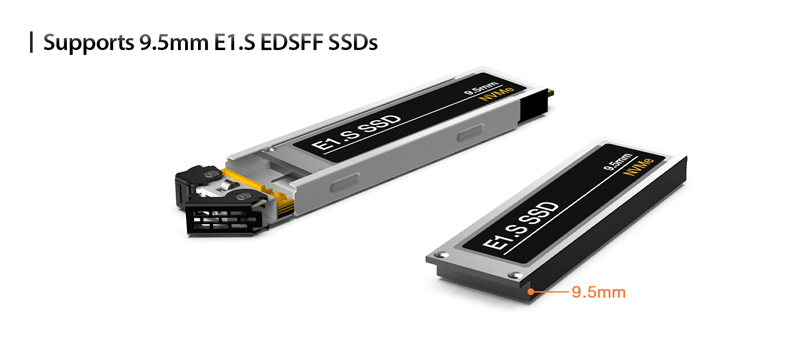

| • | Supports 1 × E1.S NVMe SSD up to 9.5mm height |

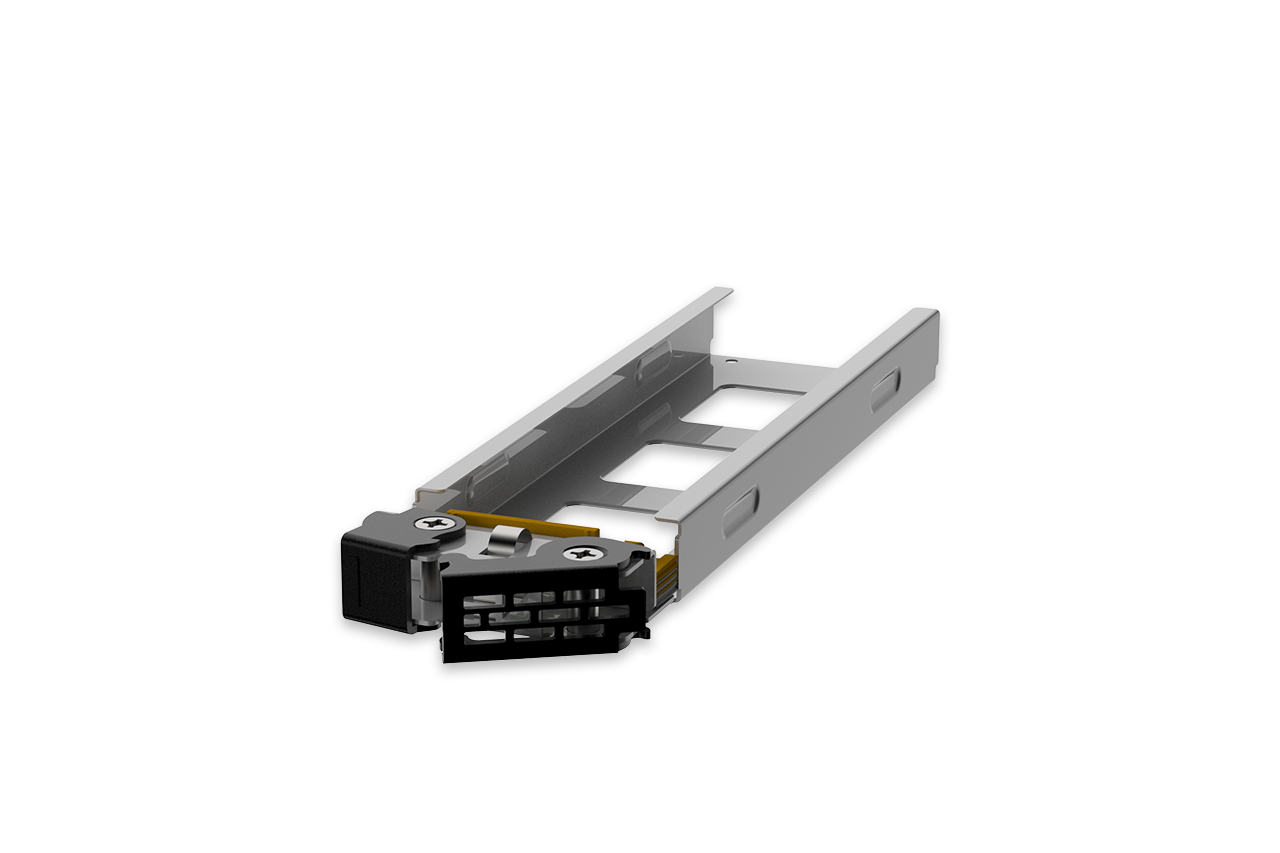

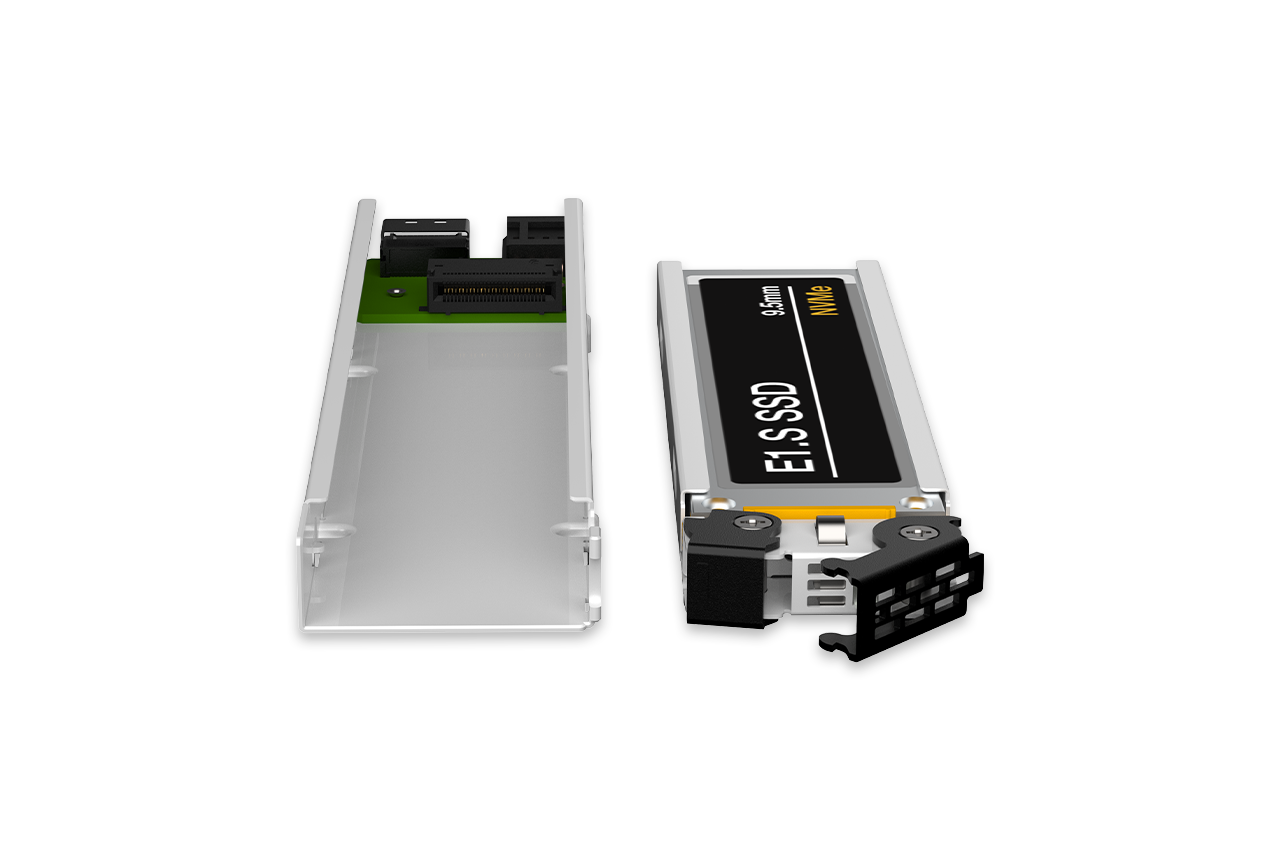

| • | Removable tray design for simplified SSD maintenance and replacement |

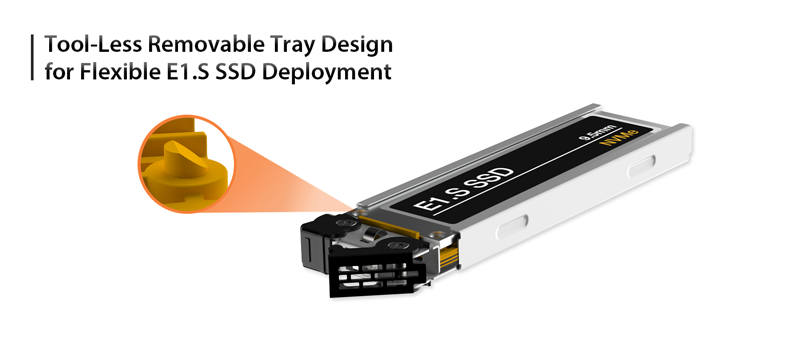

| • | Tool-less SSD installation design |
| • | PCIe 5.0 x4 interface up to 128Gbps (depending on SSD performance) |
| • | MCIO 4i host interface |
| • | Ultra-slim enclosure optimized for non-standard installation spaces |

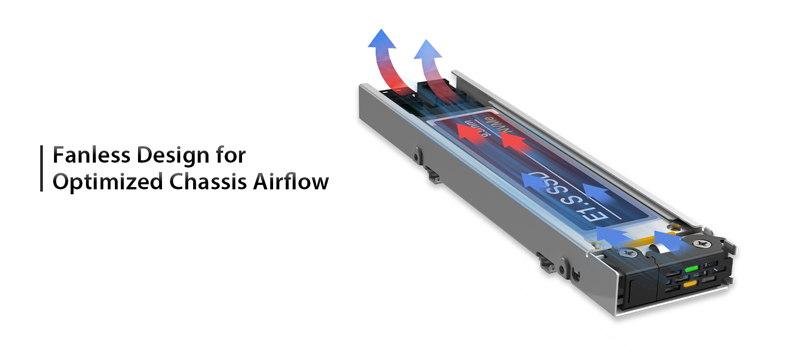

| • | Fanless mechanical design optimized for chassis airflow environments |
| • | Full-metal construction for improved durability and passive heat dissipation |
| • | Flexible mounting points for custom chassis, rackmount, and embedded system integration |
| • | LED activity indicator for SSD power and activity status |
| • | EMI grounding and structural reinforcement design for enterprise and industrial deployment |
| Model Number： | CP168 |
| Color： | Black |
| Host Interface： | 1 x MCIO 4i connector |
| Drive Fit： | 1 x E1.S SSD (9.5mm) |
| Device Fit： | Non-standard space |
| Maximum Transfer Rate： | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Power Input： | 1 x Floppy 4 pin power |
| SSD Access Indicator： | Green: LED (drive power: solid green, drive access: flashing green) Amber: LED (function is defined by host) Empty: LED off |
| Fan Type： | N/A |
| Structure： | Full metal |
| Package Contents： | Device, user manual, screws |
