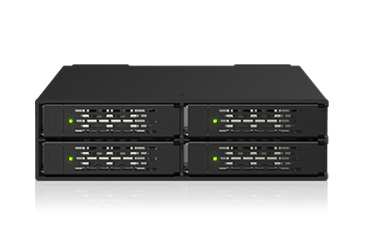

• Hot-swappable drive support
• Fits 4× U.2/U.3 NVMe SSDs (5–15mm) into a single external 5.25" bay
• Supports PCIe 5.0 with transfer rates up to 128Gbps per SSD

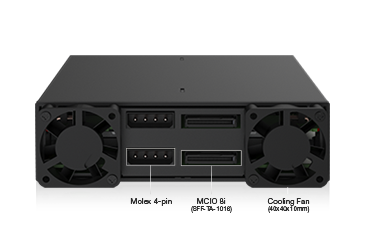

• Host Interface: 2× MCIO 8i (SFF-TA-1016) connectors for simplified cabling
• Power Input: Dual 4-pin Molex connectors for secure and reliable power delivery

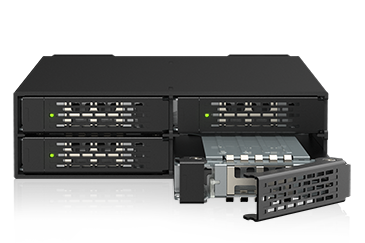

• Removable all-metal EZ-Slide Mini trays (MB991TRAY-B) for easy maintenance
• Lightweight aluminum housing improves cooling efficiency and reduces weight

• Fits 8× 7mm U.2/U.3 NVMe SSDs into a single external 5.25" device bay
• PCIe 4.0 x4 interface per drive, up to 64Gbps (host dependent)
• Compatible with Tri-mode HBA/RAID cards (NVMe mode only)
• 4× SlimSAS 8i (SFF-8654) host connectors (2 drives per connector)
• Full-metal construction for maximum durability and heat dissipation
• Dual 40×40×20mm fans with optimized airflow design

•Fits 1 x 2.5" U.2/U.3 NVMe SSD (up to 15mm height) into a standard 3.5" external drive bay)
•Supports PCIe Gen 4.0 U.2 interface via SFF-8639 connector (up to 64Gbps transfer rate))
•Water-resistant front cover protects against dust and splashes)
•2-segment security keylock prevents unauthorized access and accidental drive ejection)
•Removable drive tray for easy maintenance and hot-swap (NVMe host must support hot-swap))

sas_sata_enclosures,tool-less_tray_enclosures,high_density_enclosures

•Dual-lock design: Metal barrel key + thumbscrew lock
•Fits 1 x U.2/U.3 NVMe SSD in a 3.5” external bay (up to 15mm height)
•PCIe 5.0 interface supports up to 128Gbps transfer rates
•Hot-swappable drive tray enables tool-free SSD maintenance
•Full-metal rugged enclosure meets flammability and durability demands

metal_tray_enclosures,nvme_enclosures,tool-less_tray_enclosures,tool-less_tray_enclosures

•Supports 1x U.2/U.3 NVMe SSD (5mm to 15mm height)
•Designed for external 3.5” drive bays
•PCIe 5.0 up to 128Gb/s transfer speed via MCIO 4i interface
•Hot-swappable removable tray for quick drive access
•Secure locking system (Eagle-hook + 2-segment key lock)
•Built-in 25mm cooling fan & passive heat dissipation design

metal_tray_enclosures,nvme_enclosures,tool-less_tray_enclosures Interface_SlimSAS4i

•IPX6 water-resistant cover
•Dual lock system – Metal barrel lock + thumb screw lock
•Fits 1 x 5 to 15mm height 2.5” SAS/SATA HDD/SSD in external 3.5” drive bay
•Supports SATA 6Gbps or SAS 3,0 12Gbps (single channel)
•Removable, hot-swappable drive caddy for easy drive maintenance

metal_tray_enclosures,nvme_enclosures,tool-less_tray_enclosures,tool-less_tray_enclosures

•Supports 2 x 2.5" SSD/HDD, from 5-15mm height
•Supports RAID 1 and JBOD modes
•Installs into any standard external 1 x 5.25" optical drive bay
•Supports up to 6 Gbps data transfer speed
•Built-In JMS562 hardware RAID chipset
•Easy-to-read RAID status LED indicators for drive power, access, fail, and RAID 1 rebuilding process

metal_tray_enclosures,sas_sata_enclosures,compatible_525_enclosures

•Supports 6x U.2/U.3 PCIe NVMe SSD, with a 7mm height
•Designed to fit into any standard external 5.25" optical drive bay
•Utilizes 3x slimSAS 8i (SFF-8654) to support 6x U.2/U.3 SSDs
•Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
•Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
•Ruggedized full-metal enclosure that meets flammability requirements

nvme_enclosures metal_tray_enclosures Interface_SlimSAS4i

•Supports 4x PCIe NVMe U.2/U.3 SSD, up to 15mm drive height
•Installs into any standard external 5.25" optical drive bay
•Uses 4x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
•Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
•Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
•Ruggedized full-metal enclosure meeting flammability requirements

metal_tray_enclosures,nvme_enclosures Interface_SlimSAS4i

•Fits 2x 2.5" U.2/U.3 NVMe SSDs with a 7mm height
•Installs into standardized external 3.5” device bay (floppy bay)
•Uses 2x Slimline SAS (SFF-8654 4i) connector, pinout defined by SFF-9402 Rev 1.1
•Supports NVMe 4.0 64Gbps transfer rates per drive bay
•Ruggedized full-metal enclosure and drive trays
•2-segment key lock for additional physical security

nvme_enclosures metal_tray_enclosures Interface_SlimSAS4i

•Supports 4x PCIe NVMe U.2 SSD, up to 15mm drive height
•Installs into any standard external 5.25" optical drive bay
•Uses 4x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
•Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
•Ruggedized full-metal enclosure meeting flammability requirements
•Removable tray system for easy maintenance

metal_tray_enclosures, nvme_enclosures

•Supports 2 x 2.5” SATA HDD/SSD, from 5-15mm height
•Installs into any standard external 1 x 5.25” optical drive bay
•Supports up to 6 Gbps data transfer speed
•Built-In JMS562 hardware RAID 1 mirroring (SAFE) chipset
•Easy to read RAID status LED indicators for drive power, access, fail, and RAID 1 rebuilding process
•Anti-Vibration Technology (AVT) – reduces noise and protects against environmental damage

metal_tray_enclosures,sas_sata_enclosures,compatible_525_enclosures
