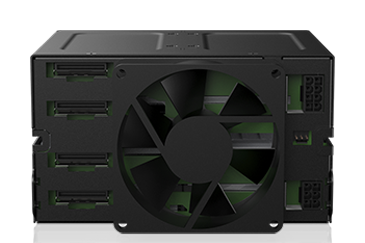

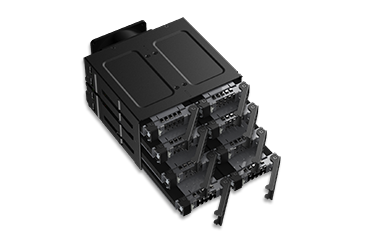

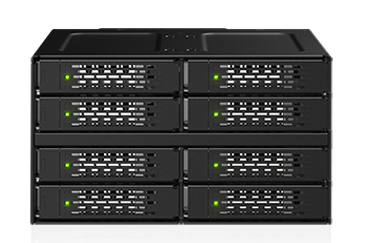

• Fits 8 × 15 mm U.2/U.3 NVMe SSDs in 2 × 5.25" drive bays
• 4 × MCIO 8i (SFF-TA-1016) connectors support PCIe Gen5 x4 per drive
• Tri-Mode HBA/RAID card compatible (NVMe mode only)
• Delivers up to 128 Gbps aggregate bandwidth
• Hot-swappable EZ-Slide trays for fast maintenance and secure data mobility
• Supports U.2/U.3 SSD heights from 7 mm to 15 mm (ready for 5 mm and 9.5 mm future standards)

• Hot-swappable drive support
• Fits 4× U.2/U.3 NVMe SSDs (5–15mm) into a single external 5.25" bay
• Supports PCIe 5.0 with transfer rates up to 128Gbps per SSD
• Host Interface: 2× MCIO 8i (SFF-TA-1016) connectors for simplified cabling
• Power Input: Dual 4-pin Molex connectors for secure and reliable power delivery
• Removable all-metal EZ-Slide Mini trays (MB991TRAY-B) for easy maintenance
• Lightweight aluminum housing improves cooling efficiency and reduces weight

• Fits 8× 7mm U.2/U.3 NVMe SSDs into a single external 5.25" device bay
• PCIe 4.0 x4 interface per drive, up to 64Gbps (host dependent)
• Compatible with Tri-mode HBA/RAID cards (NVMe mode only)
• 4× SlimSAS 8i (SFF-8654) host connectors (2 drives per connector)
• Full-metal construction for maximum durability and heat dissipation
• Dual 40×40×20mm fans with optimized airflow design

•Supports 2 x 2.5" SSD/HDD, from 5-15mm height
•Supports RAID 1 and JBOD modes
•Installs into any standard external 1 x 5.25" optical drive bay
•Supports up to 6 Gbps data transfer speed
•Built-In JMS562 hardware RAID chipset
•Easy-to-read RAID status LED indicators for drive power, access, fail, and RAID 1 rebuilding process

metal_tray_enclosures,sas_sata_enclosures,compatible_525_enclosures

•Supports 6x U.2/U.3 PCIe NVMe SSD, with a 7mm height
•Designed to fit into any standard external 5.25" optical drive bay
•Utilizes 3x slimSAS 8i (SFF-8654) to support 6x U.2/U.3 SSDs
•Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
•Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
•Ruggedized full-metal enclosure that meets flammability requirements

nvme_enclosures metal_tray_enclosures Interface_SlimSAS4i

•Supports 4x PCIe NVMe U.2/U.3 SSD, up to 15mm drive height
•Installs into any standard external 5.25" optical drive bay
•Uses 4x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
•Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
•Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
•Ruggedized full-metal enclosure meeting flammability requirements

metal_tray_enclosures,nvme_enclosures Interface_SlimSAS4i

•Supports 4x PCIe NVMe U.2 SSD, up to 15mm drive height
•Installs into any standard external 5.25" optical drive bay
•Uses 4x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
•Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
•Ruggedized full-metal enclosure meeting flammability requirements
•Removable tray system for easy maintenance

metal_tray_enclosures, nvme_enclosures

•Supports 2 x 2.5” SATA HDD/SSD, from 5-15mm height
•Installs into any standard external 1 x 5.25” optical drive bay
•Supports up to 6 Gbps data transfer speed
•Built-In JMS562 hardware RAID 1 mirroring (SAFE) chipset
•Easy to read RAID status LED indicators for drive power, access, fail, and RAID 1 rebuilding process
•Anti-Vibration Technology (AVT) – reduces noise and protects against environmental damage

metal_tray_enclosures,sas_sata_enclosures,compatible_525_enclosures

•Supports 24 x 2.5" SAS/SATA SSDs & HDDs, up to 7mm in height
•Installs into 3 x standard external 5.25" bay
•Transfer speed up to 24Gb/s for SAS drives & 6Gb/s for SATA drives
•Powers 24 x 2.5" SAS/SATA drive through 6 x 15-pin SATA power connector
•Connects 24 x 2.5” SAS/SATA drive through 6 x MiniSAS HD (SFF-8643) connector
•Large 80mm cooling fan with three-mode fan speed control (high/low/off)

metal_tray_enclosures,minisas_hd_enclosures,sas_sata_enclosures,high_density_enclosures,compatible_525_enclosures

•Removable drive tray system for easy maintenance
•Rugged heavy duty full-metal construction of all internal and external components
•Perfect for rugged and industrial applications that must meet flammability requirements
•Fits 8x 5-15mm 2.5” SATA/SAS hard drives or SSDs in 2x 5.25” external CD/DVD drive bays
•Supports SATA 3.0 up to 6Gbps or SAS 4.0 up to 24Gbps (single channel)
•Large 80mm cooling fan with high, low, and off settings for full control

metal_tray_enclosures , minisas_hd_enclosures , high_density_enclosures ,compatible_525_enclosures,sas_sata_enclosures

•Perfect for rugged applications and complies to flammability requirements
•Fits 4 x 2.5” U.2 NVMe SSD
(NVMe U.2 host is required to accept NVMe SSD)
•Supports NVMe 64Gb/s transfer rate
•Fits any external 5.25” drive bay
•Dual 40mm fans keep your drives from overheating
•Requires only 2 x 15pin power connectors to power all 4 bays
•Drive label plugs to keep track of your RAID drives

metal_tray_enclosures,nvme_enclosures , minisas_hd_enclosures

•Rugged heavy-duty steel construction designed for industrial and commercial applications such as military and medical, servers, data centers, workstations, and portable computer systems
•Perfect for applications that must meet a flammability requirement
•Fits 6x SSDs or HDDs between 5mm and 7mm in height
•Supports SATA 3.0 6Gbps / SAS 3.0 12Gbps (single channel)
•Supports Ultra-Slim (9.5mm) Optical Disk Drive (ODD Drive)
•Spring-loaded ODD bracket for fast installation and removal

metal_tray_enclosures,slim_odd_drive_enclosures ,compatible_525_enclosures,sas_sata_enclosures
