•Fits in Standard 5.25" Drive Bay.
•Supports 8 x E1.S (EDSFF) NVMe SSDs (9.5mm/15mm height).
•Uses 4 x MCIO 8i (SFF-TA-1016 8i) port supports PCIe 5.0 x4 of up to 128Gbps data transfer rates.
•Ability to mix and match E1.S in a single enclosure.
•Supports tool-less drive installation for both E1.S NVMe SSDs.
•Equipped with dual 40mm detachable fans for superior cooling performance.

•Supports a single U.2/U.3 PCIe NVMe SSD
•10,000+ rated insertion and removal cycle connector
•Blazing-fast 40Gb/s transfers via USB4 and Thunderbolt 4
•Backward compatible with USB 3.0, USB 2.0, and Thunderbolt 3
•Tool-less SSD installation design with or without a drive tray
•Vibrant blue activity LED
•User-friendly, large slide-switch power control

• Supports 1 × E1.S NVMe SSD up to 9.5mm height • Removable tray design for simplified SSD maintenance and replacement • Tool-less SSD installation design • PCIe 5.0 x4 interface up to 128Gbps (depending on SSD performance) • MCIO 4i host interface • Ultra-slim enclosure optimized for non-standard installation spaces

• Ultra-compact, non-standard module size tailored for OEM and rackmount system integration • Supports 4 × 15mm E1.S NVMe SSDs • PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance) • 2 × MCIO 8i (SFF-TA-1016) host interfaces • Open rear-panel ventilation design for reduced airflow restriction • Horizontal PCB layout optimized for rackmount airflow

• Supports 1 × M.2 NVMe SSD (2230 / 2242 / 2260 / 2280 / 22110)
• Removable tray design for simplified SSD maintenance and replacement
• Tool-less SSD installation design
• PCIe 5.0 x4 interface up to 128Gbps (depending on SSD performance)
• MCIO 4i host interface
• Ultra-slim enclosure optimized for non-standard installation spaces

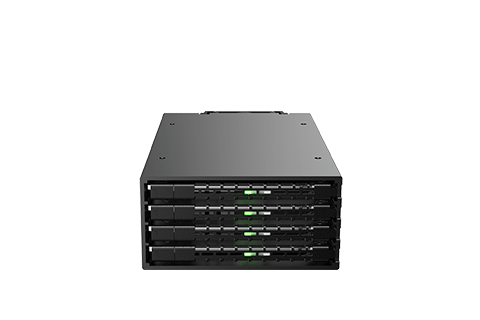

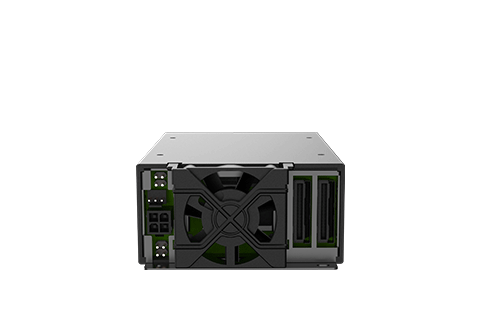

• Ultra-compact, non-standard module size tailored for OEM and rackmount system integration

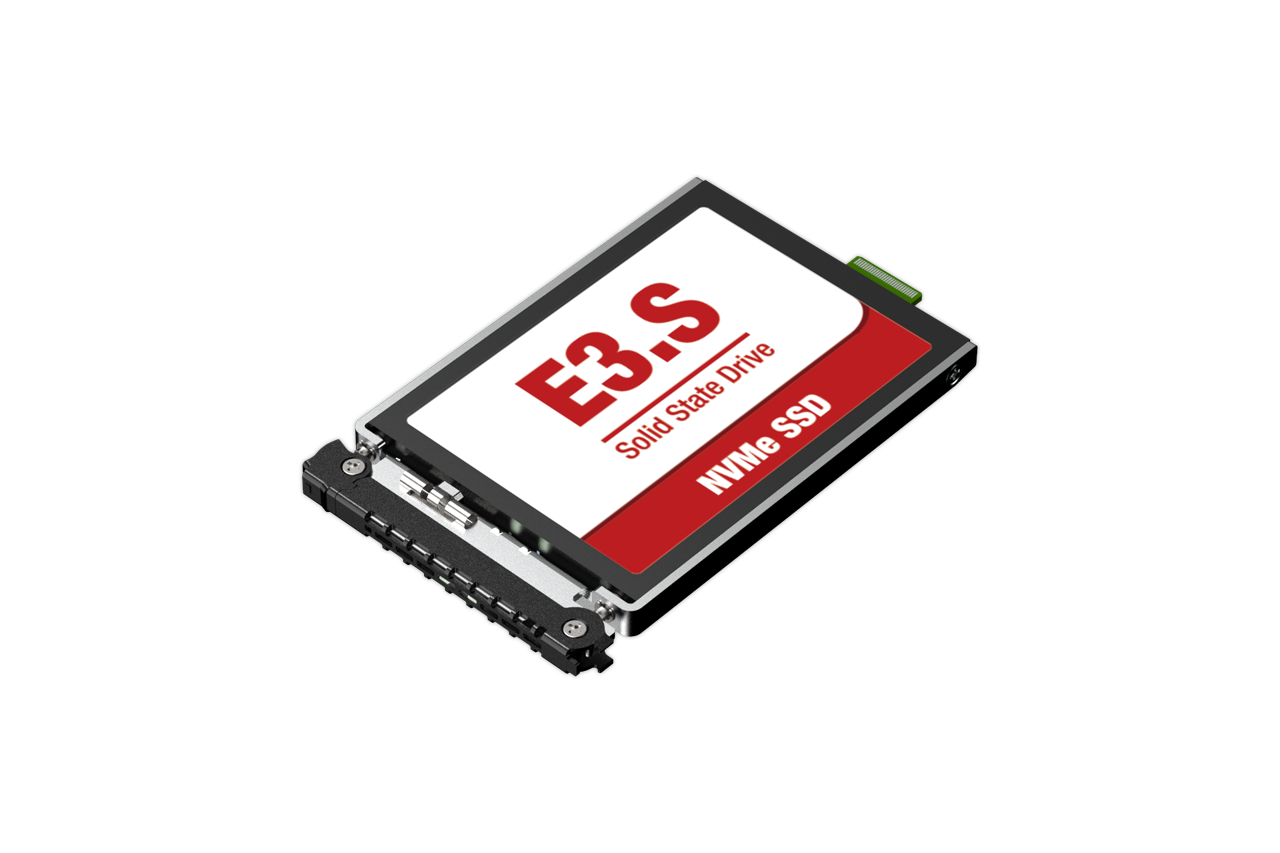

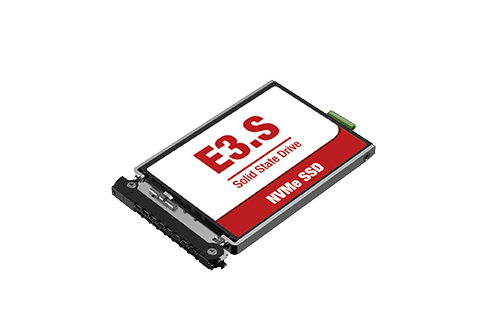

• Supports 8 × 7.5mm E3.S NVMe SSDs
• PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance)
• 4 × MCIO 8i (SFF-TA-1016) host interfaces
• Front-access removable E3.S SSD tray design
• Supports hot-plug drive replacement

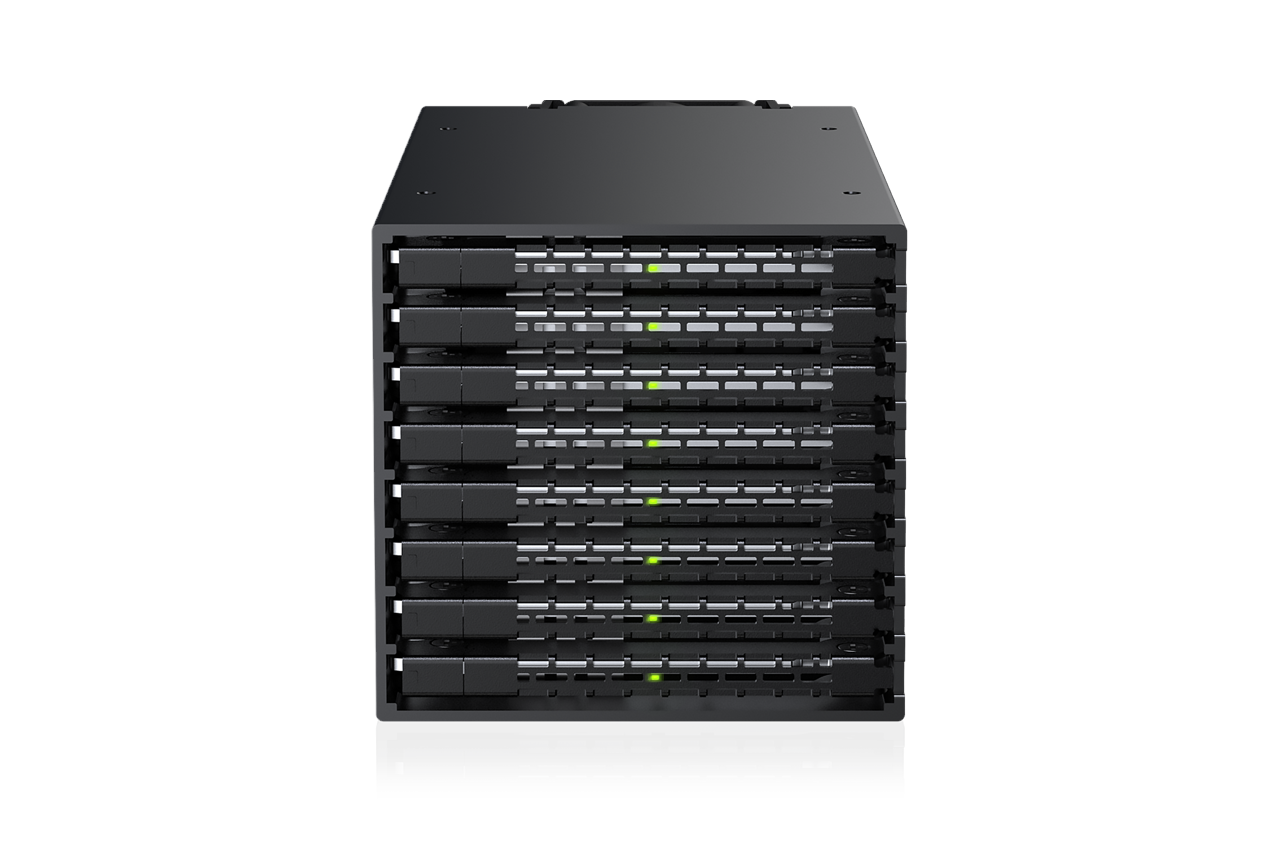

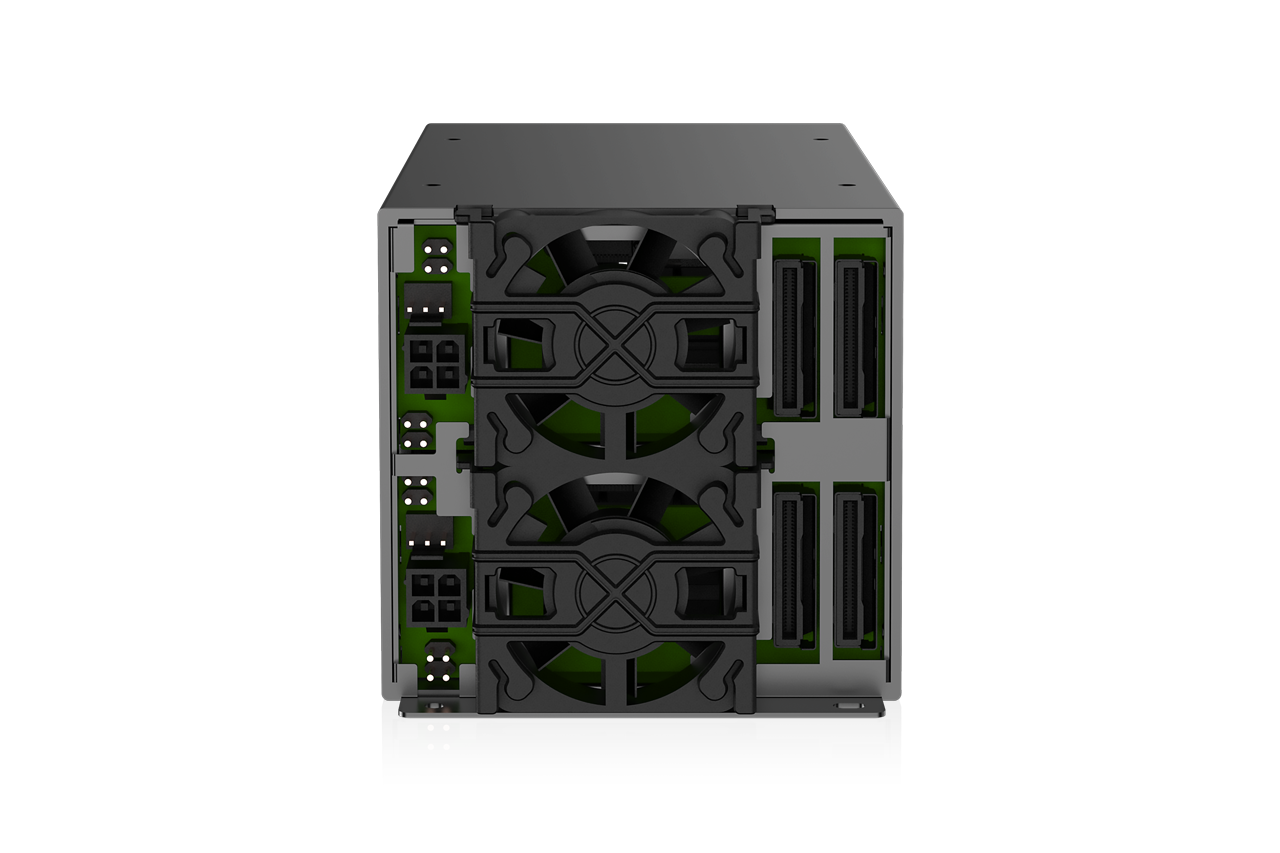

• Supports 8 × 9.5mm E1.S NVMe SSDs
• Fits one standard 5.25” drive bay
• PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance)
• 4 × MCIO 8i (SFF-TA-1016) host interfaces
• Removable E1.S SSD tray design for easier maintenance and serviceability
• Liquid-cooling architecture for high-efficiency thermal management

•Tool-less, easy installation design for quick data transfer and backup operations.
•Compact footprint that takes up minimal desk space.
•Supports one MB840TP-B tray with horizontal desktop placement.
•Equipped with an LED indicator to display SSD power and access status.

•Supports 8 x 15mm / 9.5mm E1.S SSDs in a single 5.25" bay.
•PCIe Gen 5.0 x4 interface — up to 128Gbps per drive.
•Complies with UBM (SFF-TA-1005) backplane management standard.
•4 x MCIO 8i connectors support PCIe bifurcation (x4/x2/x1).
•Compatible with Broadcom, HighPoint, Areca, and other HBA/RAID cards.
•Supports Hot-Plug drive swapping.

•Converts 5.9mm or 8.01mm E1.S SSDs to 9.5mm E1.S mechanical form factor
•Converts 5.9mm or 8.01mm E1.S SSDs to 9.5mm E1.S mechanical form factor
•Fully compatible with standard 9.5mm E1.S trays, tool-less carriers, and hot-swap drive bays
•Full-metal construction enhances protection and passive cooling
•Includes both thin and thick thermal pads for optimal heat transfer
•Tool-less SSD installation

•Converts standard M.2 NVMe SSDs (2230/2242/2260/2280) to 9.5mm E1.S SSD form factor
•Fully matches E1.S mechanical and electrical specifications (SFF-TA-1006 + SFF-TA-1002)
•Compatible with PCIe Gen 3/4/5 NVMe SSDs for up to 128Gbps data rate
•Ideal for E1.S drive bays in enterprise servers, AI edge systems, and modular compute nodes
•Internal bridge connector minimizes M.2 connector wear from frequent insertions
•Full-metal housing ensures structural integrity, EMI shielding, and thermal dissipation
•Ideal for system builders, server OEMs, and platform engineers validating E1.S systems

•Designed for Intel motherboards with x8/x8 and x8/x4/x4 PCIe bifurcation settings
•Fits 2x M.2 PCIe NVMe SSD from 30-110mm (2230, 2243, 2260, 2280, 22110)
•Uses 1x PCIe 5.0 x16 slot (PCIe Bifurcation is required to access both drives)
•Installs to a single-width full-height PCIe express slot
•Removable drive tray with tool-less drive installation for easy drive maintenance
•Eagle-hook lock system keeps the drive secured in the enclosure
