Concept Product CP121

8 x EDSFF E1.S / M.2 NVMe SSD Mobile Rack for External 5.25" Drive Bay
Product Details
CP121 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products

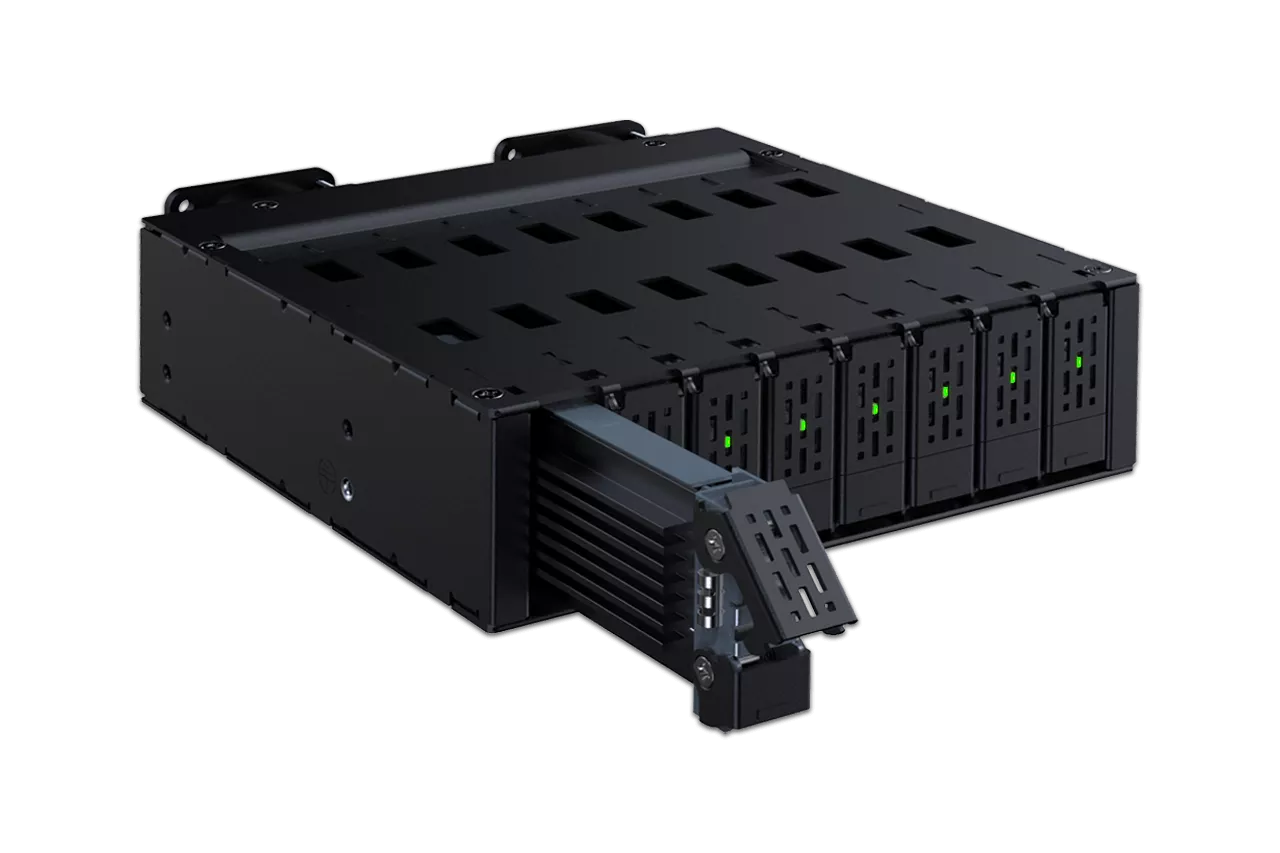

  • Introducing the Concept Product CP121 – Removable 8 x EDSFF E1.S or M.2 NVMe SSD enclosure for a single external 5.25” drive bay, providing frontal drive access without opening the computer case or using any tools.

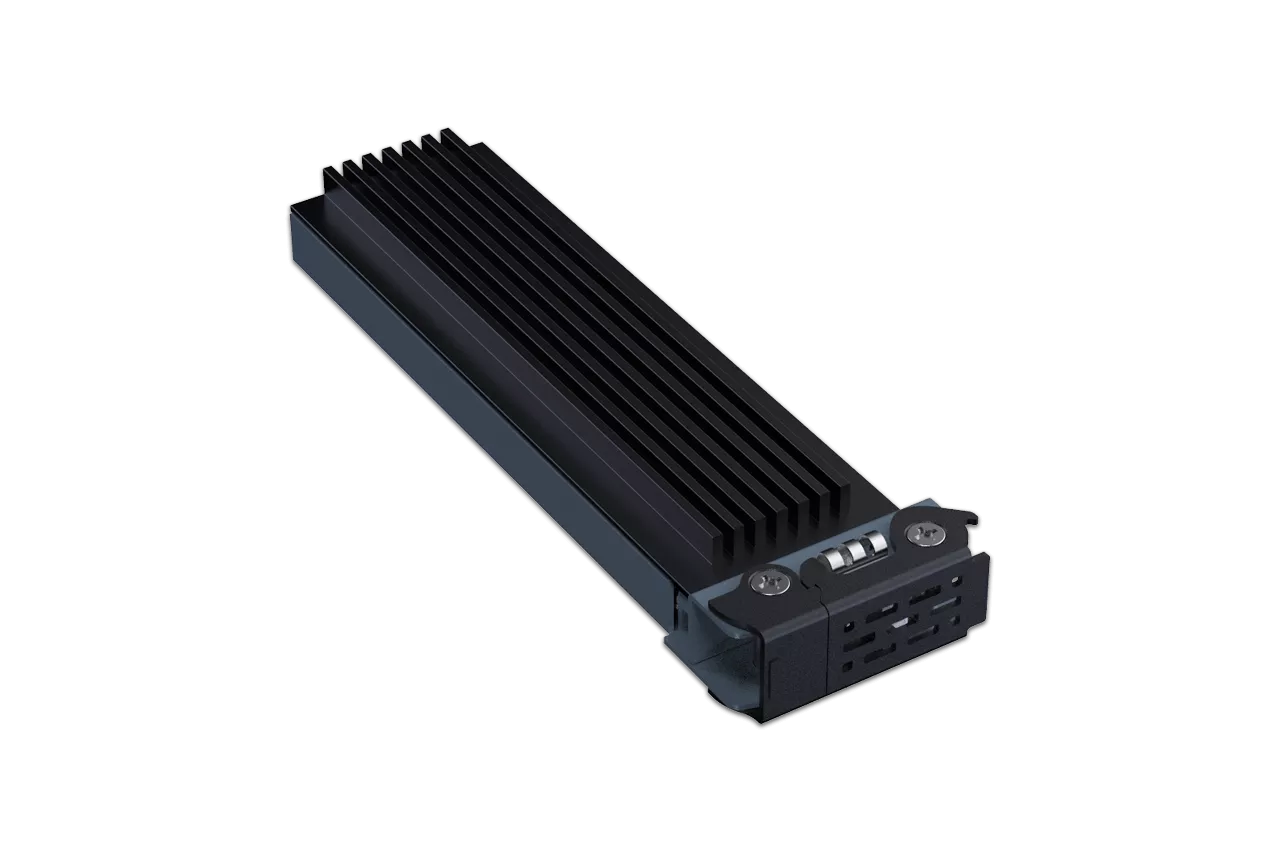

  • The drive trays of CP121 feature tool-less drive installation for easy drive maintenance and adapts EDSFF E1.S SSD (5.9mm/8.01mm) or M.2 NVMe SSD (2230/2242/2260/2280/22110), giving you the maximum flexibility to choose the drives. Furthermore, both types of SSD can be installed and accessed simultaneously within the same enclosure.

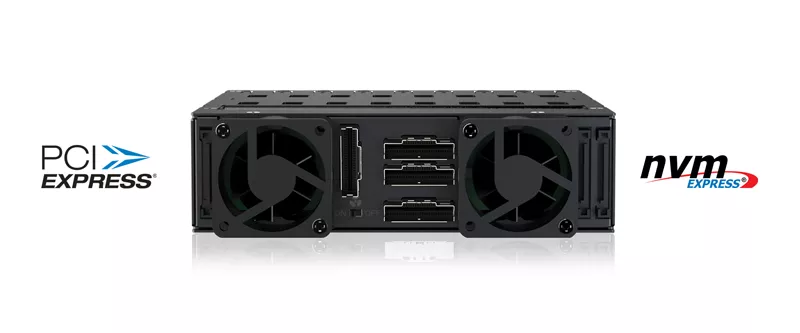

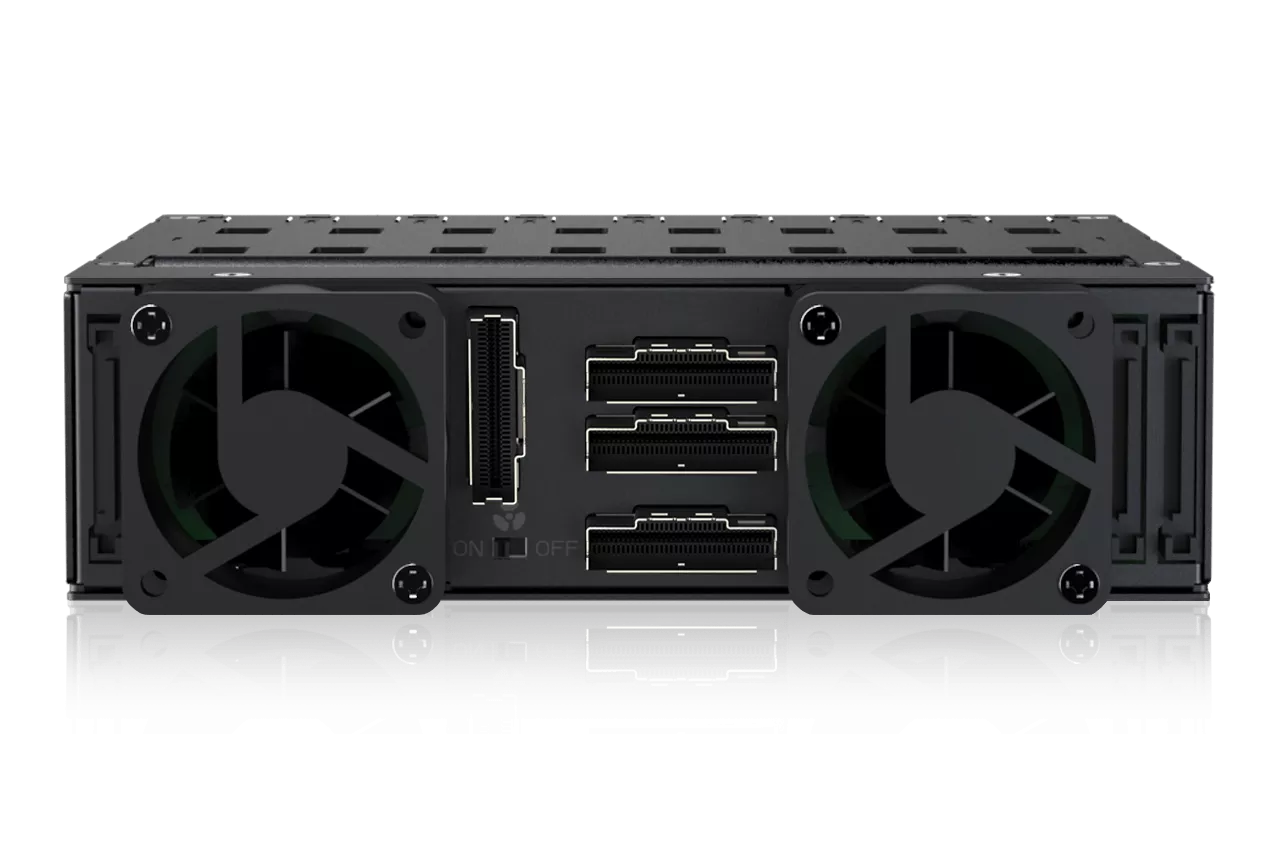

  • To unlock the full performance of PCIe 4.0 speeds, the CP121 uses 4 x MCIO 8i (SFF-TA-1016 8i) connectors to support all 8 x NVMe solid-state drives with transfer speeds of up to 128Gbps per drive.

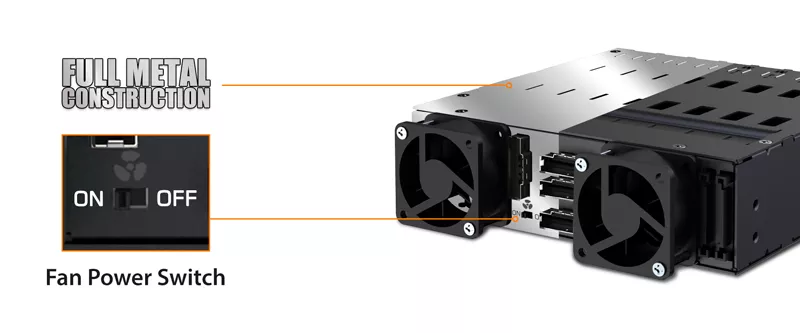

  • The heavy-duty full metal construction can withstand the harshest environments and offers ample heat dissipation. In addition, the user-replaceable dual 40mm cooling fans along with more than 100 ventilation holes throughout the enclosure provide the maximum cooling performance to keep the E1.S or M.2 NVMe SSD within optimal temperature ranges. Moreover, the dual cooling fans come with a fan on/off switch that allows users to turn off the fan when needed.

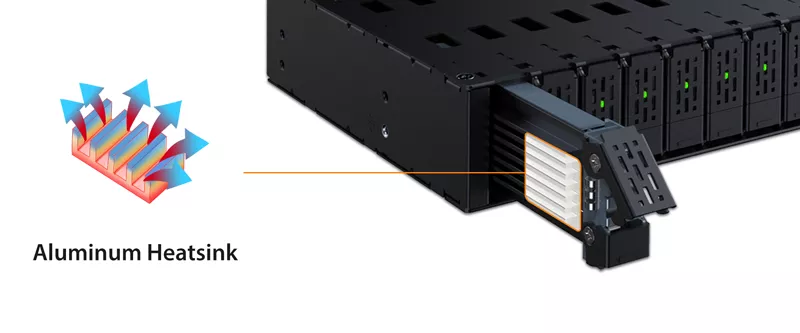

  • Considering M.2 NVMe SSD and E1.S SSD are notorious for generating high temperatures, the drives must be maintained under operating temperatures at all times to prevent degradation of performance. Therefore, we made each drive tray acts as an extra-large high-efficiency aluminum heatsink and includes a thermal pad for best heat dissipation and cooling performance.

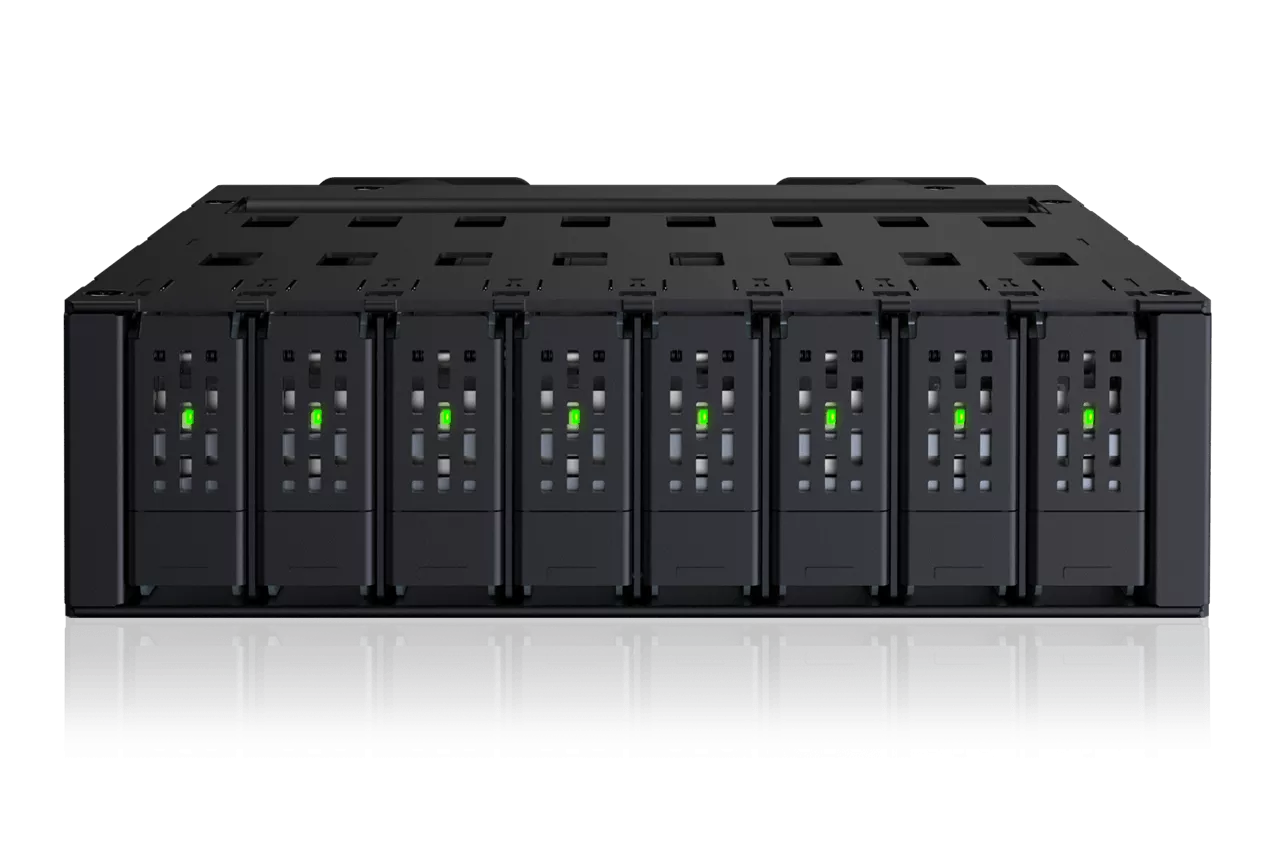

  • The LED status indicators are built into the tray to provide drive status where it can be easily seen at a glance - a solid green light indicates a drive is inserted and has power; a flashing green light indicates the drive is in use. The LED and fan will shut off when no drive is inserted to reduce power consumption.
Main Features
Fits in Standard 5.25" Drive Bay.

Supports 8 x E1.S (EDSFF) NVMe SSDs (5.9/8.01mm height) or 8 x M.2 NVMe SSD (2230/2242/2260/2280/22110).

Uses 4 x MCIO 8i (SFF-TA-1016 8i) port supports PCIe 5.0 x4 of up to 128Gbps data transfer rates.

Ability to mix and match E1.S and M.2 NVMe SSDs in a single enclosure.

Supports tool-less drive installation for both E1.S and M.2 NVMe SSDs.

Equipped with dual 40mm detachable fans for superior cooling performance.

Fan on/off control - adjust fan settings according to your HDD/SSD temperature.

The aluminum drive tray acts as a heatsink to dissipate heat generated by the SSD.

Includes thermal pad that conducts the heat from the drive to the heatsink tray.

Ruggedized full-metal enclosure that meets flammability requirements.

Removable and tool-less drive installation for easy drive maintenance.

Eagle-hook tray latch – Securely holds drive trays in the enclosure.

Active power technology (APT) – LED and fan only power up if a drive is installed.


Specification
Model Number : CP121
Color : Black
Host Interface : 4 x MCIO 8i (SFF-TA-1016 8i)
Drive Fit : 8 x E1.S 5.9mm/8.01mm or
M.2 SSD 2230/2242/2260/2280/22110mm
Drive Bay : 1 x 5.25" drive bay
Maximum Transfer Rate : Up to 128Gbps (depending on SSD speed)
Power Input : 3 x 15pin SATA power connector
SSD Access Indicator : Device power: solid green
Device activity: flashing green
Empty: LED off
Fan Type : 2 x 40*40*20mm fan
Hot Plug : Yes
Structure : Full metal
Package Content : Device, user manual, screws
Dimension (W x H x D) : 145.8 x 41.3 x less than 195mm
Weight : 900g(TBD)
