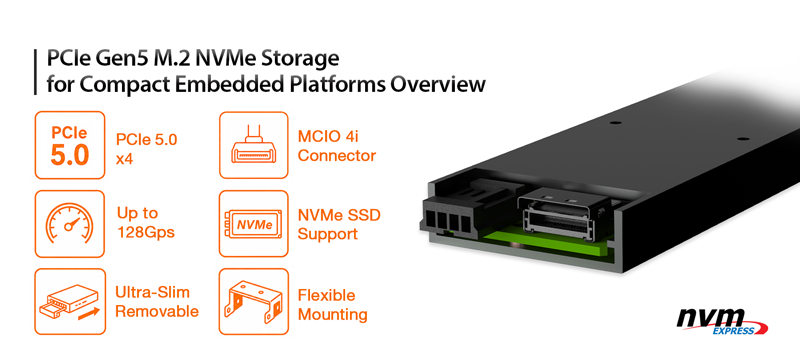

Using an MCIO 4i connection, the CP160 supports PCIe 5.0 x4 bandwidth up to 128Gbps (depending on SSD performance), enabling next-generation NVMe storage performance in highly compact deployment environments.

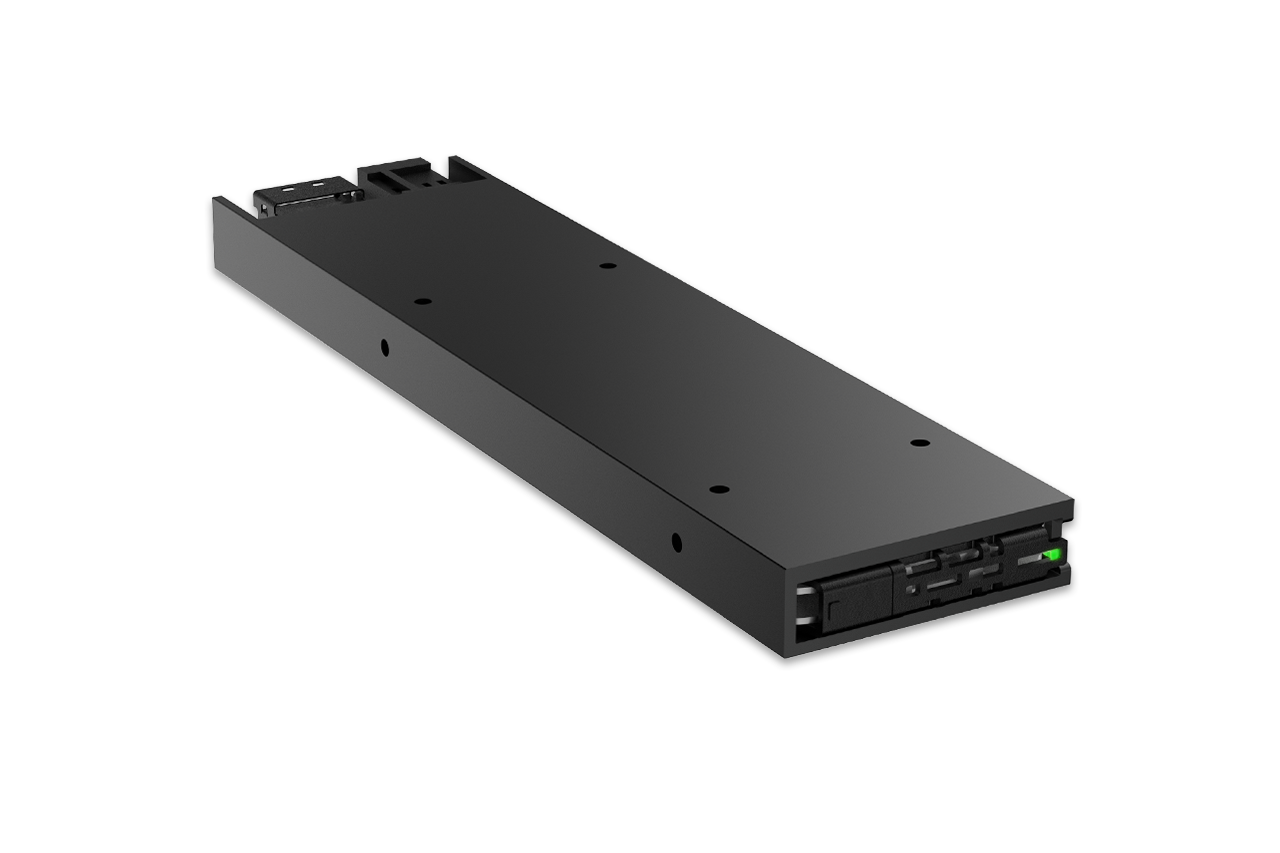

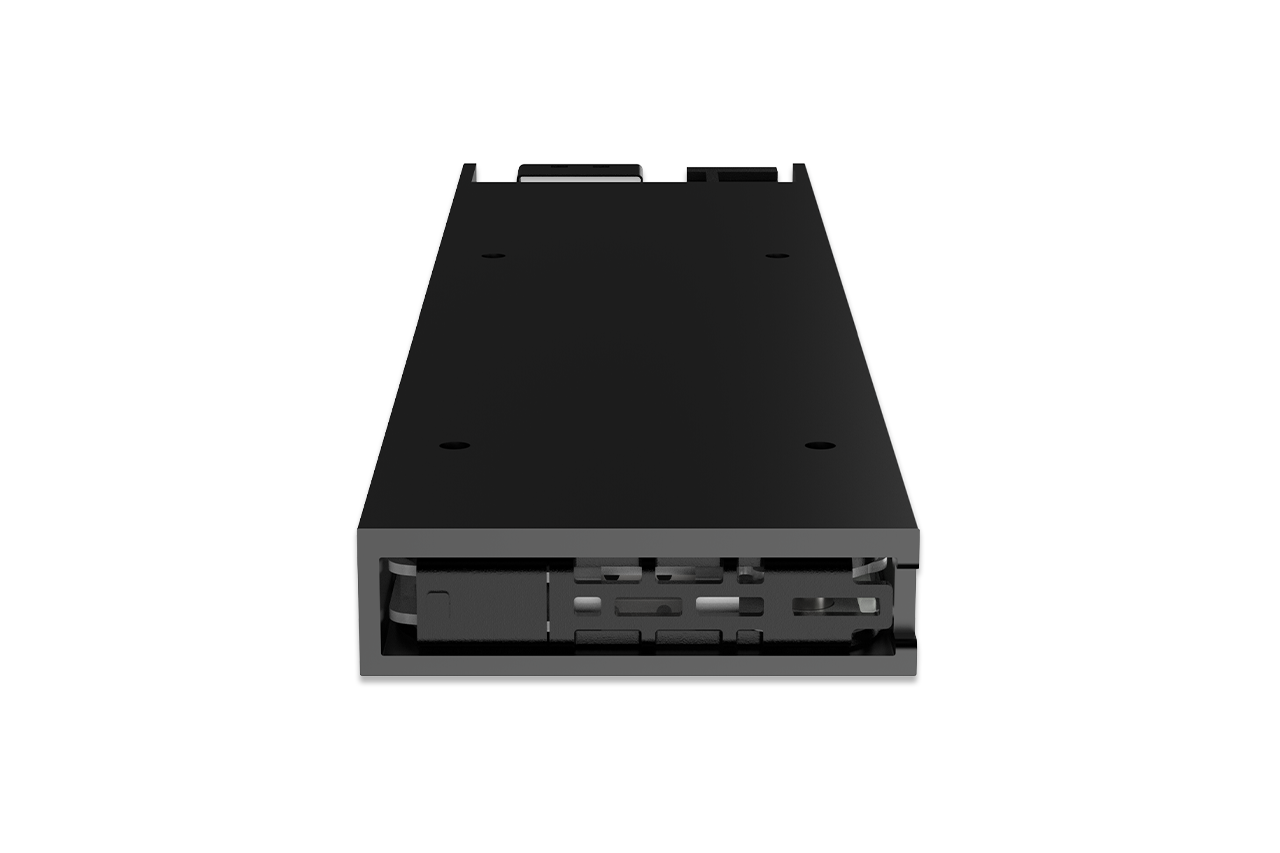

Its ultra-slim removable enclosure design is particularly suitable for systems where standard drive bays or fixed internal SSD mounting are impractical.
The enclosure also includes flexible mounting points, allowing integrators to install the CP160 into custom brackets, chassis layouts, or specialized embedded or rackmount integrations.

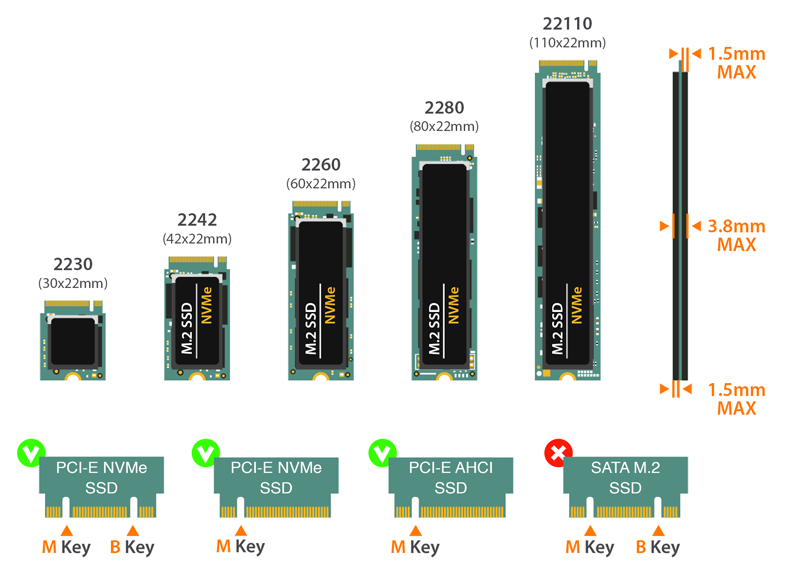

| • | Supports 1 × M.2 NVMe SSD (2230 / 2242 / 2260 / 2280 / 22110) |

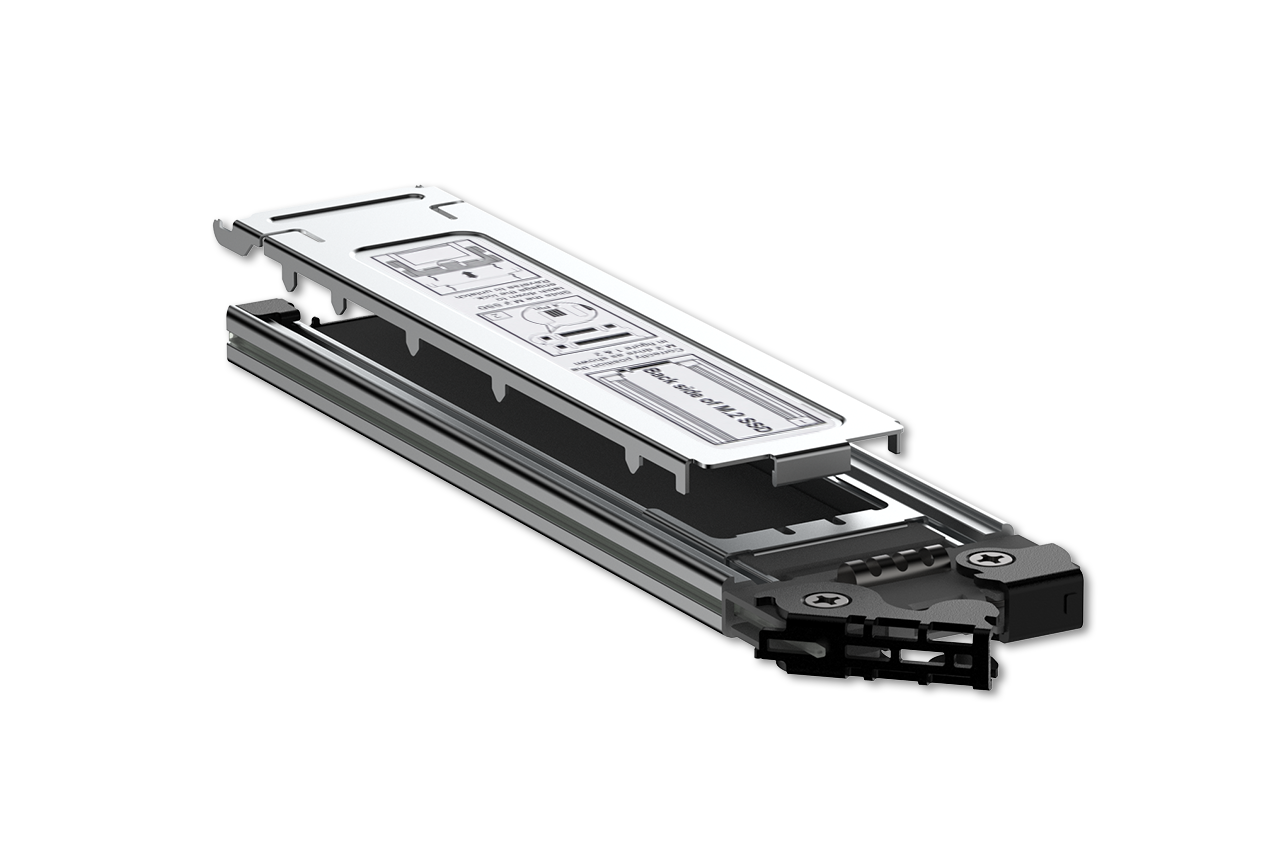

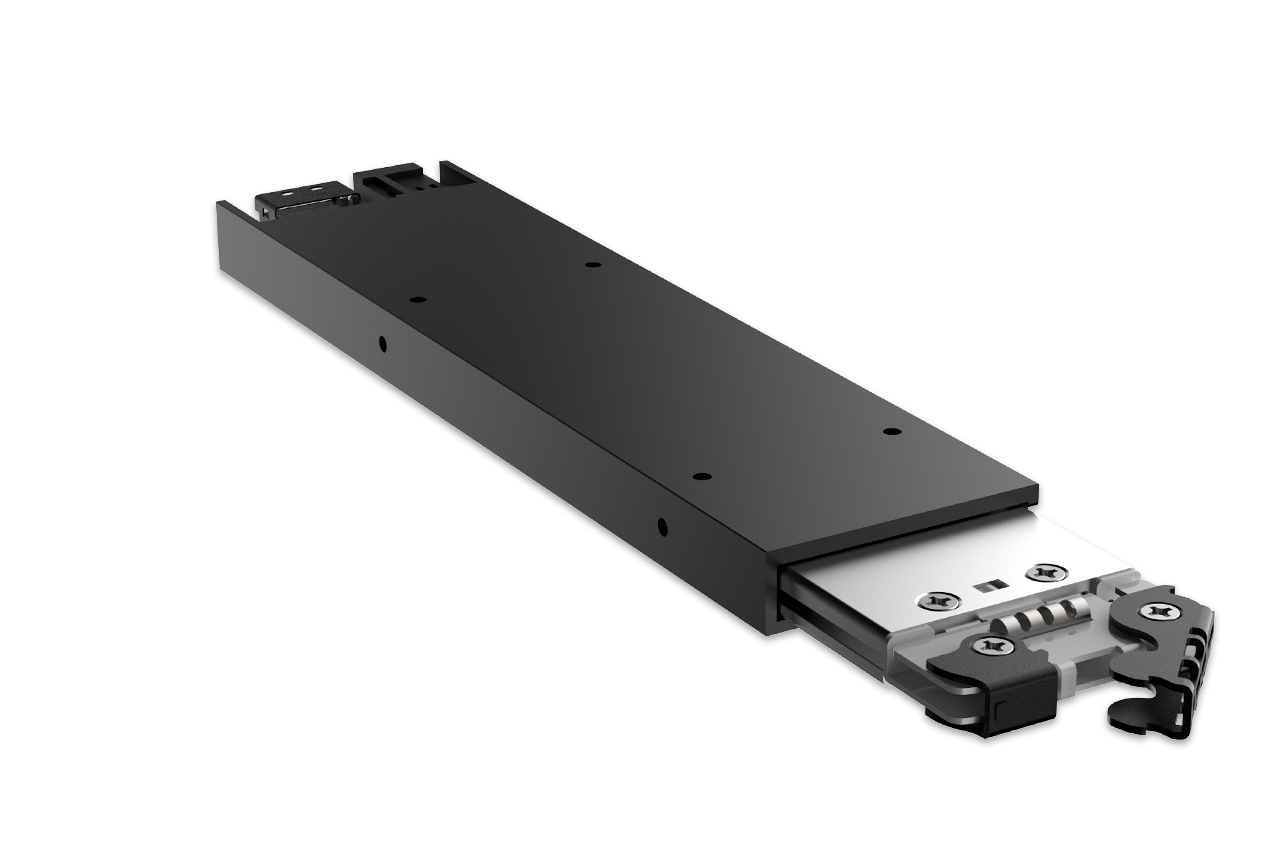

| • | Removable tray design for simplified SSD maintenance and replacement |

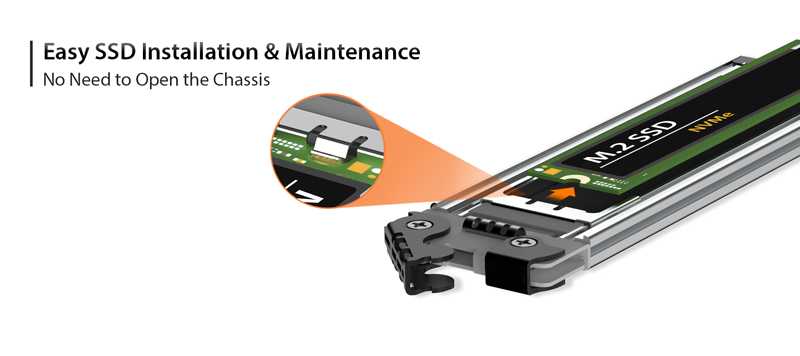

| • | Tool-less SSD installation design |
| • | PCIe 5.0 x4 interface up to 128Gbps (depending on SSD performance) |

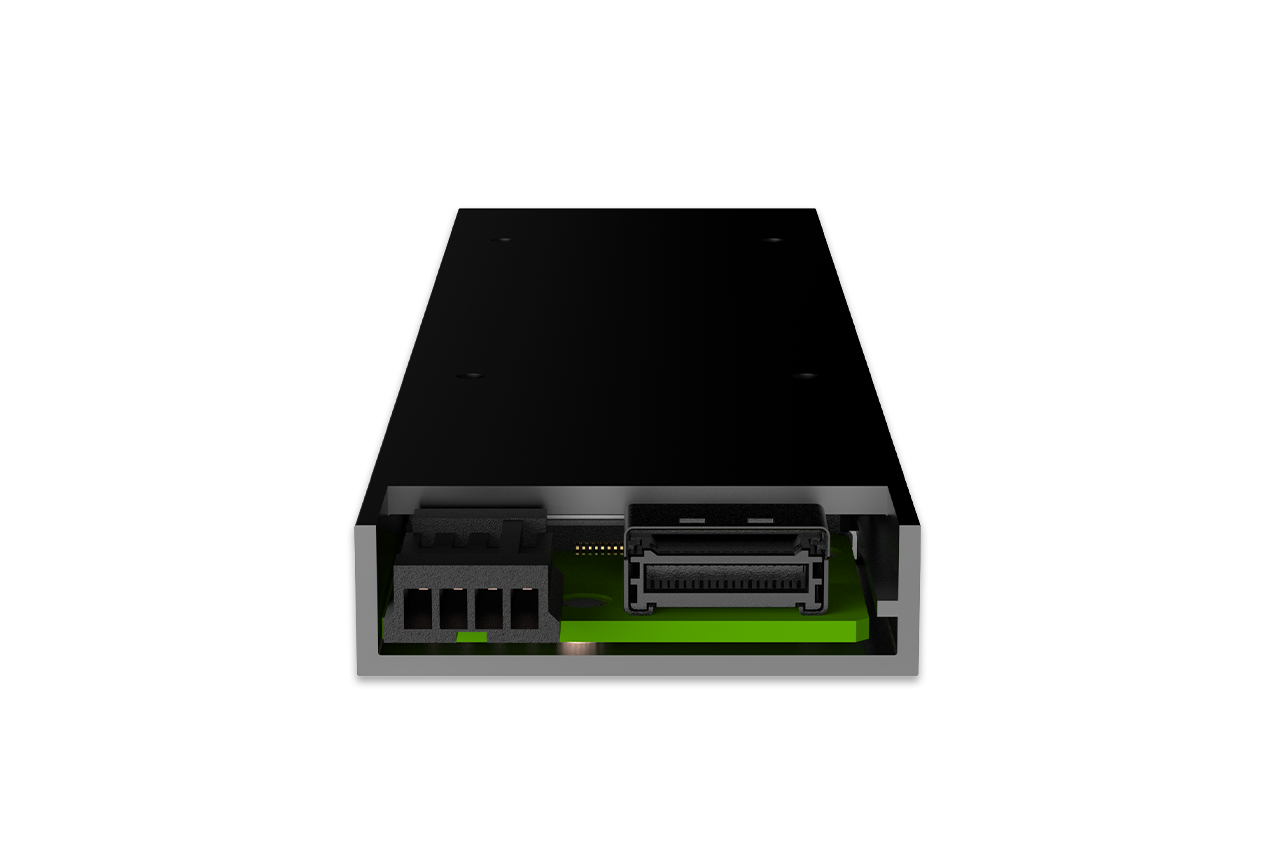

| • | MCIO 4i host interface |
| • | Ultra-slim enclosure optimized for non-standard installation spaces |

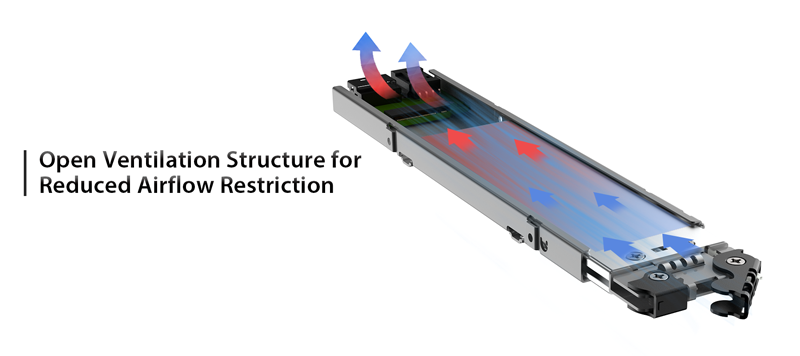

| • | Fanless mechanical design optimized for chassis airflow environments |
| • | Full-metal construction for improved durability and passive heat dissipation |
| • | Flexible mounting points for custom chassis, rackmount, and embedded system integration |
| • | LED activity indicator for SSD power and activity status |
| • | EMI grounding and structural reinforcement design for enterprise and industrial deployment |
| Model Number： | CP160 |
| Color： | Black |
| Host Interface： | 1 x MCIO 4i connector |
| Drive Fit： | 1 x M.2 NVMe SSD (2230/2242/2260/2280/22110) |
| Device Fit： | Non-standard space |
| Maximum Transfer Rate： | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Power Input： | 1 x Floppy 4 pin power |
| SSD Access Indicator： | SSD power: solid green; SSD access: flashing green; Empty: off |
| Structure： | Full metal |
| Package Contents： | Device, user manual, screws, thermal pads |
