Concept Product CP155

5.9mm/8.01mm to 9.5mm E1.S SSD Form Factor Converter/Adapter/Bracket
Product Details
CP155 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products

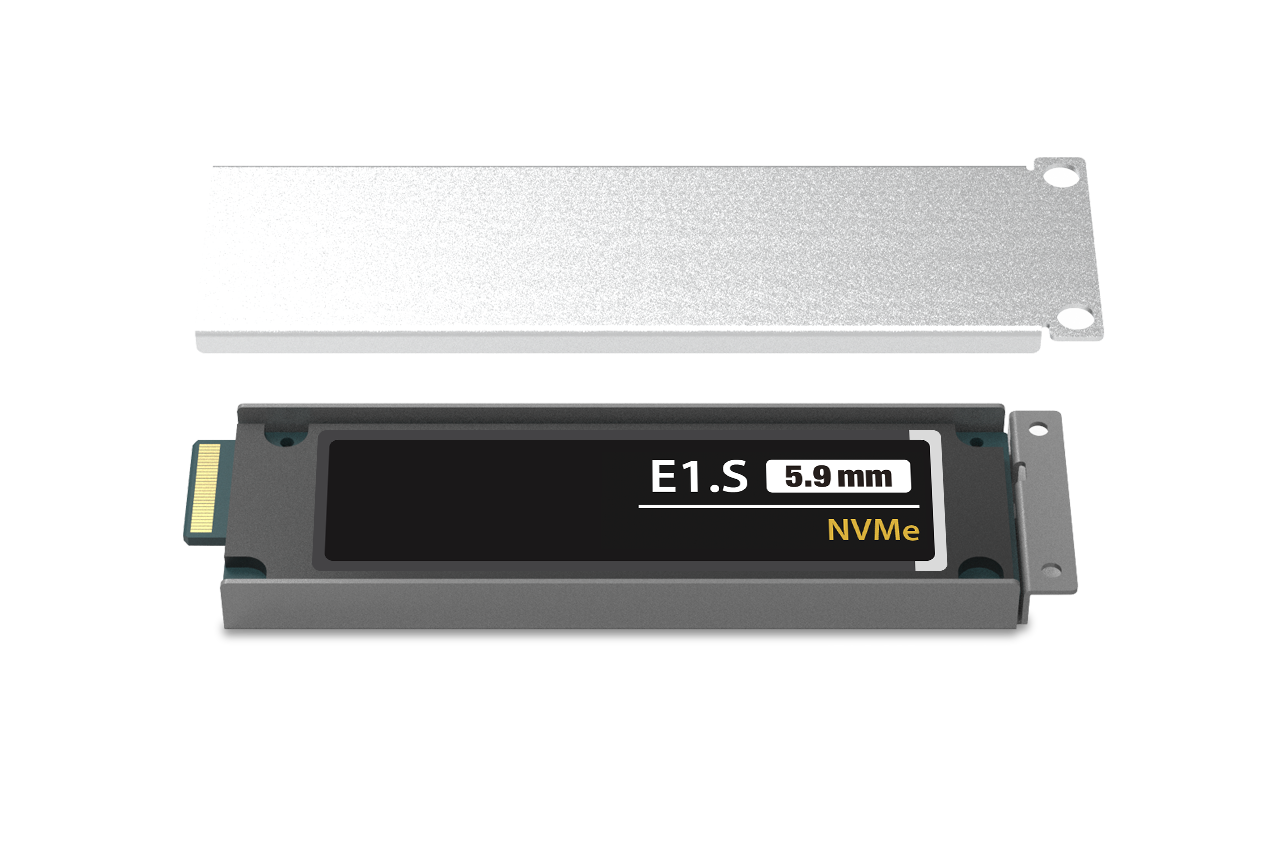

  • The ICY DOCK CP155 is a rugged E1.S SSD form factor converter that transforms a 5.9mm or 8.01mm E1.S NVMe SSD into a standard 9.5mm E1.S drive. It precisely matches the connector position, external dimensions, and mounting points of native 9.5mm E1.S modules, ensuring full compatibility with existing backplanes, trays, and tool-less drive carriers. Built with a durable all-metal enclosure and bundled with high-efficiency thermal pads, the CP155 not only improves compatibility but also enhances passive heat dissipation - making it an ideal solution for system integrators, data center engineers, and OEMs looking to unify SSD module dimensions across multiple platforms.
  • Seamless Integration with Standard 9.5mm E1.S Ecosystems
    The CP155 bridges the mechanical gap between thinner E1.S SSD formats (5.9mm and 8.01mm) and the standardized 9.5mm E1.S drive slots. By replicating the standard height, screw hole locations, and connector alignment, it ensures a secure and reliable fit within 9.5mm-compatible E1.S trays, caddies, and hot-swap server infrastructure - eliminating the need for custom modifications.

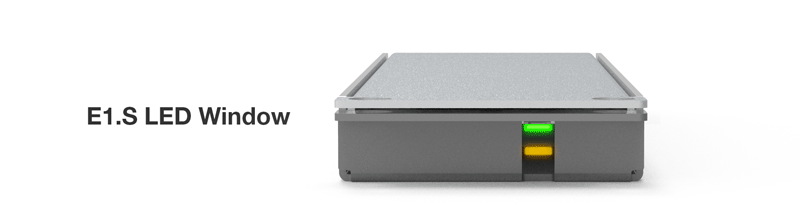

  • LED Indicator Window for Drive Status Monitoring
    The CP155 includes a rear cutout that exposes the onboard LED indicators of 5.9mm and 8.01mm E1.S SSDs - positioned to align with the standard 9.5mm E1.S LED window location. This allows users to clearly view SSD power and activity status without removing the converter, ensuring convenient monitoring during installation or maintenance.

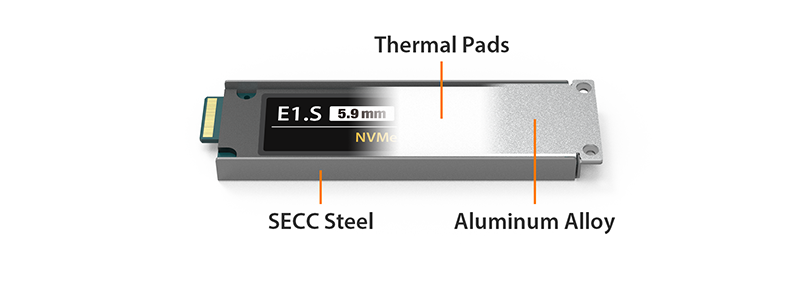

  • Optimized Passive Cooling with Full-Metal Design

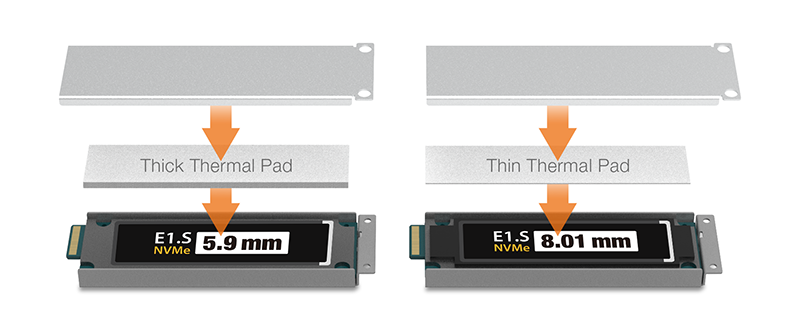

    Equipped with an aluminum top cover and SECC steel bottom panel, the CP155 enclosure serves as a robust heatsink to help dissipate excess heat. It comes with both thin and thick thermal pads to ensure direct contact between the SSD and enclosure surface, reducing operating temperatures and prolonging SSD endurance in high-density or thermally constrained environments.
Main Features
• Converts 5.9mm or 8.01mm E1.S SSDs to 9.5mm E1.S mechanical form factor

• Fully compatible with standard 9.5mm E1.S trays, tool-less carriers, and hot-swap drive bays

• Full-metal construction enhances protection and passive cooling

• Includes both thin and thick thermal pads for optimal heat transfer

• Tool-less SSD installation

• Enables deployment of slim SSDs in standardized 9.5mm E1.S infrastructure

• Ideal for enterprise servers, modular storage builds, and SSD qualification workflows

• Designed to meet ASHRAE A2 thermal guidelines (≤65°C under stress)







Specification
Model Number： CP155
Color： Silver
Support Drive Size： 5.9mm or 8.01mm E1.S SSD
Compatible Drive Type： E1.S SSD
Number of Drives： 1
Drive Bay： 9.5mm E1.S SSD
Drive Cooling： Passive cooling
Structure / Material： Full metal
Package Contents： Device, user manual, thermal pads
Humidity： 5%~65% RH
Operating Temperature： 0°C to 60°C (32°F to 140°F)
Storage Temperature： -35°C to 70°C (-31°F to 158°F)
Compliance： CE, RoHS, REACH
Warranty： 5 years limited warranty
