The CP169 is engineered as a compact, non-standard EDSFF storage module, providing greater layout flexibility for OEM and SI rackmount system development. Unlike traditional fixed drive cages, the CP169 is intended for direct chassis-level integration, allowing builders to optimize front-panel storage density and airflow for modern E3.S server platforms. The compact module design enables:
| • | Ultra-compact, non-standard module size tailored for OEM and rackmount system integration |
| • | Supports 8 × 7.5mm E3.S NVMe SSDs |
| • | PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance) |
| • | 4 × MCIO 8i (SFF-TA-1016) host interfaces |

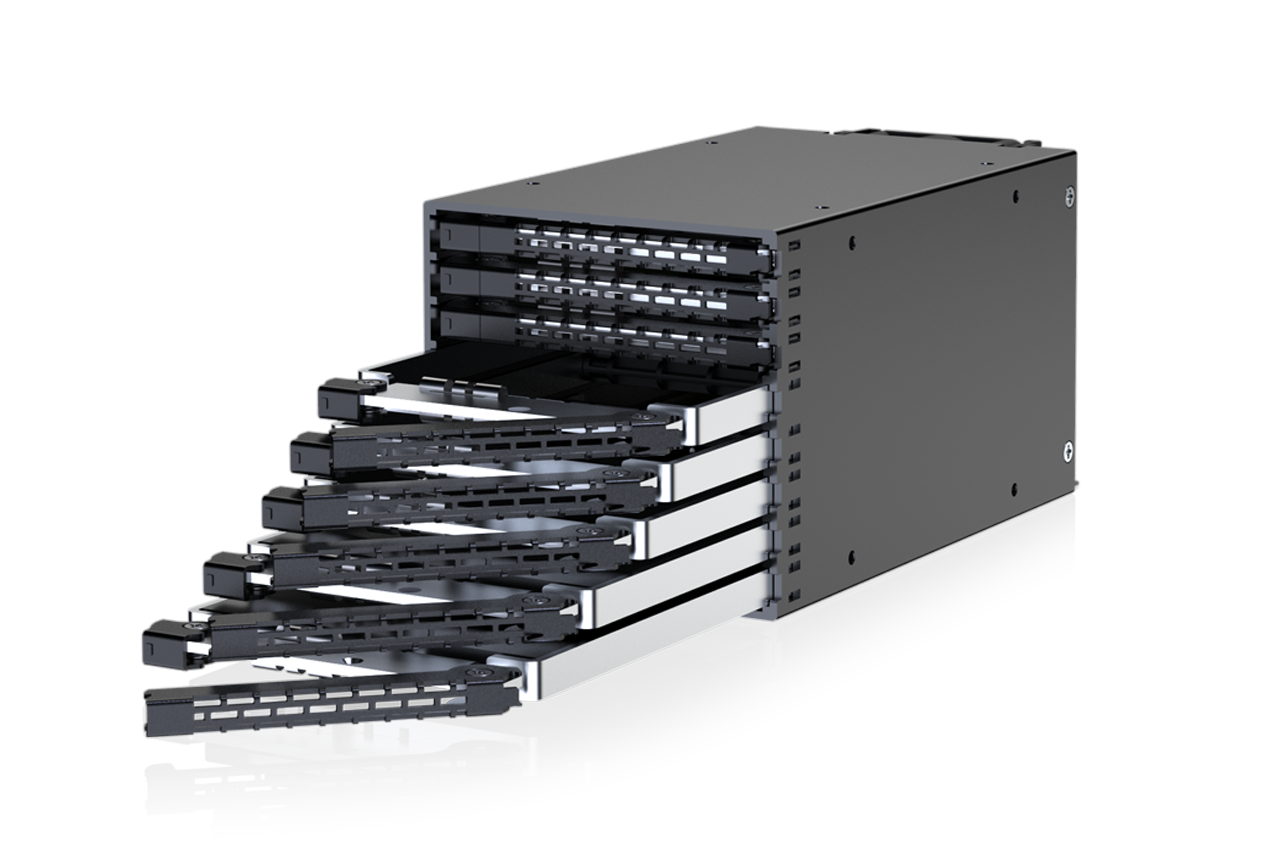

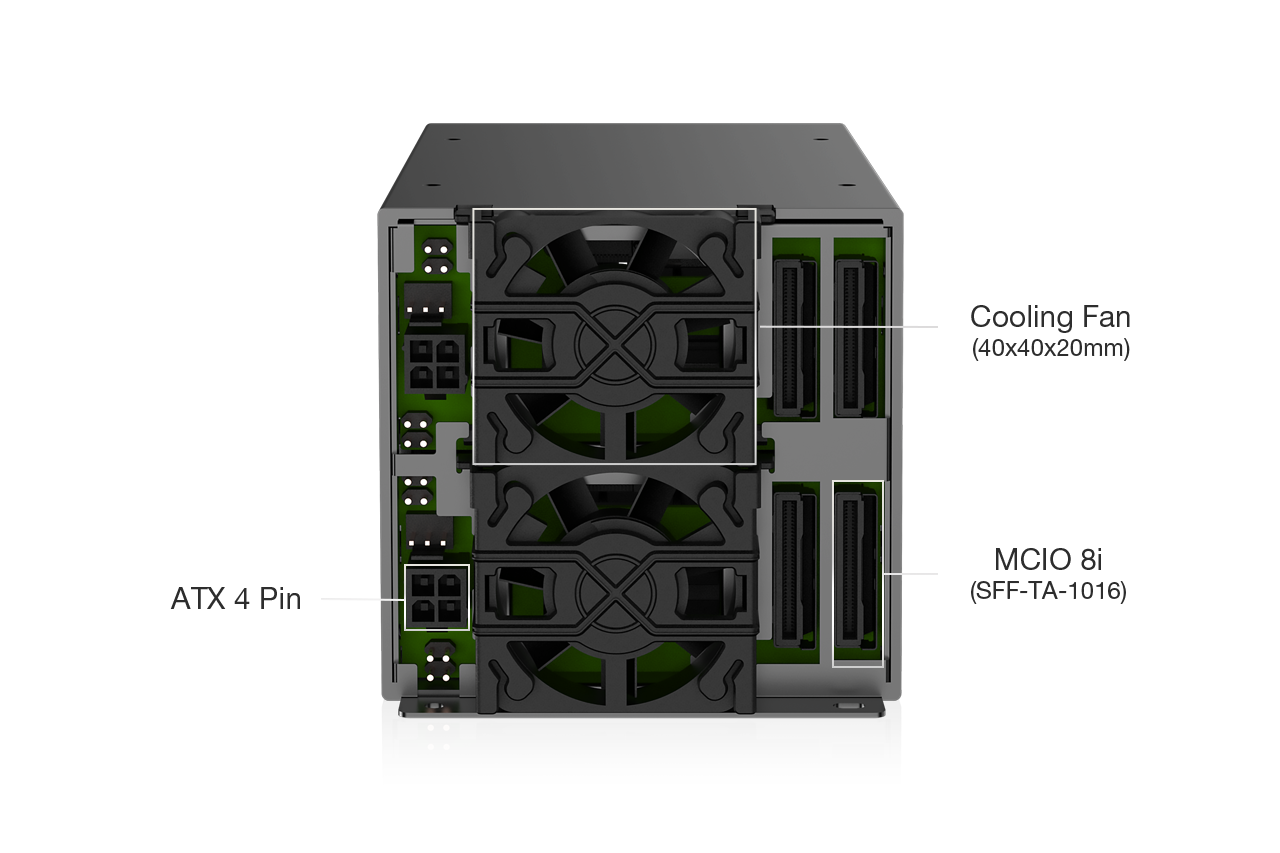

| • | Front-access removable E3.S SSD tray design |
| • | Supports hot-plug drive replacement |
| • | Front-panel LED status indication |
| • | Host-defined amber LED support |
| • | Dual 40×40×20mm cooling fans in removable tool-less fan module |
| • | Rugged full-metal construction |
| • | Enterprise-focused EMI grounding design |
| • | Designed for AI, edge computing, and next-generation EDSFF storage platforms |
| • | Concept product for future high-density PCIe Gen5 EDSFF storage development |
| Model Number： | CP169 |
| Available Colors： | Black |
| Host Interface： | 4 x MCIO 8i (SFF-TA-1016 8i) |

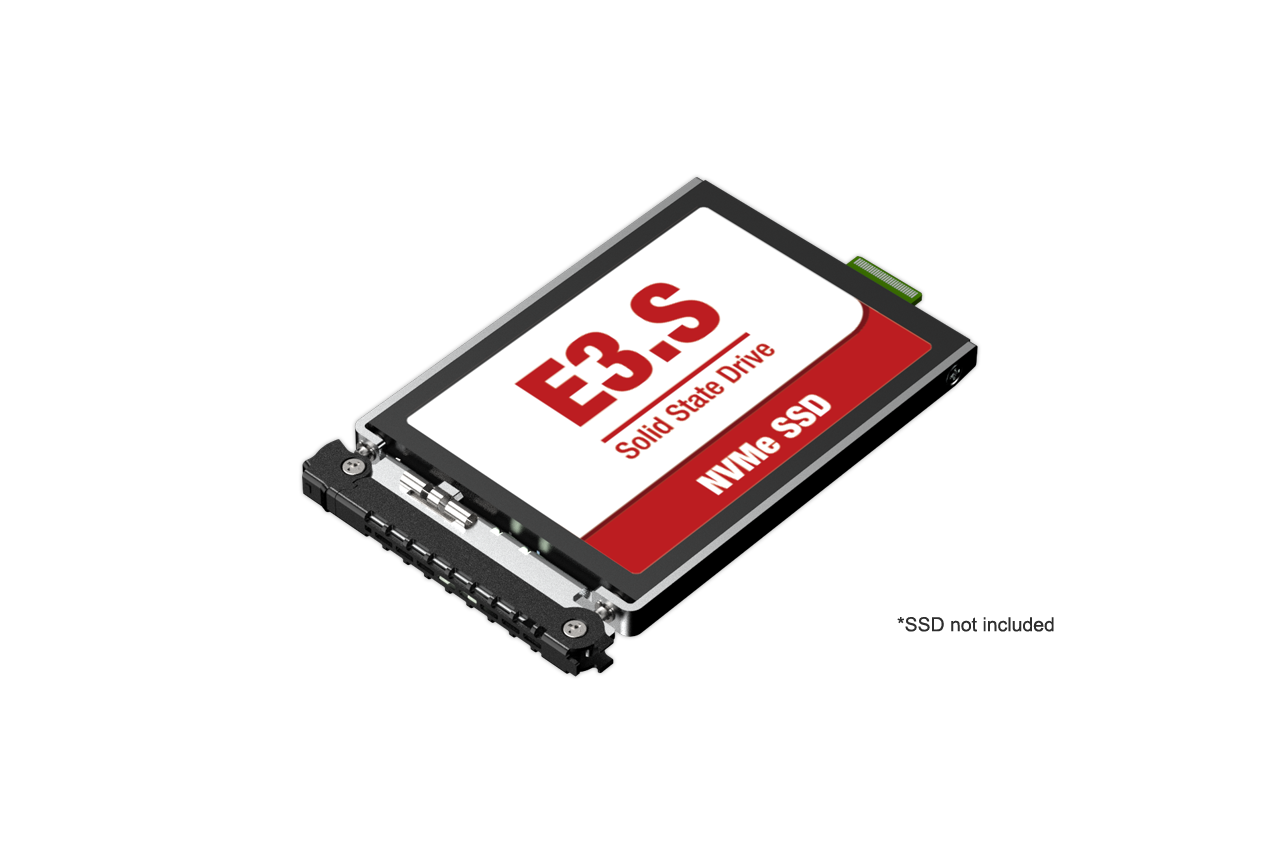

| Drive Fit： | 8 x 7.5mm E3.S SSD |

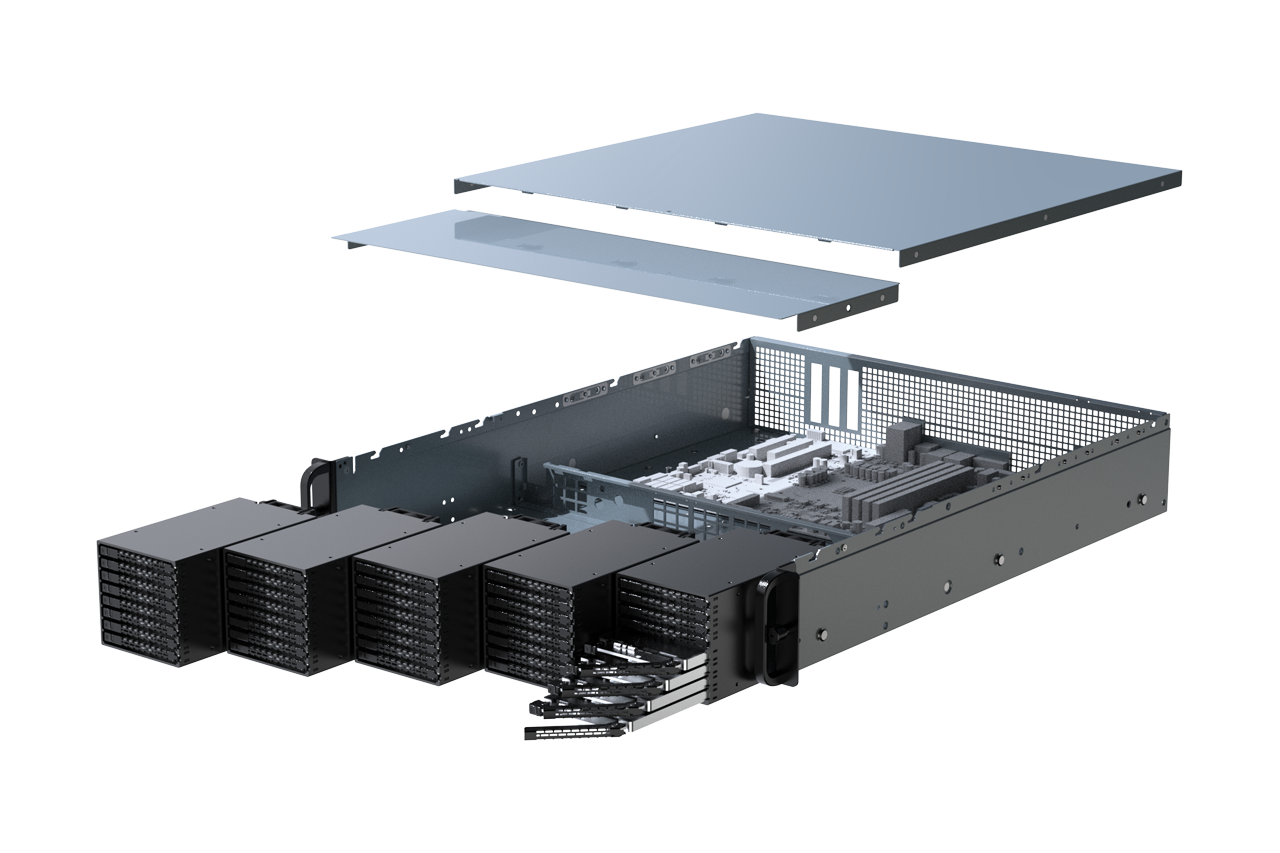

| Device Fit： | Partial rack mount chassis space |
| Maximum Transfer Rate： | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Power Input： | 2 x ATX 4 pin |
| SSD Access Indicator： | Green: LED (drive power: solid green, drive access: flashing green) Amber: LED (function is defined by host) Empty: LED off |
| Fan Type： | 2 x 40 x 40 x 20mm fan |
| Structure： | Full metal |
| Package Contents： | Device, user manual, screws |
| Dimension (W x H x D)： | 84.05 x 81.3 x 145 mm (TBD) |
| Weight： | 1300g (TBD) |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
