Concept Product CP166

Ultra-Compact 4 Bay E3.S SSD PCIe 5.0 Mobile Rack Module for Custom Rackmount Systems (2 x MCIO 8i SFF-TA-1016)
Product Details
CP166 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products

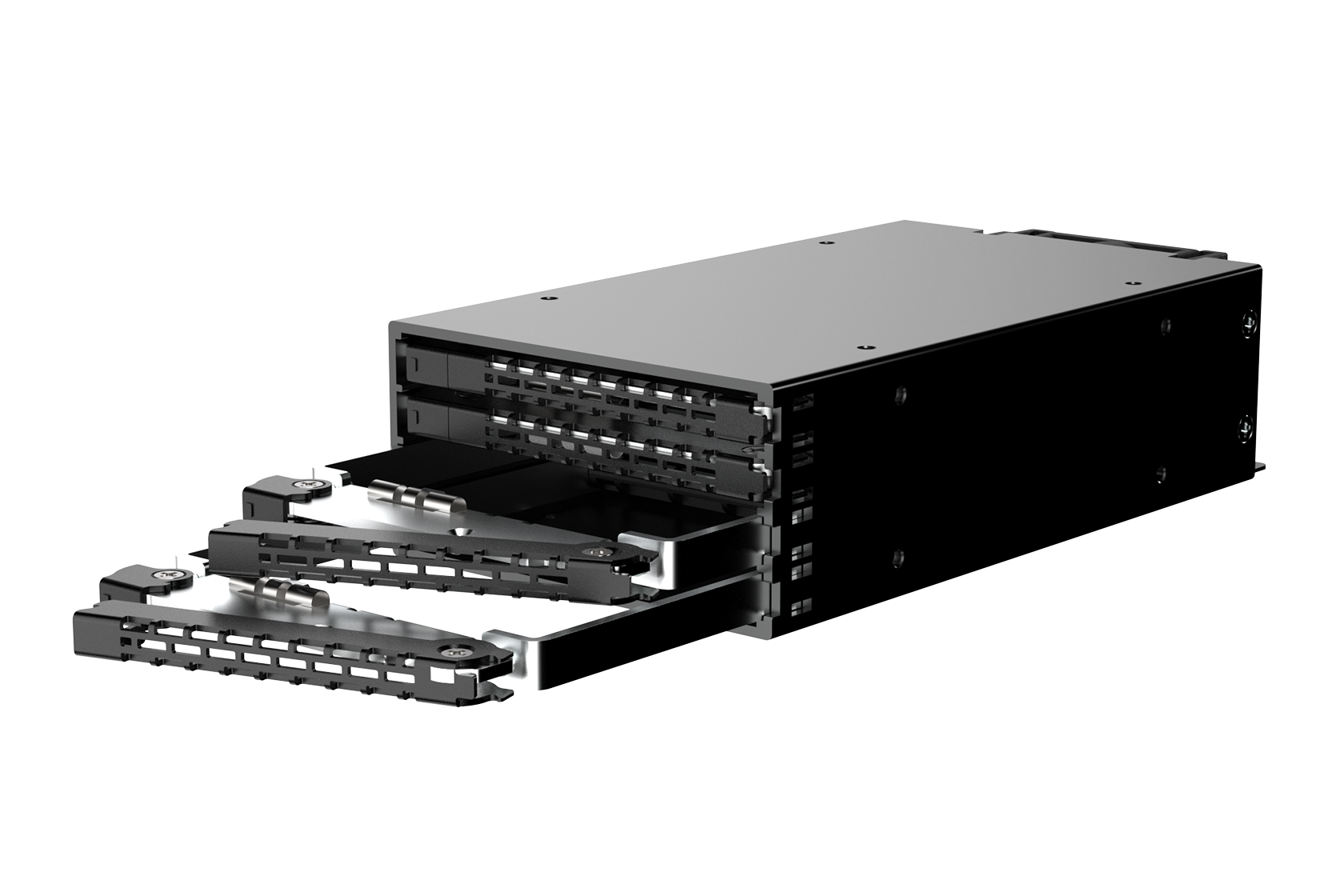

  • The CP166 is an ultra-compact, non-standard 4-bay E3.S NVMe SSD mobile rack module designed for custom rackmount systems, edge computing platforms, and next-generation embedded server applications. Supporting four 7.5mm E3.S PCIe 5.0 x4 SSDs within an exceptionally compact enclosure, the CP166 enables system integrators and OEMs to deploy removable EDSFF storage while preserving valuable chassis space for additional compute, networking, or accelerator hardware.

    Featuring removable metal drive trays, MCIO 8i (SFF-TA-1016) connectivity, and a serviceable active cooling design, the CP166 delivers front-accessible PCIe Gen5 storage optimized for flexible system integration and scalable E3.S storage architectures.
  • Space-Efficient EDSFF Storage Module for Flexible System Designs

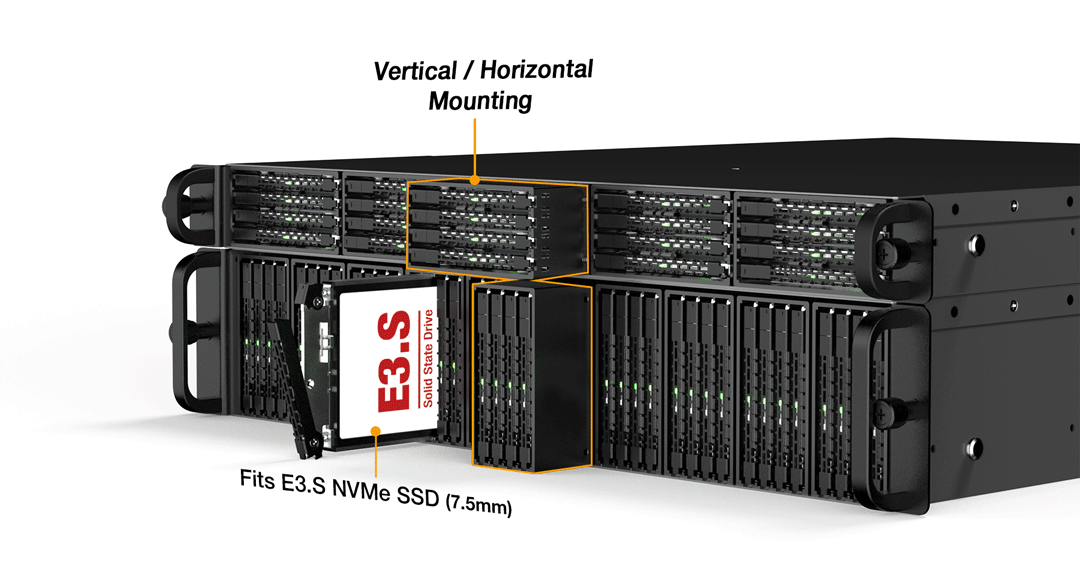

    The CP166 is engineered as a compact EDSFF storage module for OEM and SI system development where available chassis space is limited. Compared to larger storage modules, the CP166 provides greater deployment flexibility, allowing builders to distribute multiple storage modules throughout a system while maintaining optimized airflow and internal component placement. The compact module design enables:

    • Flexible storage placement within custom rackmount platforms
    • Scalable E3.S storage expansion for modular system architectures
    • Space-efficient integration alongside GPUs, accelerators, or networking hardware
    • Embedded and edge computing systems with limited front-panel space
    • High-performance storage subsystems for custom enterprise platforms

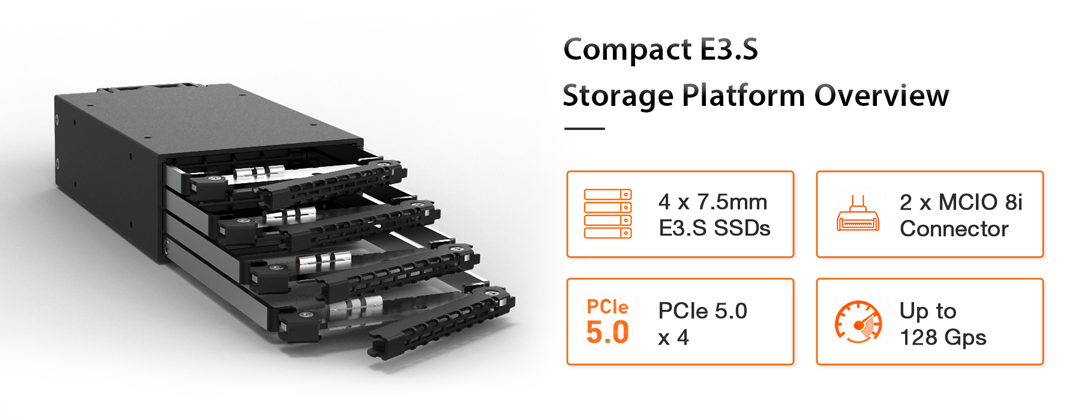

  • PCIe Gen5 E3.S Storage for Compact High-Performance Platforms

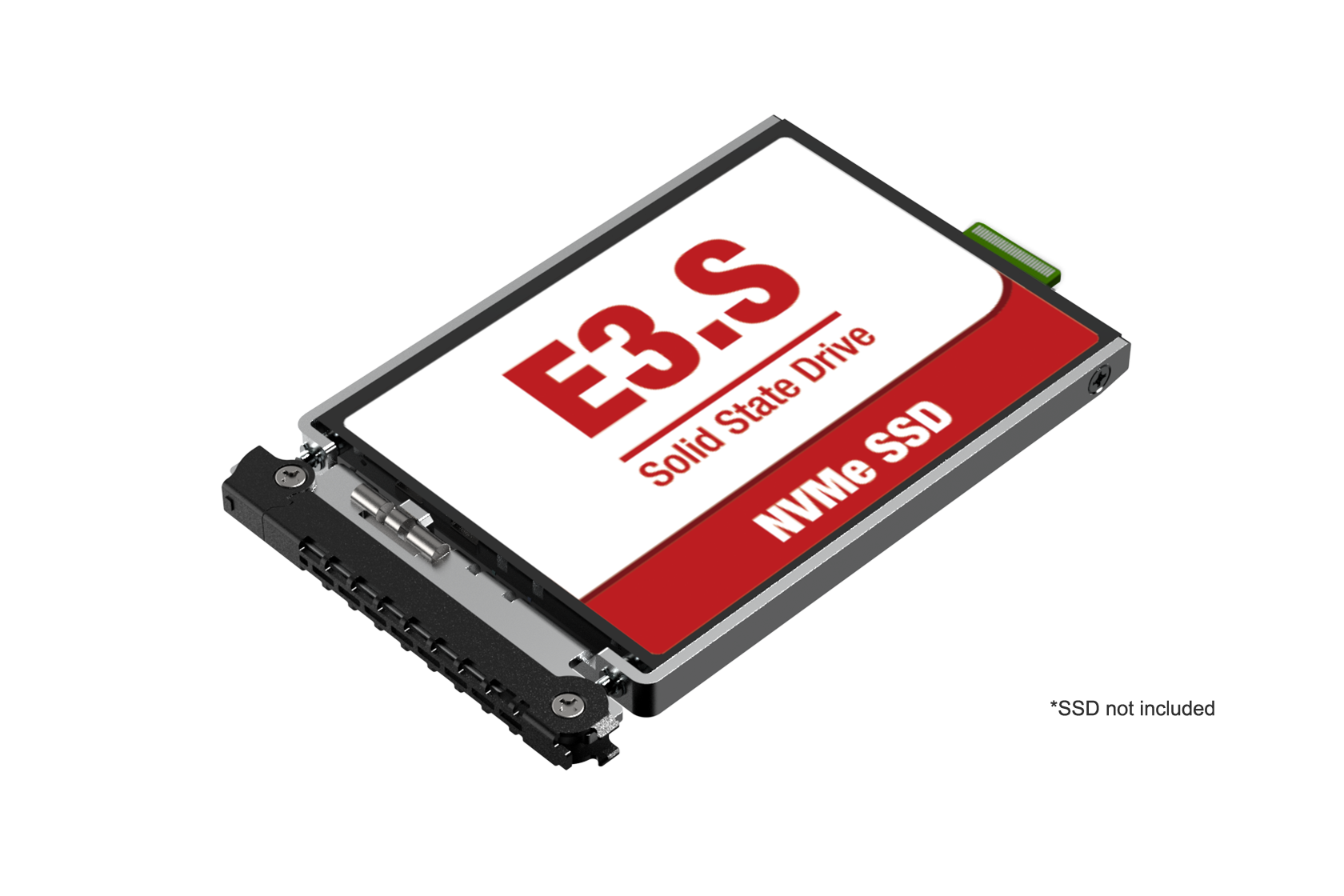

    The CP166 supports 4 × 7.5mm E3.S NVMe SSDs, with each drive supporting PCIe 5.0 x4 bandwidth up to 128Gbps through two MCIO 8i interfaces. Designed for modern EDSFF storage deployments, the platform provides high-speed removable storage suitable for AI edge servers, industrial computing systems, virtualization nodes, caching applications, and next-generation enterprise storage architectures.

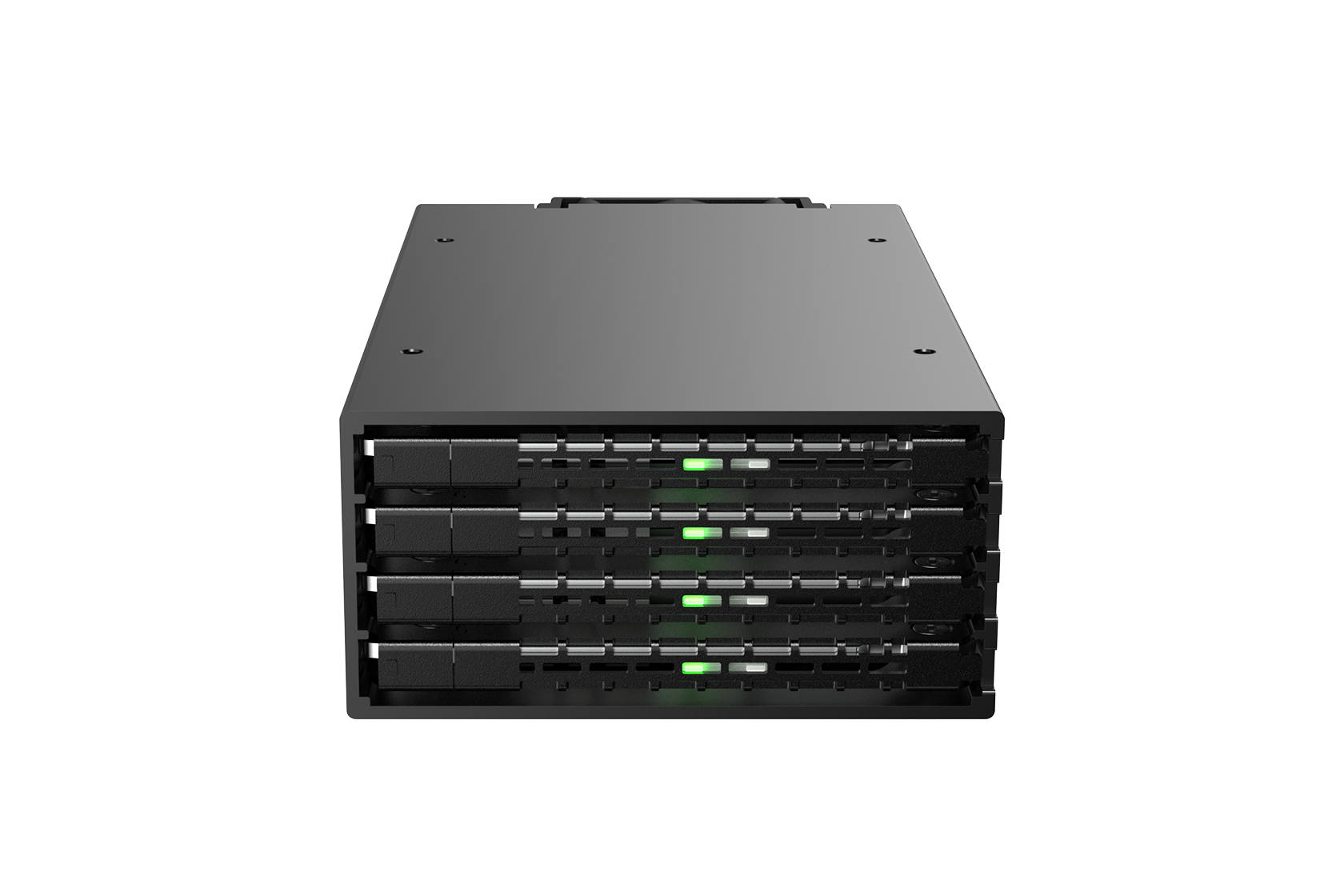

  • Front-Accessible Removable Metal Drive Trays
    The CP166 utilizes rugged full-metal removable E3.S trays for simplified SSD installation, replacement, and maintenance. The front-access design enables easier serviceability while supporting hot-plug drive replacement in enterprise and industrial environments.

    The tray structure is designed to provide stable SSD retention while minimizing tray movement during operation, making the CP166 suitable for applications requiring dependable storage accessibility and long-term system reliability.
  • Tool-Less Fan Module for Easier Maintenance

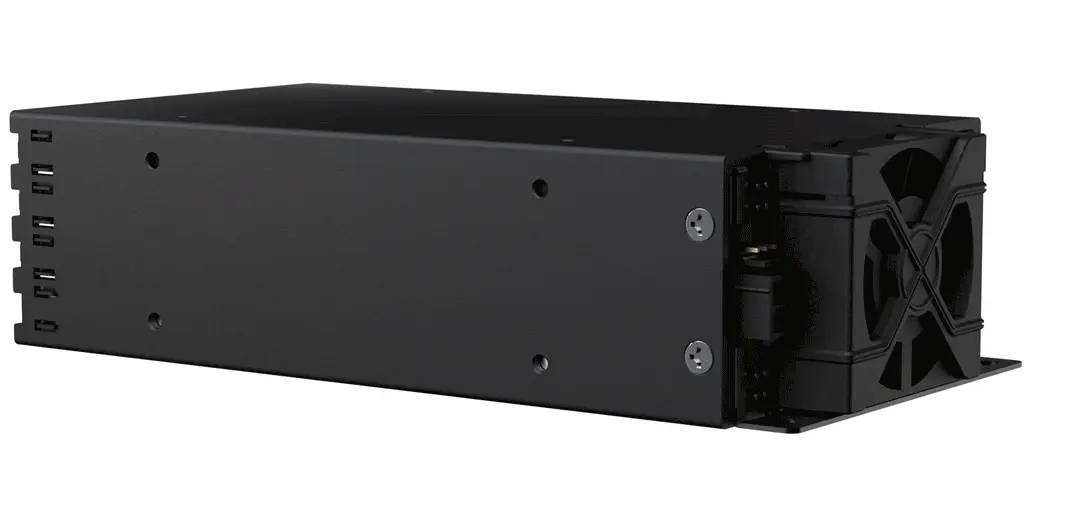

    The CP166 incorporates a removable 40×40×20mm cooling fan module that can be serviced or replaced without disassembling the entire enclosure. Designed for continuous operation in enterprise, industrial, and edge deployments, the modular cooling design helps simplify maintenance procedures while providing consistent airflow for PCIe Gen5 E3.S SSD workloads. The rear-mounted cooling architecture also allows multiple CP166 modules to be deployed within a single chassis while maintaining efficient thermal performance.
Main Features
• Ultra-compact, non-standard module size tailored for OEM and rackmount system integration

• Supports 4 x 7.5mm E3.S NVMe SSDs

• PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance)

• 2 x MCIO 8i (SFF-TA-1016) host interfaces

• Front-access removable E3.S SSD tray design

• Supports hot-plug drive replacement

• Front-panel LED status indication

• Host-defined amber LED support

• Removable 40×40×20mm cooling fans in removable tool-less fan module

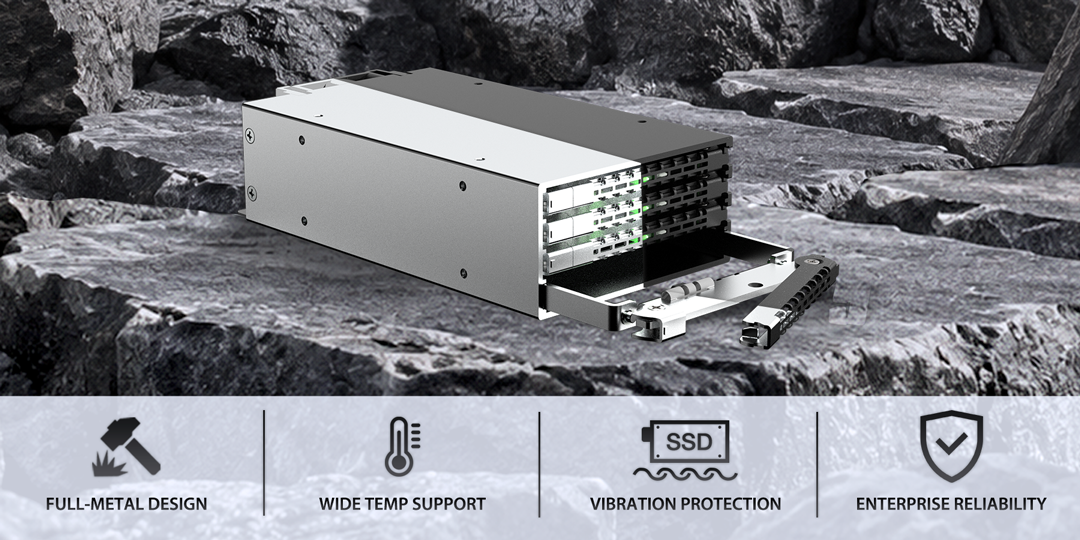

• Rugged full-metal construction

• Enterprise-focused EMI grounding design

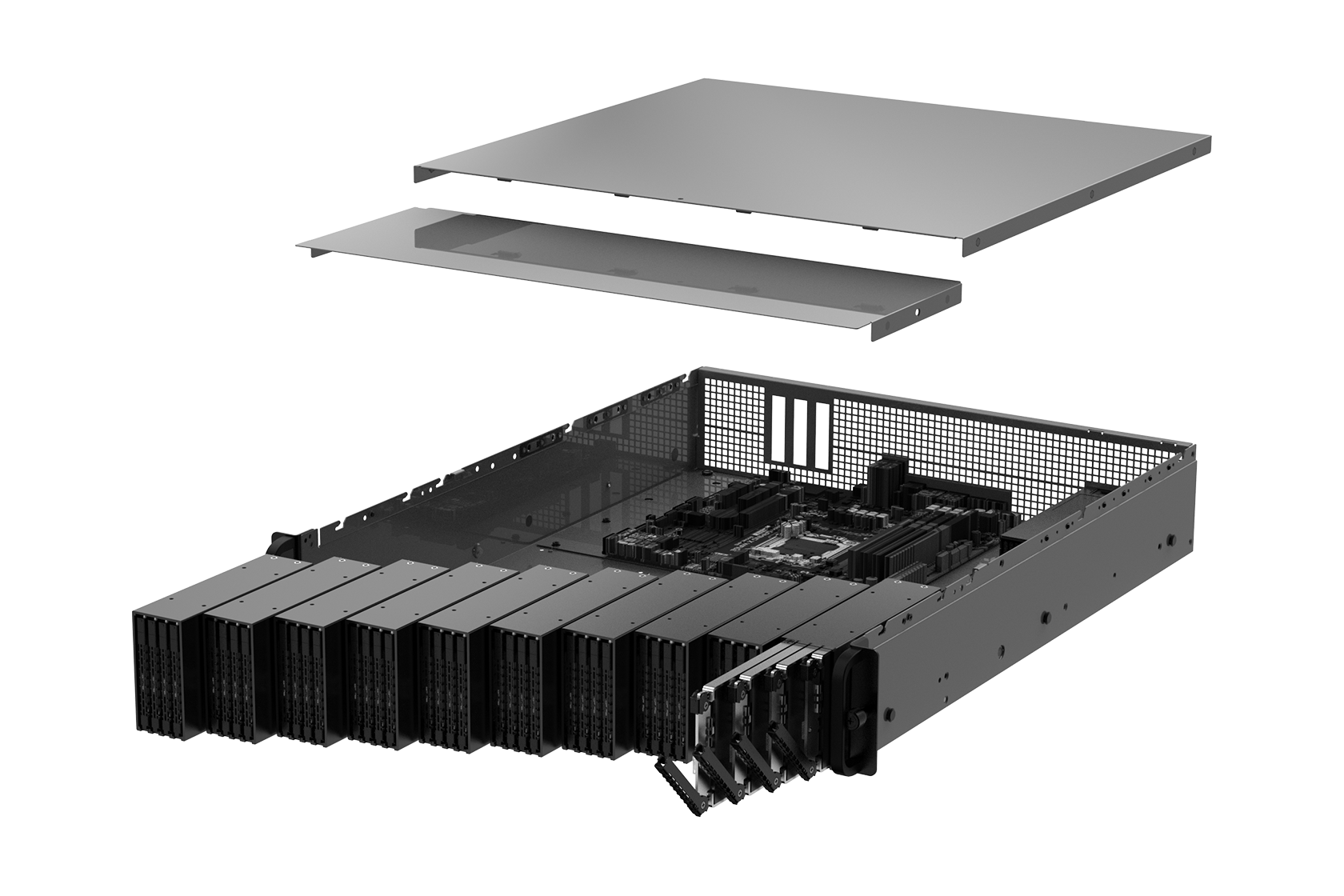

• Supports scalable multi-module deployment in 1U and 2U rackmount platforms

• Designed for edge computing, embedded systems, AI infrastructure, and next-generation EDSFF storage platforms

• Concept product for future high-density PCIe Gen5 EDSFF storage development

Specification
Model Number： CP166
Color： Black
Support Drive Size： 7.5mm E3.S SSD
Compatible Drive Type： E3.S SSD
Number of Drives： 4
Drive Bay： Partial rack mount chassis space

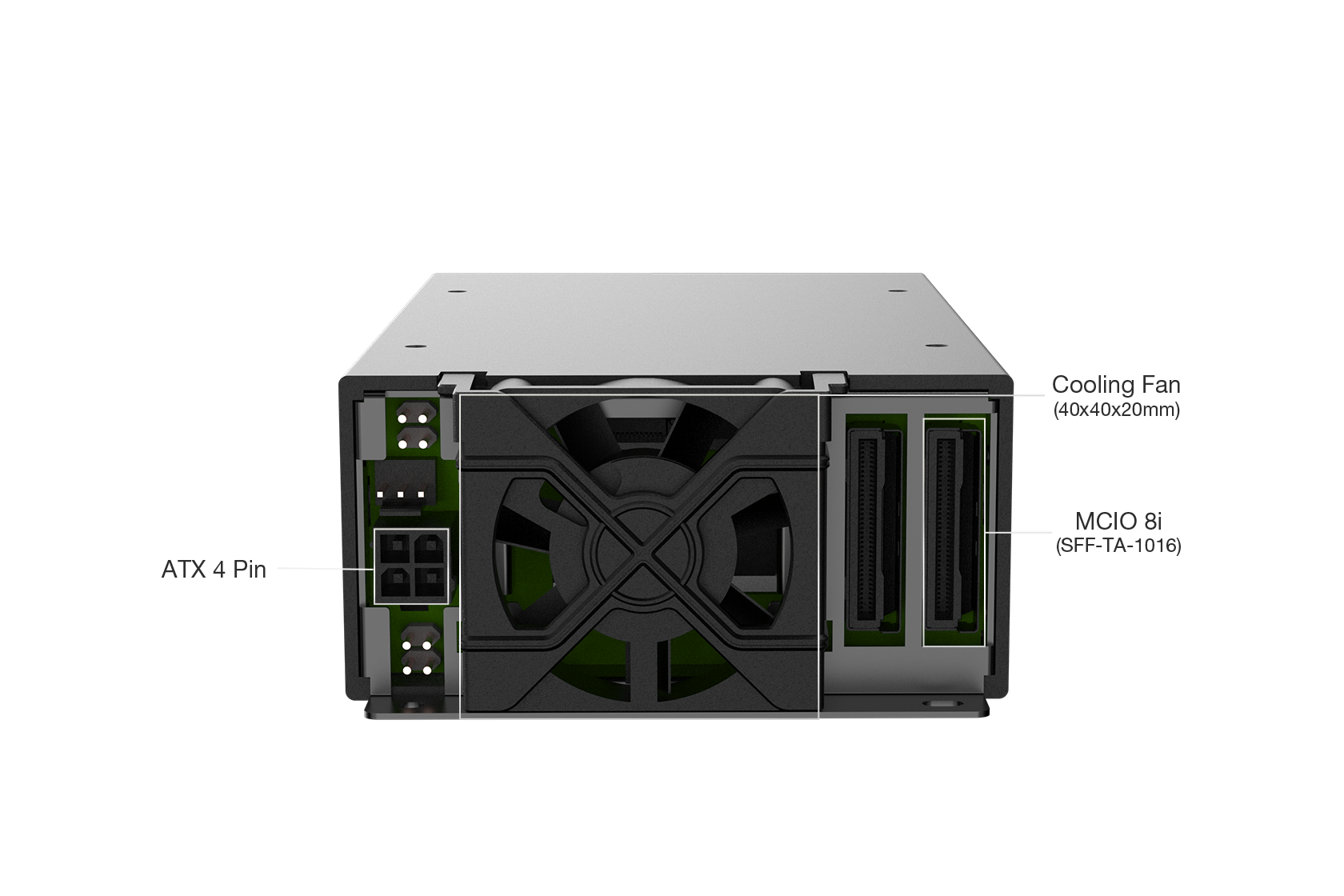

Host Interface： 2 x MCIO 8i (SFF-TA-1016 8i)
Power Input： 1 x ATX 4 pin
Transfer Rate： PCIe 5.0 x4 up to 128Gbps (depending on SSD speed)
Drive Activity LED Indication： Green LED: drive power: solid green, drive access: flashing green
Amber LED: function is defined by host
LED off: empty drive bay
Drive Cooling： 1 x 40 x 40 x 20mm fan
Hot Plug： Yes
Structure / Material： Full metal
Package Contents： Device, user manual, drive ID plugs
Product Dimension (W x H x D)： 80 x 40 x 160 mm (TBD)
Product Net Weight： 1000g (TBD)
