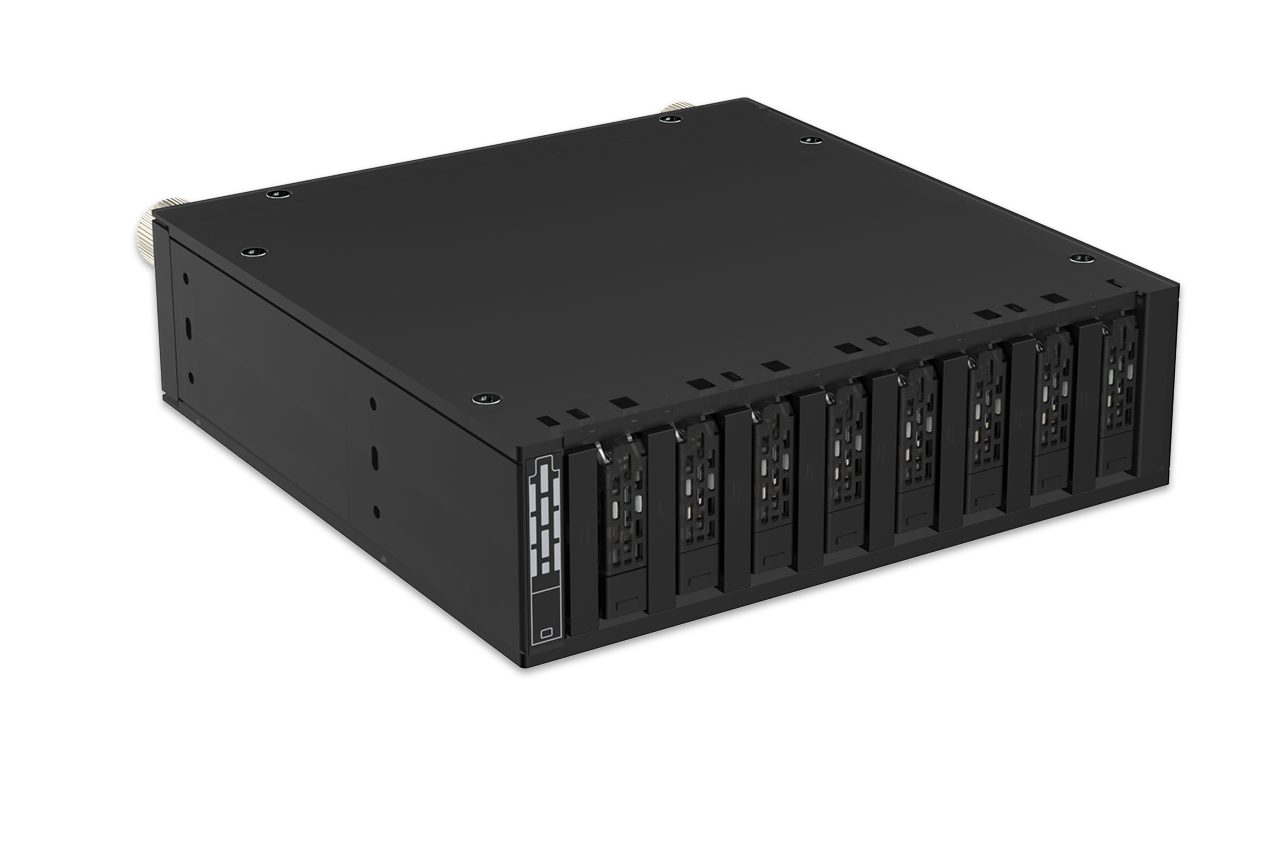

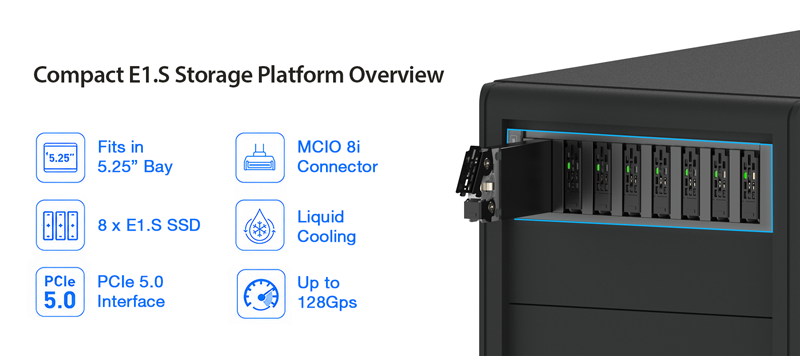

| • | Supports 8 × 9.5mm E1.S NVMe SSDs |
| • | Fits one standard 5.25” drive bay |
| • | PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance) |

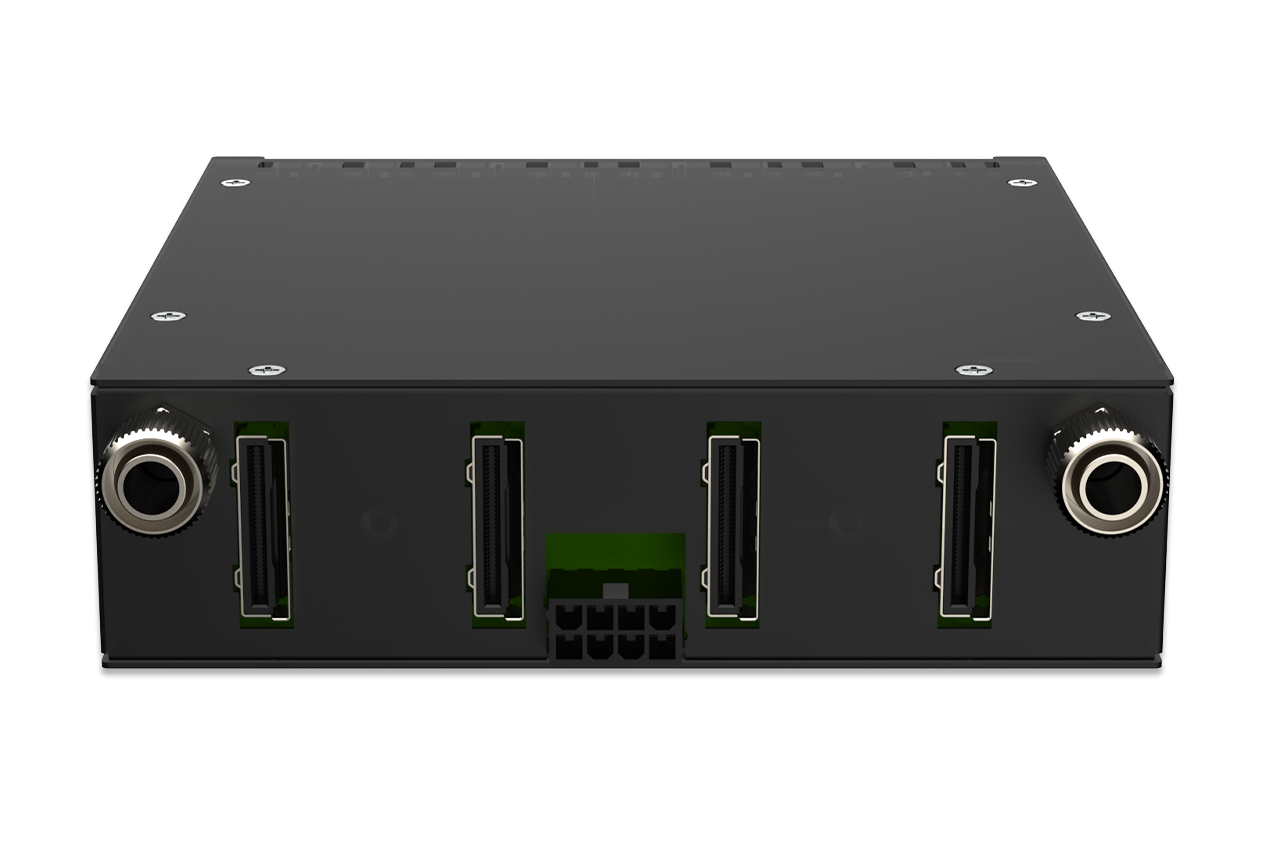

| • | 4 × MCIO 8i (SFF-TA-1016) host interfaces |

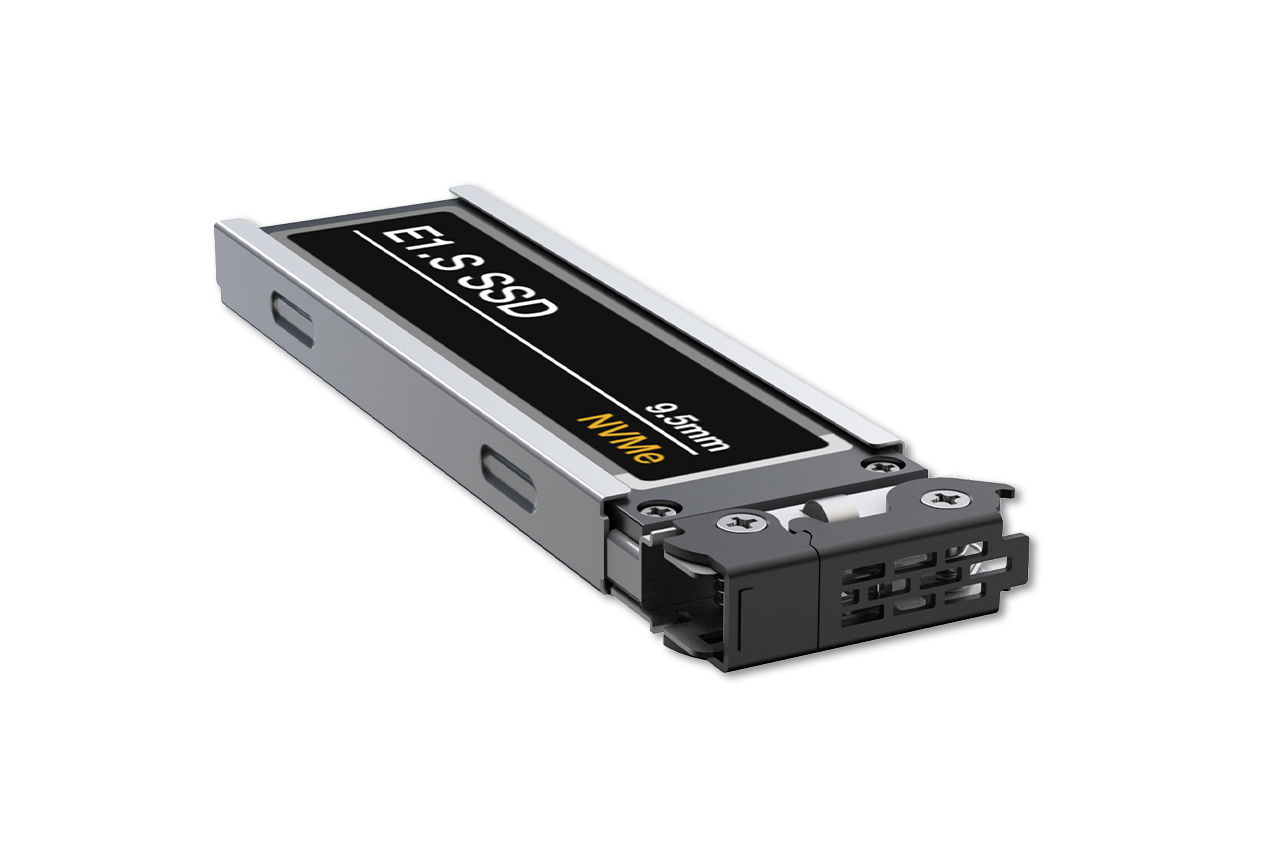

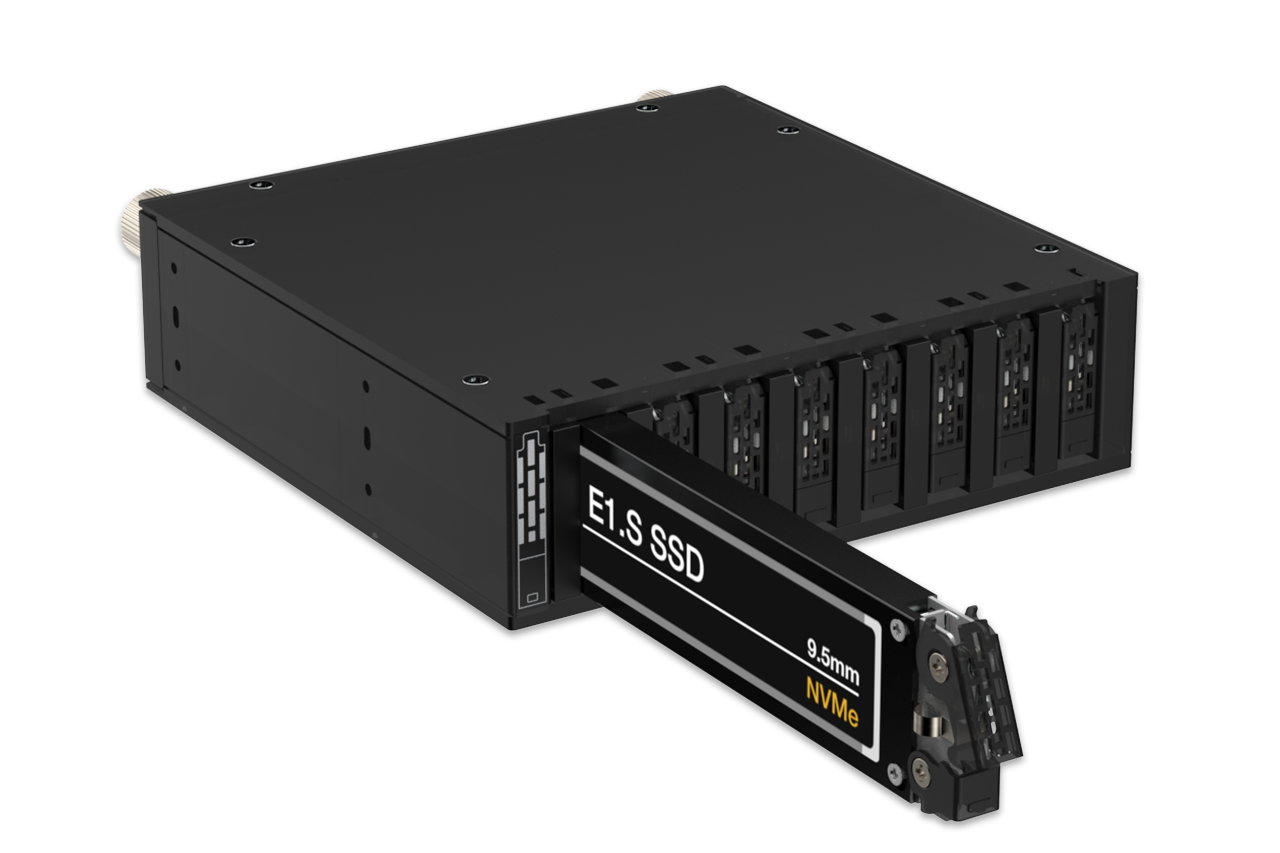

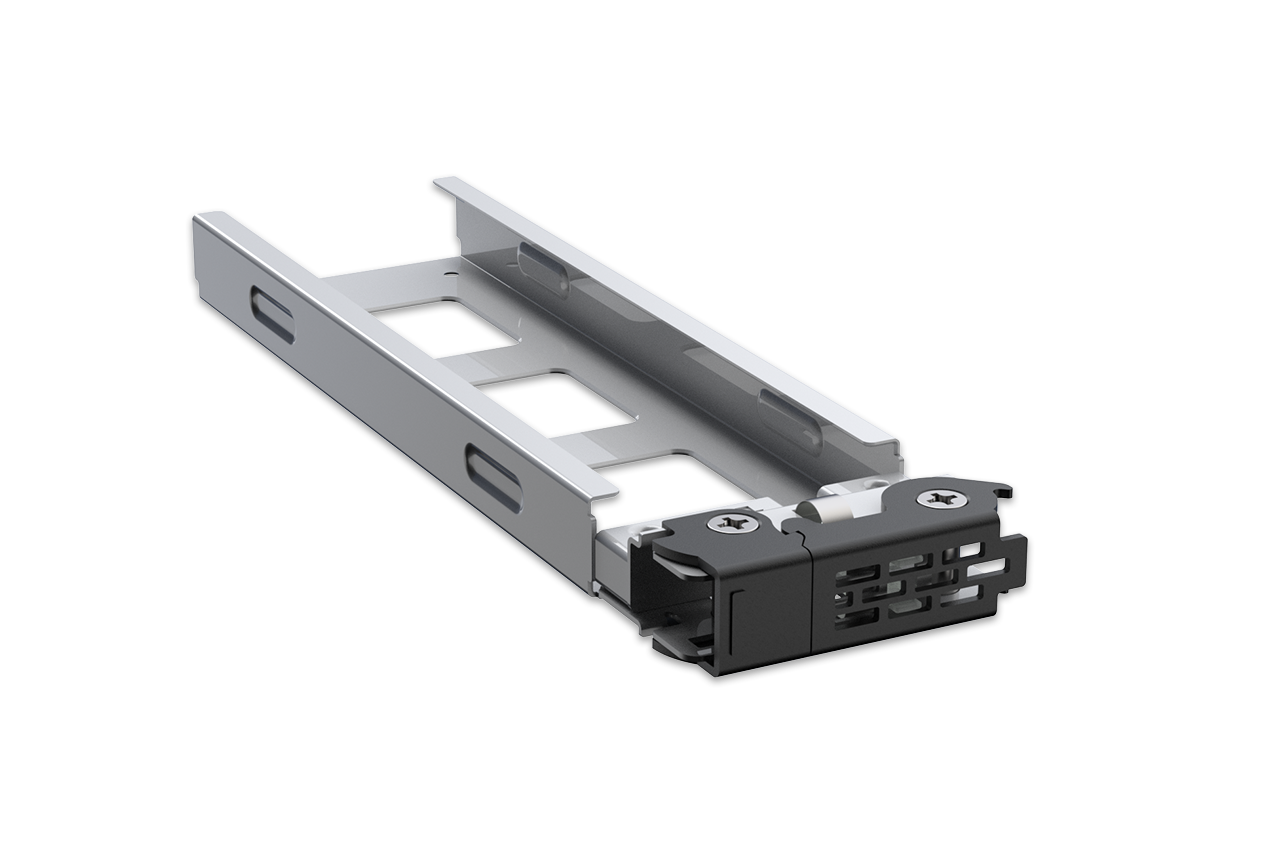

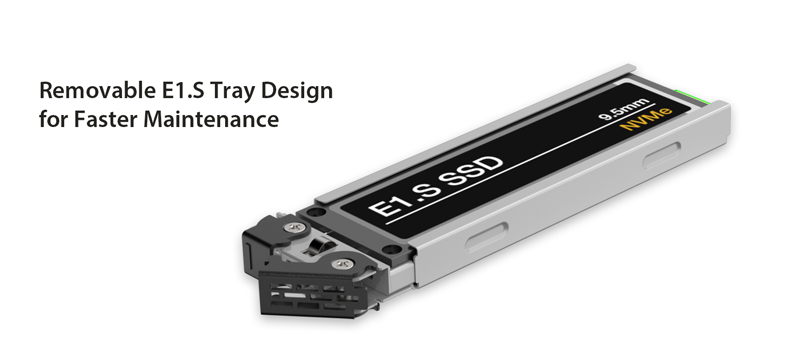

| • | Removable E1.S SSD tray design for easier maintenance and serviceability |

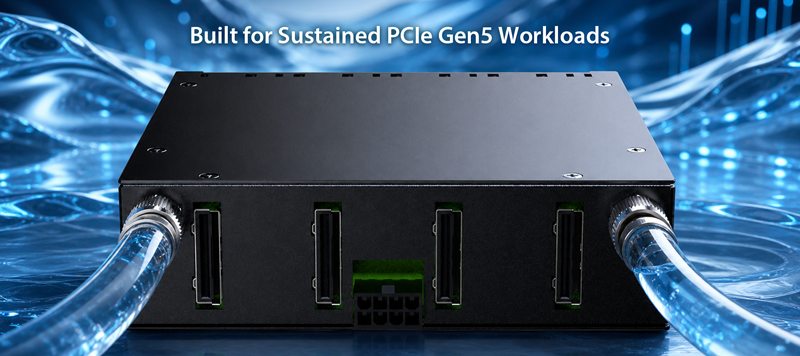

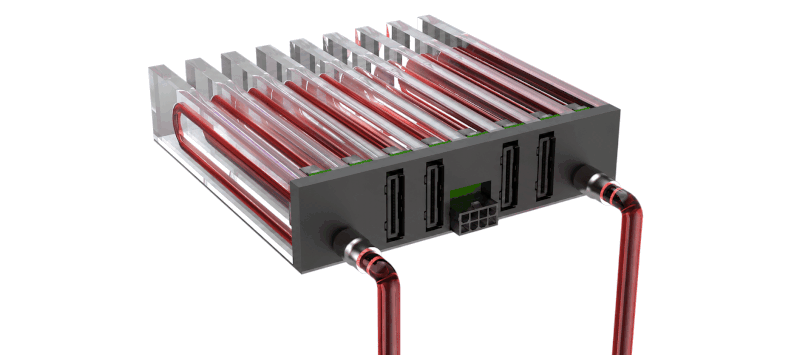

| • | Liquid-cooling architecture for high-efficiency thermal management |
| • | Optimized for low-noise PCIe Gen5 storage environments |
| • | Supports hot-plug drive replacement |

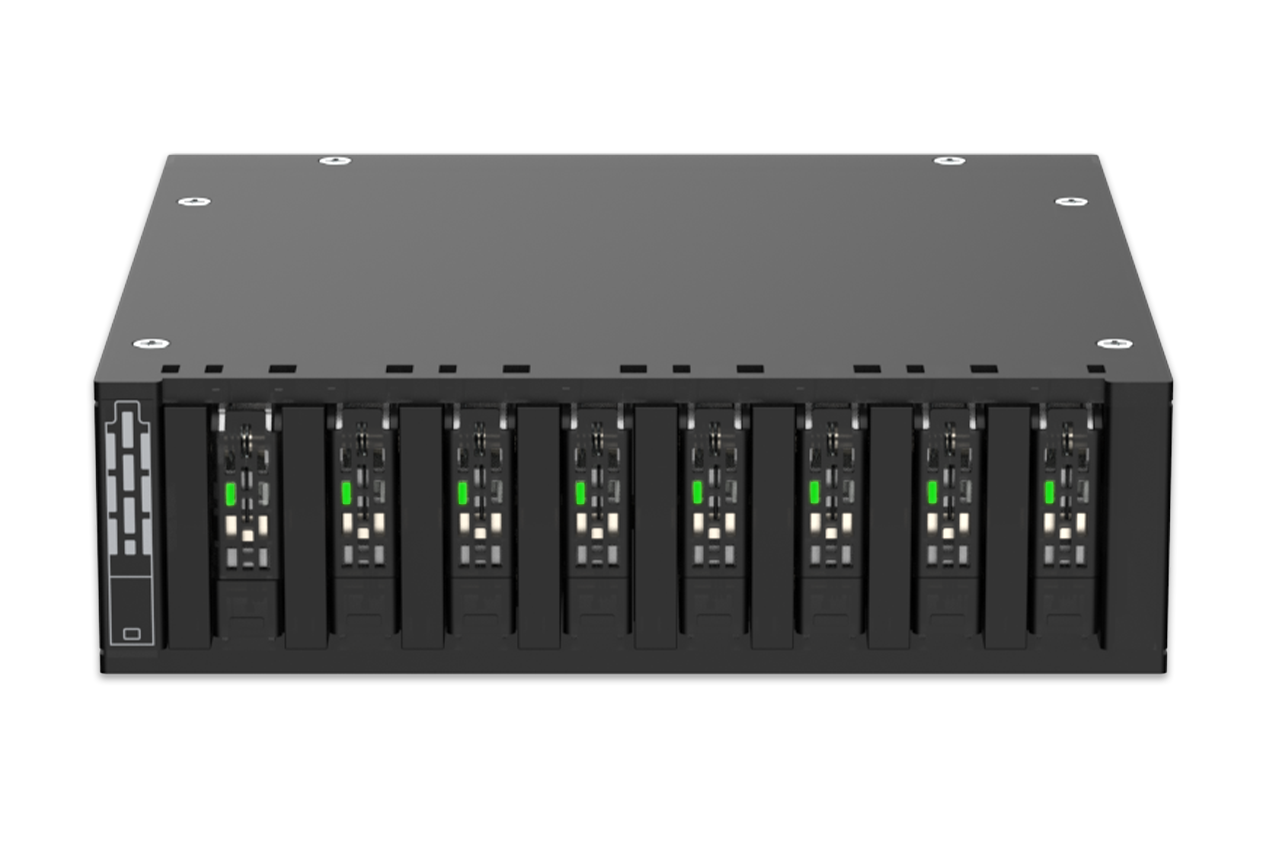

| • | Front-panel LED status indication |

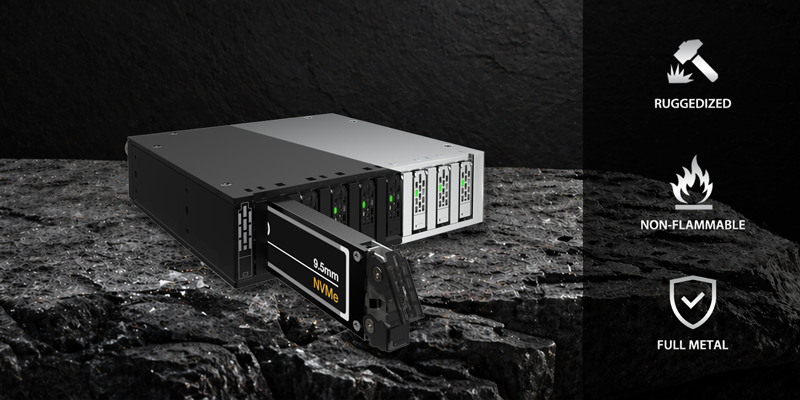

| • | Rugged full-metal construction |
| • | Enterprise-focused EMI grounding design |
| • | Designed for AI, edge computing, and next-generation EDSFF storage platforms |
| • | Concept product for future high-density NVMe storage development |
| Model Number： | CP167 |
| Color： | Black |
| Support Drive Size： | 9.5mm E1.S SSD |
| Compatible Drive Type： | E1.S SSD |
| Number of Drives： | 8 |
| Drive Bay： | 5.25" bay |

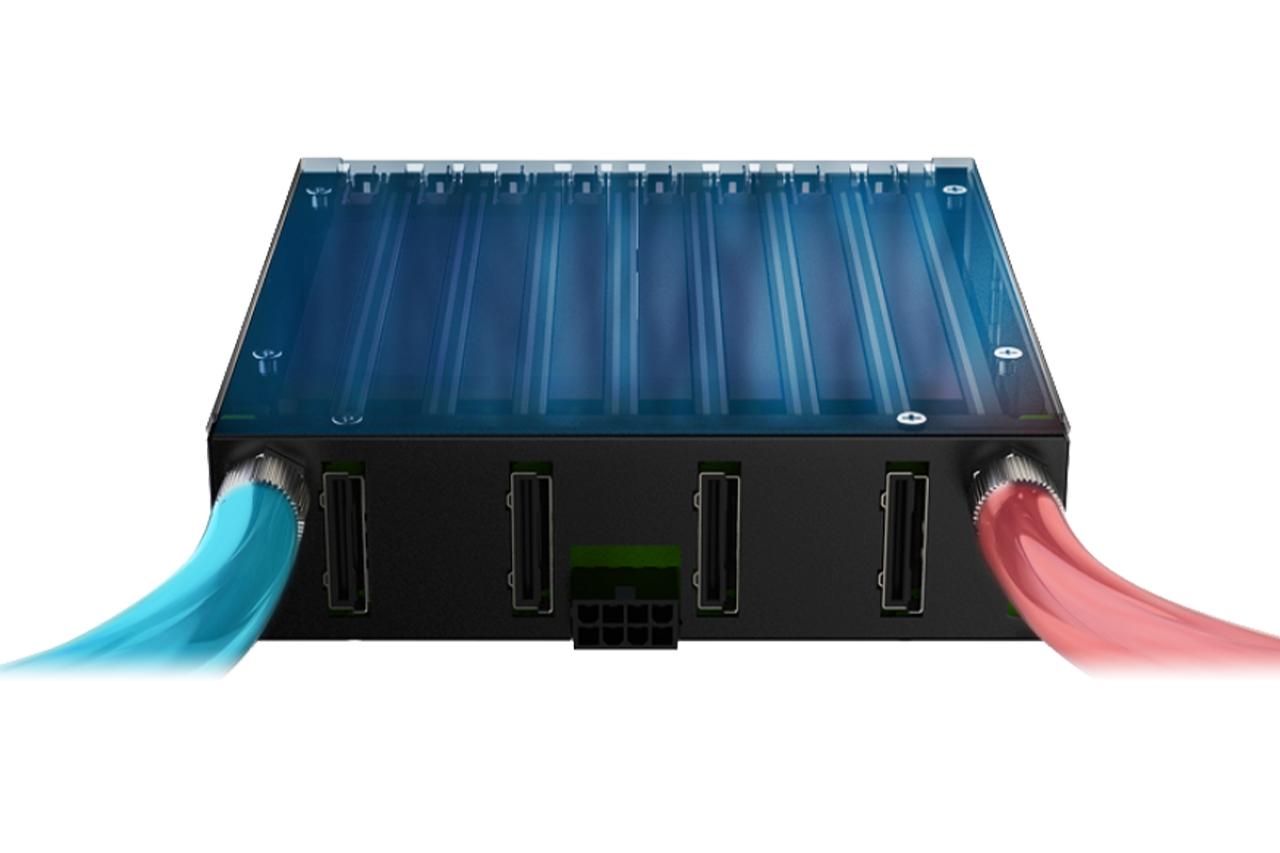

| Host Interface： | 4 x MCIO 8i (SFF-TA-1016 8i) |
| Power Input： | 1 x EPS 8 pin |
| Transfer Rate： | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Drive Activity LED Indication： | Green LED: drive power: solid green, drive access: flashing green LED off: empty drive bay |
| Drive Cooling： | Liquid cooling |
| Hot Plug： | Yes |
| Structure / Material： | Full metal |
| Package Contents： | Device, user manual, drive ID plugs |
| Product Dimension (W x H x D)： | 146 x 41 x 190 mm (TBD) |
| Product Net Weight： | 1500g (TBD) |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
