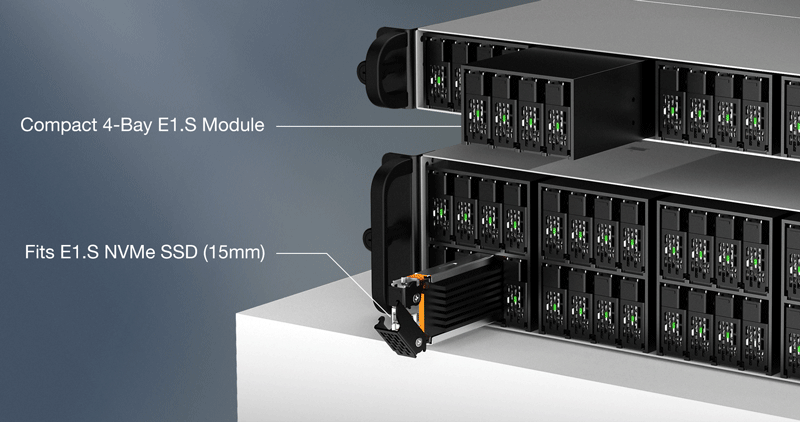

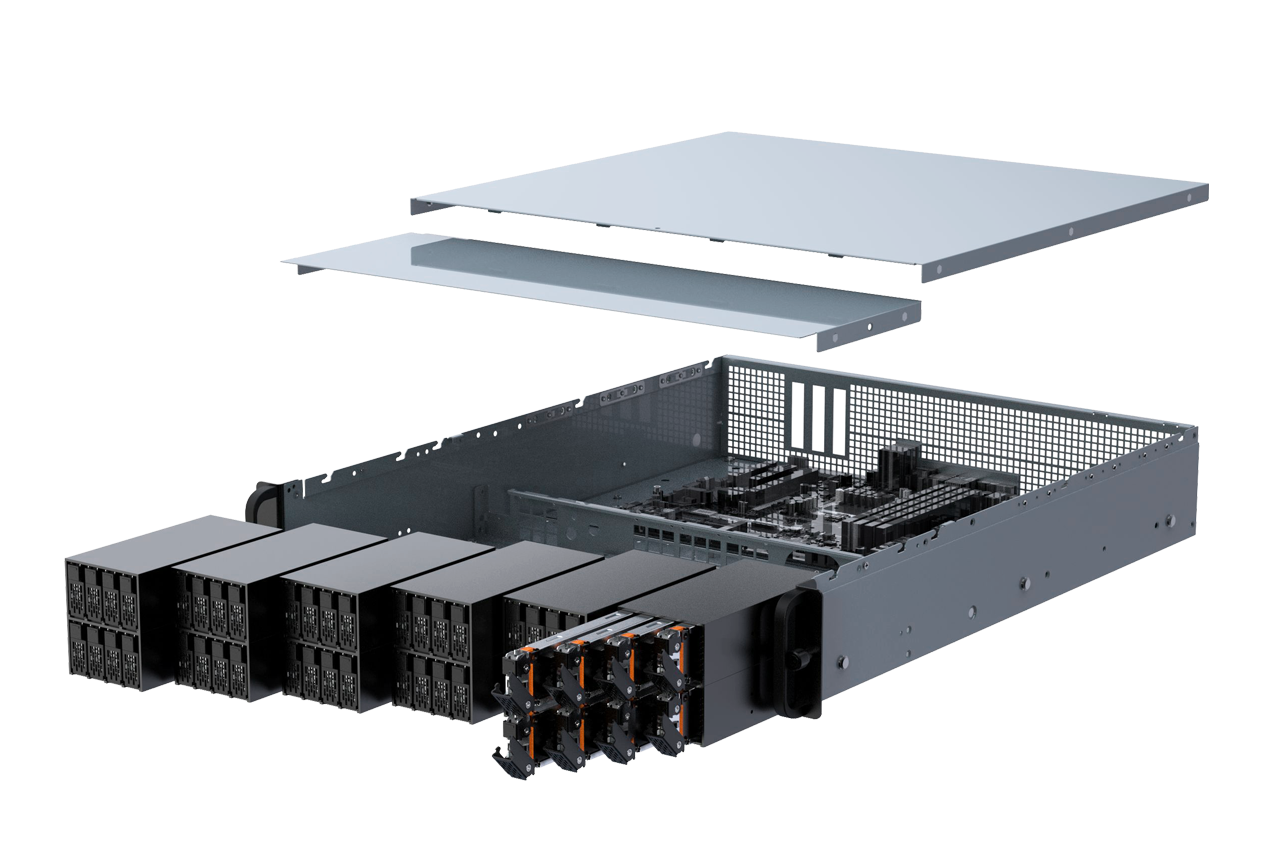

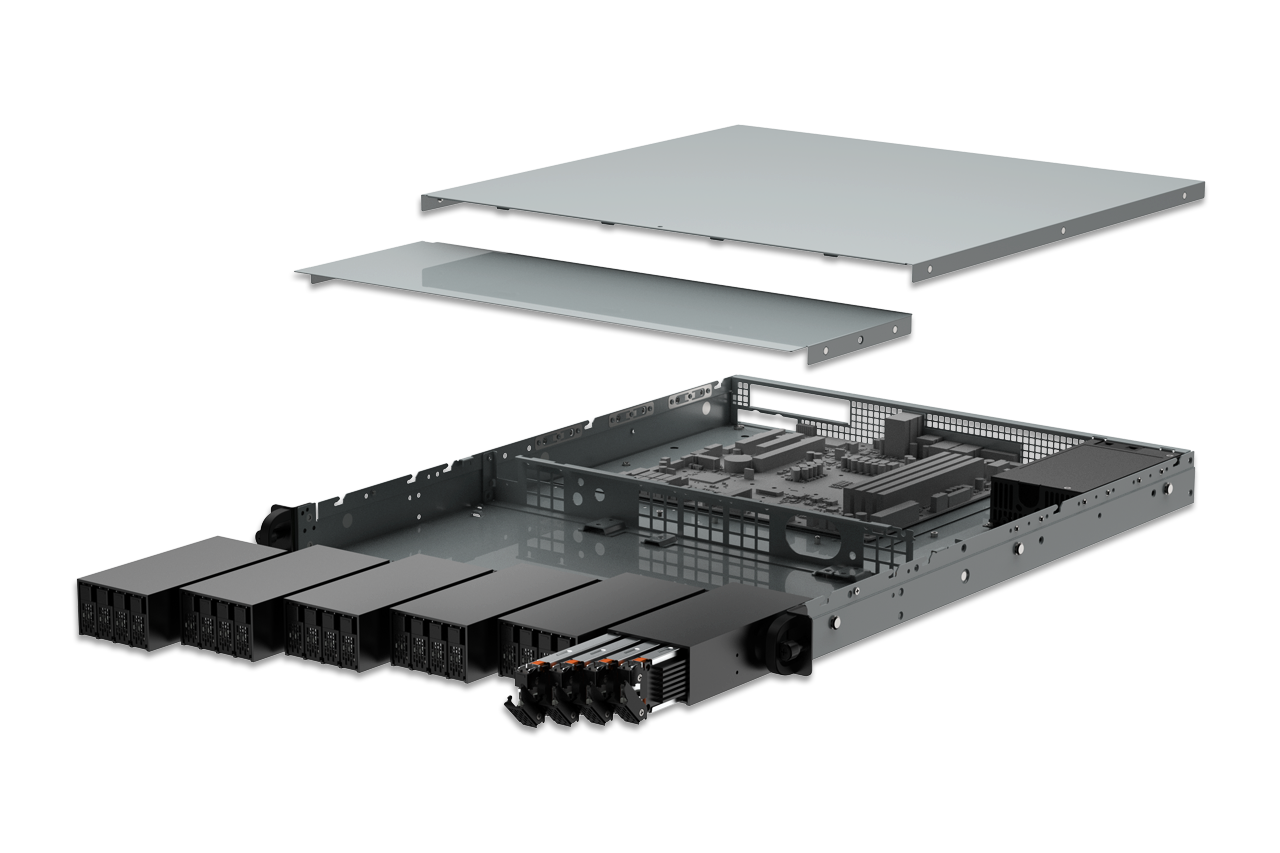

The CP165 is engineered as a compact EDSFF storage module, providing greater layout flexibility for OEM and SI rackmount system development. Unlike traditional fixed drive cages, the CP165 is intended for direct chassis-level integration, allowing builders to optimize front-panel storage density and airflow for modern E1.S server platforms. The compact module design enables:
| • | Ultra-compact, non-standard module size tailored for OEM and rackmount system integration |
| • | Supports 4 × 15mm E1.S NVMe SSDs |
| • | PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance) |

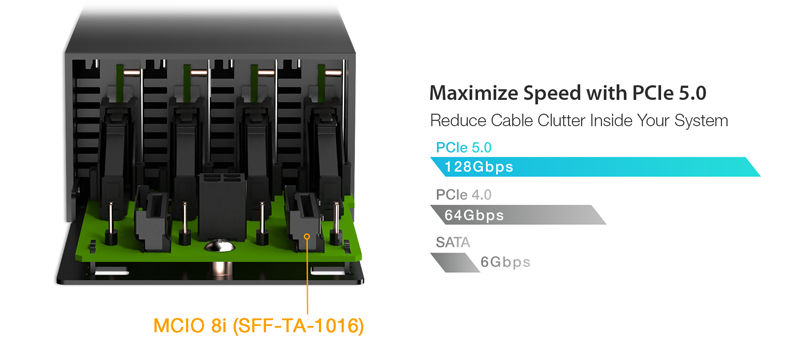

| • | 2 × MCIO 8i (SFF-TA-1016) host interfaces |

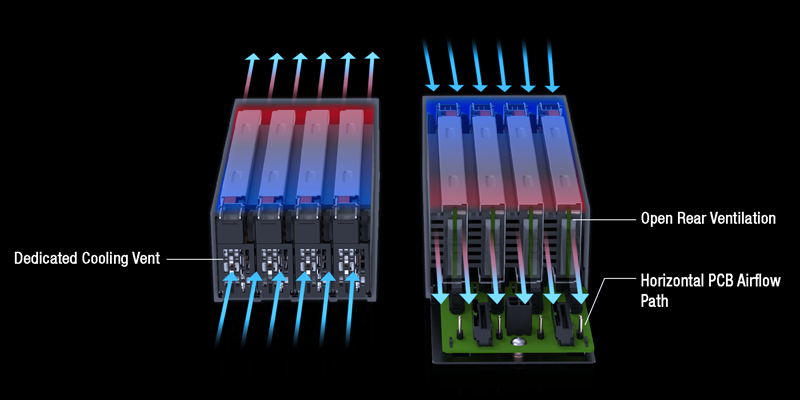

| • | Open rear-panel ventilation design for reduced airflow restriction |
| • | Horizontal PCB layout optimized for rackmount airflow |

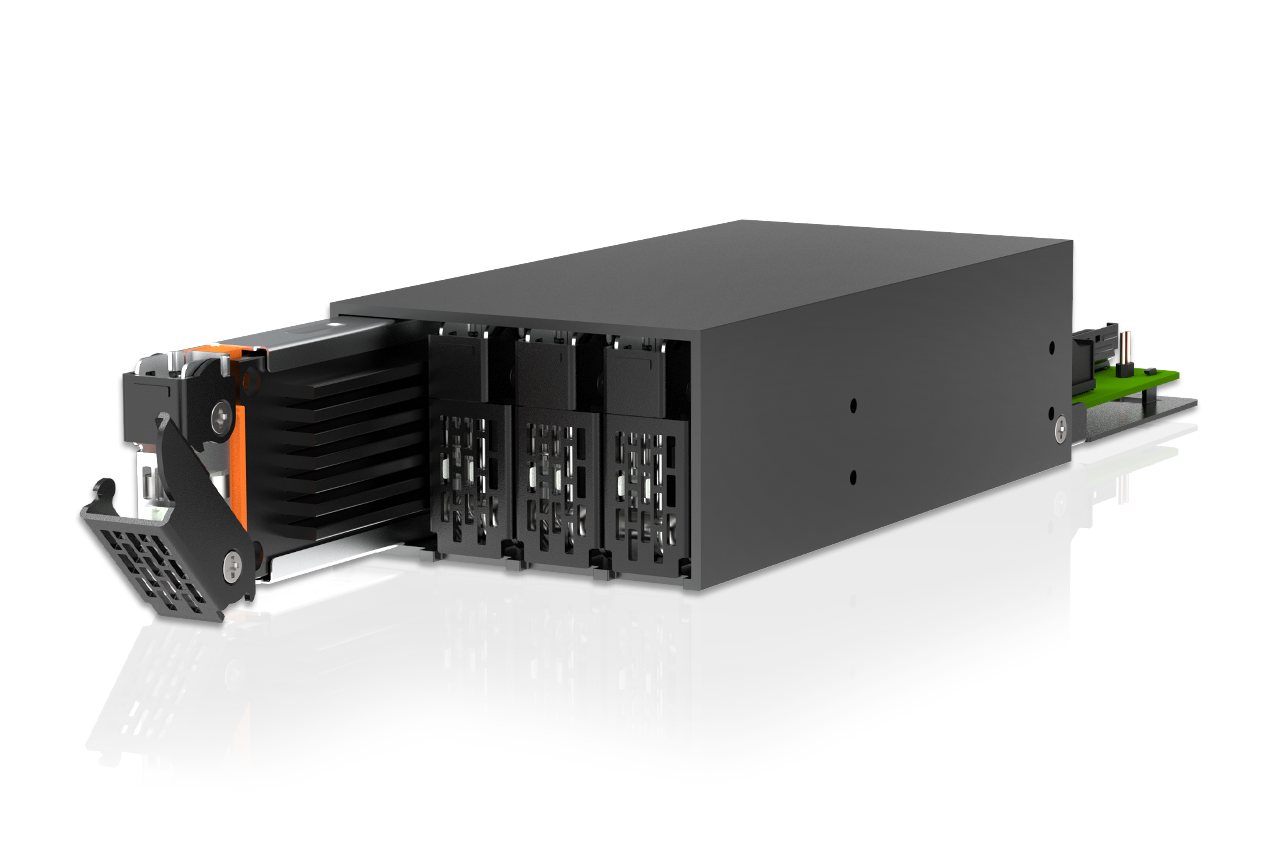

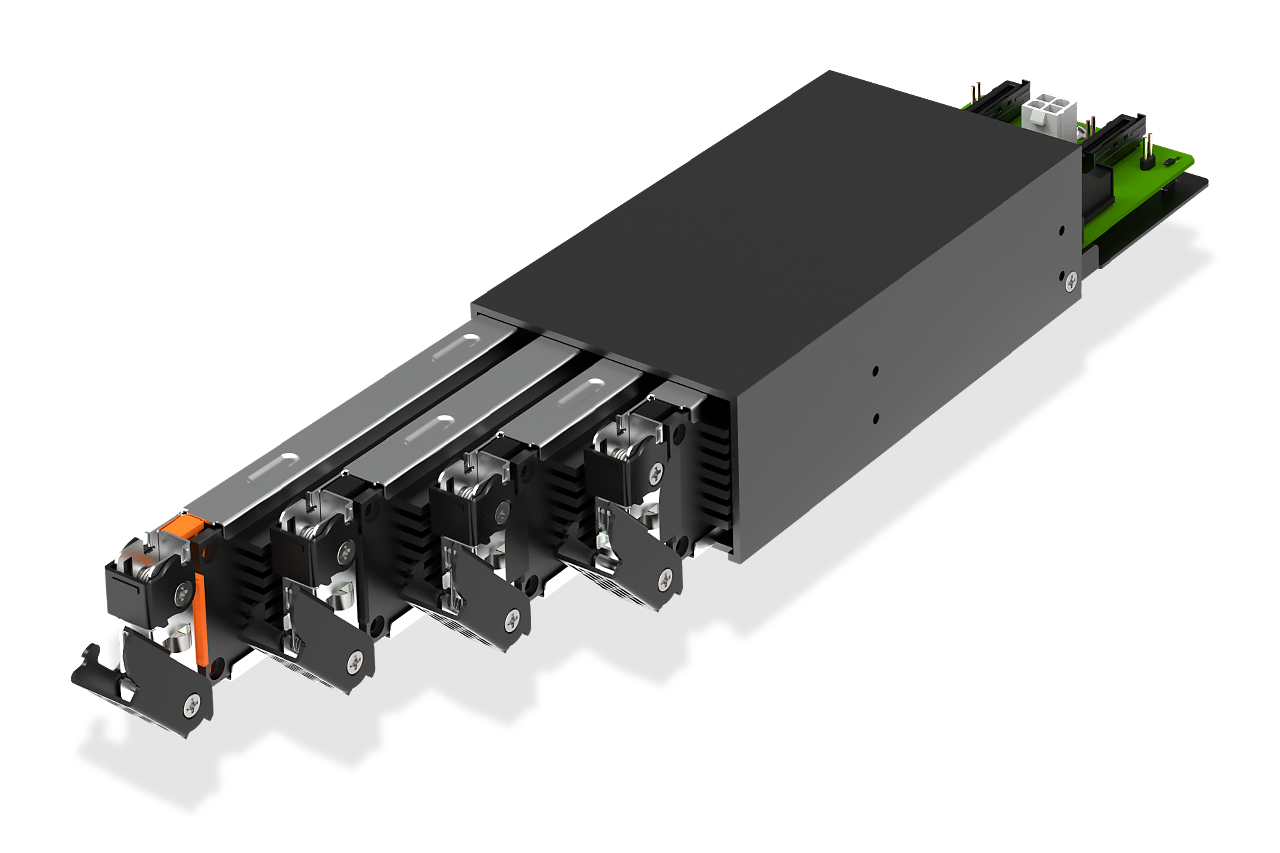

| • | Front-access removable E1.S SSD tray design |
| • | Supports hot-plug drive replacement |

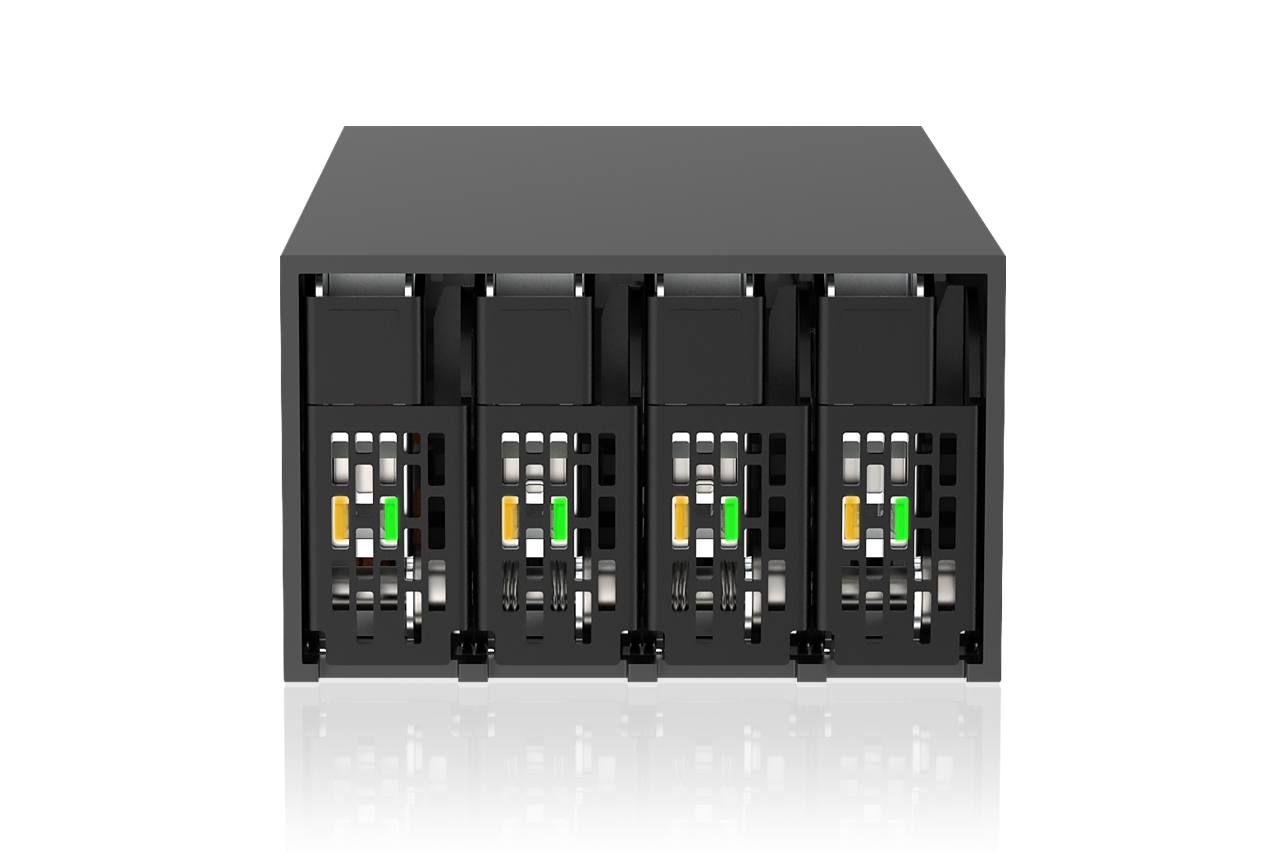

| • | Front-panel LED status indication |
| • | Host-defined amber LED support |

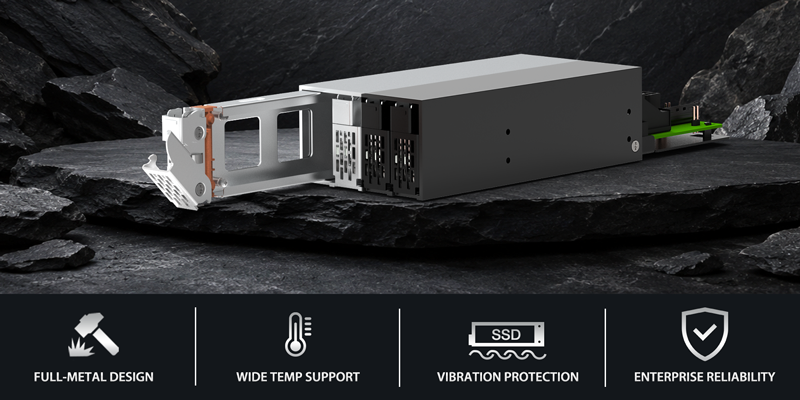

| • | Rugged full-metal construction |
| • | Enterprise-focused EMI grounding design |
| • | Designed for AI, edge computing, and next-generation EDSFF storage platforms |
| • | Concept product for future high-density PCIe Gen5 EDSFF storage development |
| Model Number： | CP165 |
| Color： | Black |
| Support Drive Size： | 15mm E1.S SSD |
| Compatible Drive Type： | E1.S SSD |
| Number of Drives： | 4 |
| Drive Bay： | Partial rack mount chassis space |

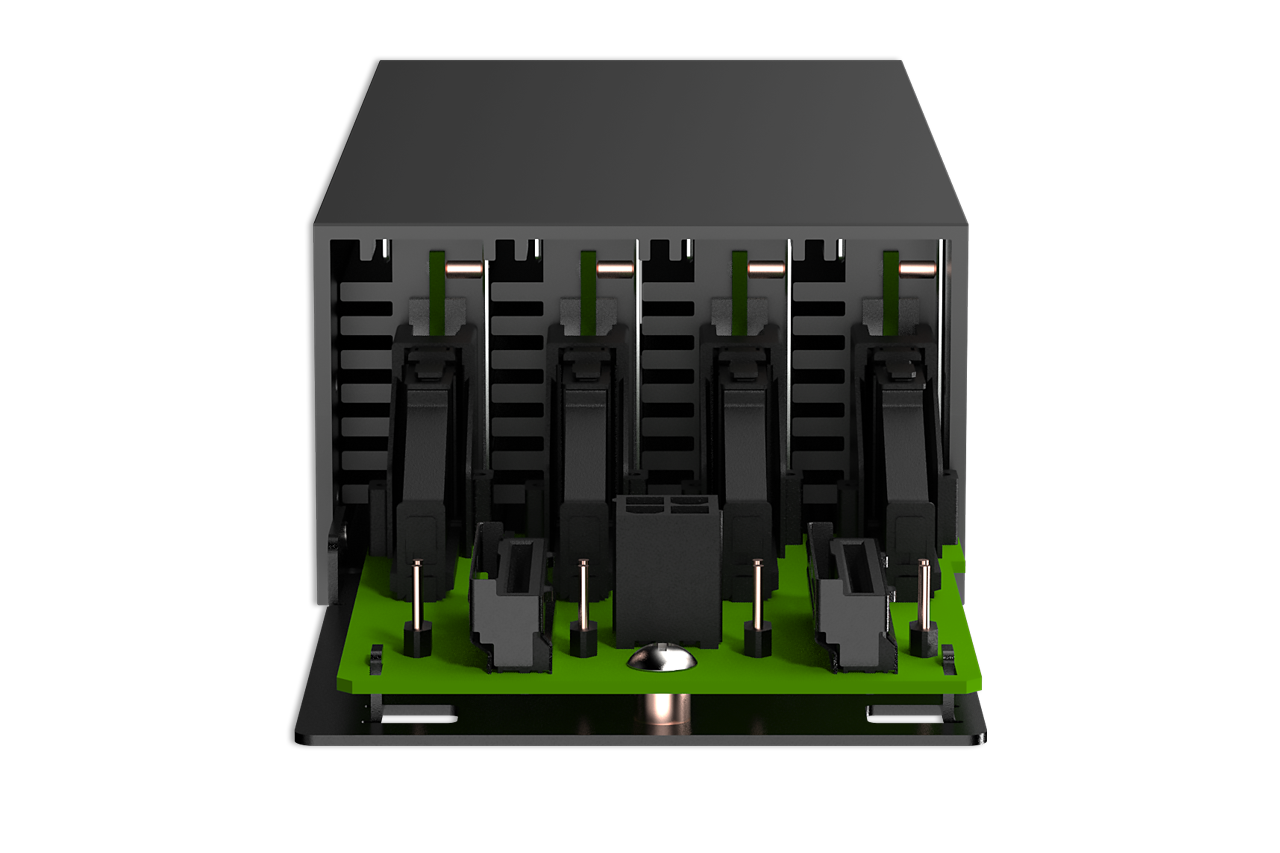

| Host Interface： | 2 x MCIO 8i (SFF-TA-1016 8i) |
| Power Input： | 1 x 4 pin Molex Micro-Fit 3.0 |
| Transfer Rate： | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Drive Activity LED Indication： | Green LED: drive power: solid green, drive access: flashing green Amber LED: function is defined by host LED off: empty drive bay |
| Drive Cooling： | N/A |
| Hot Plug： | Yes |
| Structure / Material： | Full metal |
| Package Contents： | Device, user manual, drive ID plugs |
| Product Dimension (W x H x D)： | 70 x 40 x 190 mm (TBD) |
| Product Net Weight： | 800g (TBD) |
