Concept Product CP161

8 x EDSFF E1.S NVMe SSD (9.5/15mm) Mobile Rack for External 5.25" Drive Bay
Product Details
CP161 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products

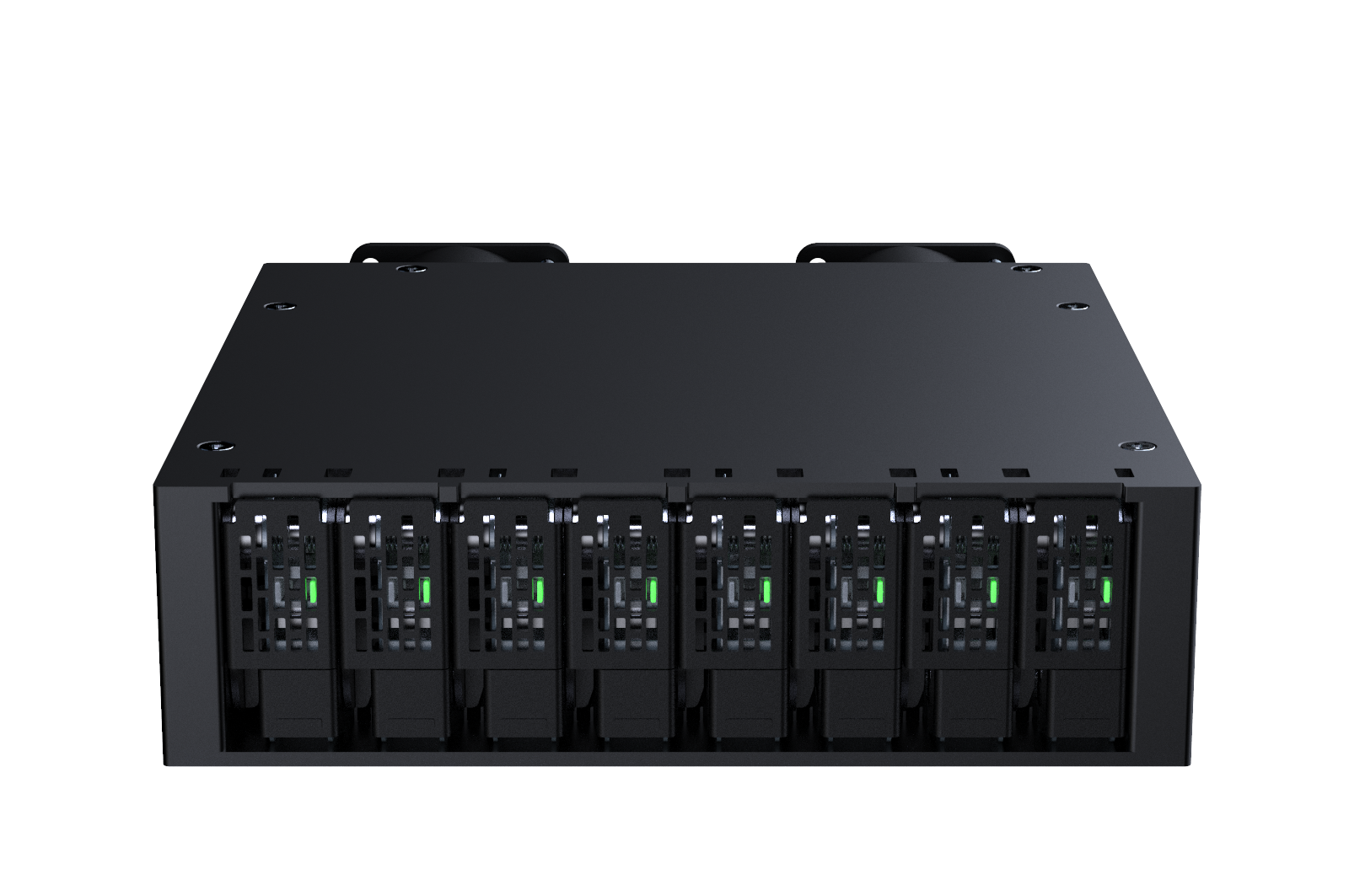

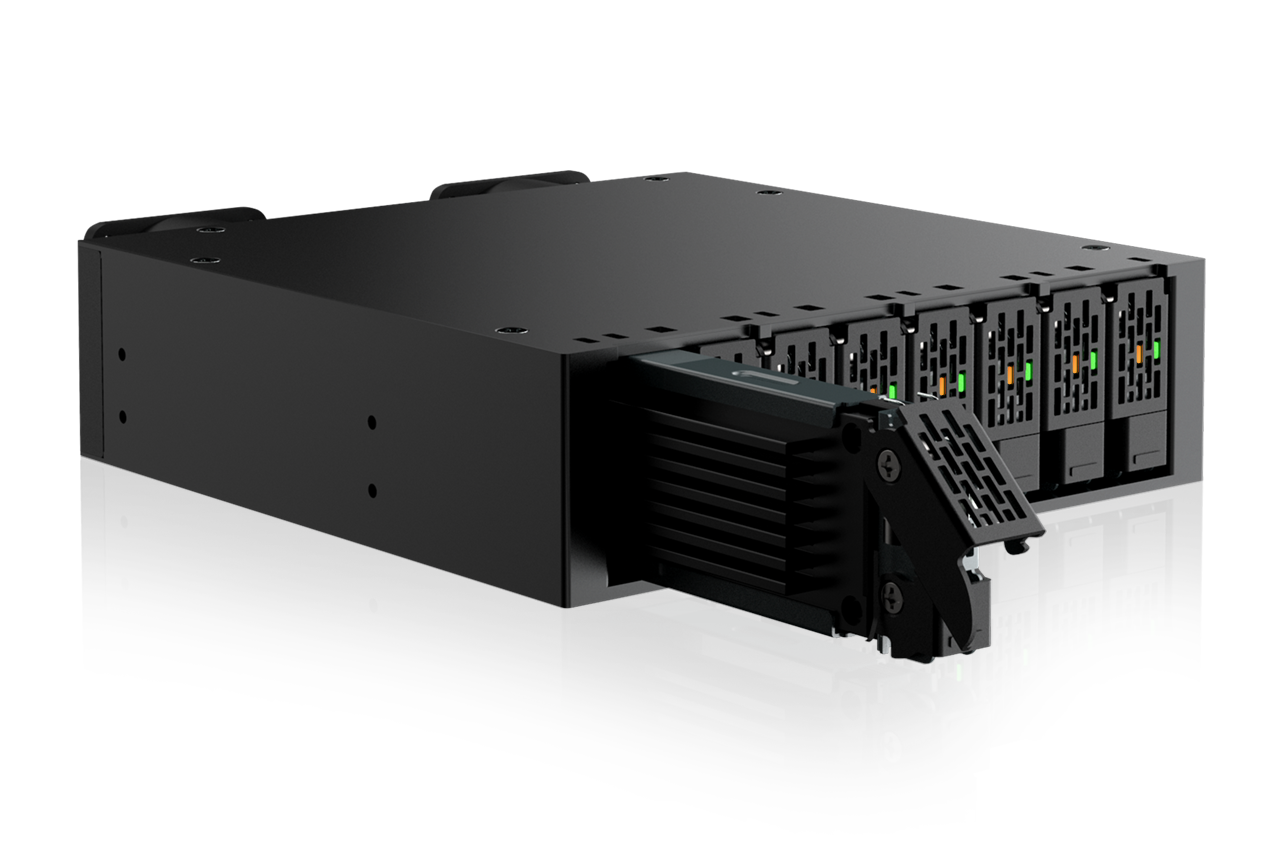

  • Introducing the Concept Product CP161 – Removable 8 x EDSFF E1.S NVMe SSD enclosure for a single external 5.25” drive bay, providing frontal drive access without opening the computer case or using any tools.

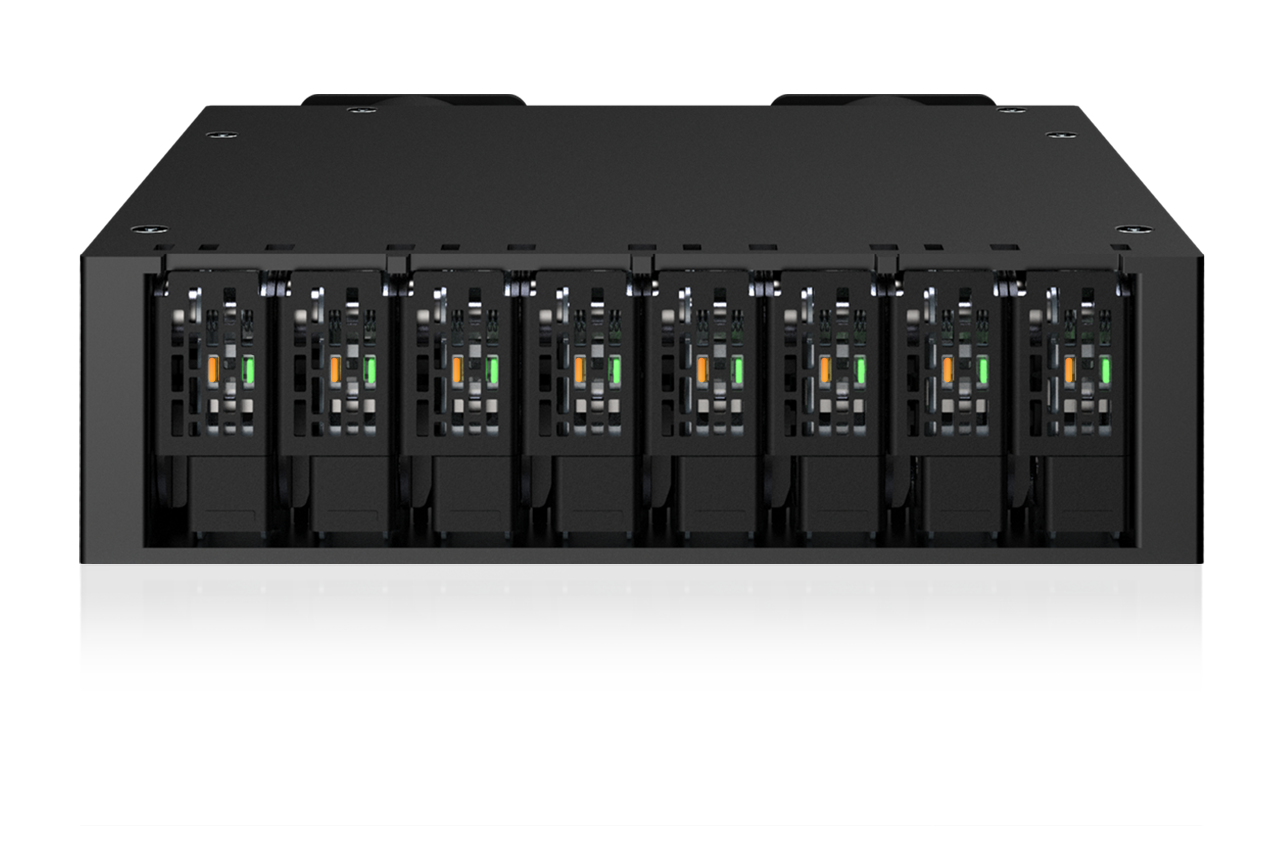

  • The CP161 is a cutting-edge 8-bay E1.S SSD mobile rack designed to fit into a standard external 5.25" bay. This innovative solution allows system integrators, engineers, and enterprise users to install up to eight 15mm or 9.5mm E1.S PCIe Gen 5 SSDs in a compact, hot-swappable, and highly manageable form factor.

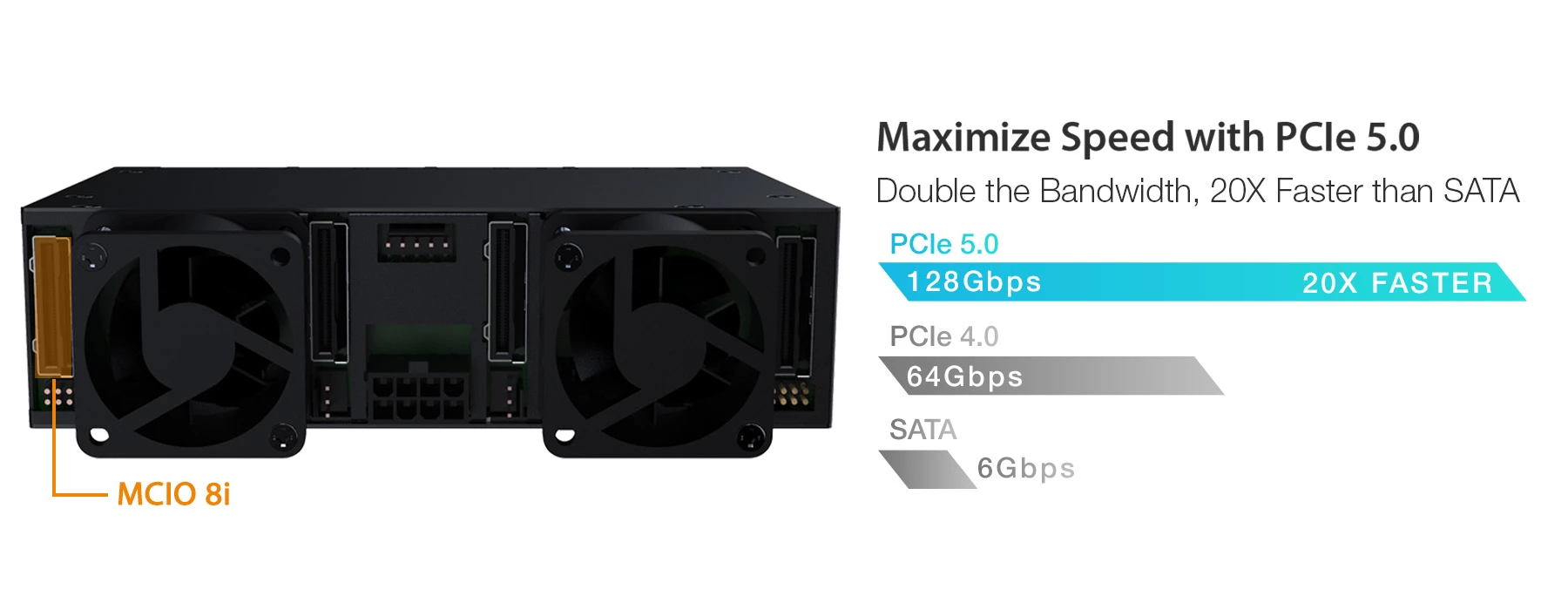

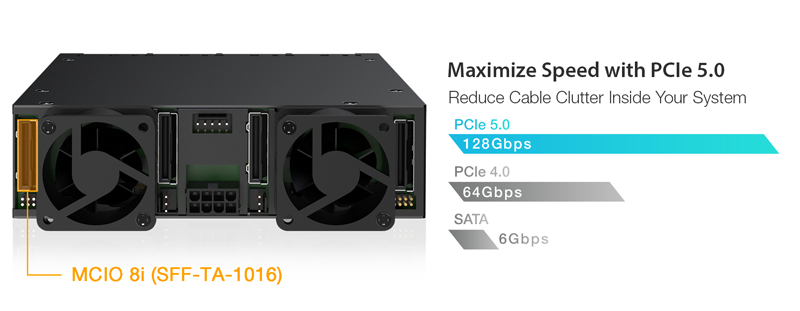

  • Powerful PCIe Gen 5.0 Performance with UBM Support
    With support for PCIe Gen 5.0 x4 speeds, each E1.S SSD in the CP161 can reach transfer rates of up to 128Gbps, delivering the bandwidth required for high-performance computing, AI, and hyperscale storage applications. The CP161 features UBM (Universal Backplane Management) compliance, ensuring seamless communication between the SSDs and system BMC for optimal power and thermal management, drive health monitoring, and slot control.

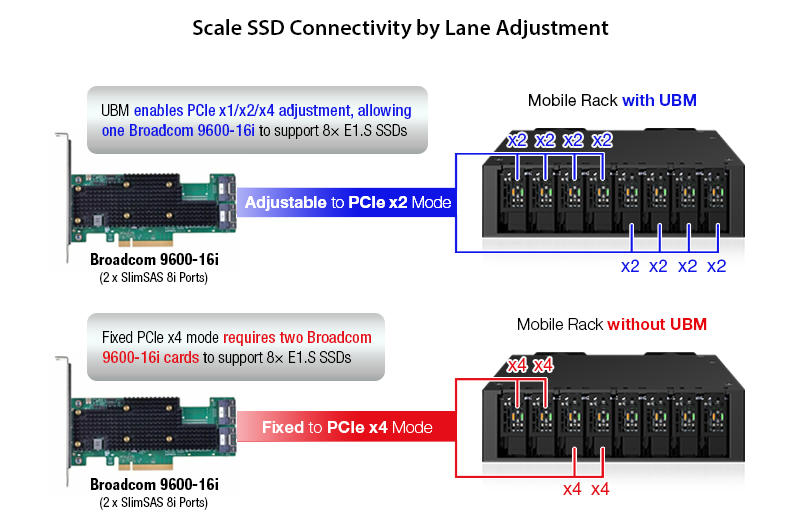

  • Flexible Bifurcation Support for Scalable Storage Expansion

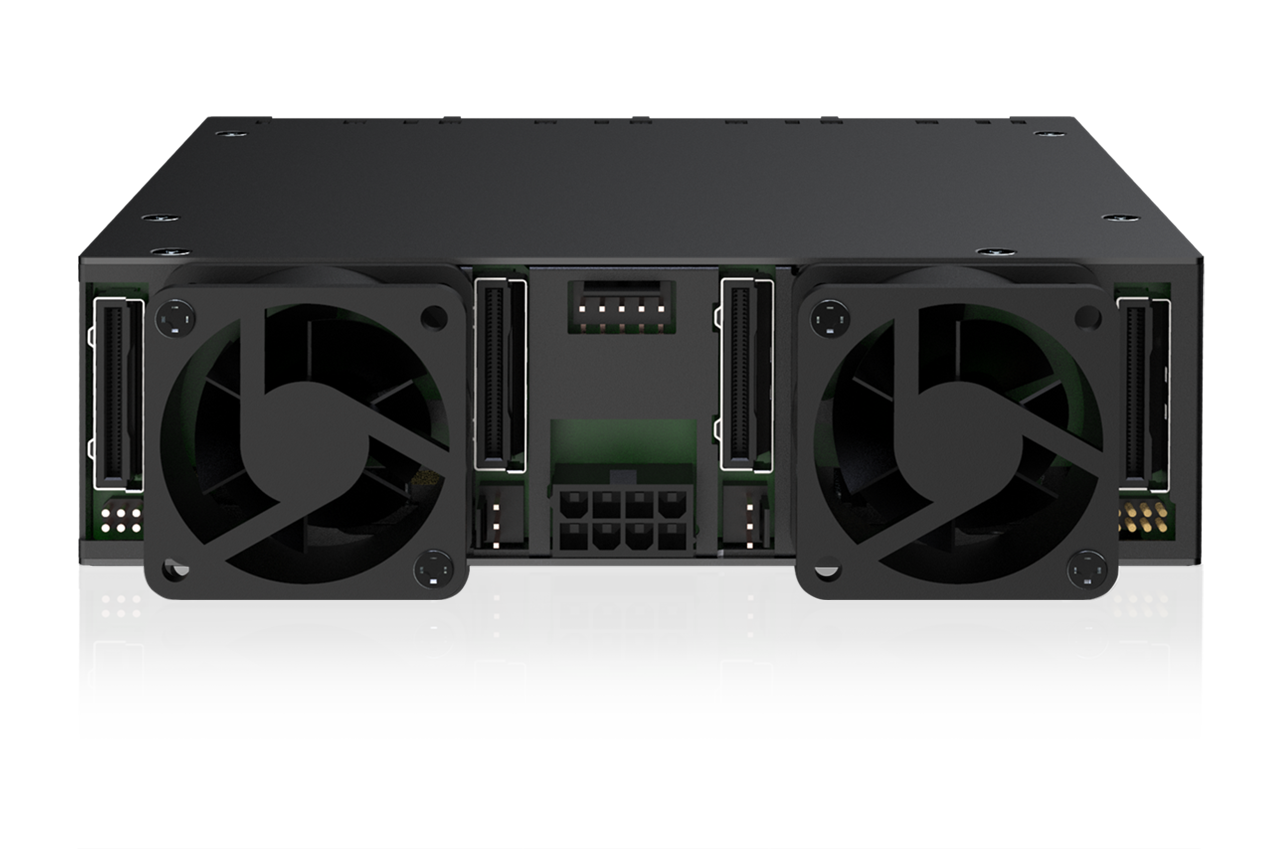

    The CP161 includes 4 x MCIO 8i (SFF-TA-1016) connectors and supports PCIe bifurcation, allowing each SSD slot to operate in x4, x2, or x1 lane configurations. This enables full compatibility with select RAID/HBA cards from Broadcom, HighPoint, Areca, and others, providing the flexibility to connect more SSDs to a single host card without sacrificing speed or reliability.

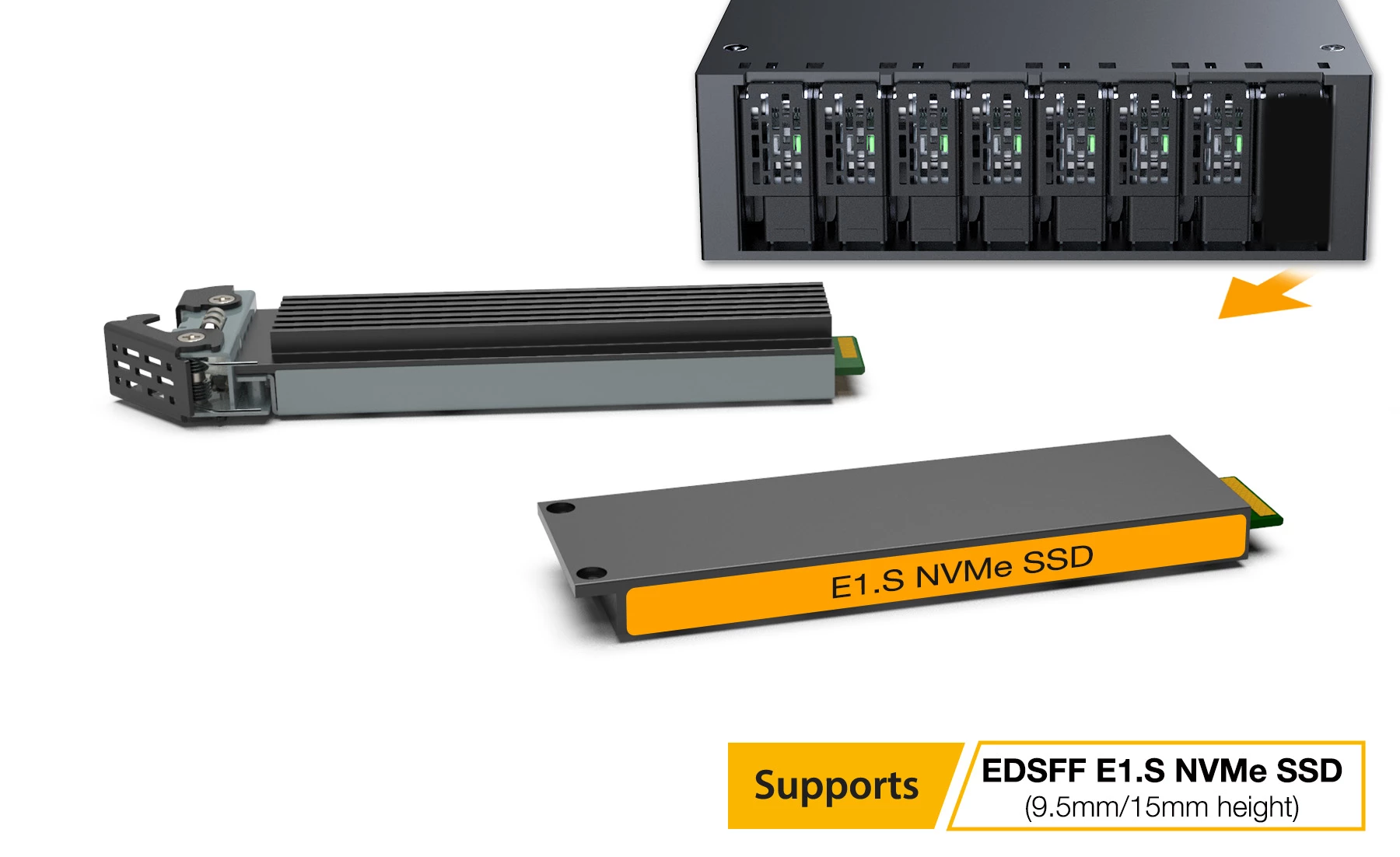

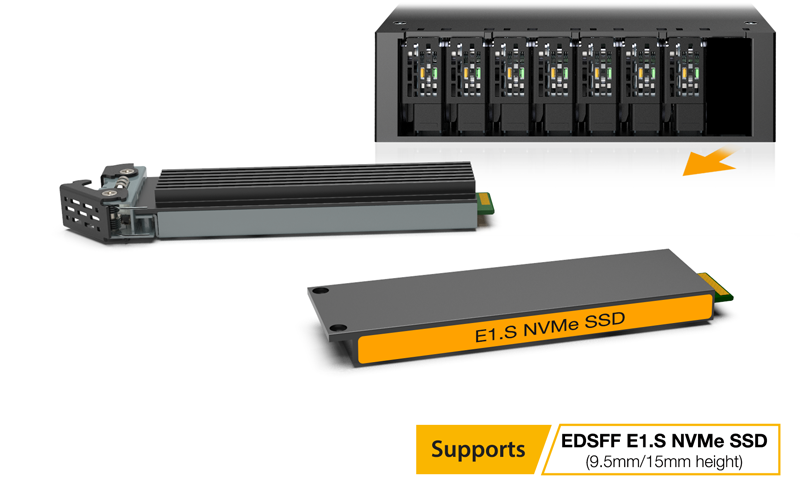

  • Tool-less Drive Installation and Intelligent Tray Design

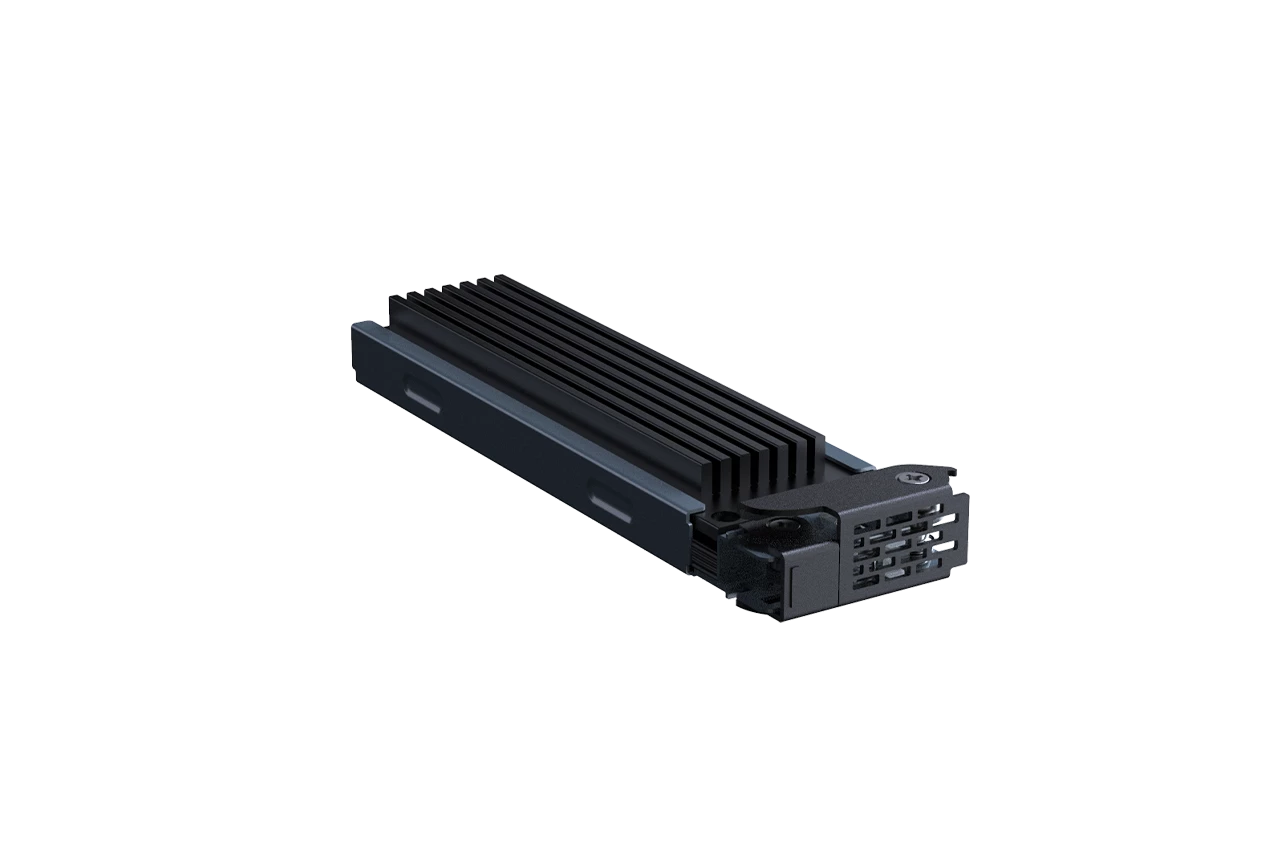

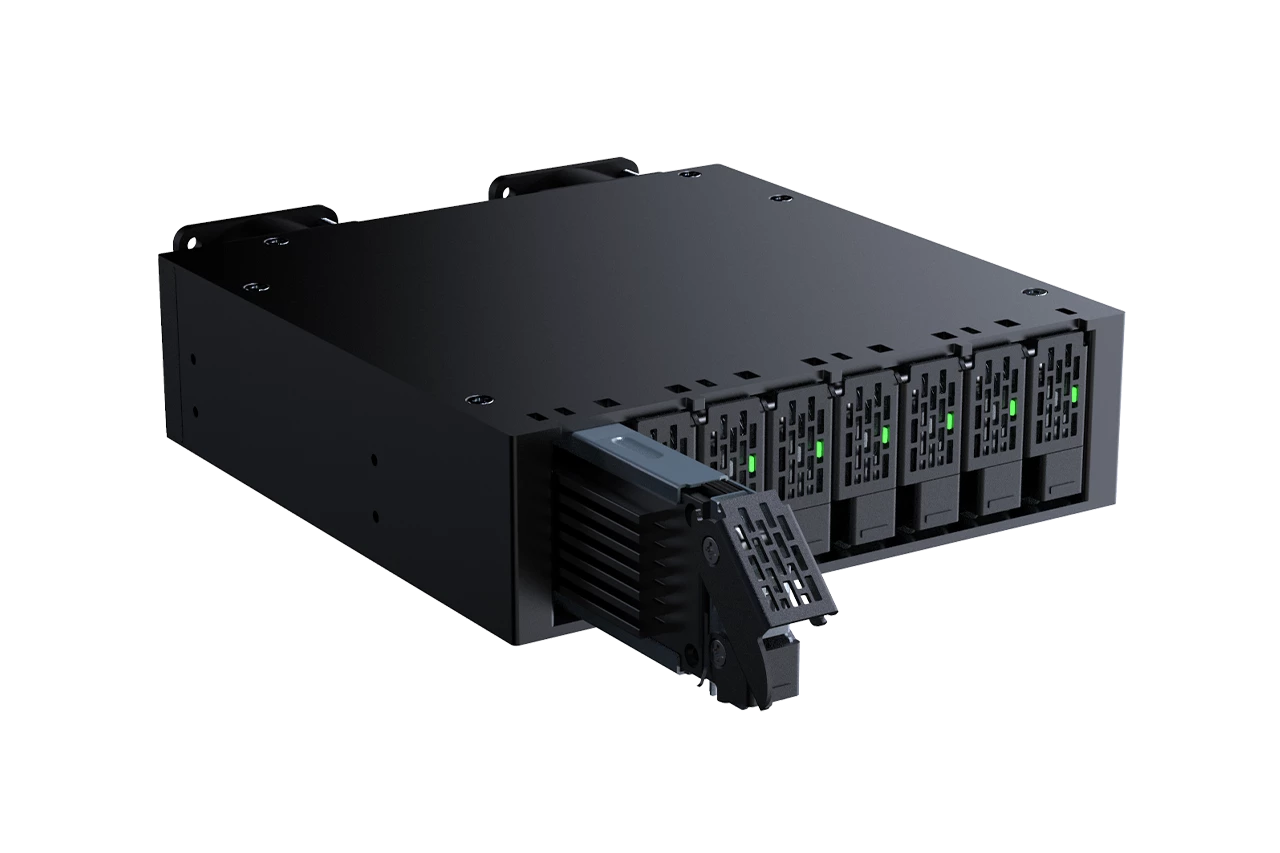

    Designed for convenience and efficiency, each of the eight metal trays supports tool-less installation of 15mm or 9.5mm E1.S SSDs, making maintenance and deployment faster and easier. Each tray is individually hot-swappable and equipped with front-facing LED indicators to provide real-time power and access status (green) and host-defined status (amber).

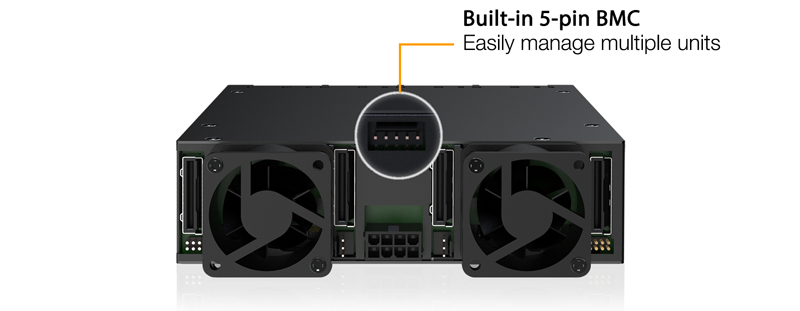

  • Built-in BMC and Jumper Configuration for System Integration

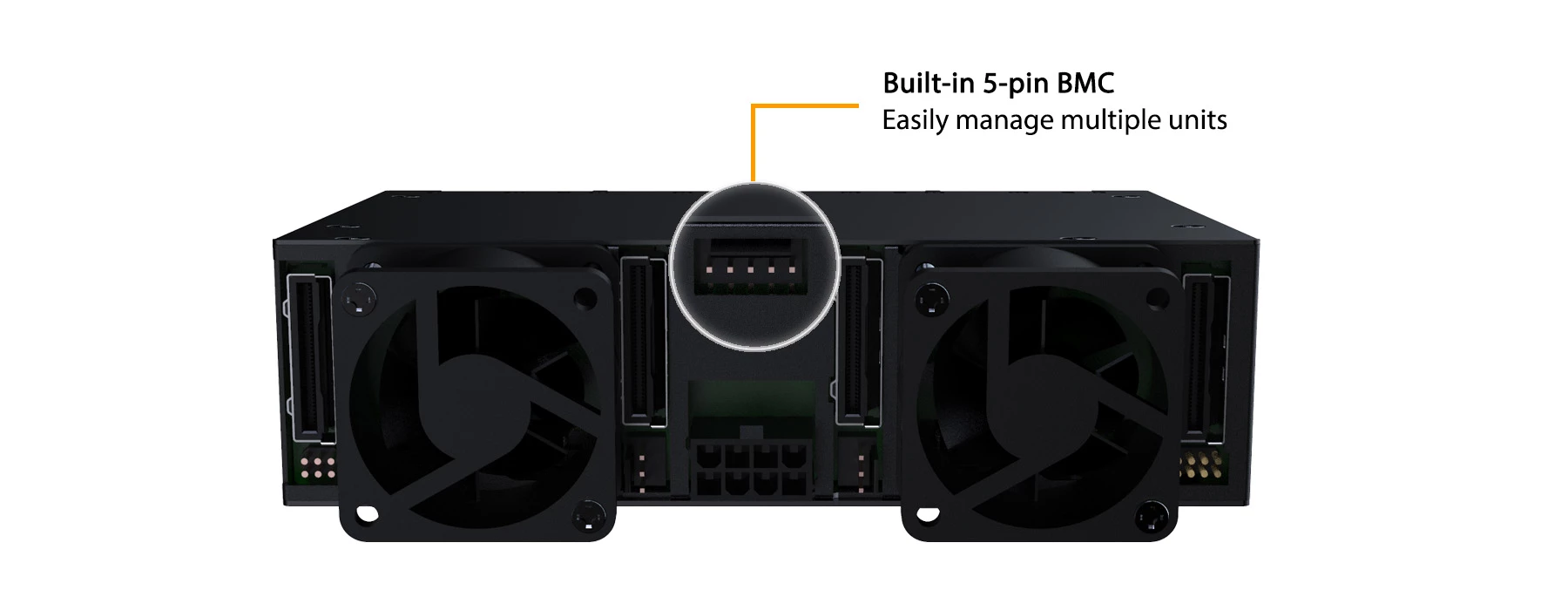

    The CP161 offers advanced management capabilities via its 5-pin BMC wafer header, allowing network remote system access for slot-level power control and drive status reading. It also includes dedicated jumpers for configuring PCIe lane modes and assigning unique backplane IDs (1–4) for managing multiple units in the same system environment.

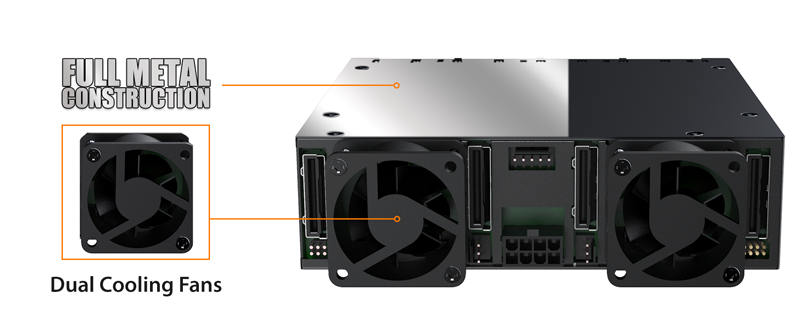

  • Industrial-Grade Cooling and Rugged Construction

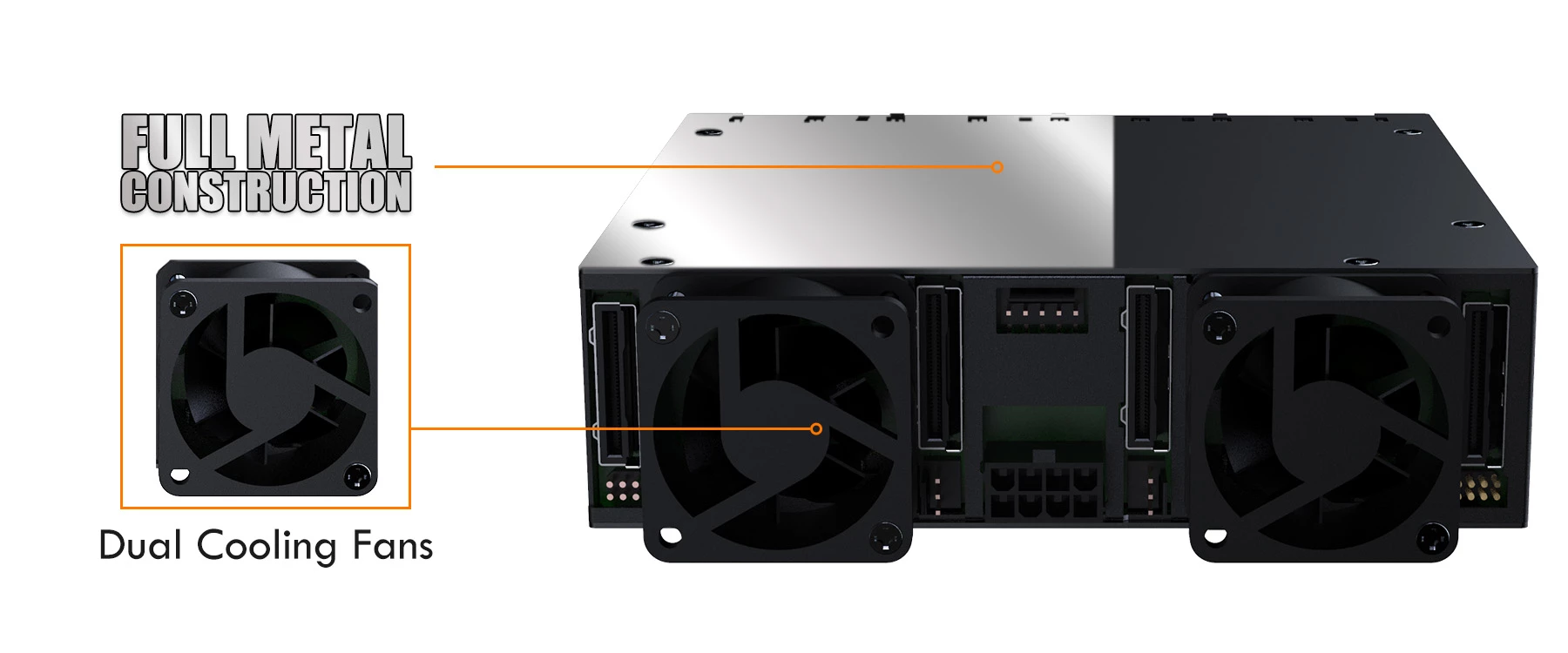

    To meet enterprise-class thermal demands, the CP161 is equipped with dual 40x40x20mm high-speed cooling fans (10,000RPM) and a well-designed airflow path that meets ASHRAE A2 thermal standards. The unit's full-metal body provides robust structural strength and efficient heat dissipation, ensuring long-term reliability even in high-performance applications.
Main Features
•
Supports 8 x 15mm / 9.5mm E1.S SSDs in a single 5.25" bay.

•
PCIe Gen 5.0 x4 interface — up to 128Gbps per drive.

•
Complies with UBM (SFF-TA-1005) backplane management standard.

•
4 x MCIO 8i connectors support PCIe bifurcation (x4/x2/x1).

•
Compatible with Broadcom, HighPoint, Areca, and other HBA/RAID cards.

•
Supports Hot-Plug drive swapping.

•
Tool-less metal trays for fast and easy SSD installation.

•
Front-panel green and amber LED indicators.

•
BMC 5-pin interface for drive power/status control.

•
Backplane ID jumper for multi-unit system management.

•
Dual 40mm fans with optimized airflow and EMI shielding.

•
Rugged, full-metal construction.





Specification
Model Number : CP161
Color : Black
Host Interface : 4 x MCIO 8i (SFF-TA-1016 8i)
Drive Fit : 8 x EDSFF E1.S SSD (compatible with 9.5mm/15mm height)
Drive Bay : 1 x 5.25" drive bay
Maximum Transfer Rate : Up to 128Gbps (depending on SSD speed)
Power Input : 3 x 15pin SATA power connector
SSD Access Indicator : Green : LED (drive power: solid green, drive access: flashing green)
Amber : LED (function is defined by host)
Empty : LED off
Fan Type : 2 x 40*40*20mm fan
Hot Plug : Yes
Structure : Full metal
Package Content : Device, user manual, screws
Dimension (W x H x D) : 145.8 x 41.3 x less than 195mm
