Concept Product CP125

2 x E1.S SSD to PCIe 5.0 x 8 Removable SSD Mobile Rack for PCIe Expansion Slot
Product Details
CP125 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products
  • The concept product CP125 turns your PCIe 8x/16x expansion slot into a dual removable E1.S NVMe SSD (compatible with 9.5mm thickness) drive bay that allows you to hot-swap/hot-plug NVMe SSDs. In addition, the PCIe 5.0 x4’s blazing-fast 128Gbps transfer speed is 20x faster than SATA III, making it an ideal solution for data-intensive applications such as machine learning, cloud computing, data mining, and image/video processing.

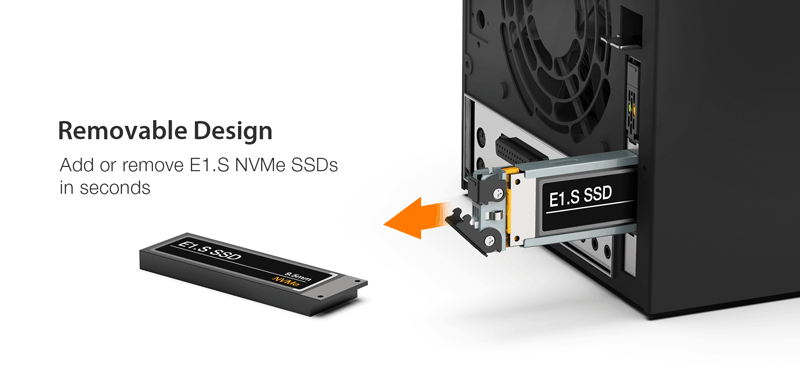

  • Innovative Removable E1.S NVMe SSD Enclosure
    The CP125’s removable drive tray design utilizes the PCIe express slot, making the E1.S NVMe SSDs installation and removal process hassle-free. The advantage of utilizing the PCIe expansion slot is that it provides power and data through a single PCIe slot, reducing the system’s cable clutter.

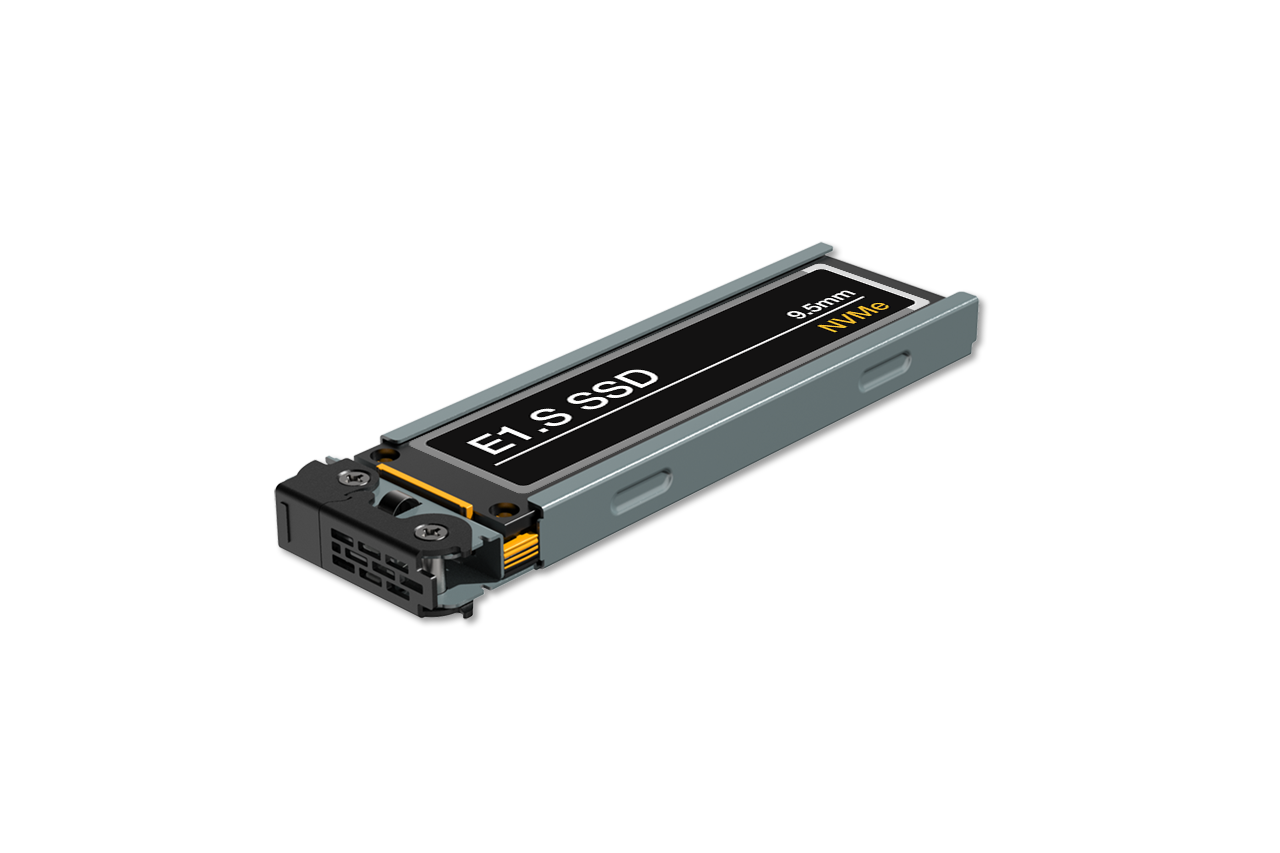

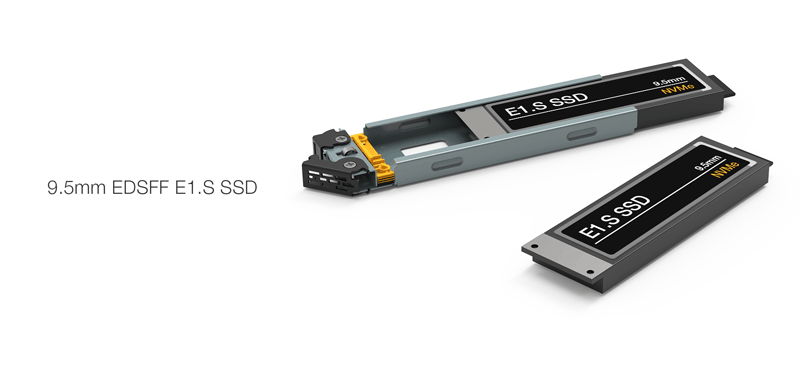

  • State of the Art Tool-less E1.S Drive Enclosure
    The tool-less E1.S NVMe SSD installation design takes less than five seconds to complete, saving you the hassle of dealing with a tiny, easy-to-lose SSD mounting screw.

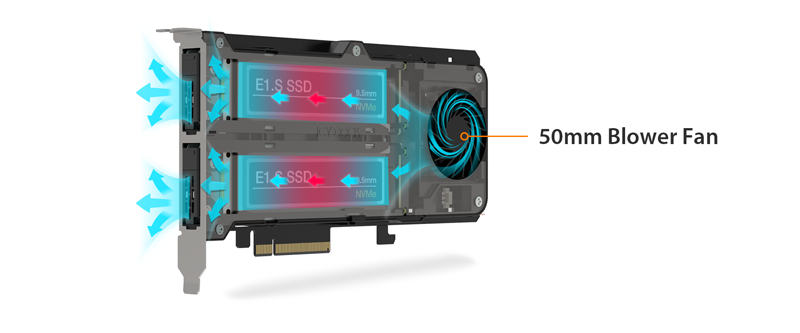

  • Optimal Cooling Efficiency
    The specialized slim E1.S drive tray is made of thick aluminum and acts as a heatsink to dissipate heat generated by the SSD. The included thermal pad fills the gap between the contact surface and transfers heat away from the E1.S NVMe SSD to the larger aluminum surface, allowing airflow to move the heat quickly with the 50mm blower fan incorporated into the mobile rack.

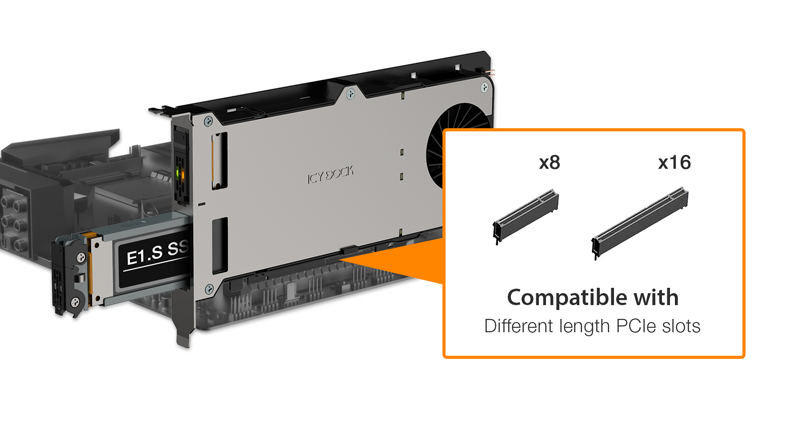

  • Maximum Compatibility
    The CP125 is designed for PCIe slots and is compatible with PCIe 1.0/2.0/3.0/4.0/5.0 x8 and x16 slots.
  • Packed with Features
    The CP125 is built with drive activity LED indicators on each drive tray to show the drive power and activities. The LED will automatically power off when no drive is detected to save energy.
  • The optional 2 x 4-pin HDD activity signal output (cable is not included) allows you to transfer the drive activity signal to the computer case or LED panel and provide an alternative view at the desired location.
Main Features
Fits 2 x E1.S NVMe SSD, compatible with 9.5mm thickness.

Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)

Supports hot-swap/hot-plug E1.S NVMe SSD.

Removable drive tray with tool-less drive installation for easy drive maintenance.

The eagle-hook lock system keeps the drive secured in the enclosure.

Equipped with a 50mm blower fan for maximum thermal performance.

The included thermal pad conducts heat from the drive to the metal drive tray.

Built-in individual drive power and activity LED light.

Optional HDD activity signal outputs let you transfer the drive activity signal to the computer case or LED panel.

Specification
Model Number: CP125
Available Colors: Black with silver IO bracket
Host Interface: 1 x PCIe 5.0 x8 golden finger
Drive Bay: 1 x PCIe 3.0 or 4.0 x8 / x16 expansion slot (motherboard required PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4)
Drive Fit: 2 x EDSFF E1.S SSD (compatible with 9.5mm thickness)
Device Fit 1 x single PCIe x8 slot
Maximum Transfer Rate: PCIe 5.0 x4 up to 128Gbps per SSDs
Power Input

1 x PCIe power pin

Structure: Metal IO bracket with partial ABS plastic, PCBA and aluminum tray
Cooling System: 1 x 50mm blower fan
SSD Access Indicator: Device power: solid green
Device activity: flashing green
Device empty: LED off
Amber/blue LED defined by host
Package Content: Device, user manual, screw
Dimension (W x H x D): 197 x 121 x 22
Weight : (TBD)


Revolutionizing PCIe Expansion Slots with ICY DOCK's Removable PCIe Enclosures or Adapters

Transitioning from bulky 3.5" SATA HDDs to nimble, high-speed PCIe-based NVMe SSDs, ICY DOCK's removable PCIe SSD/HDD enclosures or adapters stand at the forefront of innovation.
