4 x U.2 SSD Removable Drive MPX Module for Mac Pro (2019-current) PCIe Slot
Product Details
feedback Join the discussion All concept products
  • Product Introduction
    Introducing the CP110, a swappable 4 bay U.2 NVMe SSD MPX Module for Mac Pro (2019-current). Installing the CP110 into the Mac Pro’s MPX slot provides four individual removable drive bays that allow users to quickly and easily install or remove super-fast U.2 NVMe drives SSD. CP110 offers data transfer speeds up to 32Gbps per drive bay, and that’s over 4x faster than SATA drives’ theoretical maximum speed. The solid performance from U.2 NVMe SSDs with easy drive swap convenience makes it perfect for media/tech professionals to store, access, and manage their digital assets.
  • The CP110 uses a swappable drive tray system to make drive interchangeability and maintenance completely hassle-free. It allows users to add or remove the drive for upgrade or maintenance without removing the entire MPX module from the system to reduce system downtime. The eagle-hook drive tray locking system makes sure the installed U.2 NVMe SSDs will not eject when not needed for enhanced drive security.
  • LEDs are installed to the front of the trays to provide drive status information at all times when the drive is inserted and accessed. The full metal housing and drive trays offer maximum durability, even on the most challenging worksites.

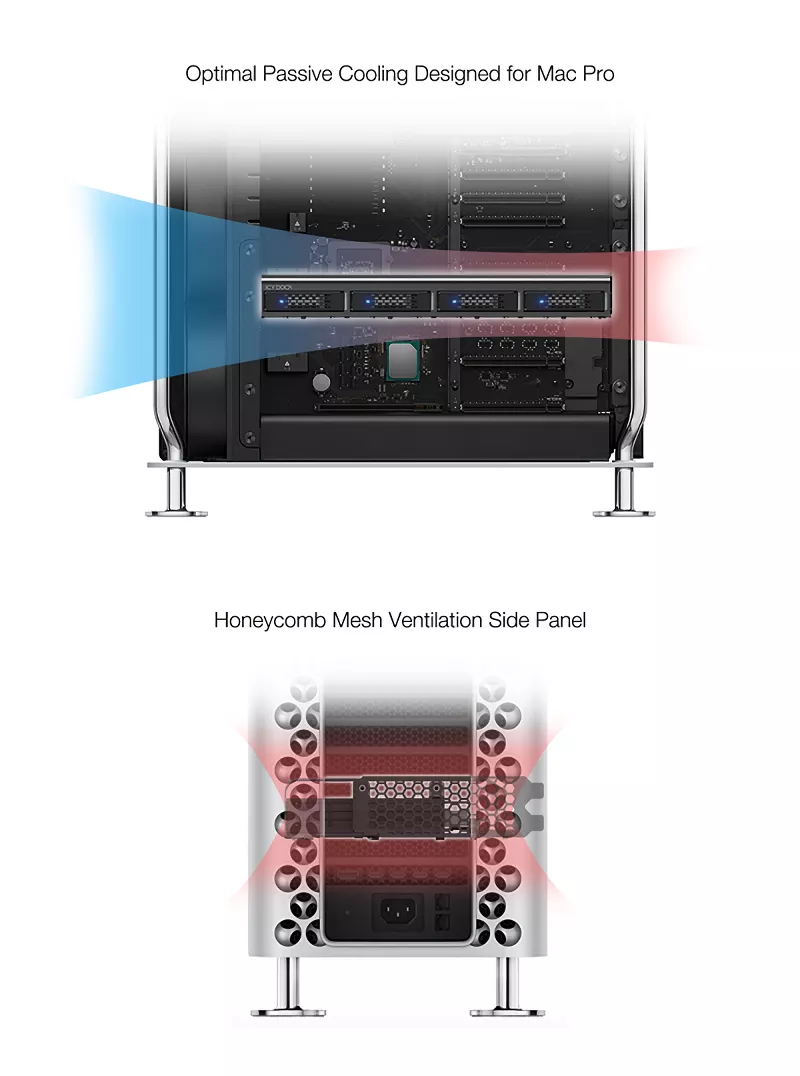

  • To keep the system super-cool and quiet, the CP110 has strategically place air vents all around the device to maximize airflow.
  • On top of that, the honeycomb mesh ventilation side panel and full metal chassis make CP110 act as a giant heatsink, which works perfectly with Mac Pro’s innovative thermal system and will keep the U.2 SSD under the ideal operating temperature even under heavy workloads.
Main Feature
Supports 4 x U.2 NVMe SSD, up to 15mm height
Fits in Mac Pro (2019-current) MPX slot (x16 lanes, double-wide)
Each drive bay supports a data transfer speed of up to 32Gbps
Honeycomb-like I/O panel for optimal passive cooling
Removable drive tray design for easy drive installation and removals
Eagle-hook drive tray locking system keeps drives secured within the enclosure
Ruggedized full metal housing and tray that meets flammability requirement

Model Number: CP110
Colors: Black
Host Interface: 1 x PCIe 3.0 x16
Drive Fit: 4 x 2.5" U.2 NVMe SSD (support 15mm Height)
Device Fit: 1 x Double-wide slot for Mac pro (2019-current)
Maximum Transfer Rate: PCIe 3.0 x16 up to 128Gb/s
(one slot support PCIe 3.0 x4 up to 32Gb/s)
Power Input: 1 x MPX connector (provide up to 500W)
LED Indicator: Device power: solid blue
Device activity: flashing blue
Structure: Metal with partial plastic
Package Content: Device, user manual, screws
Dimension (W x H x D) : 314 x 36.4 x 149 mm
Weight: (TBD)
