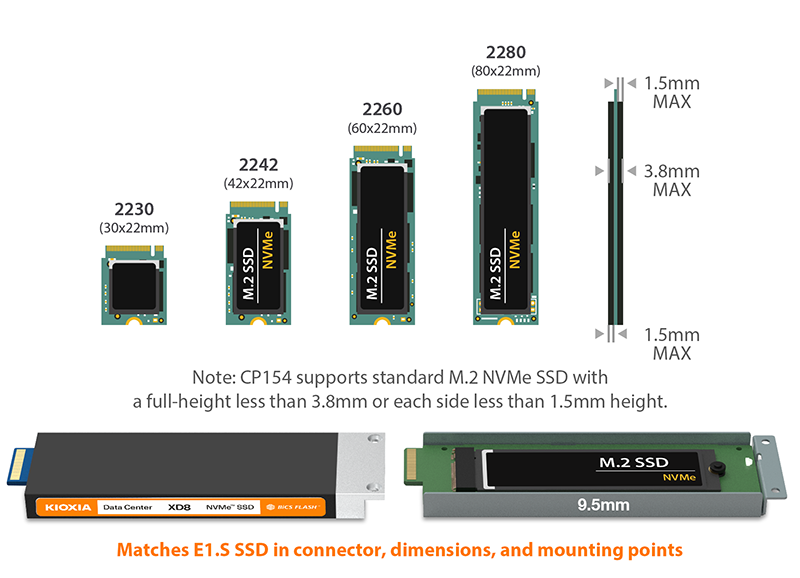

| • | Converts standard M.2 NVMe SSDs (2230/2242/2260/2280) to 9.5mm E1.S SSD form factor |
| • | Fully matches E1.S mechanical and electrical specifications (SFF-TA-1006 + SFF-TA-1002) |
| • | Compatible with PCIe Gen 3/4/5 NVMe SSDs for up to 128Gbps data rate |
| • | Ideal for E1.S drive bays in enterprise servers, AI edge systems, and modular compute nodes |

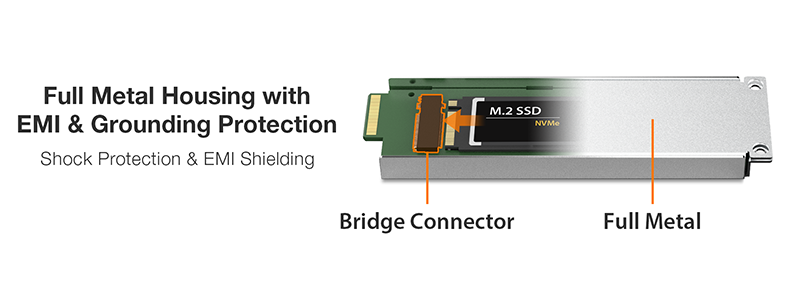

| • | Internal bridge connector minimizes M.2 connector wear from frequent insertions |
| • | Full-metal housing ensures structural integrity, EMI shielding, and thermal dissipation |
| • | Ideal for system builders, server OEMs, and platform engineers validating E1.S systems |
| Model Number： | CP154 |
| Color： | Silver |
| Support Drive Size： | 2280/2260/2242/2230 M.2 SSD |
| Compatible Drive Type： | M.2 NVMe SSD |
| Number of Drives： | 1 |
| Drive Bay： | 9.5mm E1.S SSD |
| Host Interface： | 1x GenZ 1C 56 Pin |
| Power Input： | Via GenZ 1C Connector |
| Transfer Rate： | PCIe 5.0 x4 up to 128Gbps |
| Support SSD Capacity： | Unlimited |
| Drive Cooling： | Passive cooling |
| Structure / Material： | Metal with partial Plastic |
| SSD Access Indicator： | Green : LED (drive power: solid green, drive access: flashing green) Amber : LED (function is defined by host) Empty : LED off |
| Package Contents： | Device, user manual, thermal pads |
| U.2 Connector Insertion Rate： | 5,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years limited warranty |
