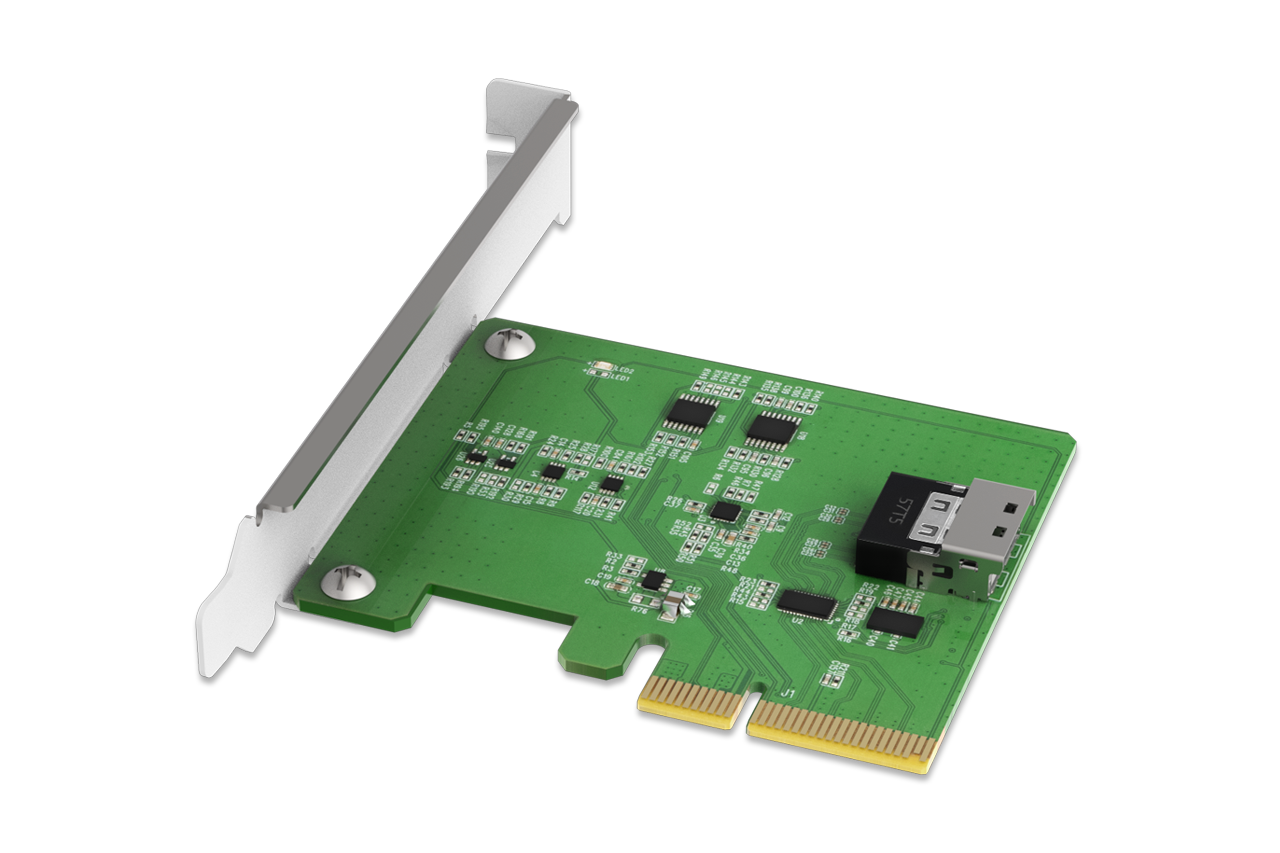

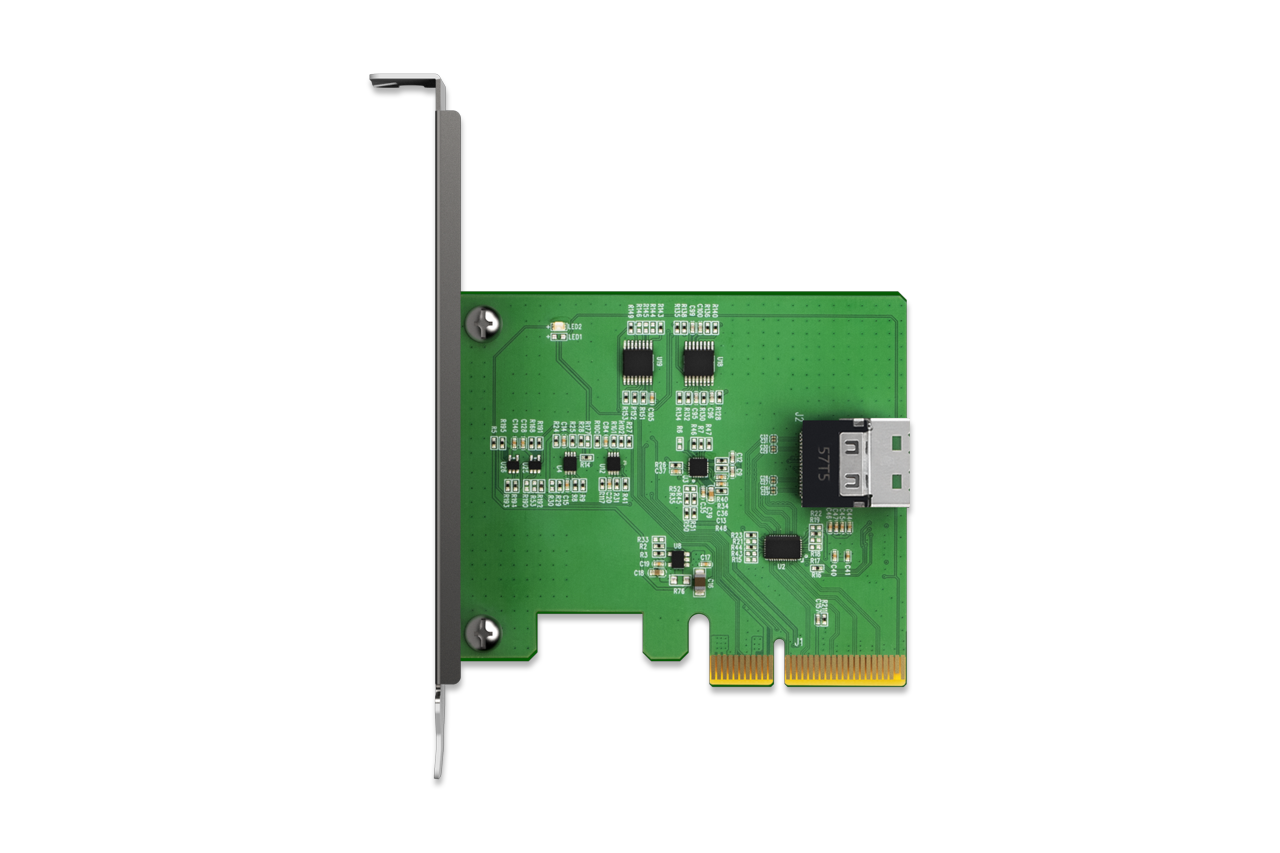

The EXLink MB408A4 is well suited for:

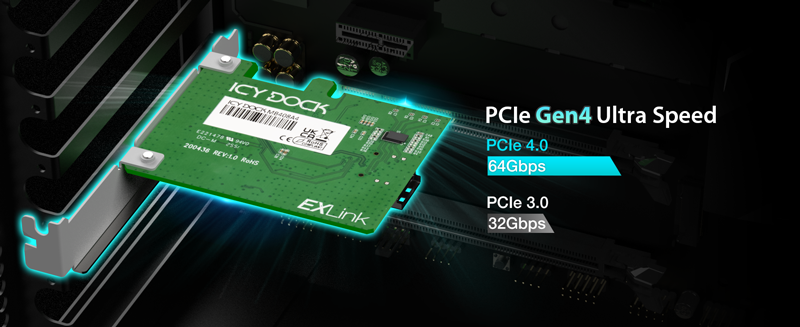

| • | PCIe Gen4 x4 interface with up to 64Gbps total bandwidth |

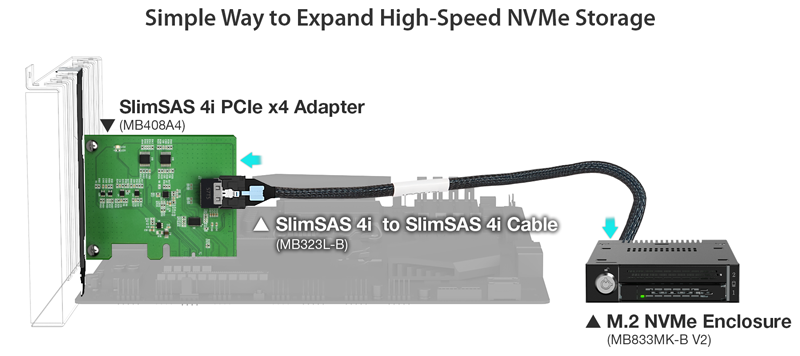

| • | SlimSAS 4i (SFF-8654) connector for NVMe storage |

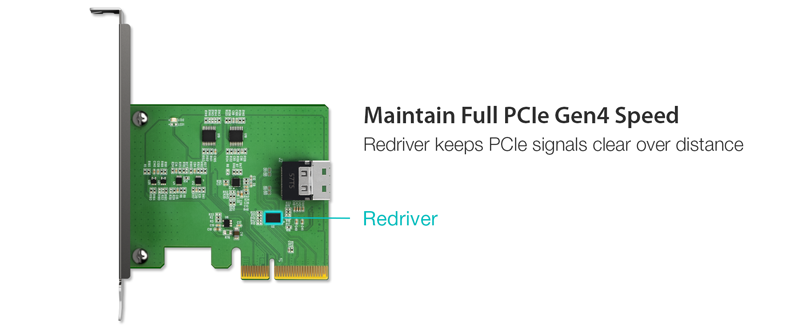

| • | Integrated PCIe Gen4 redriver for extended signal reach |

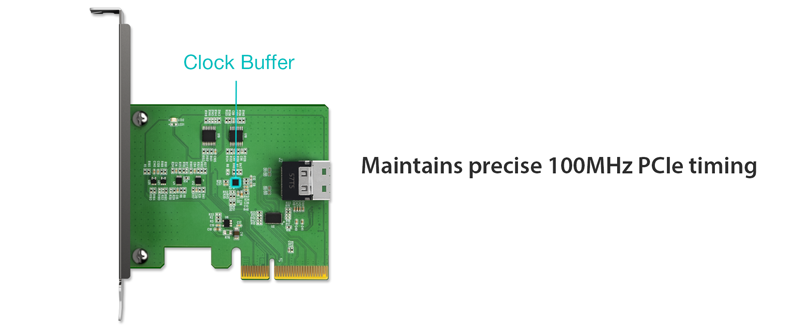

| • | Built-in 100MHz PCIe clock buffer |
| • | Buffered PERST#, WAKE#, CLKREQ#, SMBCLK, SMBDAT signals |

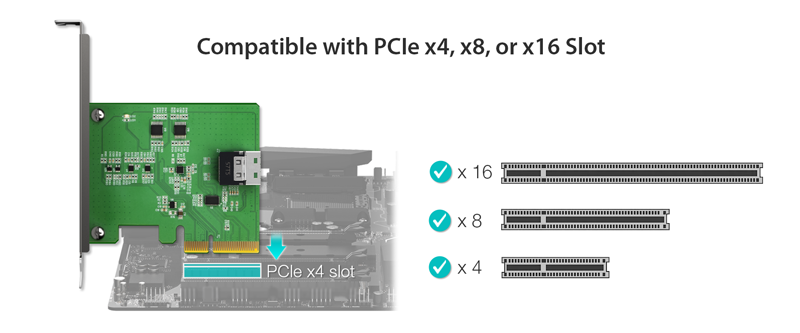

| • | Supports PCIe 2.0 / 3.0 / 4.0 / 5.0 slots (x4 physical) |
| • | Tri-mode HBA/RAID compatible (SFF-9402 Rev 1.1 pin-out) |

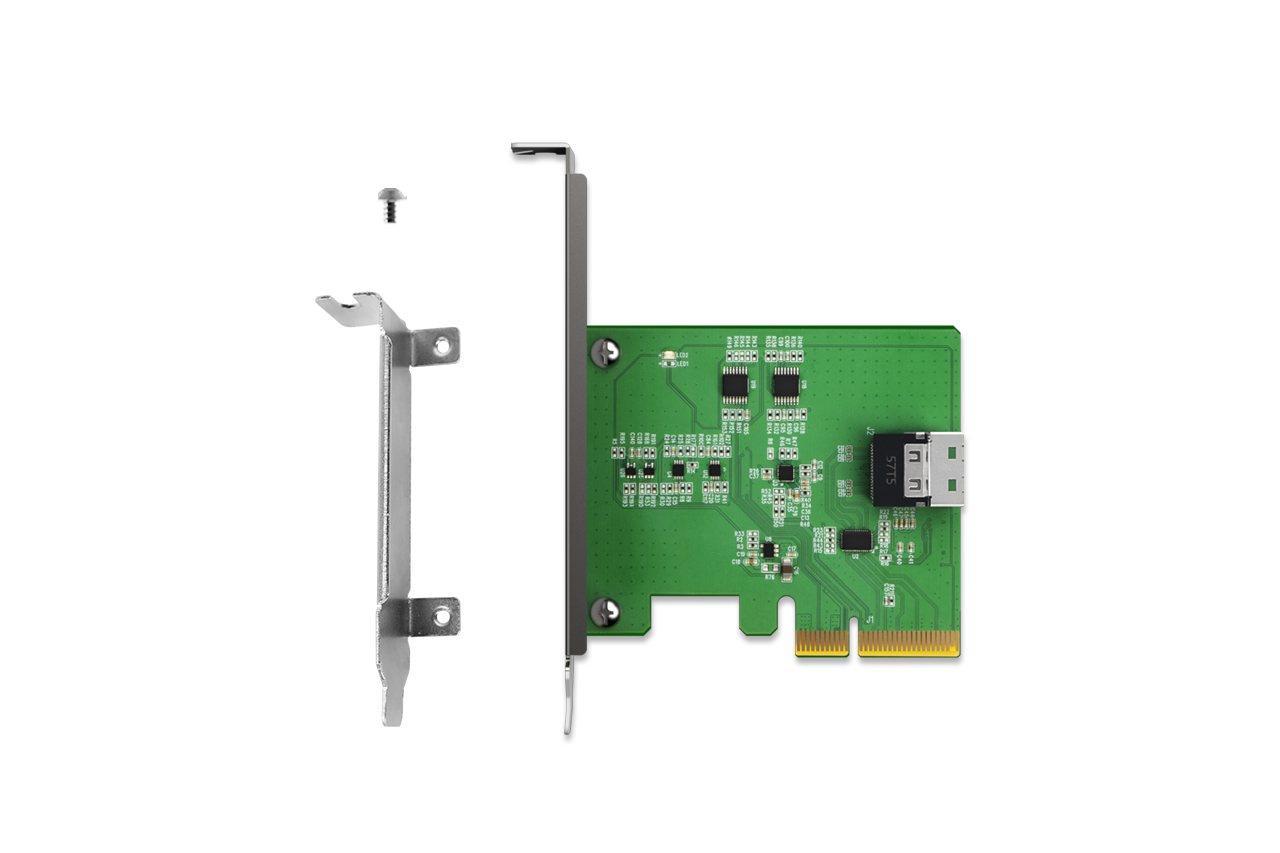

| • | Full-height bracket |
| • | CE/UKCA/RoHS/REACH compliant |
| • | 2-year limited warranty |
| Model： | MB408A4 |
| Compatible Drive Type： | NVMe |
| Support Slots： | Works with x4 PCIe 2.0/3.0/4.0 or 5.0 slots on motherboards |
| Host Interface： | 1 x PCIe x4 connector |
| Endpoint Interface： | 1 x SlimSAS 4i (SFF-8654), pin-out defined by SFF-9402 Rev 1.1 (Tri-mode HBA/RAID card compatible) |
| Transfer Rate： | PCIe 4.0 x4 up to 64Gbps |
| Supported Operating Systems： | No limitation |
| Product Dimension (W x H x D)： | 109.7 x 120.8 x 21.5mm |
| Product Net Weight： | 40.3g |
| Package Gross Weight： | 132.7g |
| Package Contents： | Device, mounting screws, user manual |
| Connector Insertion Rate： | 5,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, UKCA, RoHS, REACH |
| Warranty： | 2 years limited warranty |
