Concept Product CP152

2-Bay 2.5" SATA SSD/HDD RAID Adapter with Side-Pull Removable Trays (PCIe 3.0 x1)
Product Details
CP152 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products

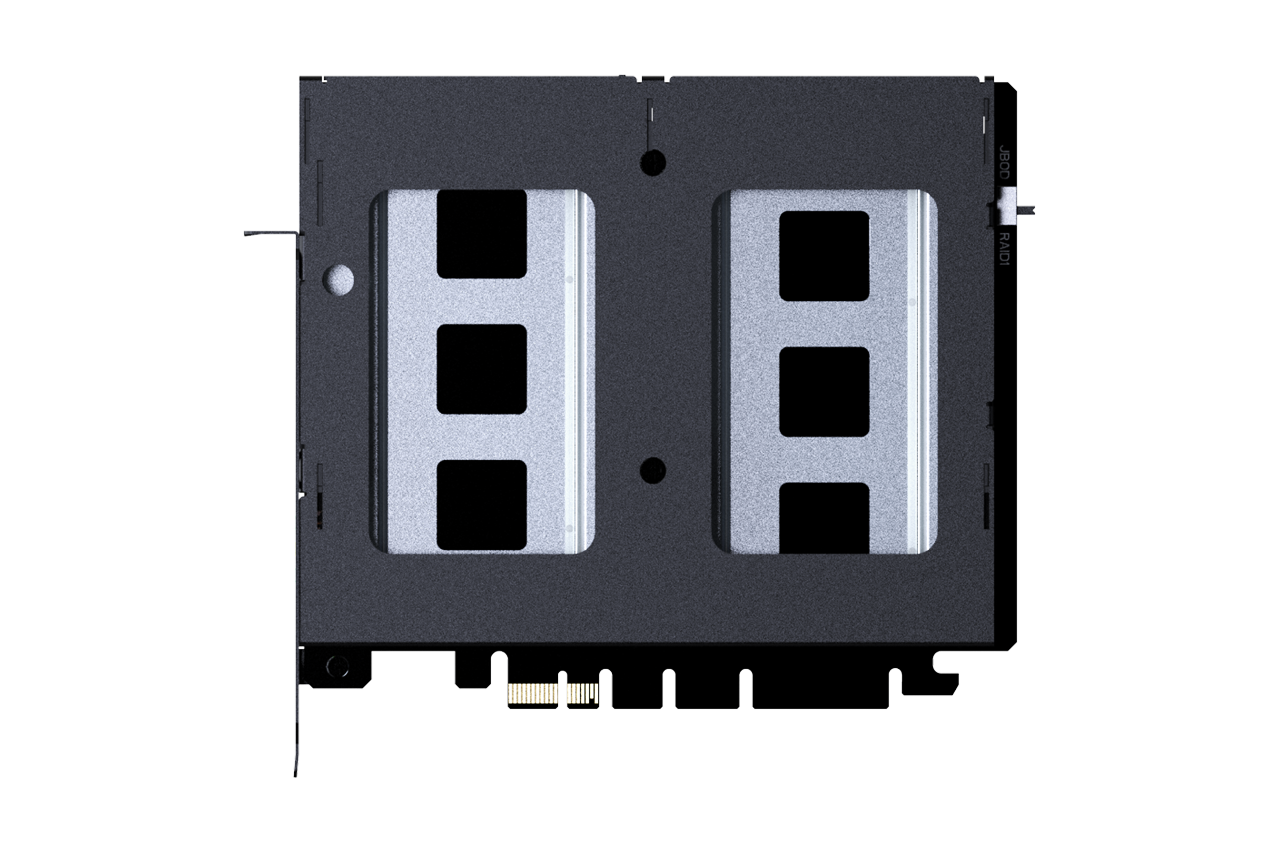

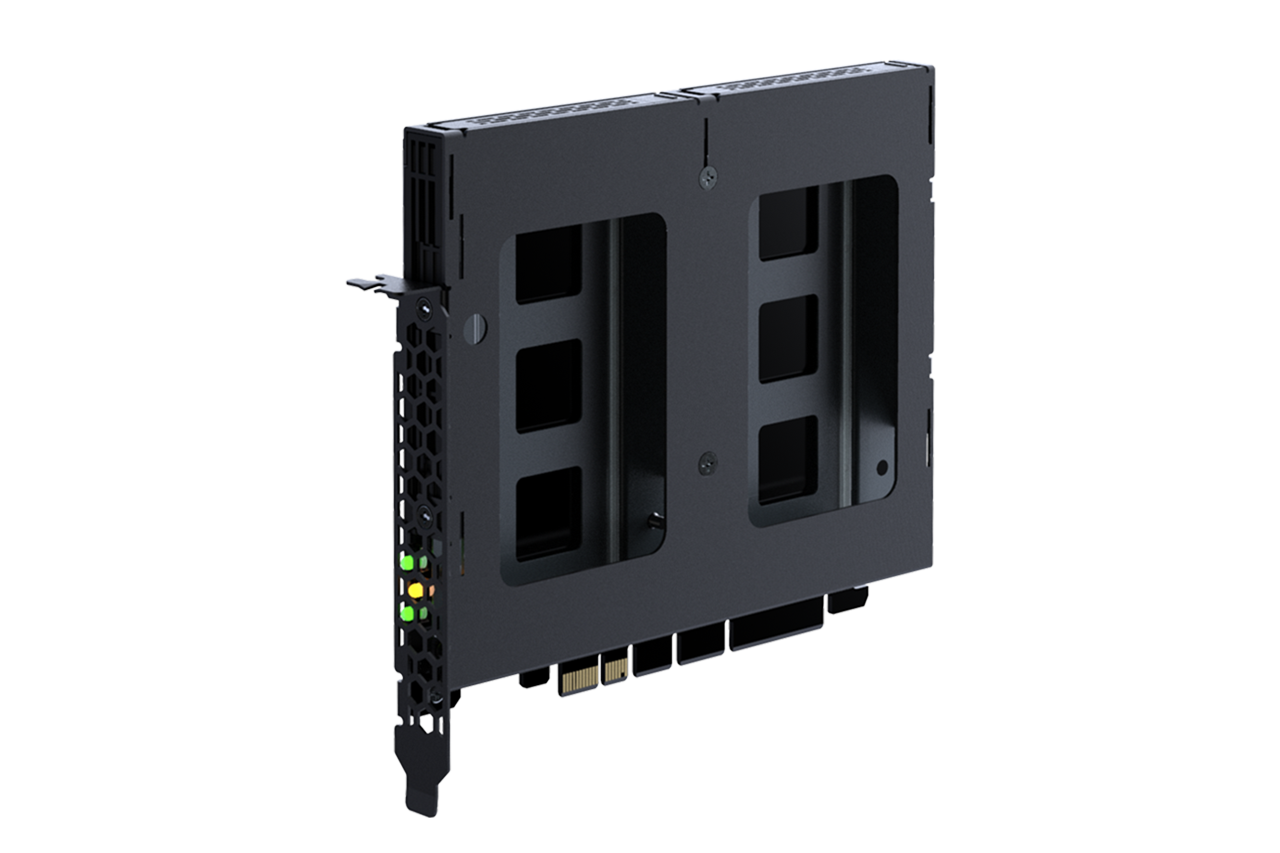

  • The CP152 2.5” SATA SSD/HDD RAID PCIe adapter brings the ExpressSlot Slide design to 2.5" SATA storage. By utilizing the PCIe slot space, the CP152 allows two 9.5mm 2.5" SSDs/HDDs to be installed on side-pull removable trays. This design maximizes system density - similar to Mac Pro and rackmount solutions - while enabling fast drive access and simplified maintenance.
  • Side-Pull Removable Tray
    Access drives directly from the PCIe slot side by opening the chassis panel, allowing quick replacement and efficient use of PCIe space.
  • RAID 1 & JBOD Support
    Protect mission-critical data with RAID 1 mirroring, ensuring uninterrupted operation in case of a single drive failure. JBOD mode is also available for straightforward capacity expansion when redundancy is not required.
  • Ideal Applications
    Ideal Applications: automation control systems, semiconductor manufacturing equipment, industrial PCs, edge servers, professional media editing, and compact workstations requiring both reliability and easy serviceability.
  • Compact PCIe x1 Integration
    The CP152 operates through a PCIe 3.0 x1 slot, offering up to 8Gbps transfer speed while occupying only minimal system resources. This high compatibility design ensures broad support across server, workstation, and embedded platforms, delivering storage expansion without sacrificing higher-bandwidth PCIe slots for GPUs or accelerators.
Main Features
•
Fits 2 × 2.5" SATA SSD/HDD (up to 9.5mm height)

•
Side-pull removable tray design maximizes PCIe slot usage and simplifies drive access

•
RAID 1 support ensures data redundancy and reliability for mission-critical environments

•
JBOD mode available for simple capacity expansion

•
Ideal for automation systems, semiconductor manufacturing, industrial PCs, edge servers, media editing workstations

•
Compact PCIe 3.0 x1 interface with up to 8Gbps transfer rate

•
High compatibility design minimizes system resource usage and preserves high-bandwidth slots for GPUs or accelerators


Specification
Model Number : CP152
Color : Black
Host Interface : PCIe 3.0 x1 connector
Drive Fit : 2 × 2.5" SATA SSD/HDD
Max Drive Height : 9.5mm
Device Fit : PCIe 3.0 x1 connector
Maximum Transfer Rate : up to 6Gbps (TBD)
Power Input : via PCIe connector
SSD Access Indicator : Drive power: solid green
Drive access: flashing green
Drive fail: solid red
Drive not detected: LED off
RAID Status LED Indicator : When RAID rebuild: flashing amber
When RAID rebuild finished: LED off
Structure : Metal with partial ABS plastic
Package contents : Device, User manual, screws
