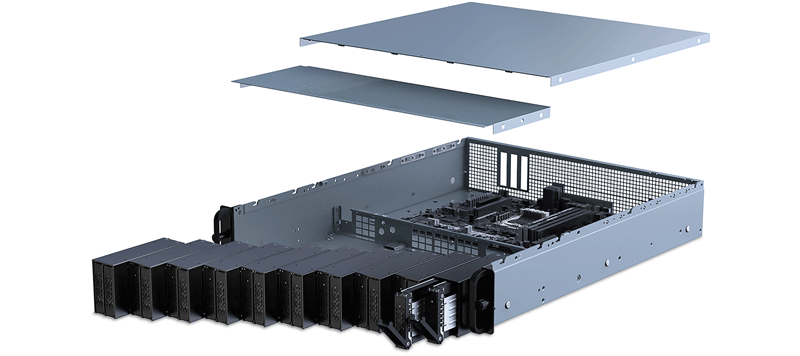

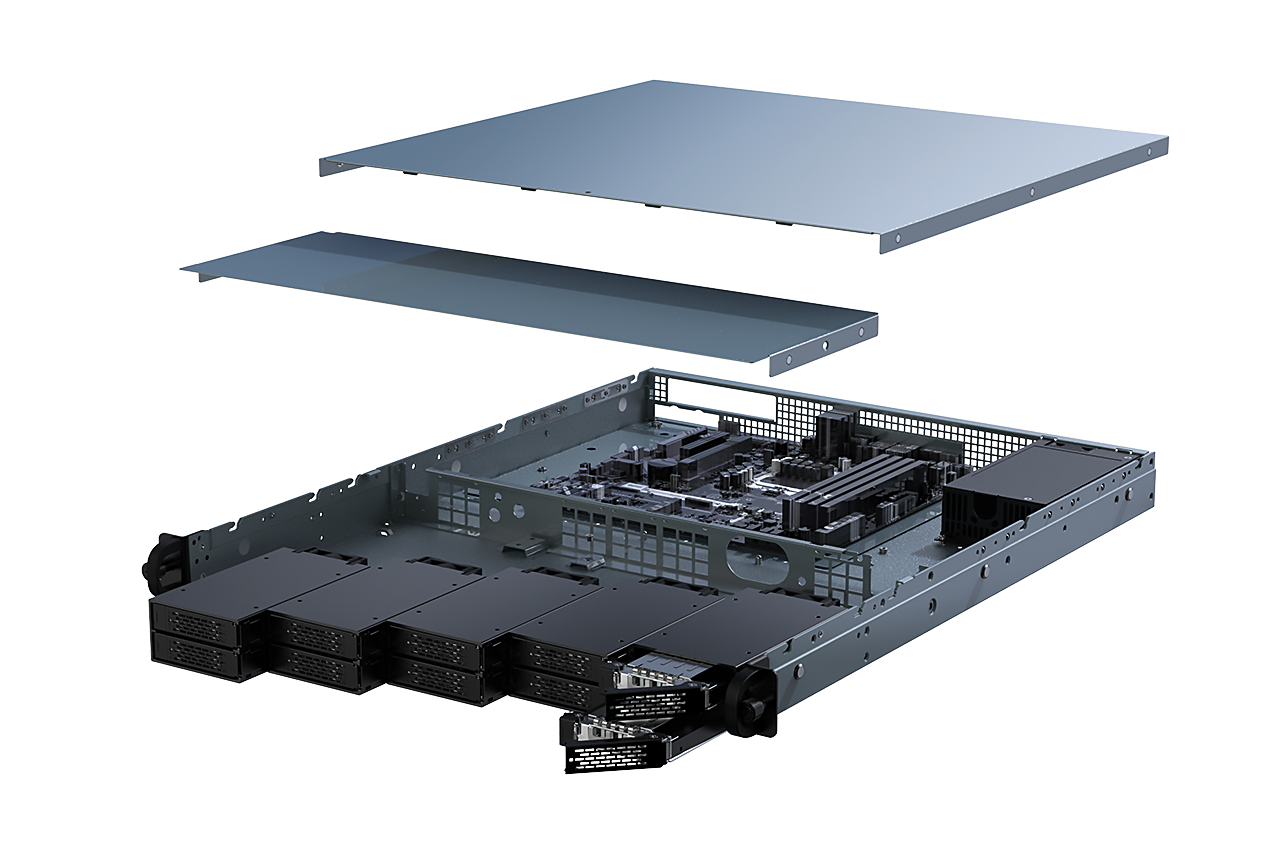

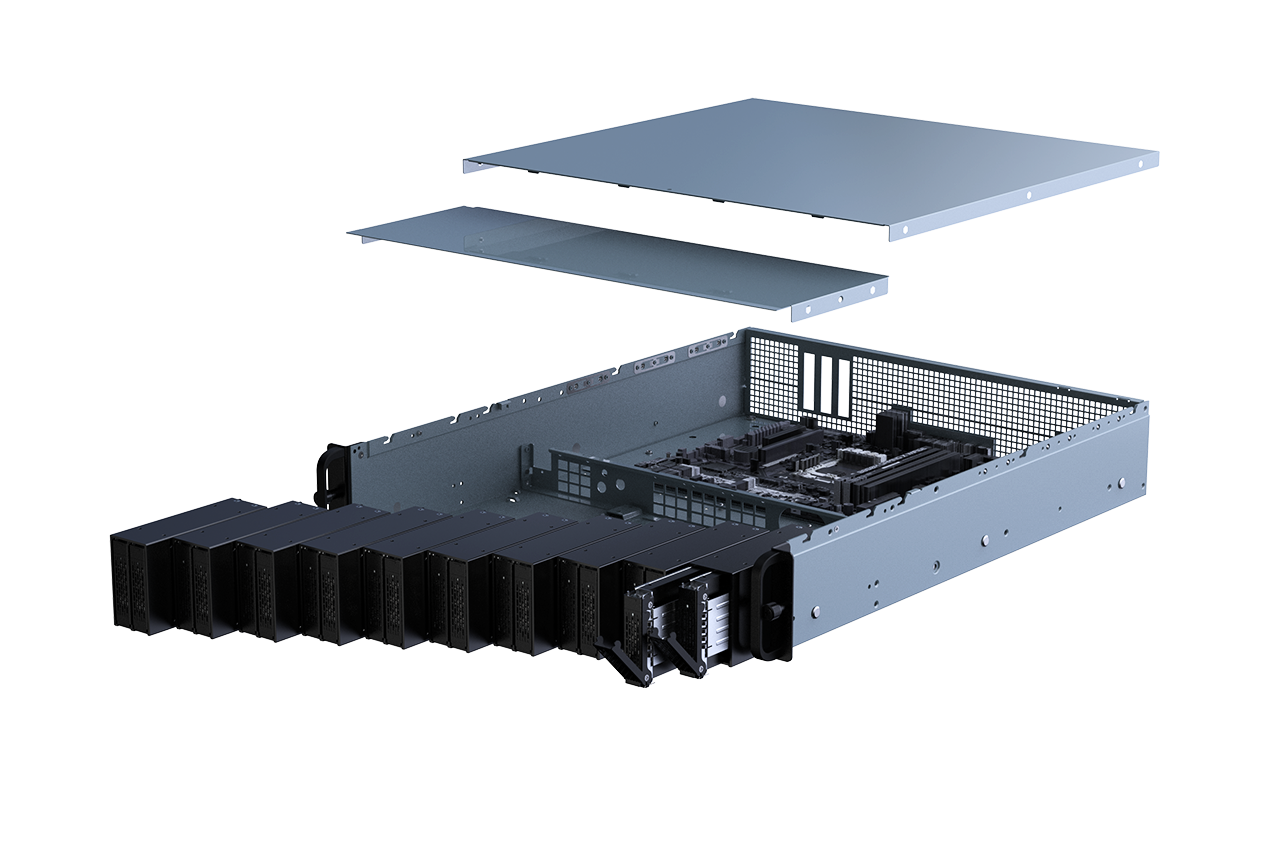

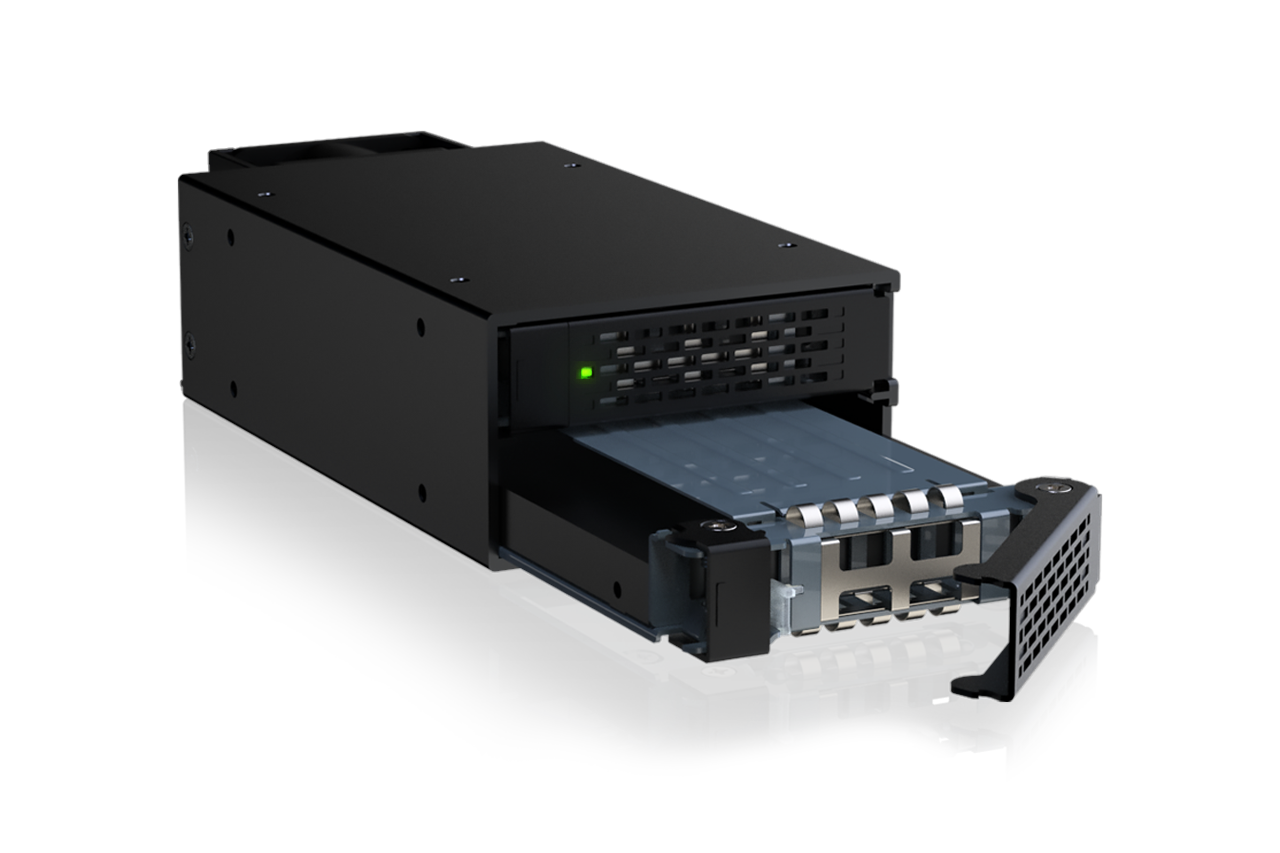

The CP164 is engineered with a compact, non-standard 5.25"-class footprint, giving system builders greater flexibility when designing compact or multi-module rackmount layouts. Unlike standard removable drive cages, the CP164 is intended for direct integration into OEM/SI rackmount chassis, allowing for:

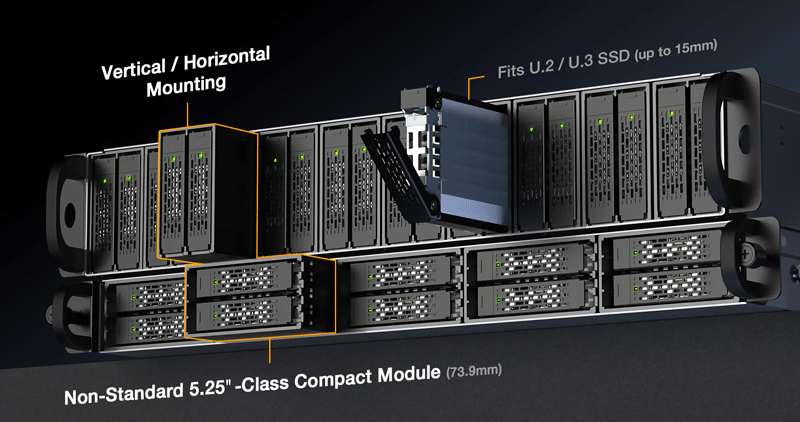

| • | Ultra-compact, non-standard module size tailored for rackmount system integrators |
| • | Supports 2 × 7mm to 15mm U.2/U.3 NVMe SSDs |
| • | PCIe 5.0 x4 per drive, up to 128Gbps |

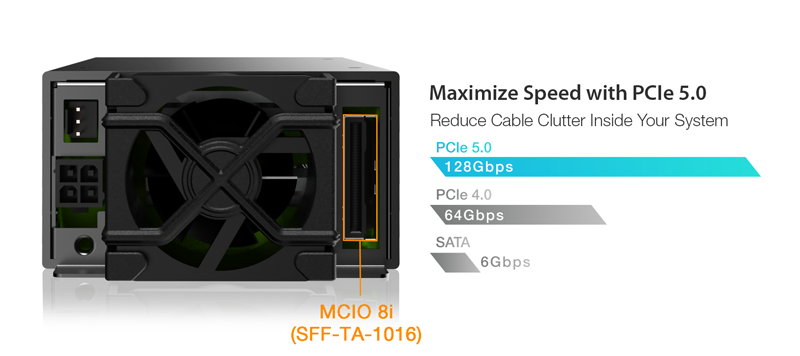

| • | MCIO 8i (SFF-TA-1016) interface |

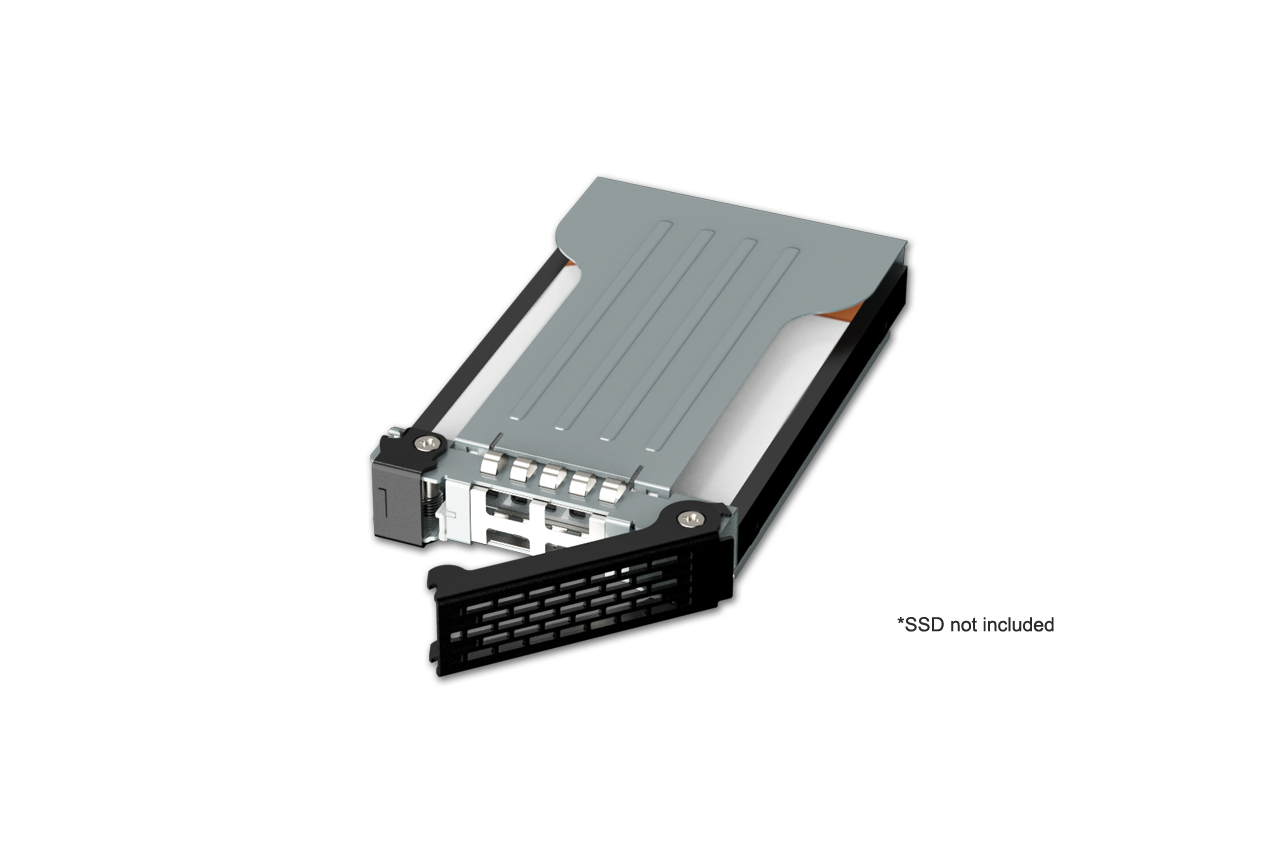

| • | Uses MB991TRAY-B full-metal removable trays |
| • | Full-metal ToughArmor construction for industrial durability |
| • | Hot-swap support for high-availability systems |

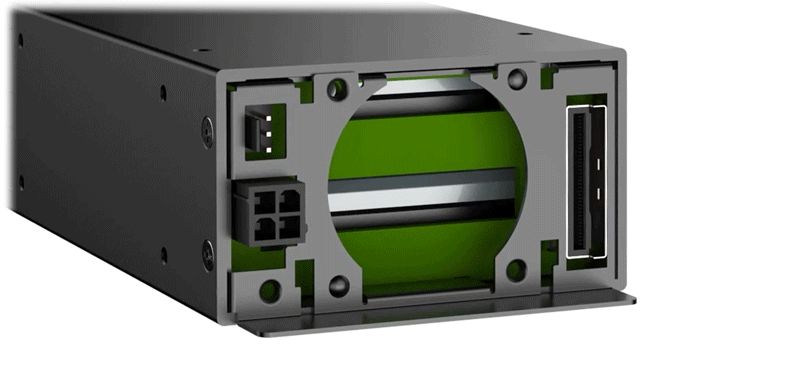

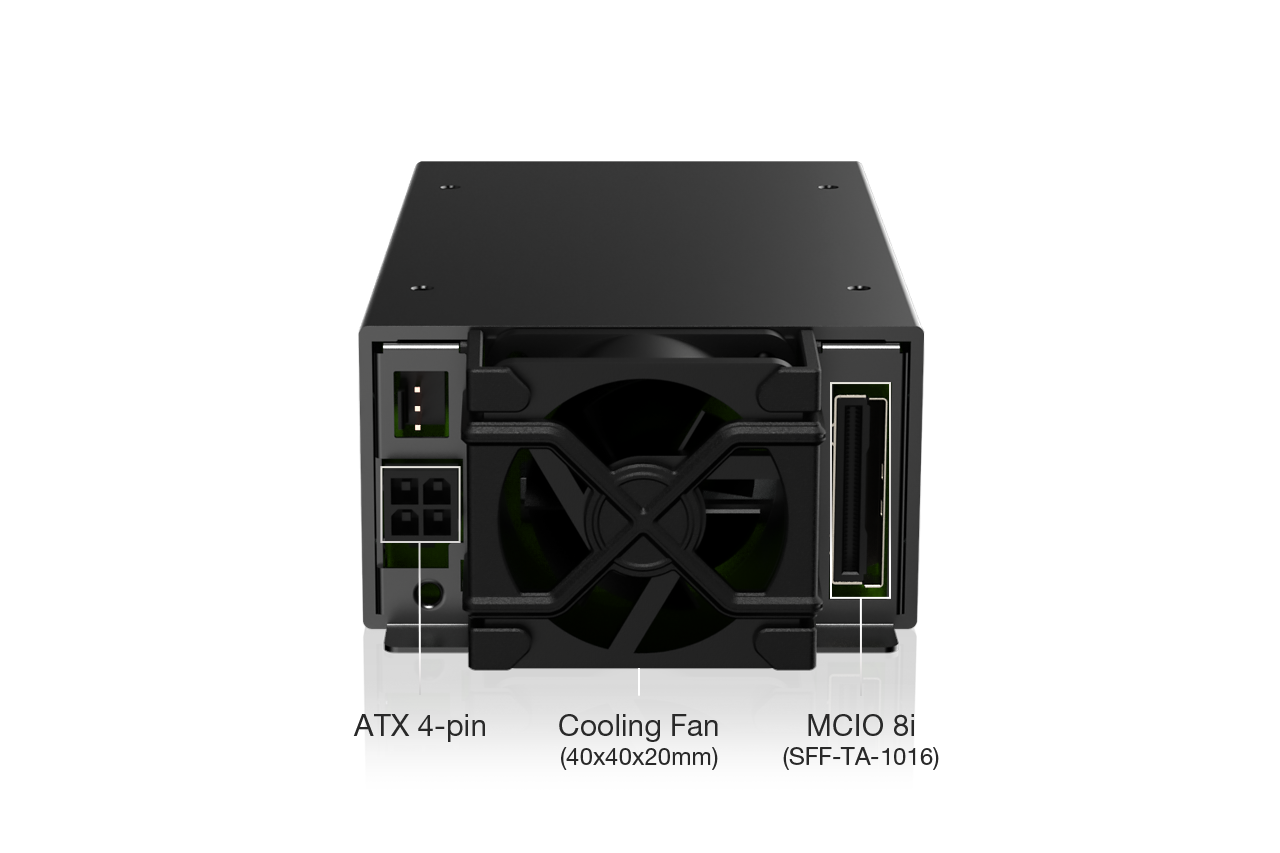

| • | 40×40×10mm high-airflow fan with tool-less quick-swap design |

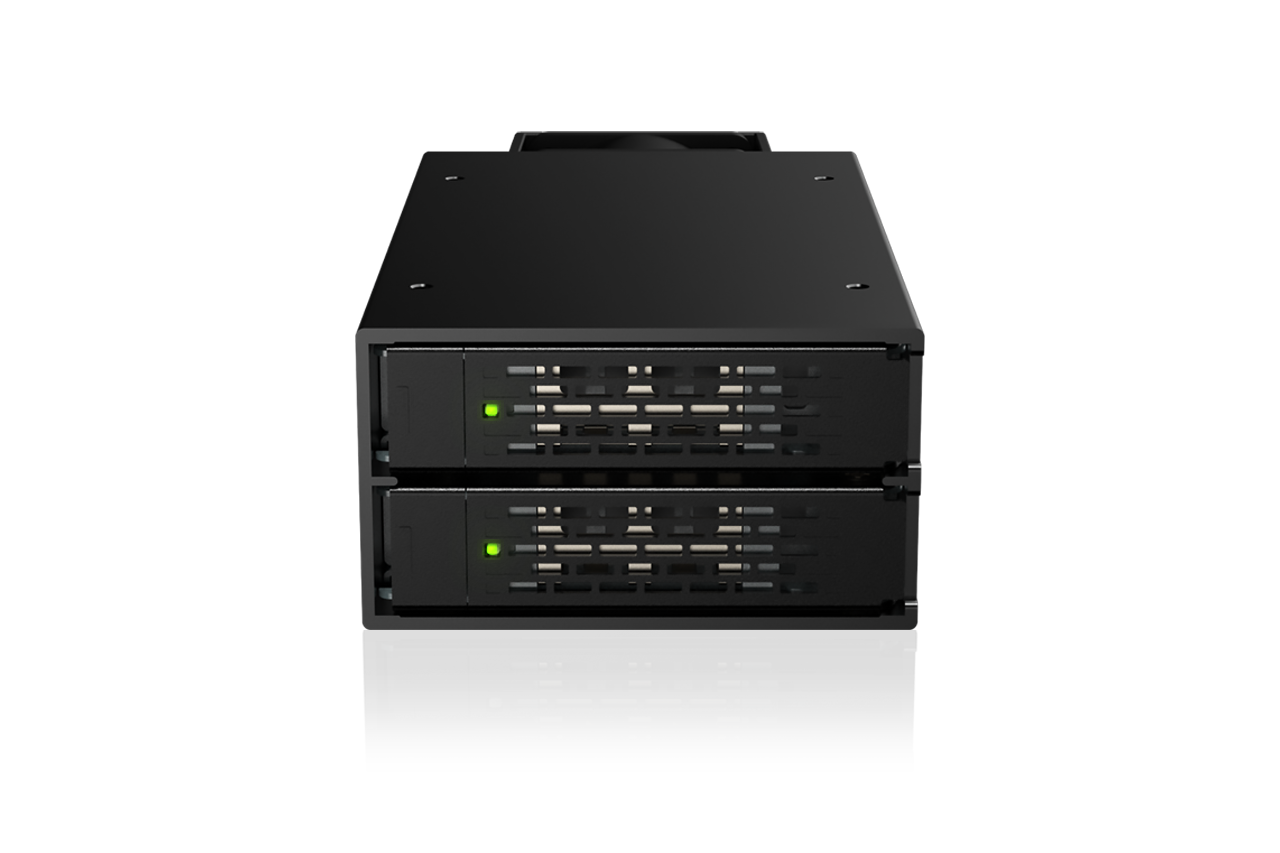

| • | LED indicators for power and activity |
| • | ATX 4-pin power input |
| • | Compatible with custom SI rackmount mounting positions (side/bottom screw holes) |
| Model Number： | CP164 |
| Color： | Black |
| Support Drive Size： | 2.5" (supports 15mm height U.2/U.3 SSDs) |
| Device Fit： | Non-Standard bay |
| Compatible Drive Type： | U.2 or U.3 |
| Number of Drives： | 2 |
| Host Interface： | 1 x MCIO 8i (SFF-TA-1016) |
| Power Input： | 1 x ATX 4 Pin power connector |
| Transfer Rate： | Up to 128Gbps per SSD (depending on SSD speed) |
| Support SSD Capacity： | No limitation |
| Drive Cooling： | 1 x 40×40×10mm fan |
| Hot Plug： | Yes |
| LED Indicator： | Drive power: solid green; Drive access: flashing green |
| Structure / Material： | Full metal |
| Package Contents： | Device, user manual, screws |
| Dimension (L x W x H)： | 152.3 × 73.9 × 41.3mm |
| Product Net Weight： | 450g (TBD) |
