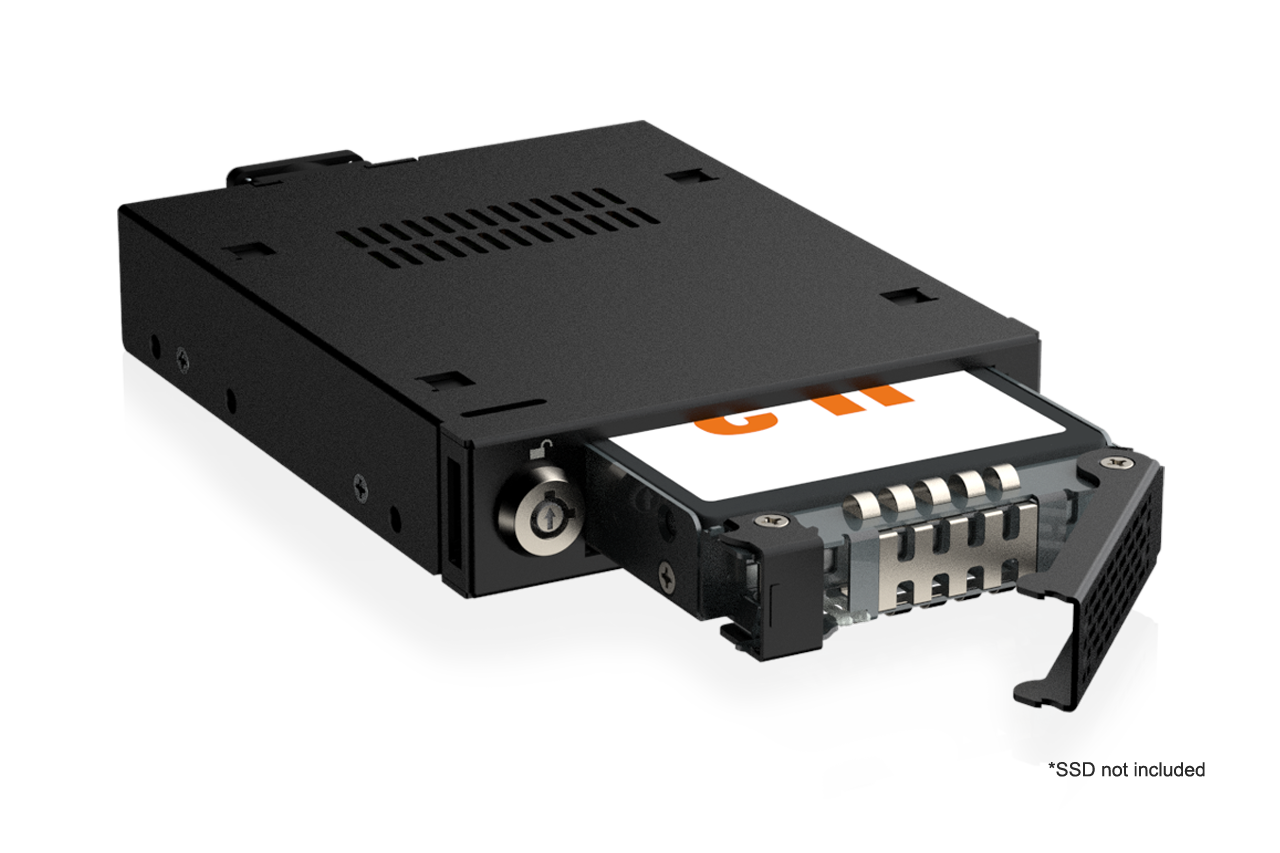

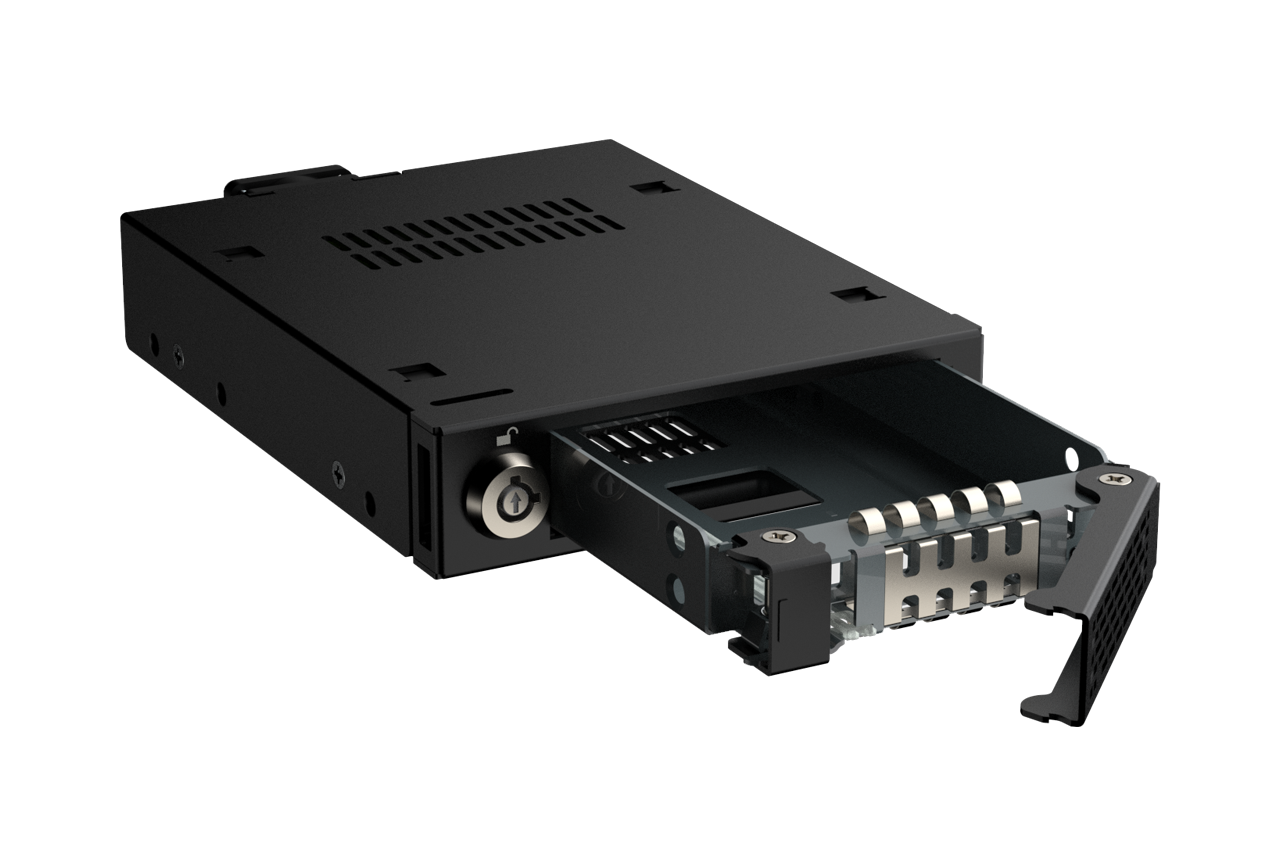

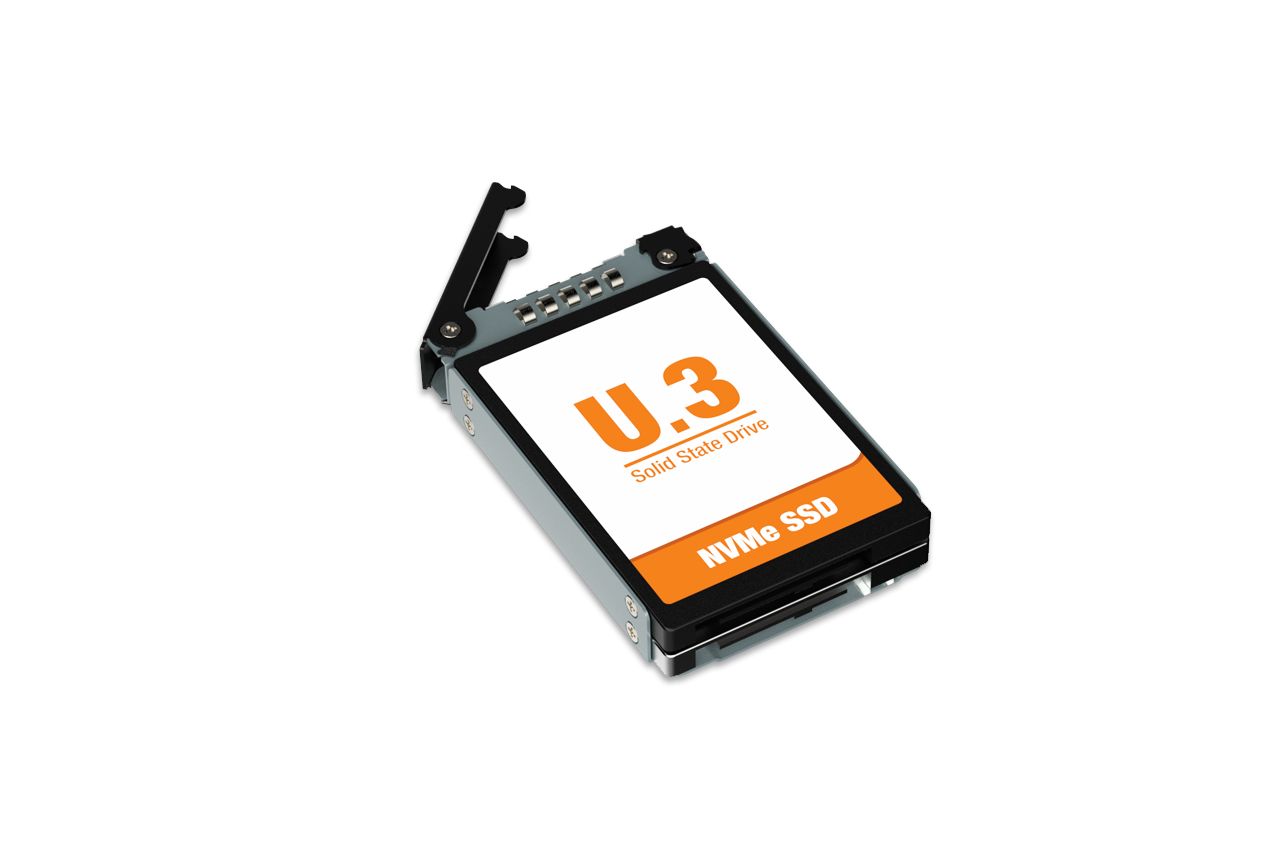

CP156 is a ToughArmor series removable NVMe enclosure that fits into a standard external 3.5" drive bay. It allows two 7mm U.2/U.3 NVMe SSDs to be mounted together on a single removable tray. Unlike traditional 2-bay designs where each SSD is removed separately, CP156 keeps both drives physically secured on the same tray. This ensures that:
For RAID configurations, mirrored datasets, or application-specific SSD pairs, maintaining correct drive sequence is critical. CP156 eliminates the risk of mix-ups during physical movement.
CP156 is purpose-built for workflows where data is physically transported between systems. By securing both SSDs with screws inside the tray, the design prioritizes mechanical stability and safe movement over tool-less convenience. This makes it ideal for:
The unified tray design ensures that SSD pairing and data structure integrity remain intact throughout the transport cycle.
As part of the ToughArmor family, CP156 features:
This rugged construction makes CP156 suitable for:
The design focuses on reliability and physical security rather than tool-less convenience.
CP156 supports:
Front LED indicators provide clear SSD power and activity status. Hot-plug capability enables SSD replacement without shutting down the system (subject to host support). Despite its compact 3.5" bay footprint, CP156 delivers enterprise-grade NVMe performance. Backed by a 5-year limited warranty, it provides long-term dependability for professional storage environments.
| • | Holds 2 × 7mm U.2/U.3 NVMe SSDs on a single removable tray |
| • | Preserves SSD pairing and order during transport |
| • | Designed for Sneakernet and RAID data mobility |
| • | Fits standard 3.5" drive bay |
| • | Full metal ToughArmor construction with EMI shielding |
| • | PCIe 4.0 x4 interface, up to 64Gbps |
| • | SlimSAS 4i (SFF-8654 4i) connection |
| • | Screw-secured tray (non tool-less design) |
| • | Front LED indicators |
| • | Hot-plug support (host dependent) |
| • | 5-year warranty |
| Model Number： | CP156 |
| Color： | Black |
| Support Drive Size： | 7mm U.2/U.3 SSD |
| Compatible Drive Type： | U.2/U.3 SSD |
| Number of Drives： | 2 |
| Drive Bay： | 1 x 3.5" drive bay |

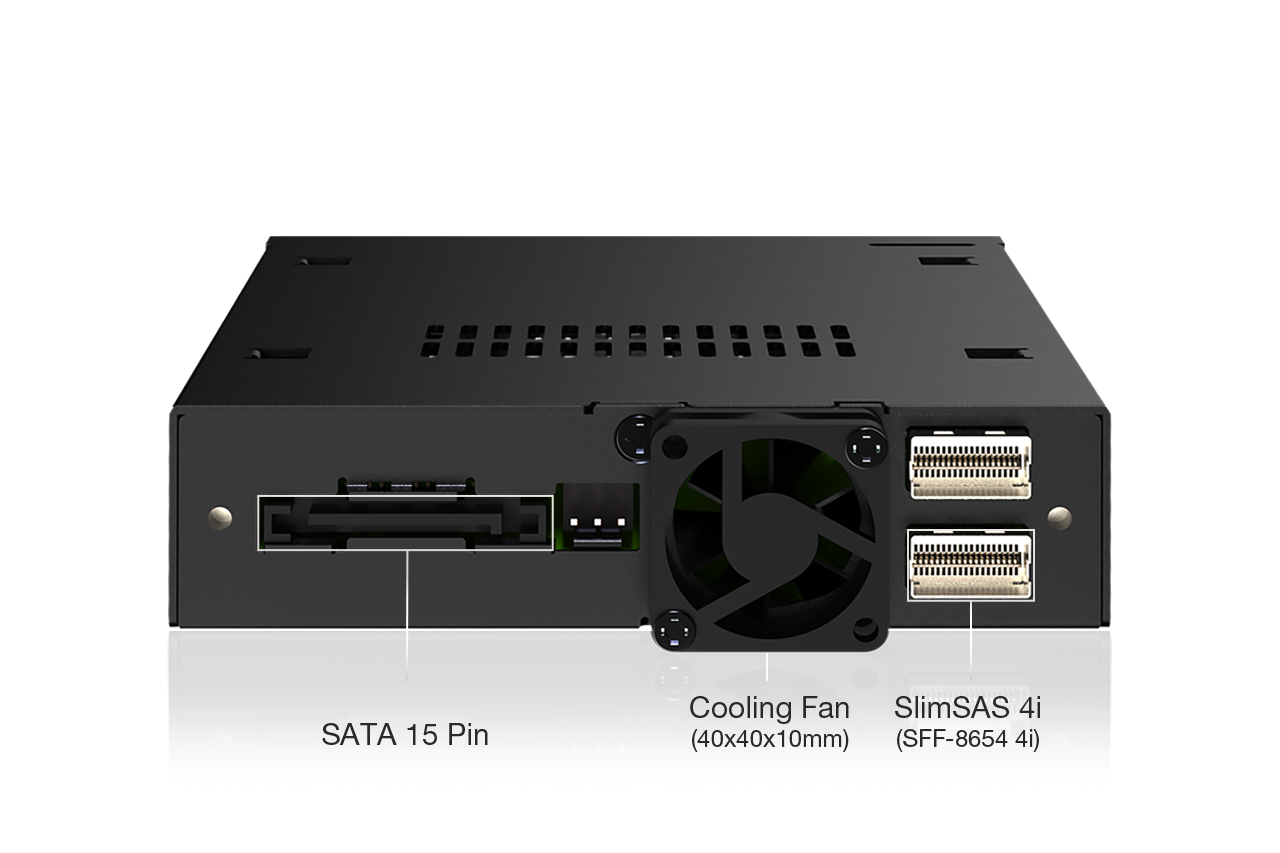

| Host Interface： | 2 x SlimSAS 4i (SFF-8654 4i) |
| Power Input： | 1 x SATA 15 pin |
| Transfer Rate： | PCIe 4.0 x4 up to 64Gbps (depending on SSD speed) |
| Support SSD Capacity： | No limitation |
| Drive Cooling： | 1 x 25 x 25 x 7mm fan |
| Structure / Material： | Full metal |
| Hot Plug： | Yes |
| Product Dimension (W x H x D)： | 144 x 25 x 102 mm (TBD) |
| Product Net Weight： | 500g (TBD) |
| Package Gross Weight： | 550g (TBD) |
| Drive Activity LED Indication： | Green LED: drive power: solid green, drive access: flashing green |
| Package Contents： | Device, user manual, screws |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years |
