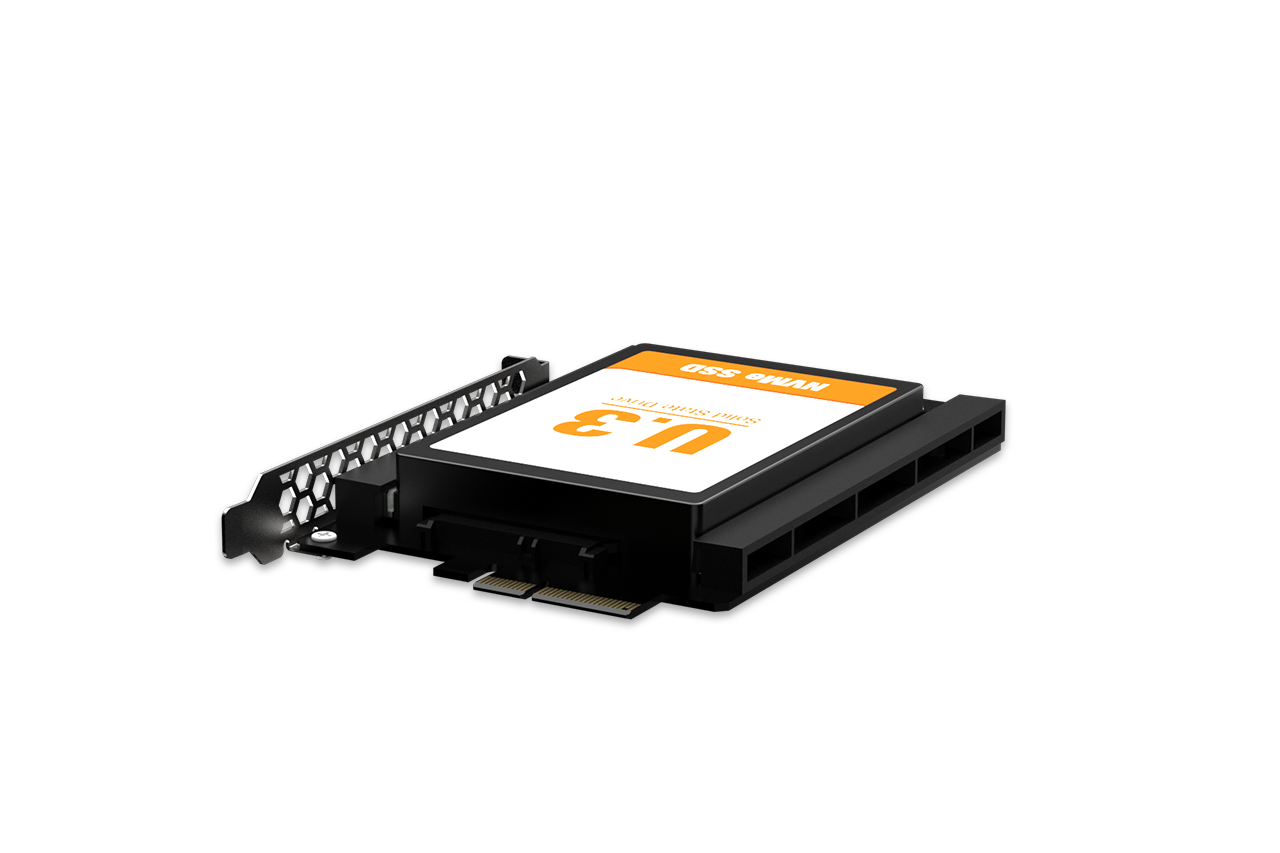

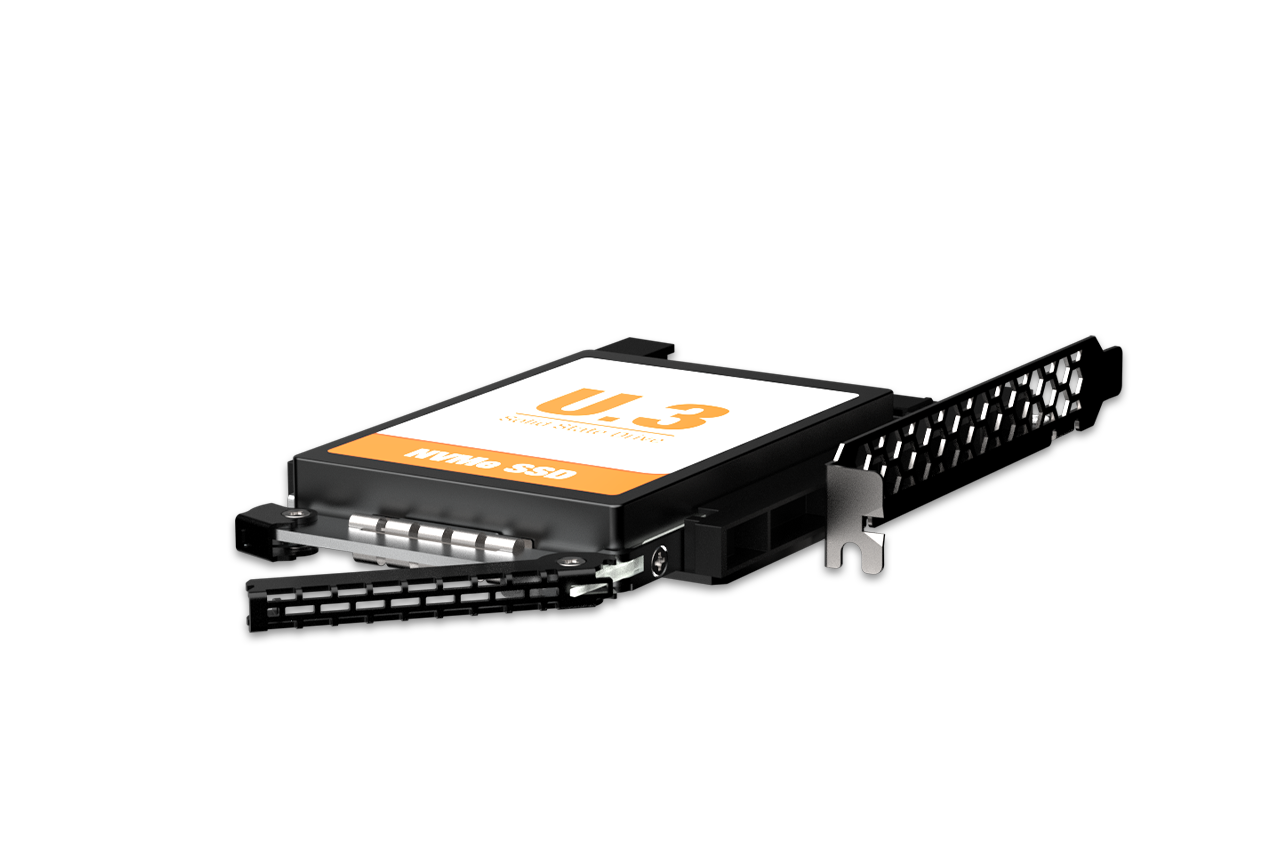

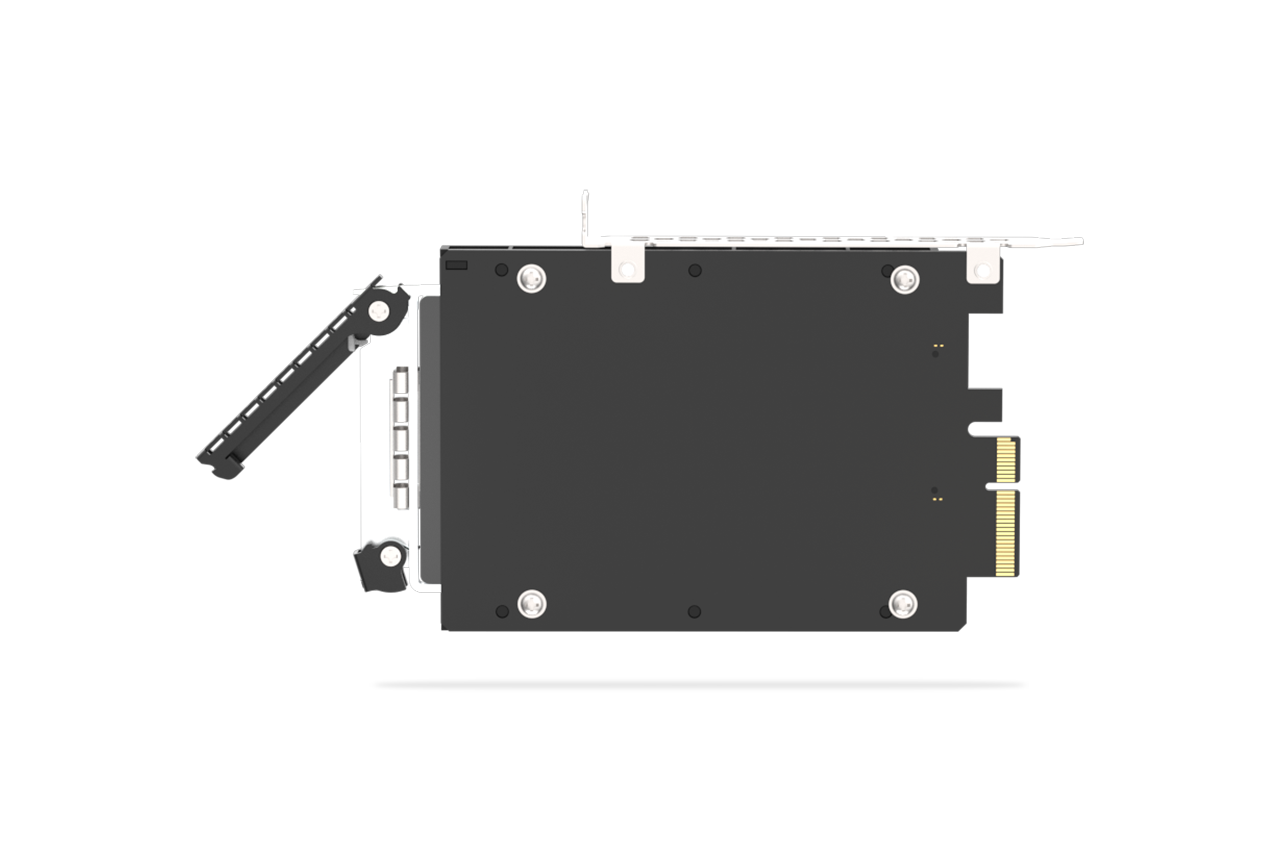

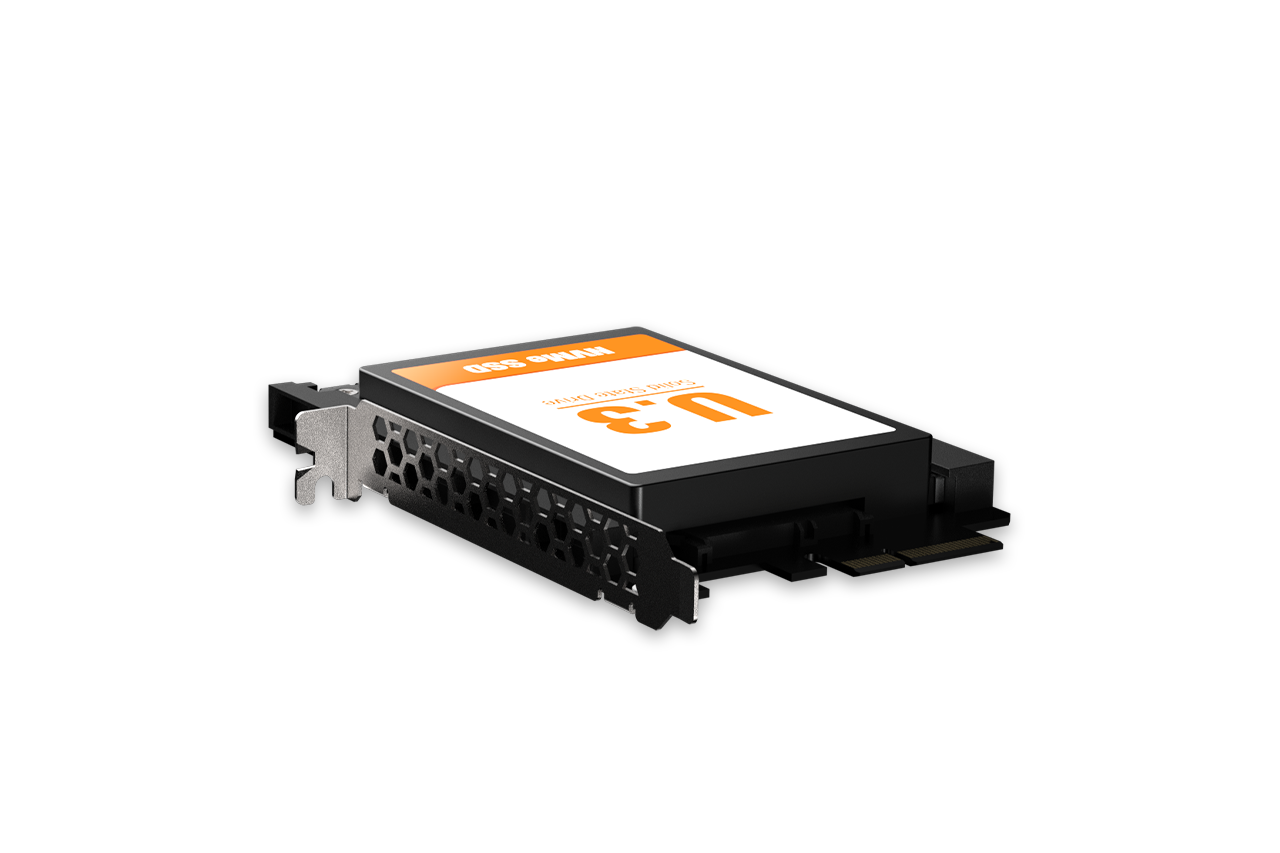

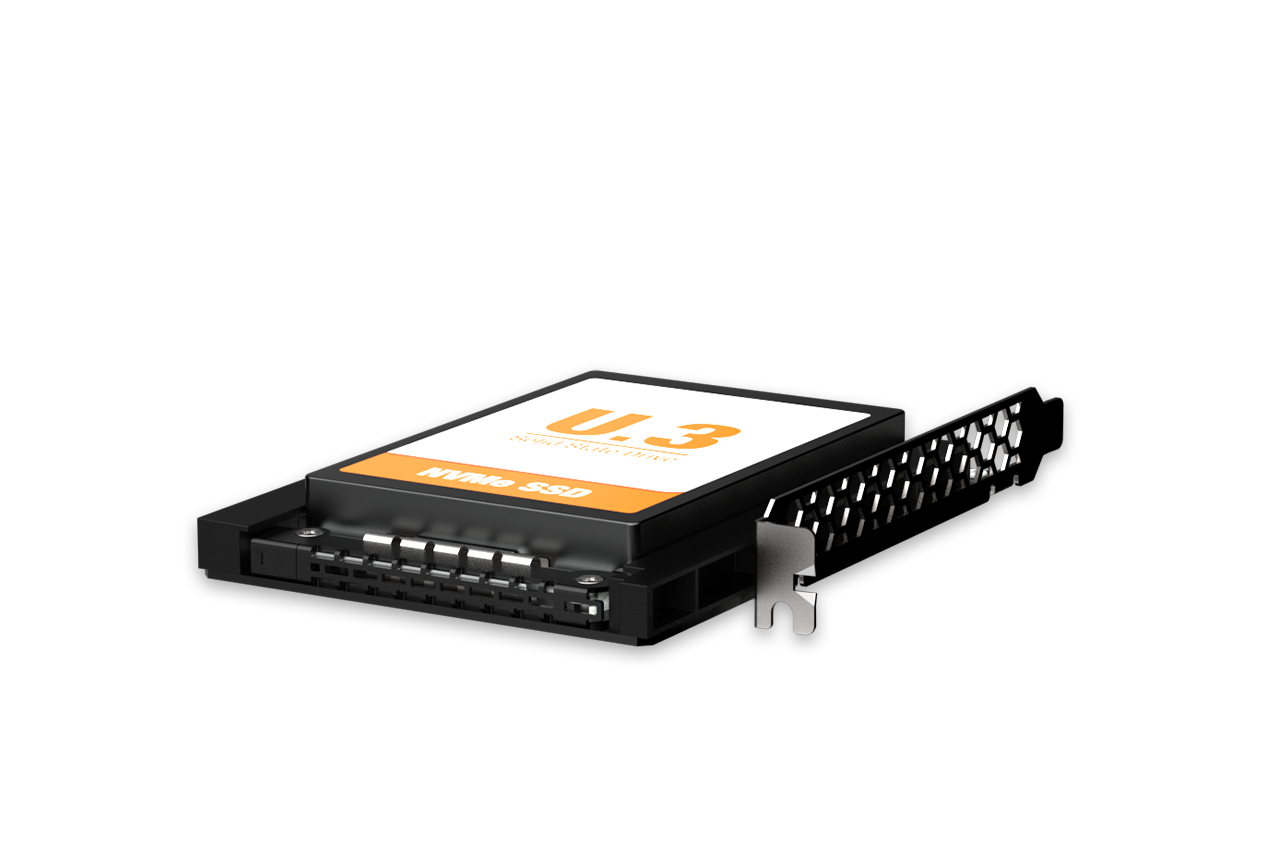

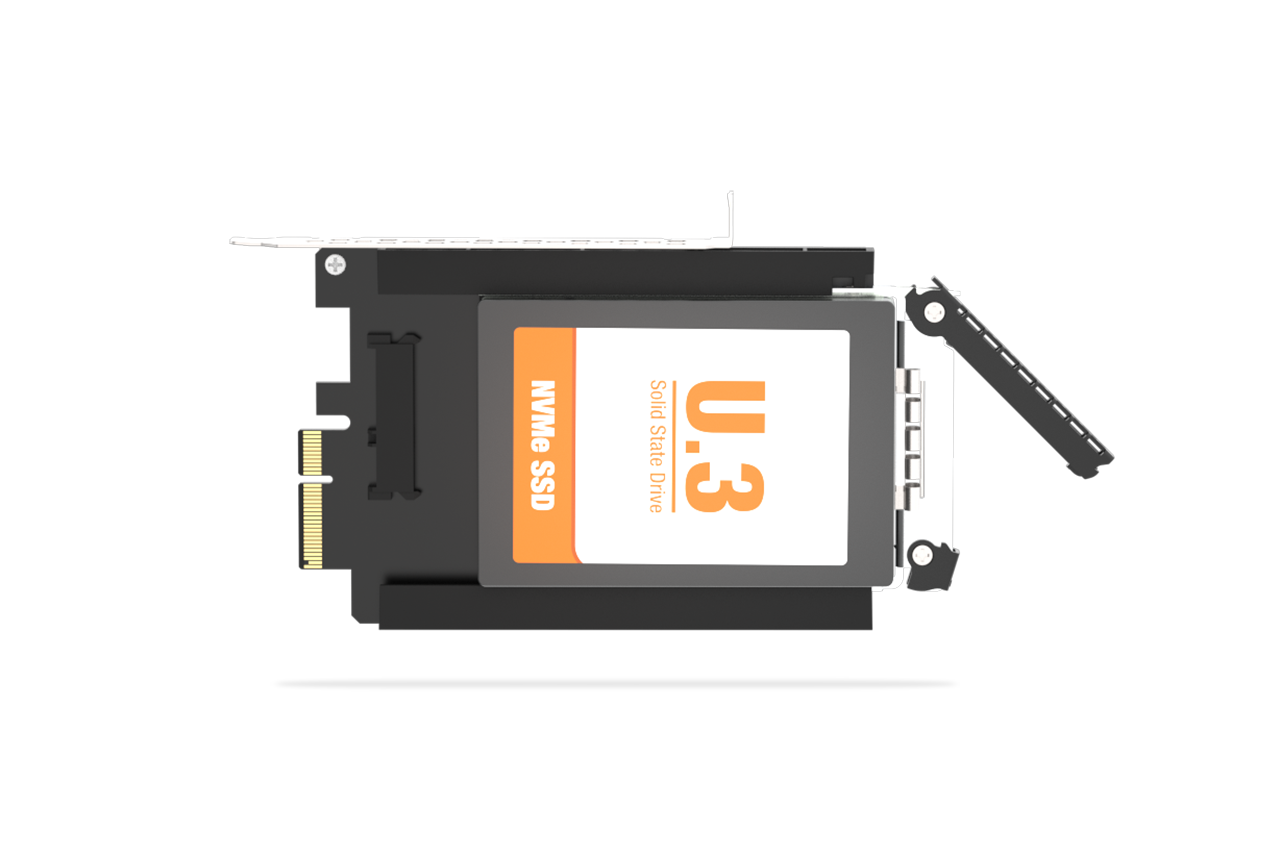

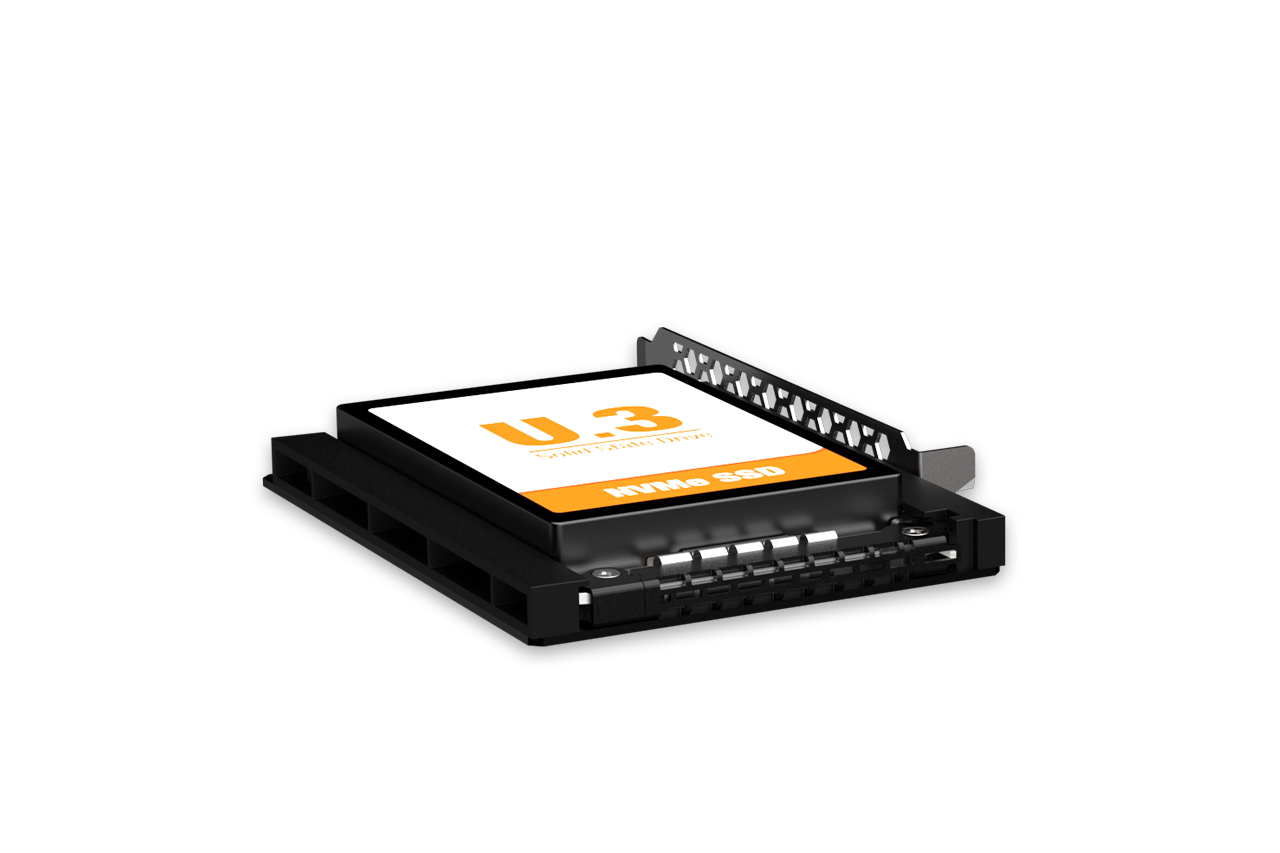

| • | Supports 1× 7mm / 15mm U.2/U.3 NVMe SSD (enterprise-class, higher-capacity drive support) |
| • | PCIe 5.0 x4 interface, up to 128Gbps bandwidth (depending on SSD speed) |
| • | Side-swappable design for more efficient drive serviceability |
| • | Single-slot PCIe form factor for space-limited and high-density builds |
| • | Hot Swap support |
| • | Designed to use the PCIe slot as the primary data + power path, simplifying cable routing |
| • | Ideal for server, workstation, edge, and industrial deployments using U.2/U.3 NVMe SSDs |
| Model Number： | CP159 |
| Color： | Black |
| Support Drive Size： | 2.5" (up to 15mm height) |
| Compatible Drive Type： | U.2/U.3 SSD |
| Number of Drives： | 1 |
| Drive Bay： | 1 x PCIe 4.0 or 5.0 x4/x8 /x16 expansion slot (motherboard required PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4) |
| Host Interface： | PCIe 5.0 x4 |
| Power Input： | Via PCIe |
| Transfer Rate： | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Structure / Material： | Metal IO bracket/cover with PCBA |
| Hot Plug： | Yes |
| Product Dimension (W x H x D)： | 138 x 28 x 115mm (TBD) |
| Product Net Weight： | 210g (TBD) |
| Package Contents： | Device, user manual, screws |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
