Using a U.2 (SFF-8639) connection, the CP163 supports PCIe 4.0 x4 bandwidth up to 64Gbps (depending on SSD performance), enabling high-speed NVMe storage deployment in compact and thermally constrained environments.

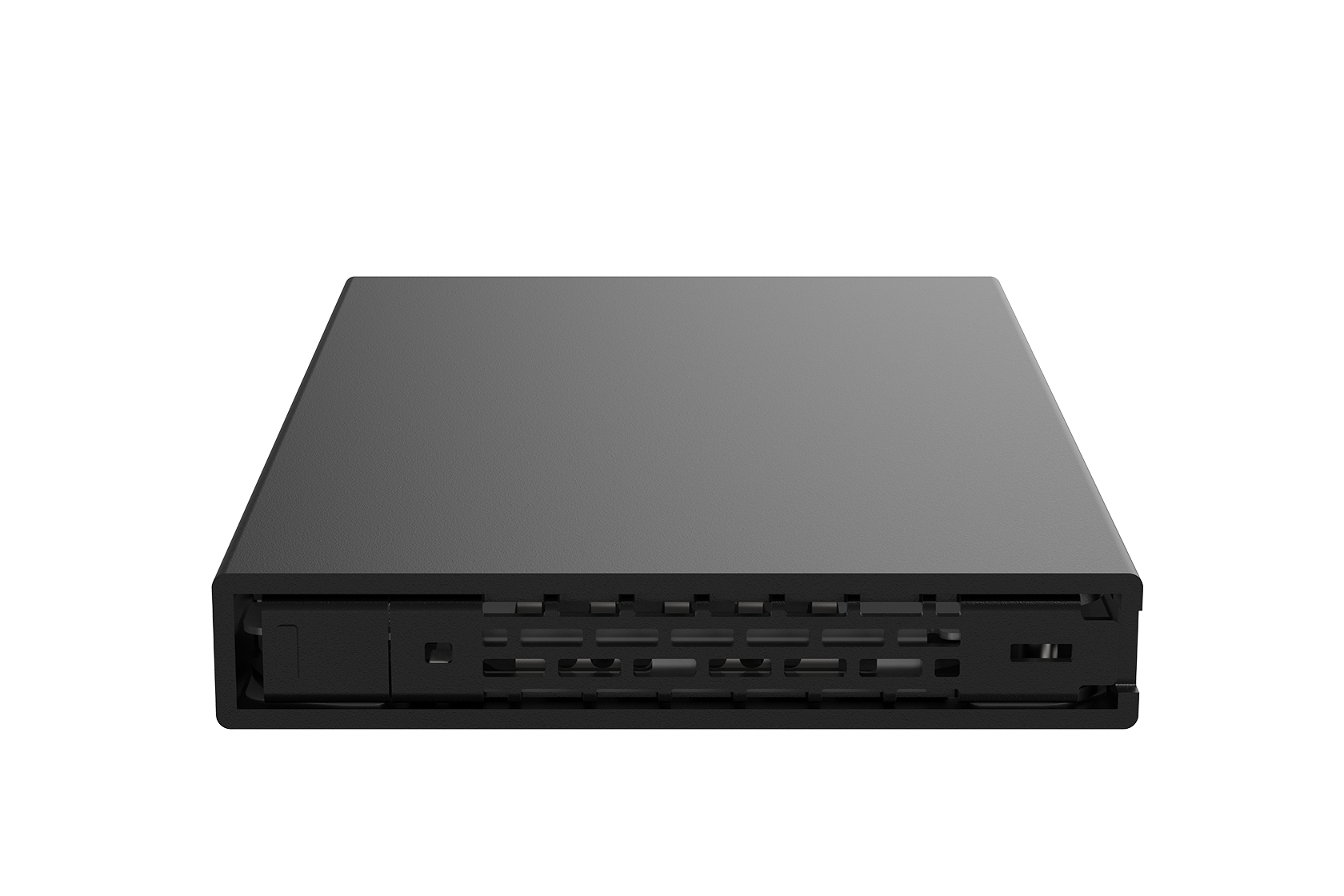

Unlike traditional enterprise storage backplanes that require larger installation footprints, the CP163 is optimized for applications where removable U.2/U.3 SSD access must be integrated into highly compact or mechanically restricted system layouts.
The enclosure also includes flexible mounting points, allowing system integrators to install the CP163 into custom chassis layouts, embedded platforms, or specialized rackmount integrations.
| • | Supports 1 × 7mm U.2/U.3 NVMe SSD |

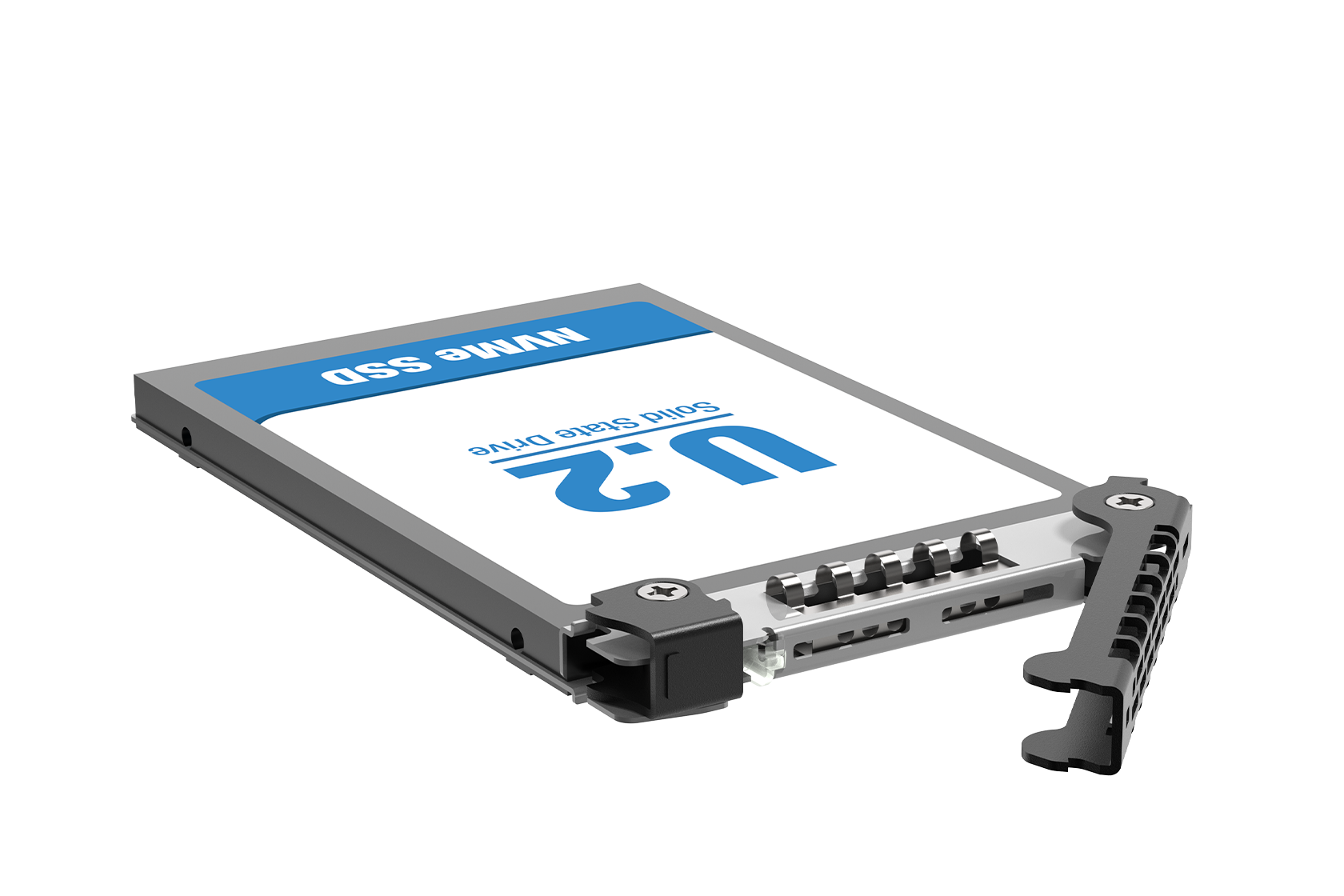

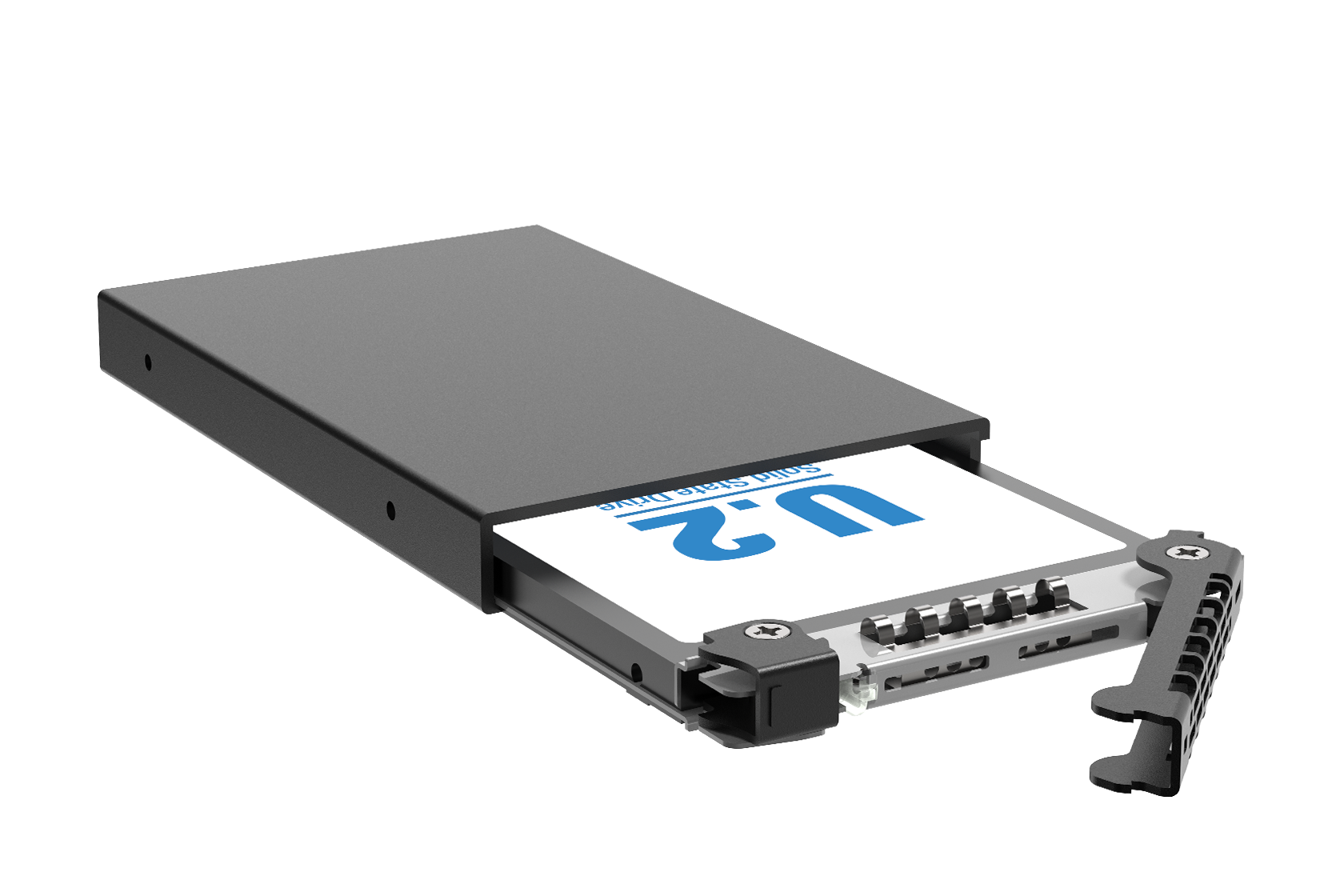

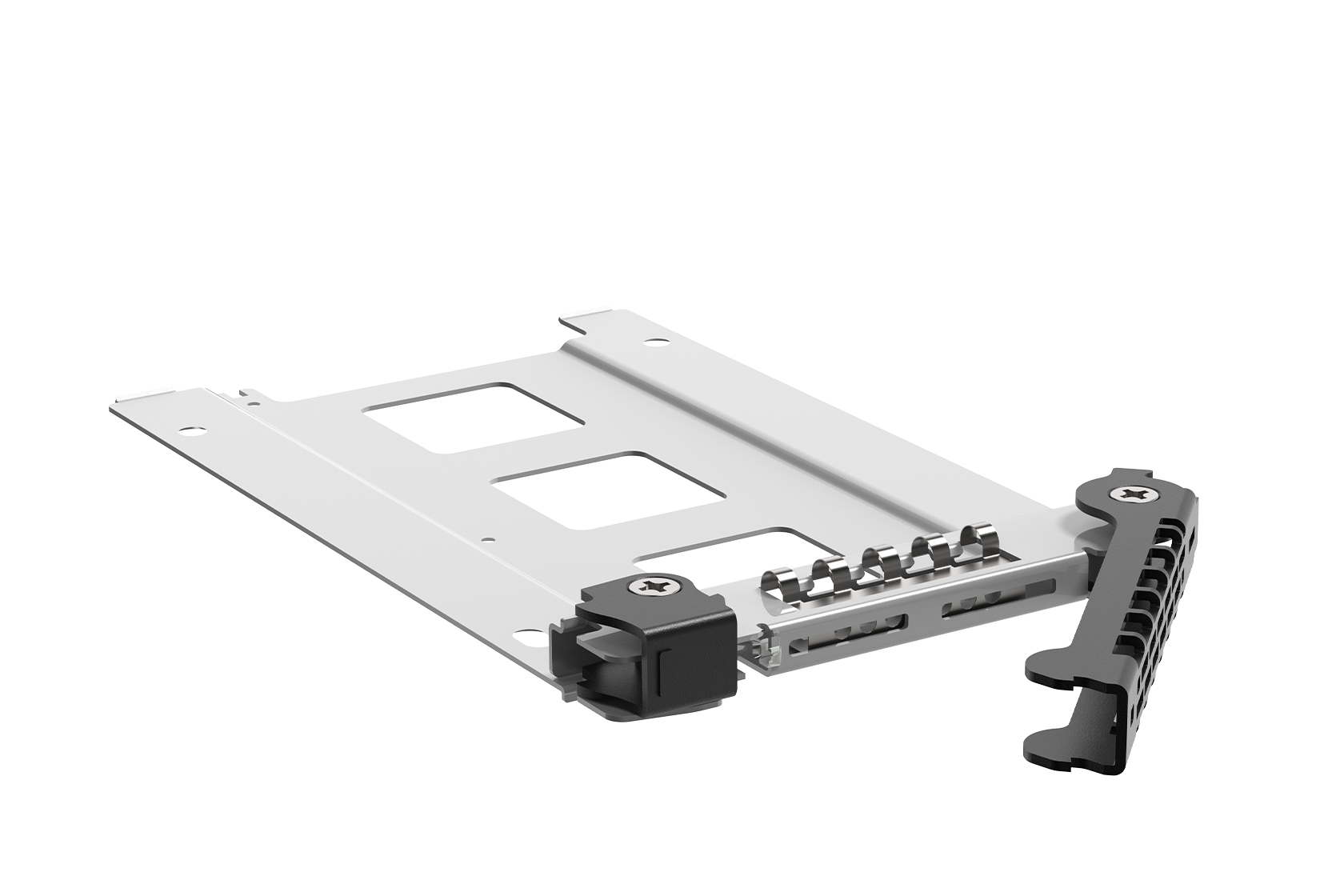

| • | Removable tray design for simplified SSD maintenance and replacement |
| • | PCIe 4.0 x4 interface up to 64Gbps (depending on SSD performance) |
| • | U.2 (SFF-8639) host interface |
| • | Compatible with Tri-mode HBA / RAID environments |
| • | Ultra-slim enclosure optimized for non-standard installation spaces |
| • | Fanless mechanical design optimized for chassis airflow environments |
| • | Full-metal construction for improved durability and passive heat dissipation |
| • | Flexible mounting points for custom chassis, rackmount, and embedded system integration |
| • | LED activity indicator for SSD power and activity status |
| • | Supports hot-plug drive removal and insertion |
| • | EMI grounding and structural reinforcement design for enterprise and industrial deployment |
| Model Number： | CP163 |
| Color： | Black |
| Support Drive Size： | 2.5" (supports 7mm height U.2/U.3 SSDs) |
| Compatible Drive Type： | U.2 or U.3 SSD |
| Number of Drives： | 1 |

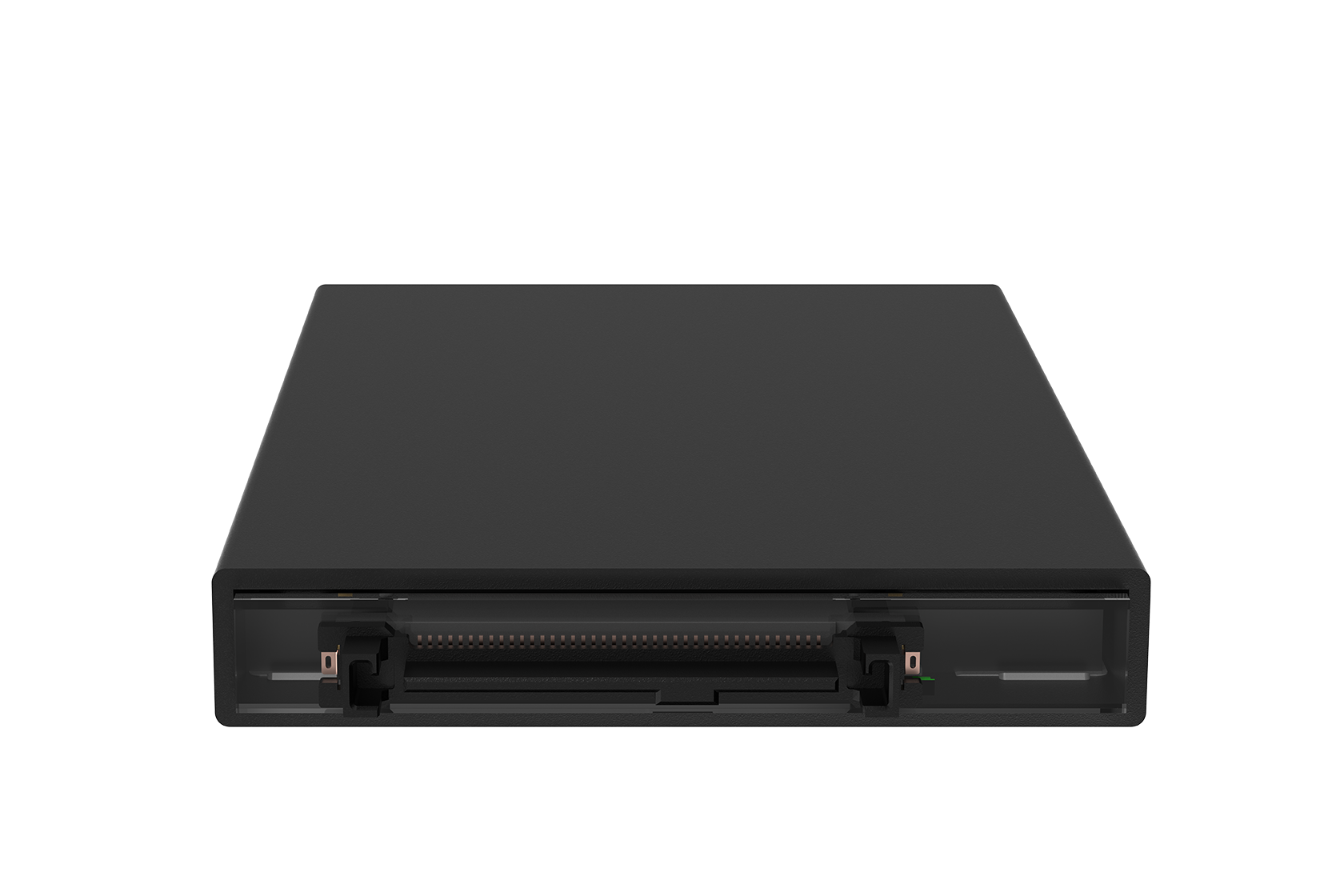

| Host Interface： | 1 x U.2 SFF-8639 |
| Power Input： | Via U.2 (SFF-8639) |
| Transfer Rate： | Up to 64Gbps per SSD (depending on SSD speed) |
| Support SSD Capacity： | No limitation |
| Drive Cooling： | Metal heat dispersion with passive cooling |
| Hot Plug： | Yes |
| LED Indicator： | Drive power: solid green; Drive access: flashing green |
| Structure / Material： | Full metal |
| Package Contents： | Device, user manual, screws |
| Dimension (L x W x H)： | 140.3 x 74 x 11.5 mm (TBD) |
| Product Net Weight： | 180g (TBD) |
