Case Study: ICY DOCK MB699VP-B Series Enables High-Performance NVMe Storage for Erisys Signal Processing Systems
Date: 2025.10.03





Case Study: ICY DOCK MB699VP-B Series Enables High-Performance NVMe Storage
for Erisys Signal Processing Systems




Overview

Erisys RF Solutions builds advanced RF capture, processing, and playback systems for aerospace, defense, and wireless spectrum operations. Their hardware suite demands high-speed, reliable, and swappable storage to support real-time, high-bandwidth recording. To meet these needs, Erisys standardized on the ICY DOCK MB699VP-B series (V1/V3), enabling fast, hot-swappable NVMe storage across all platforms.

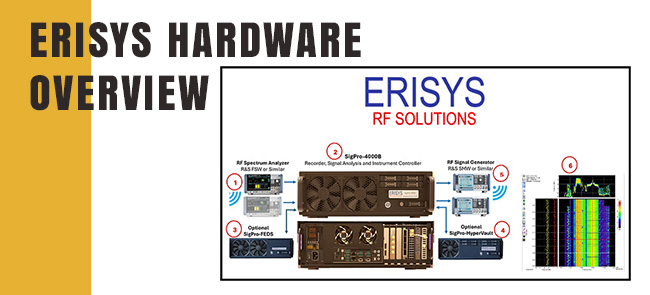

Erisys Hardware Overview






  • SigPro 4000B:
    A compact modular, high-throughput capture, recording and real-time signal processing platform offering up to 1 GHz RF IBW and up to 8 GHz IBW with optional HyperVault. Equipped with four 200 Gb/s QSFP—DD ports, integrated FPGA processing, and expansion-ready architecture.
  • FEDS (FPGA Enhanced Development System) :
    A flexible FPGA module for low-latency signal processing and prototyping. Connects via fiber to SigPro systems and RF front-ends, supports hot-swappable NVMe drives, and integrates with Erisys ZoomOut™ digital signal processing software.
  • HyperVault :
    A scalable NVMe storage unit with up to 240 TB capacity and 400 GB/s sustained throughput. Built for multi-channel recording, it features hot-swappable SSDs, RAID support, and two 200 GB/s QSFP—DD fiber ports for secure, redundant data handling.

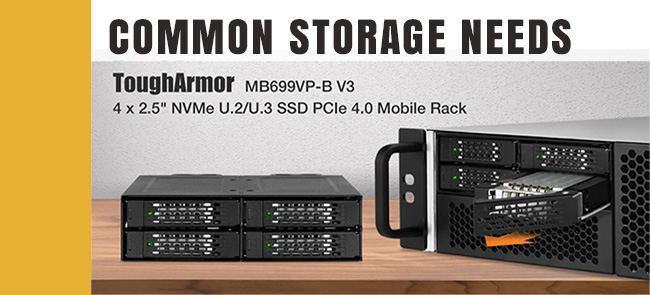

Common Storage Needs




All systems in the suite require:

  • Fast NVMe throughput to handle 1 GHz IBW recording
  • Hot-swap access to replace drives without downtime
  • Compact, serviceable enclosures
  • Effective thermal management for 24/7 reliability

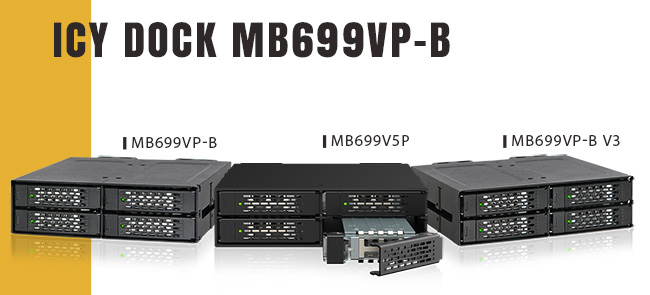

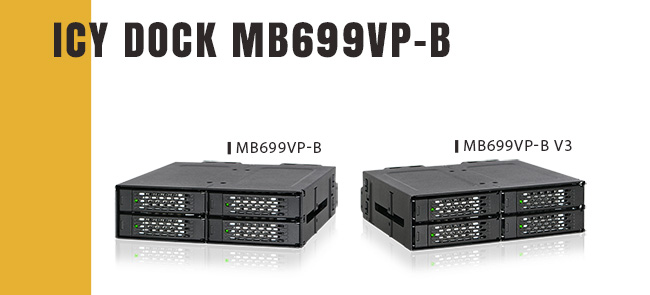

ICY DOCK MB699VP-B: One Solution for All Systems



The MB699VP-B series provided a consistent answer to Erisys's storage needs:

  • PCIe Gen3/4 NVMe performance (64 Gb/s)
    Supports U.2/U.3 NVMe with up to 64 Gb/s per bay via SFF-8612/8643 OCuLink; fully unlocks SSD speed with PCIe 4.0 systems
  • Tool-less & swappable drive trays
    Removable U.2/U.3 trays fit into standard 5.25" bays, enabling swift drive swaps during field operations—no tools, no downtime
  • Standard 5.25" bay form factor
    Occupies a single half-height optical bay, simplifying integration into Erisys' compact enclosures.
  • Rugged, actively cooled full metal build
    Dual adjustable 40x20 mm fans, heavy-duty metal chassis, EMI grounding, and anti-vibration design ensure reliable 24/7 operation in harsh RF environments.






Outcome



With ICY DOCK enclosures, Erisys simplified their hardware design, improved serviceability, and ensured reliable performance for high-throughput signal capture—across every system, from portable recorders to large-scale storage units.




Customer Feedback:

"ICY DOCK's MB699VP-B enclosures have streamlined our workflow. The ability to hot-swap NVMe drives without downtime has been essential for testing and field deployment. They deliver the performance and reliability our systems demand."

— Erisys RF Solutions Engineering Team
