Utilizing Built-in Heatsink M.2 NVMe SSD in PCIe Slot Expansion
Date: 2023.04.13


There are countless M.2 NVMe SSDs in the market but some are specialized with built-in heatsink catering to data-intensive applications. With the built-in heatsinks on M.2 drives, they are thicker than typical M.2 drives but provides excellent additional cooling for the drives if your system doesn't have enough cooling factors for the delicate M.2 drive. However, finding an enclosure to support the thicker built-in heatsink M.2 drives is not exactly easy. ICY DOCK had designed a perfect solution for the oversized built-in heatsink M.2 drives.

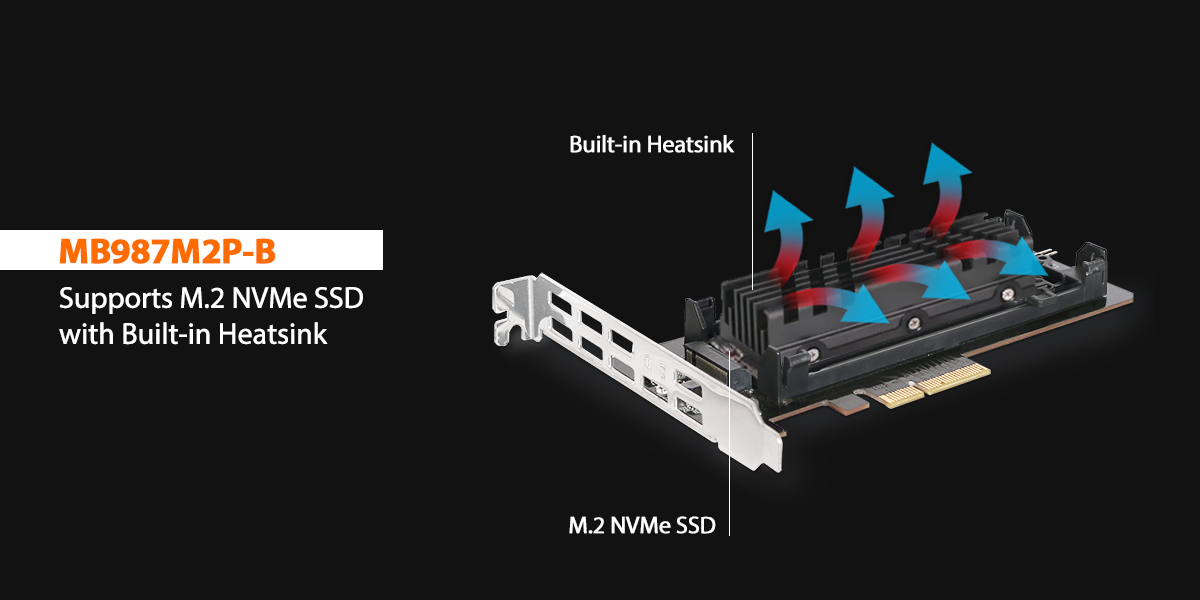

The EZConvert Ex MB987M2P-B is an M.2 NVMe enclosure for the PCle expansion slot that supports the thick or built-in heatsink M.2 drives. The simplistic, yet functional design will accommodate tight-fitting computer cases and provides high performance NVMe support without any host cards or complex cabling.





The main convenience factor of the EZConvert Ex adapter is the adjustable M.2 locker. Drive installation and removal are hassle-free and completely tool-less. Simply adjust the M.2 locker to the correct drive length and the locker will snap the drive securely. [Supports all standard drive lengths from 30-80mm]



EZConvert Ex MB987M2P-B

Supports M.2 NVMe SSD from 30-110mm
Supports speeds up to 64Gbps
Support M.2 NVMe SSD with built-in heatsink

100% tool-less and screw-less drive installation/removal

10,000+ insertion/removal cycle


  Learn More   Buy Now



  DRIVE COMPATIBILITY


PCIe 4.0 M.2 NVMe SSD with heatsink
Brand Name Series Interface Model Size Capacity
Corsair MP600 PRO XT Hydro X PCIe 4.0 x 4 SKU CSSD-F2000GBMP600PHXT
SKU CSSD-F4000GBMP600PHXT
80 x 23 x 19 mm 2TB
4TB
MP600 PRO LPX PCIe 4.0 x 4 SKU CSSD-F0500GBMP600PLP
SKU CSSD-F1000GBMP600PLP
SKU CSSD-F2000GBMP600PLP
SKU CSSD-F4000GBMP600PLP
80 x 23 x 11 mm 500GB
1TB
2TB
4TB
Force PCIe 4.0 x 4 SKU CSSD-F500GBMP600R2
SKU CSSD-F1000GBMP600R2
SKU CSSD-F2000GBMP600R2
80 x 23 x 15 mm 500GB
1TB
2TB
MP600 PRO XT PCIe 4.0 x 4 SKU CSSD-F1000GBMP600PXT
SKU CSSD-F2000GBMP600PXT
SKU CSSD-F4000GBMP600PXT
80 x 23 x 19 mm 1TB
2TB
4TB
MP600 PRO PCIe 4.0 x 4 SKU CSSD-F1000GBMP600PRO
SKU CSSD-F2000GBMP600PRO
SKU CSSD-F4000GBMP600PRO
80 x 23 x 15 mm 1TB
2TB
4TB
MP600 CORE PCIe 4.0 x 4 SKU CSSD-F1000GBMP600COR
SKU CSSD-F2000GBMP600COR
SKU CSSD-F4000GBMP600COR
80 x 23 x 15 mm 1TB
2TB
4TB
Seagate FireCuda 520 SSD Cyberpunk 2077 Limited Edition PCIe 4.0 x 4 ZP1000GM30012 80.15  x 22.9  x 18.25 mm 1TB
PNY XLR8 CS3140 PCIe 4.0 x 4 M280CS3140HS-1TB-RB
M280CS3140HS-2TB-RB
M280CS3140HS-4TB-RB
22.8 x 80.4 x 20.5 mm 1TB
2TB
4TB
ADATA XPG GAMMIX S70 PCIe 4.0 x 4 AGAMMIXS70-512GB-C
AGAMMIXS70-1T-C
AGAMMIXS70-2T-C
80 x 22 x 15 mm 512GB
1TB
2TB
PCIe 3.0 M.2 NVMe SSD with heatsink
Brand Name Series Interface Model Size Capacity
Plextor M9Pe(G) PCIe 3.0 x 4 M9Pe(G) 80 x 22.8 x 4.7 mm  256 GB
512 GB
1 TB
ADATA XPG GAMMIX S5 PCIe 3.0 x 4 AGAMMIXS5-256GT-C
AGAMMIXS5-512GT-C
AGAMMIXS5-1TT-C
AGAMMIXS5-2TT-C
80 x 22 x 3.7 mm 256GB
512GB
1TB
2TB
XPG SPECTRIX S20G PCIe 3.0 x 4 ASPECTRIXS20G-500G-C
ASPECTRIXS20G-1T-C
80 x 22.1 x 7.55 mm 500GB
1TB
XPG SPECTRIX S40G PCIe 3.0 x 4 AS40G-256GT-C
AS40G-512GT-C
AS40G-1TT-C
AS40G-2TT-C
AS40G-4TT-C
80 x 22 x 8 mm 256GB
512GB
1TB
2TB
4TB
Team Group CARDEA IOPS PCIe 3.0 x 4 TM8FPI001T0C322 80 x 23.4 x 12.9 mm 1TB
CARDEA II PCIe 3.0 x 4 TM8FP5256G0C110
TM8FP5512G0C110
TM8FP5001T0C110
80.1 x 23.4 x 12.9 mm 256GB
512GB
1TB
Patriot
(Viper Gaming)
VIPER VPN110 PCIe 3.0 x 4 VPN110-512GM28H
VPN110-1TBM28H
VPN110-2TBM28H
80 x 22 x 10.5 mm 512GB
1TB
2TB
VIPER VPN100 PCIe 3.0 x 4 VPN100-256GM28H
VPN100-512GM28H
VPN100-1TBM28H
VPN100-2TBM28H
80 x 22 x 10.5 mm 256GB
512GB
1TB
2TB
Enterprise-class PCIe 4.0/3.0 M.2 NVMe SSD
Brand Name Series Interface Model Size Capacity
Micron 7450 PRO PCIe 4.0 x 4 MTFDKBA480TFR
MTFDKBA960TFR
80 x 22 mm 480GB
960GB
MTFDKBG1T9TFR
MTFDKBG3T8TFR
110 x 22 mm 1.92TB
3.84TB
7450 MAX PCIe 4.0 x 4 MTFDKBA400TFS
MTFDKBA800TFS
80 x 22 mm 400GB
800GB
MTFDKBG1T6TFS
MTFDKBG3T2TFS
110 x 22 mm 1.6TB
3.2TB
7400 PRO PCIe 4.0 x 4 MTFDKBA480TDZ
MTFDKBA960TDZ
80 x 22 mm 480GB
960GB
MTFDKBG1T9TDZ
MTFDKBG3T8TDZ
110 x 22 mm 1.92TB
3.84TB
7400 MAX PCIe 4.0 x 4 MTFDKBA400TFC
MTFDKBA800TFC
80 x 22 mm 400GB
800GB
MTFDKBG1T6TFC
MTFDKBG3T2TFC
110 x 22 mm 1.6TB
3.2TB
7300 PRO PCIe 3.0 x 4 MTFDHBA480TDF
MTFDHBA960TDF
80 x 22 mm 480GB
960GB
MTFDHBG1T9TDF
MTFDHBG3T8TDF
110 x 22 mm 1.92TB
3.84TB
7300MAX PCIe 3.0 x 4 MTFDHBA400TDG
MTFDHBA800TDG
80 x 22 mm 400GB
800GB
Seagate Nytro 5000 PCIe 3.0 x 4 XP400HE30002
XP480LE30002
XP800HE30002
XP960LE30002
XP1600HE30002
XP1920LE30002
110 x 22 mm 400GB
480GB
800GB
960GB
1600GB
1920GB
Nytro XM1440 PCIe 3.0 x 4 ST400KN0021
ST480KN0021
ST800KN0021
ST960KN0021
XM1441-1AA112048
110 x 22 mm 400GB
480GB
800GB
960GB
1920GB
Samsung PM9A3 PCIe 4.0 x 4 MZ-1L2960HCJR
MZ-1L21T9HCLS
MZ-1L23T8HBLA
110 x 22 mm 960GB
1.92TB
3.84TB
983 DCT PCIe 3.0 x 4 MZ-1LB960NE
MZ-1LB1T9NE
MZ-1LB3T8HMLA
110 x 22 mm 960GB
1.92TB
3.84TB
