Concept Product CP116

4 x EDSFF E1.S / M.2 NVMe SSD Mobile Rack for External 5.25" Drive Bay
Product Details
CP116 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products
  • Introducing the Concept Product CP116 – Removable 4 x EDSFF E1.S or 4 x M.2 NVMe SSD enclosure for a single 5.25” bay, providing frontal drive access without opening the computer case or using any tools.

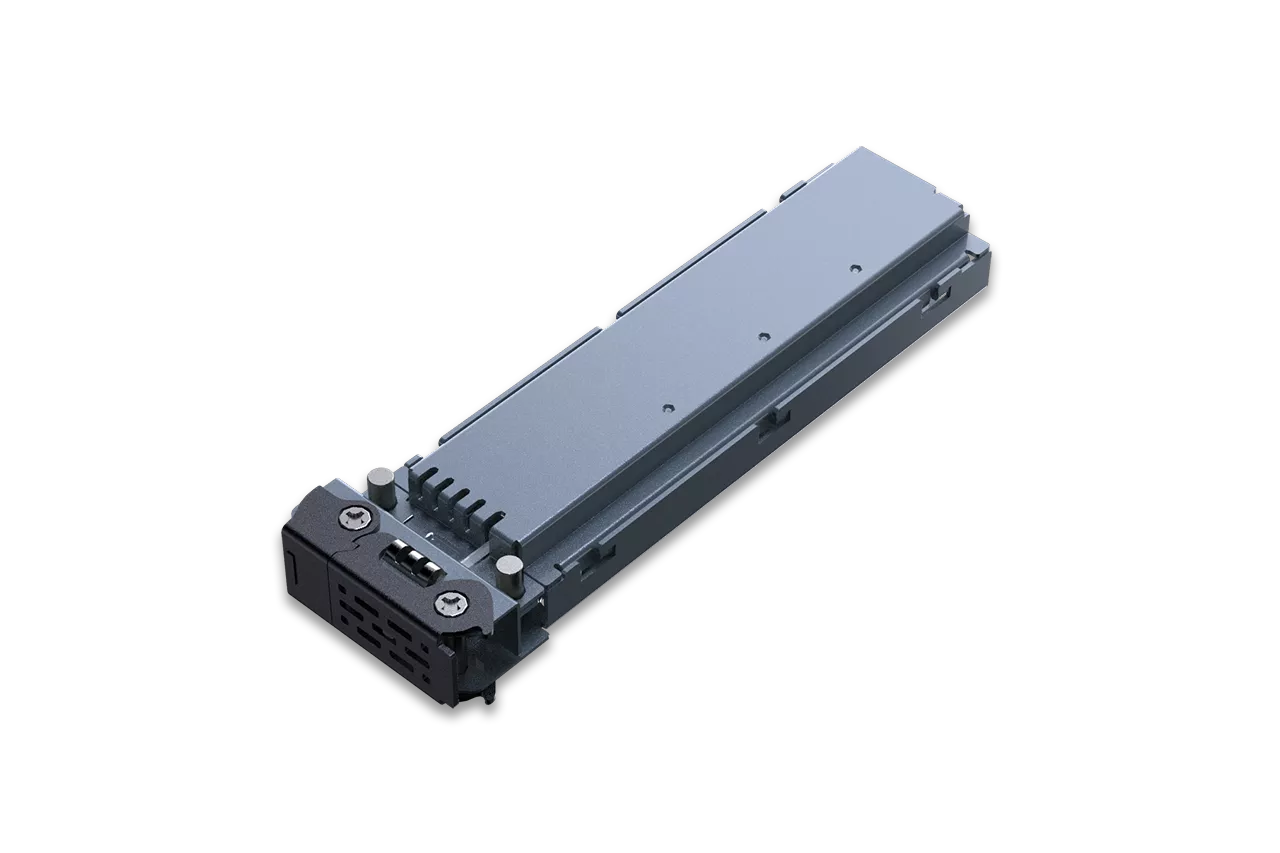

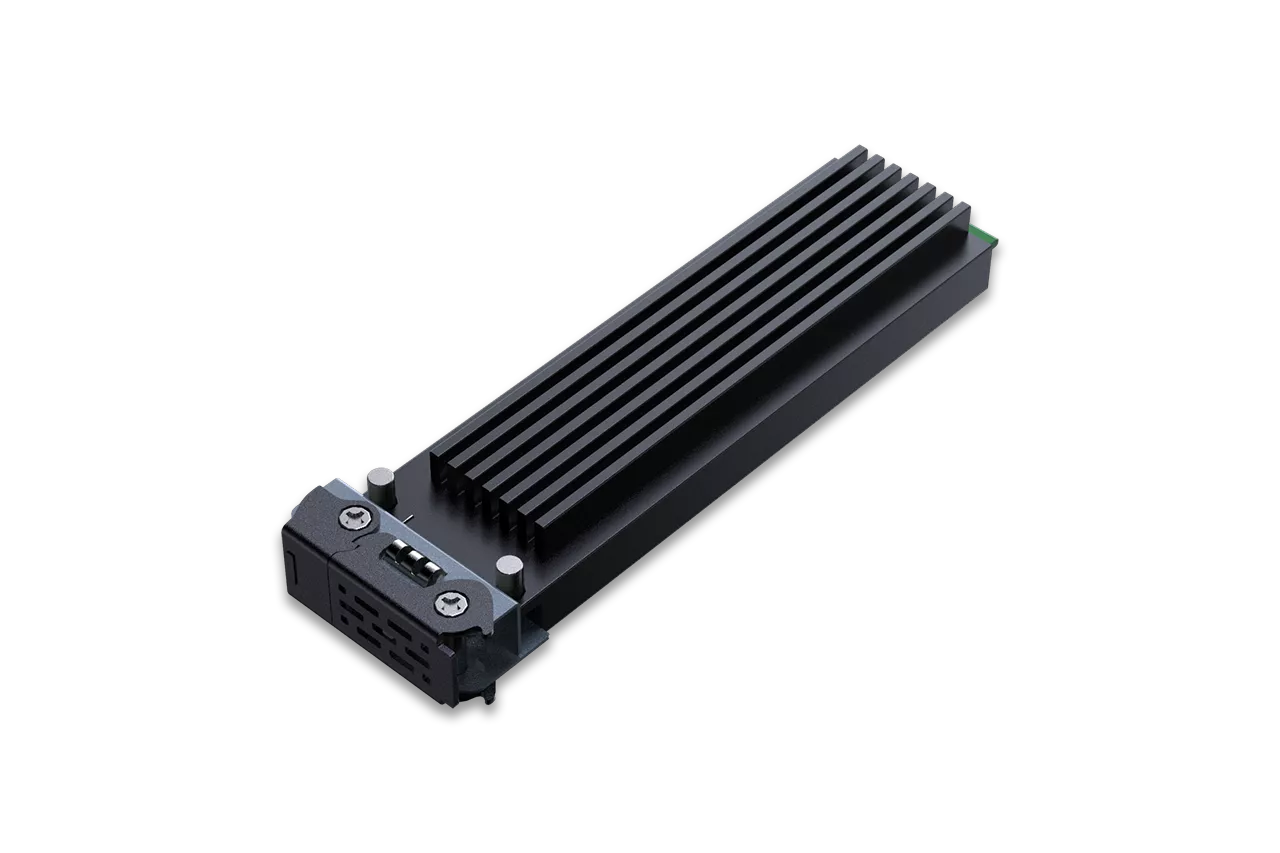

  • The drive trays of CP116 feature tool-less drive installation for easy drive maintenance and adapts EDSFF E1.S SSD (5.9mm/8.01mm/9.5mm/15mm) or M.2 NVMe SSD (2230/2242/2260/2280/22110), giving you the maximum flexibility to choose the drives.

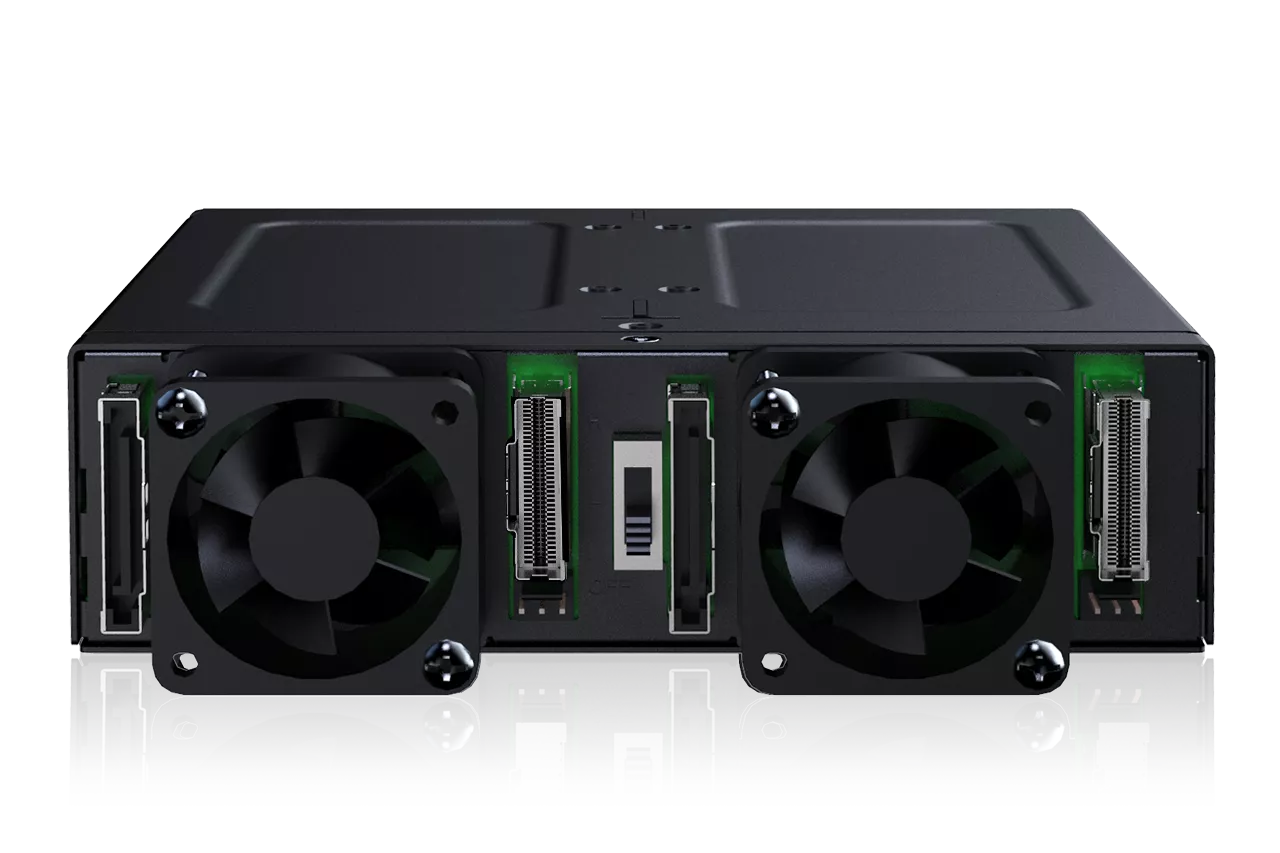

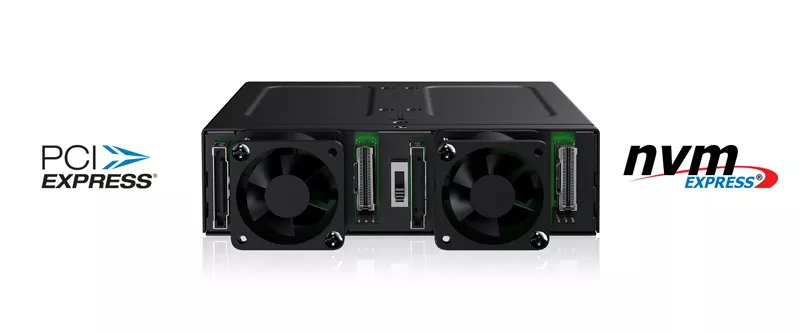

  • To unlock the full performance of PCIe 5.0 x4 speed, the CP116 uses dual MCIO 8i (SFF-TA-1016 8i) connectors to support four drives with transfer rates up to 128Gbps per drive.

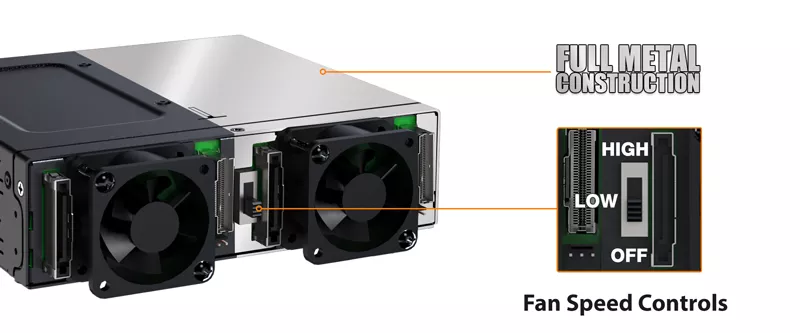

  • The heavy-duty full metal construction can withstand the harshest environments and offers ample heat dissipation. In addition, the user-replaceable dual 40mm cooling fans and more than 90 ventilation holes throughout the enclosure provide the maximum cooling performance to keep the E1.S or M.2 NVMe SSD within optimal temperature ranges. The dual cooling fans come with three fan speed settings: High, Low, and Off allows users to choose the appropriate fan speed option.

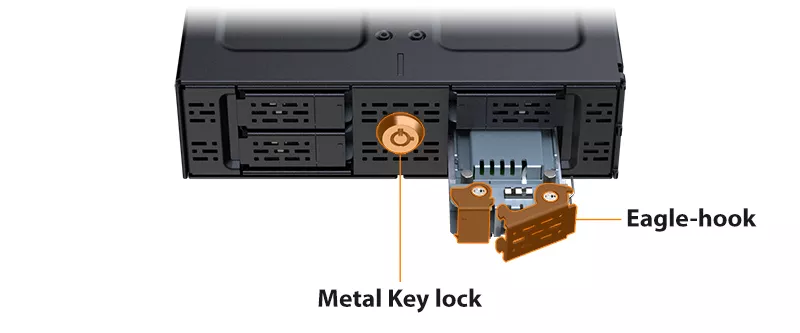

  • For drive security, the 2-segment metal key lock secures all four drives together and offers reliable drive protection to prevent unauthorized access to your valuable drives. Additionally, the eagle-hook lock system on the tray latch helps avoid accidental or unwanted drive ejection.

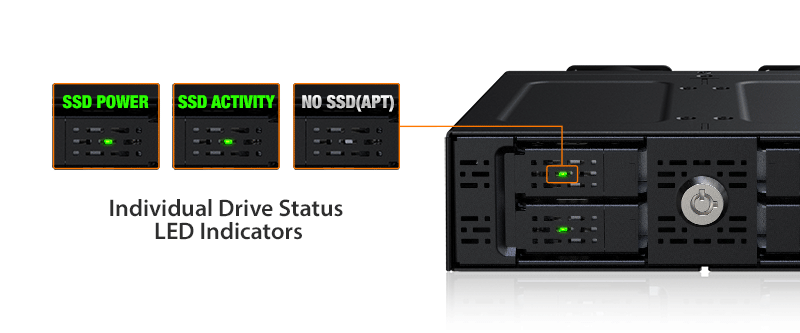

  • Individual LED lights are built into the drive tray to indicate the drive status - a solid green light indicates a drive is inserted and has power, a flashing green light indicates the drive is in use. The LED and fan will shut off when no drive is inserted to reduce power consumption.
Main Features
Fits 4 x E1.S (EDSFF) NVMe SSD (5.9mm/8.01mm/9.5mm/15mm) or
4x M.2 NVMe SSD (2230/2242/2260/2280/22110) in a 5.25" external drive bay.
Uses 2 x MCIO 8i (SFF-TA-1016 8i) port supports PCIe 5.0x4 of up to 128Gbps data transfer rates.
Full-metal housing and drive tray provide excellent durability and robustness - ideal for the enterprise-level data storage environment.
Equipped with dual 40mm detachable fans for superior cooling performance.
The eagle-hook tray latch design securely holds the drive trays within the enclosure.
Active power technology (APT) – LED and fan only power up if a drive is installed.
Tool-less SSD installation for easy maintenance and quick drive swap.

Model Number : CP116
Color : Black
Host Interface : 2 x MCIO 8i (SFF-TA-1016 8i)
Drive Fit : 4 x E1.S 5.9mm/8.01mm/9.5mm/15mm or
M.2 2230/2242/2260/2280/22110
Drive Bay : 1 x 5.25" drive bay
Power Input : 2 x 15pin SATA power connector
Maximum Transfer Rate : Up to 128Gbps (depending on SSD speed)
SSD Access Indicator : Device power: solid green
Device activity: flashing green
Empty: LED Off
Fan Type : 2 x 40*40*20mm fan
Hot Plug : Yes
Structure : Full metal
Package Content : Device, user manual, screws
Dimension (W x H x D) : 145.8 x 41.3 x Less than 195mm
Weight : 900g(TBD)
