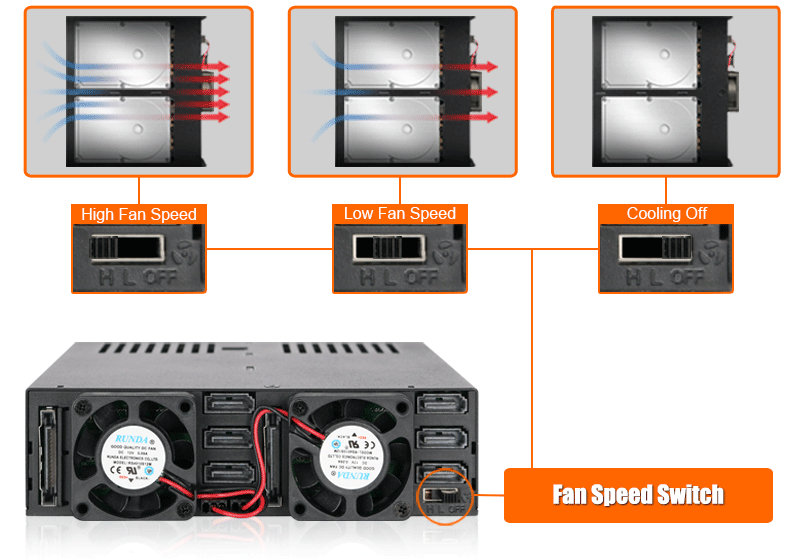

To handle the thermal demands of six drives, the MB326SP-1B is equipped with two rear-mounted 40mm cooling fans, supported by ventilation holes around the chassis and trays. Users can select from three fan modes using a switch slider:

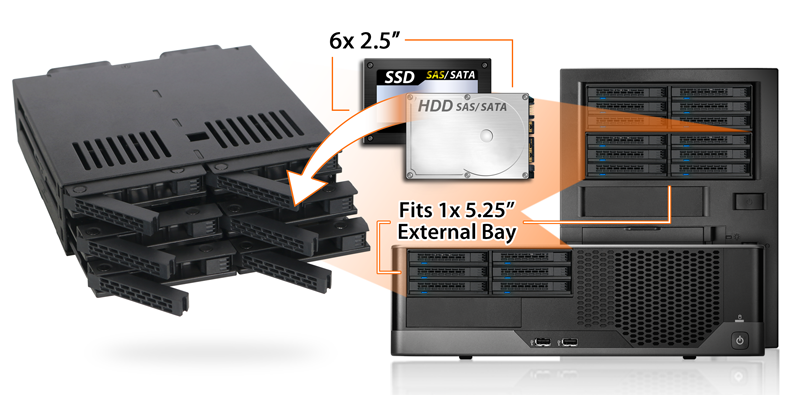

| • | Supports up to 6 x 2.5" SATA HDDs or SSDs into a single 5.25" bay |
| • | Compatible with SATA III 6Gbps |
| • | Hot-swappable bays for quick and convenient drive replacement |
| • | Accommodates 2.5" drives with 5mm, 7mm, and 9.5mm Height |
| • | Active Power Technology (APT) - only powers up if there is drive installed in the drive bay |

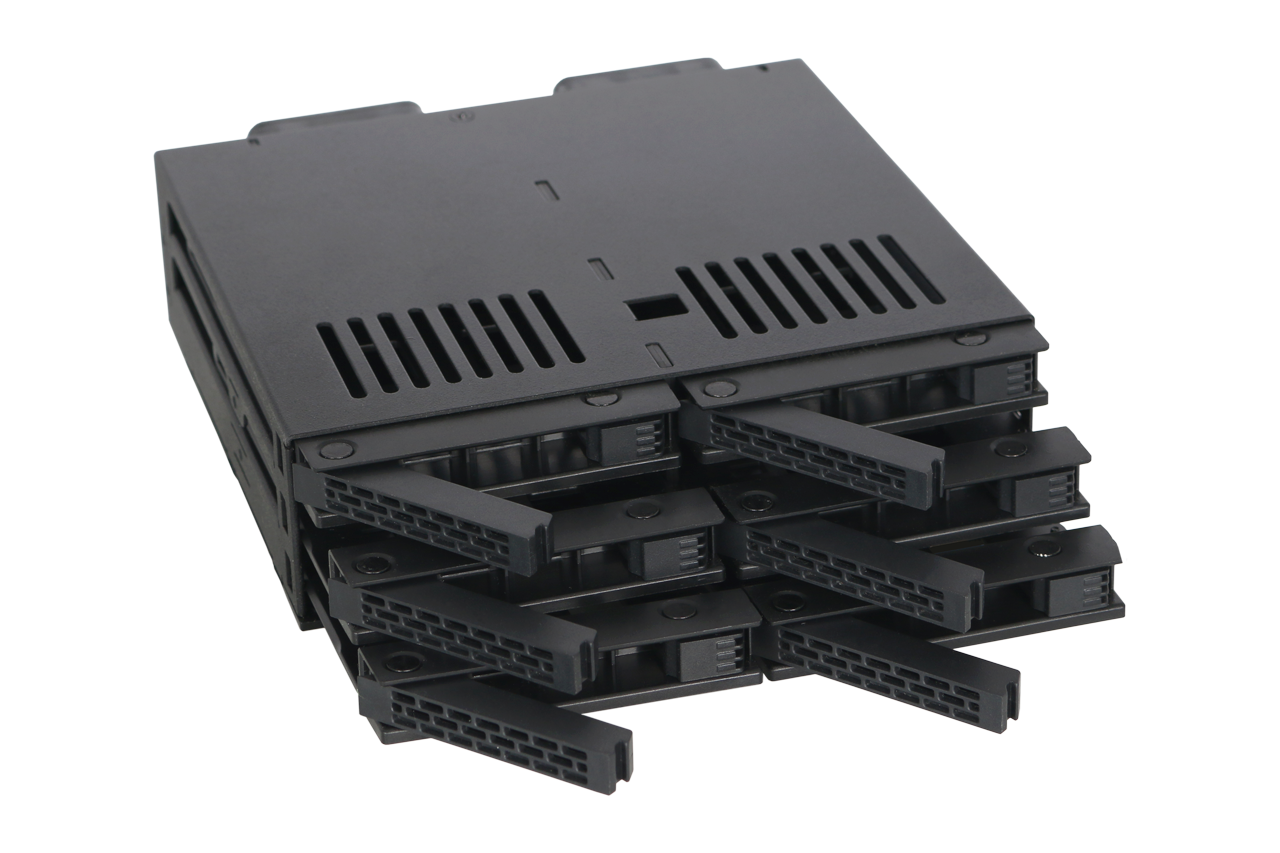

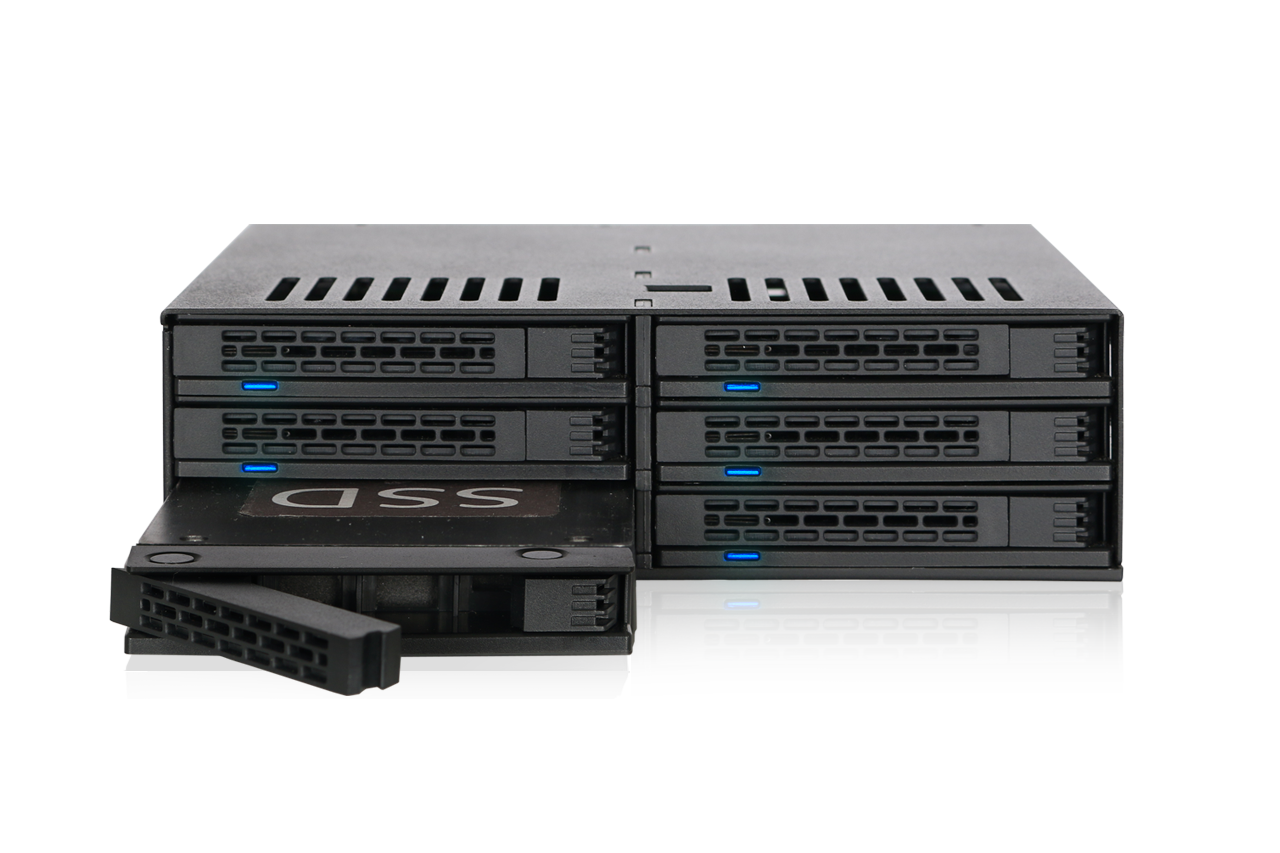

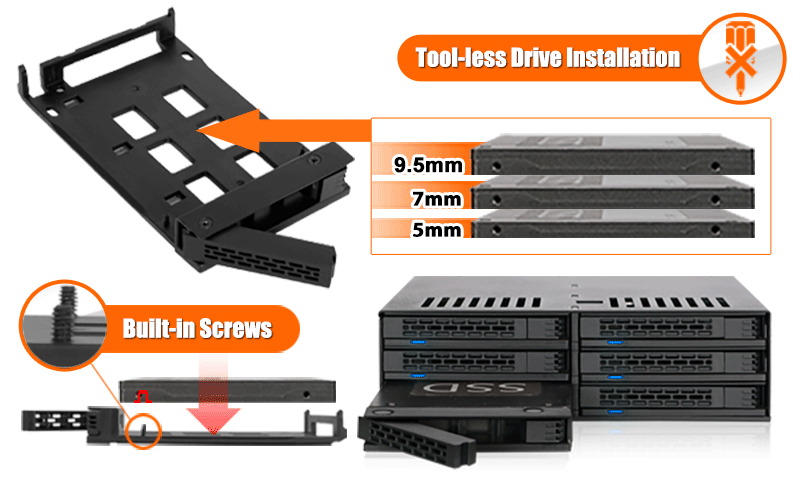

| • | ExpressTray system: tool-less, removable trays designed for easy installation while maintaining the stability of tray-based designs |

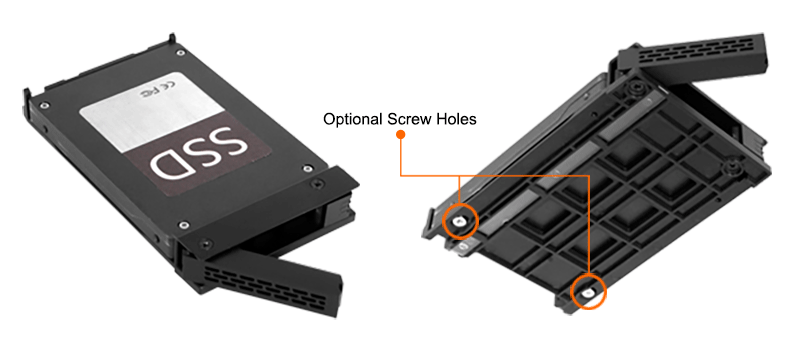

| • | Optional bottom-mounted screw holes for enhanced drive stability |

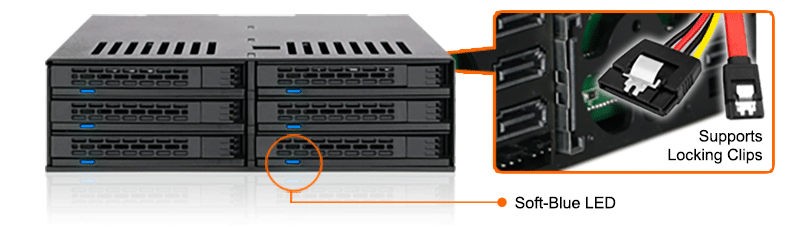

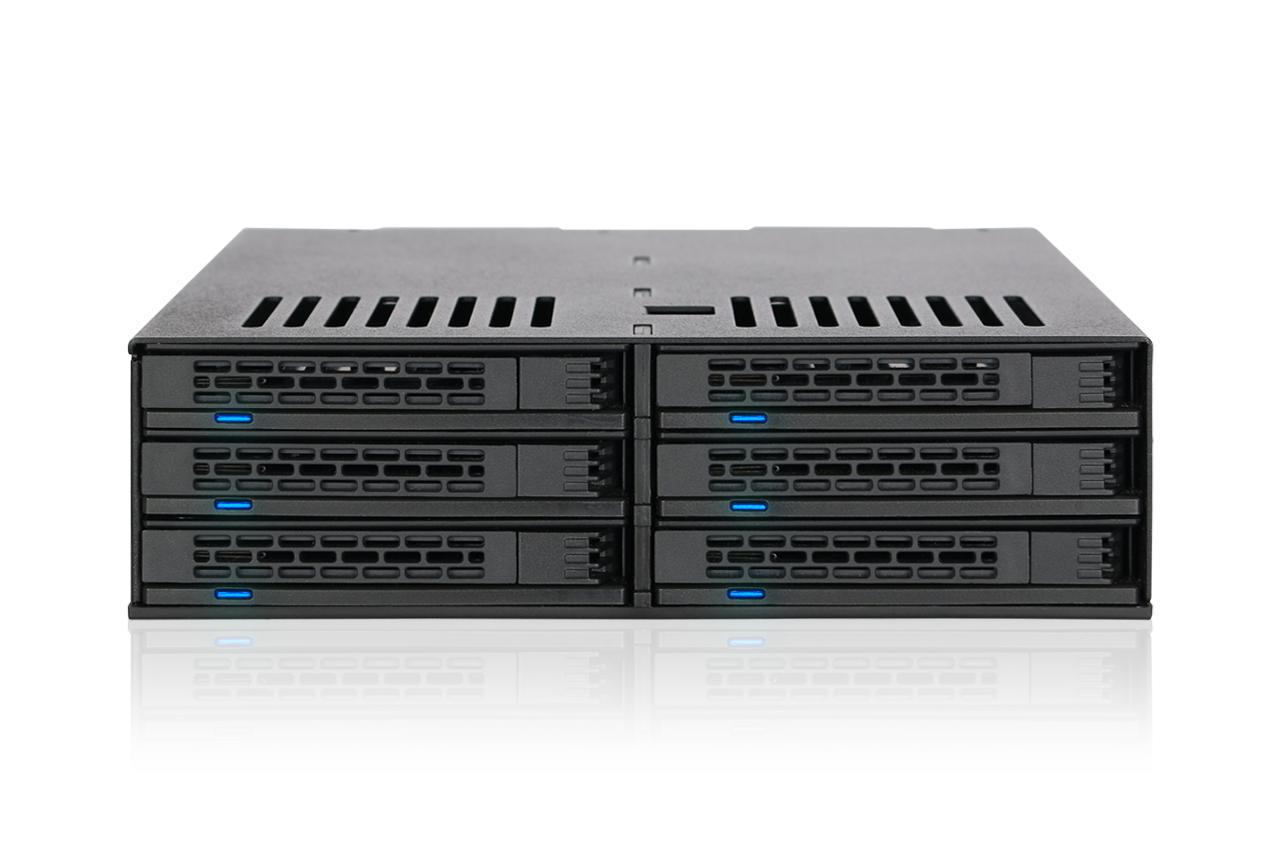

| • | Individual blue LED indicators for each bay |

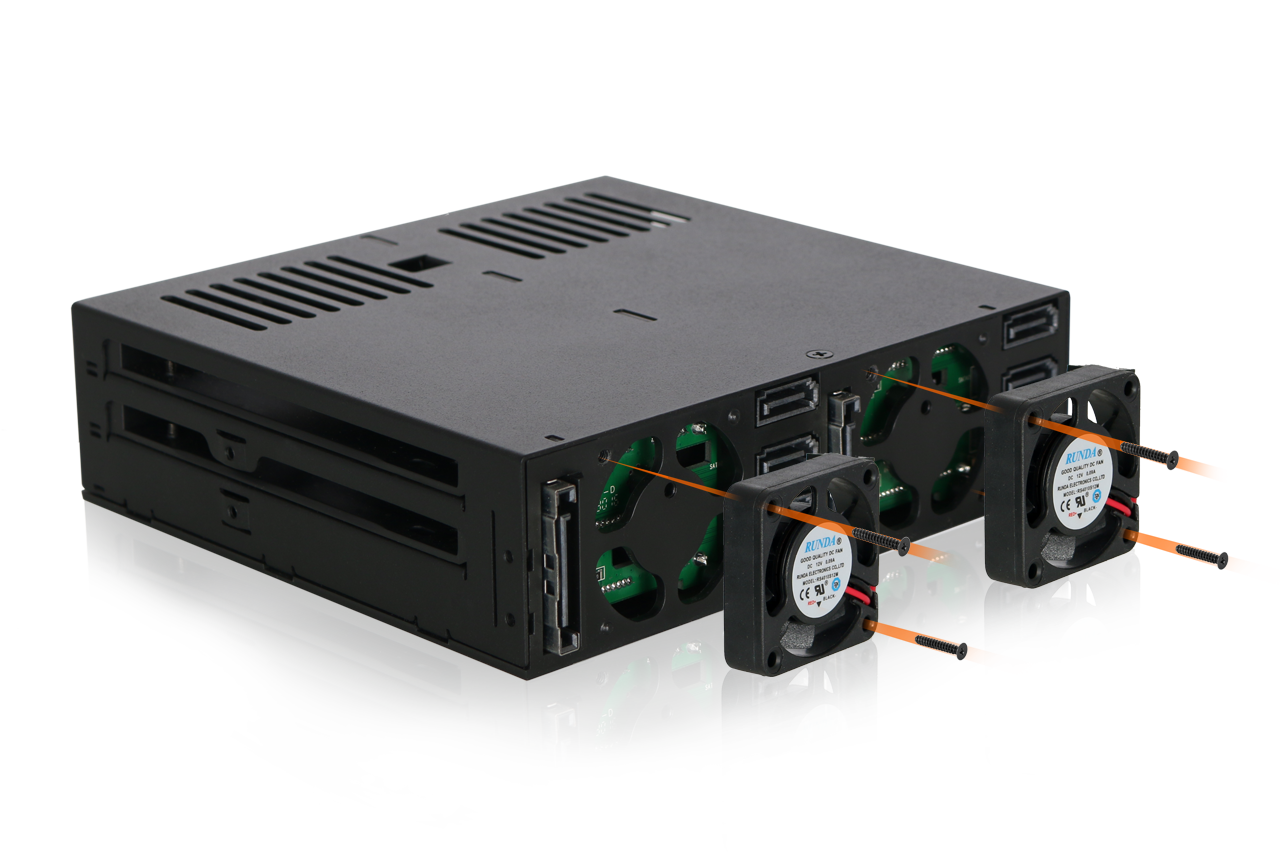

| • | Dual user-upgradeable 40mm fans for effective drive cooling |

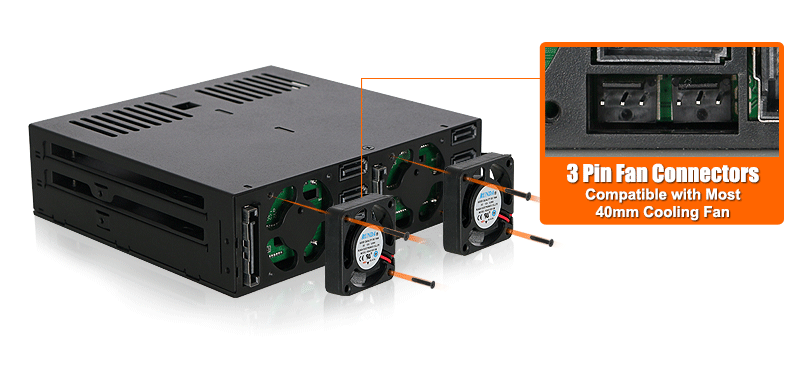

| • | Supports 3-pin fan connectors for aftermarket fan upgrades |
| • | Two 15-pin SATA power connectors power all six drives |
| • | Locking latch design for both 7-pin SATA connector and 15-pin power connectors to ensure secure connections |
| • | Three-speed fan control : High / Low / Off |
| • | Durable metal enclosure with heavy-duty ABS trays and door latches |
| • | Ideal for power users, system builders, and applications requiring space-efficient 6-bay 2.5" hot-swap storage solutions |

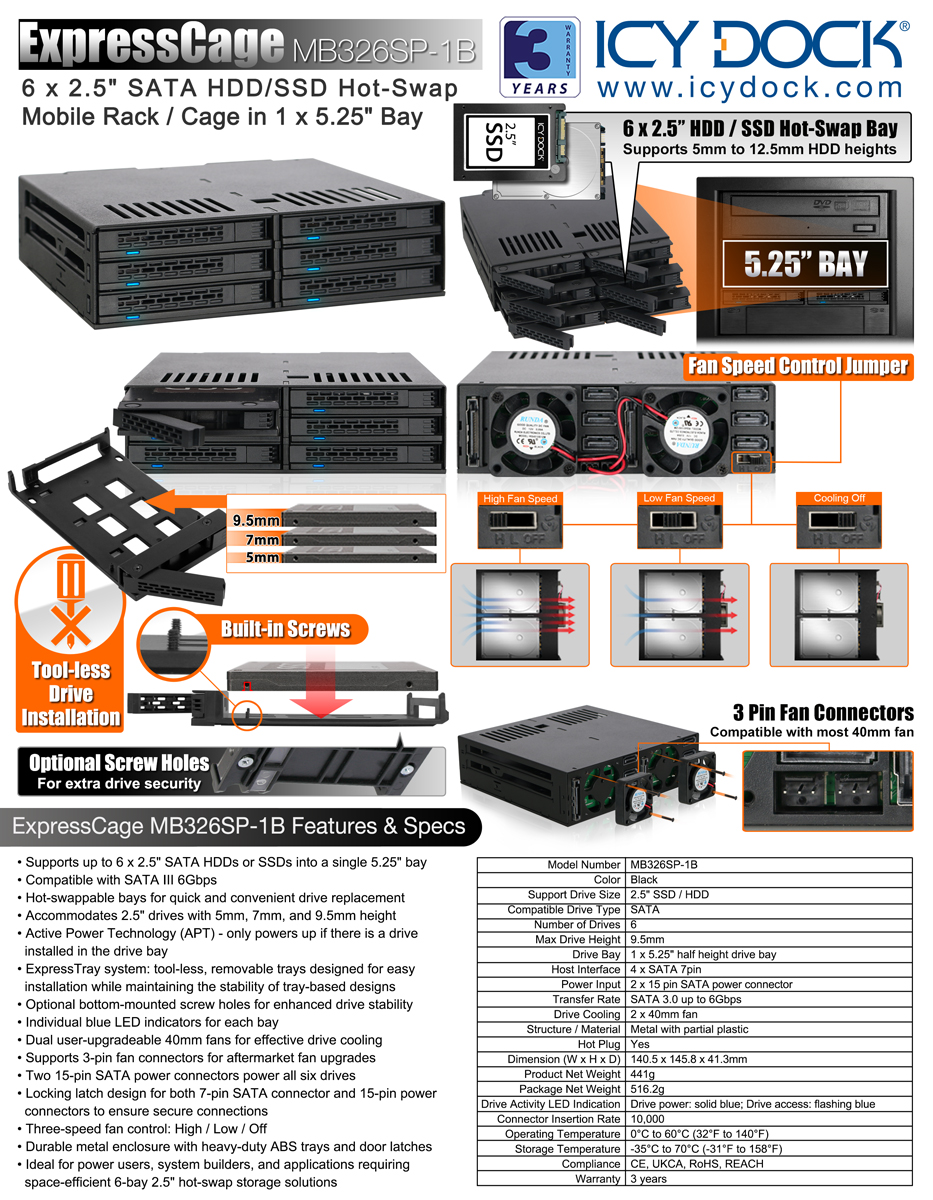

| Model Number： | MB326SP-1B |
| Color： | Black |
| Support Drive Size： | 2.5" SSD / HDD |
| Compatible Drive Type： | SATA |
| Number of Drives： | 6 |
| Max Drive Height： | 9.5mm |
| Drive Bay： | 1 x 5.25" half height drive bay |

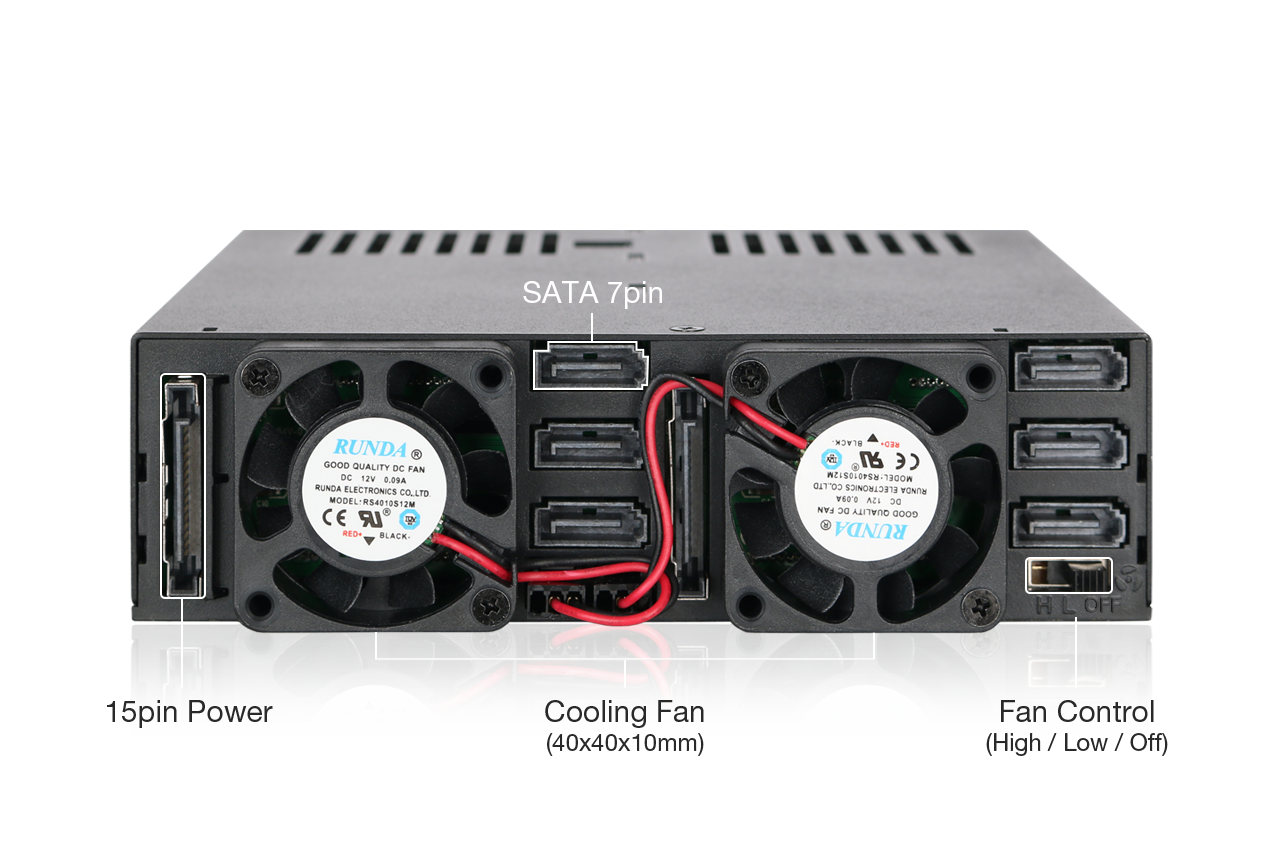

| Host Interface： | 6 x SATA 7pin |
| Power Input： | 2 x 15 pin SATA power connector |
| Transfer Rate： | SATA 3.0 up to 6Gbps |
| Support HDD Capacity： | No limitation |
| Drive Cooling： | 2 x 40mm fan |
| Structure / Material： | Metal with partial plastic |
| Support Hot-Swap： | Yes |
| Product Dimension (L x W x H)： | 140.5 x 145.8 x 41.3mm |
| Product Net Weight： | 441g |
| Package Gross Weight： | 516.2g |
| Drive Activity LED Indication： | Drive power: solid blue; Drive access: flashing blue |

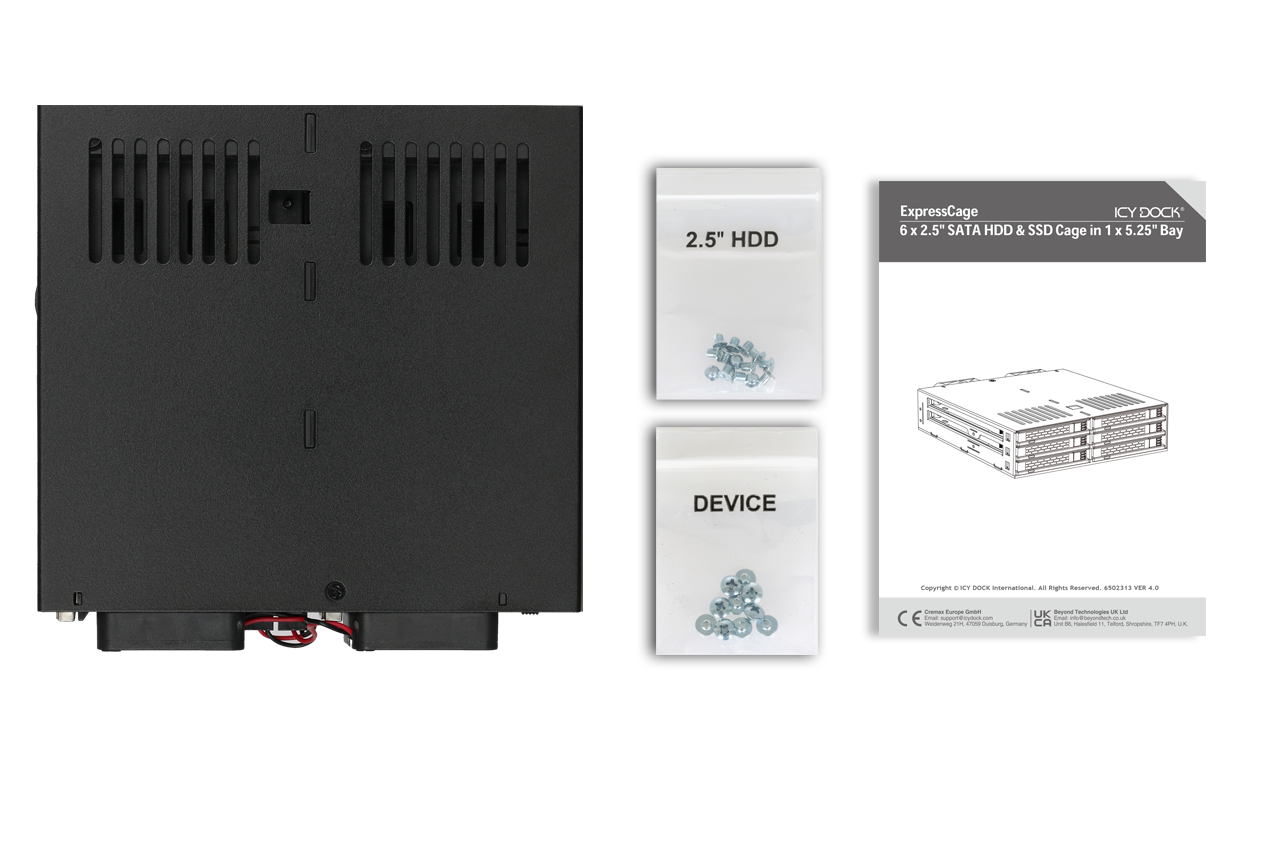

| Package Contents： | 1 - Device, 1 - user manual, 24 - screw |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, UKCA, RoHS, REACH |
| Warranty： | 3 years |
Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q: The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
Q: I'm connecting SATA SSD to the MB326SP-1B, but the drives did not show up in my system. However, when I connect the SSD directly to the motherboard/add-on card, I can access the SSD without a problem.
A:It may be the SATA signal decreasing when connecting multiple bridges at the same time and causing the issue. Using a higher quality or shorter cable may solve this problem. However, if the problem occurs after replacing the cable, it may be the SSD/HDD you are using requires 12V power, which is not supported by MB326SP-1B. The MB326SP-1B is not providing the 12V power as it's designed for non-enterprise drives. For using enterprise SATA SSD/HDD, we recommend choosing ToughArmor MB608SP-B or MB996SP-6SB. They both support 12V power and more suitable for enterprise applications.
Please see the list below for the SATA drive that using the 12V power.
| Seagate | Nytro 1351 | XA3840LE10063 / XA1920LE10063 / XA960LE10063 / XA1920LE10083 / XA960LE10083 / XA1920LE10103 / XA960LE10103 |
| Nytro 1551 | XA384ME10063 / XA1920ME10063 / XA960ME10063 / XA1920ME10083 / XA960ME10083 / XA1920ME10103 / XA960ME10103 | |
| IronWolf 110 | ZA3840NM10001 / ZA1920NM10001 / ZA960NM10001 |
Note: The ExpressCage MB326SP-1B does not support SAS HDD/SSD, which also requires 12V power to be operated.
Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?
A: The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.
Q: Which specification should I check before buying the 3rd party cooling fan?
A:The following information is the fan specification requirement and compatible fan models for MB326SP-1B
| Fan Dimension (LxWxH) | 40 x 40 x 10mm | 40 x 40 x 20mm |
| Connector Type | 3 Pin Wafer | |
| Rated Voltage (VDC) | 12V DC | |
| Rated Current (A) | < 0.12A (127mA) | |
| Screw Specification | Phillips Flat Head - M3 x 15mm - Steel (Came with stock fan) |
Phillips Flat Head - M3 x 25mm – Steel (Not Included) |
Compatible fan models
(without test, use it at your own risk)
