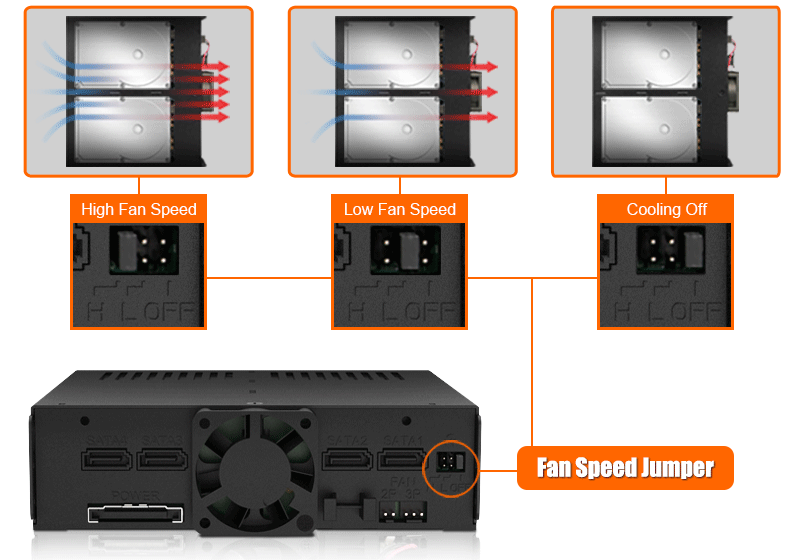

A rear-mounted 40mm cooling fan provides direct airflow across all four drives, supported by ventilation holes around the chassis and trays. Users can select from three fan modes using a jumper:

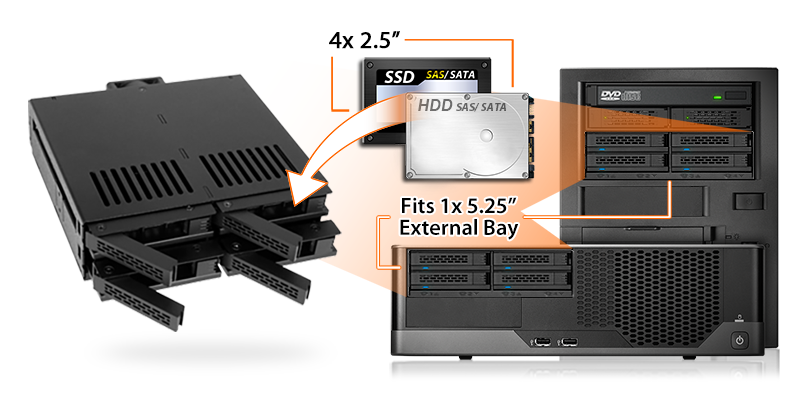

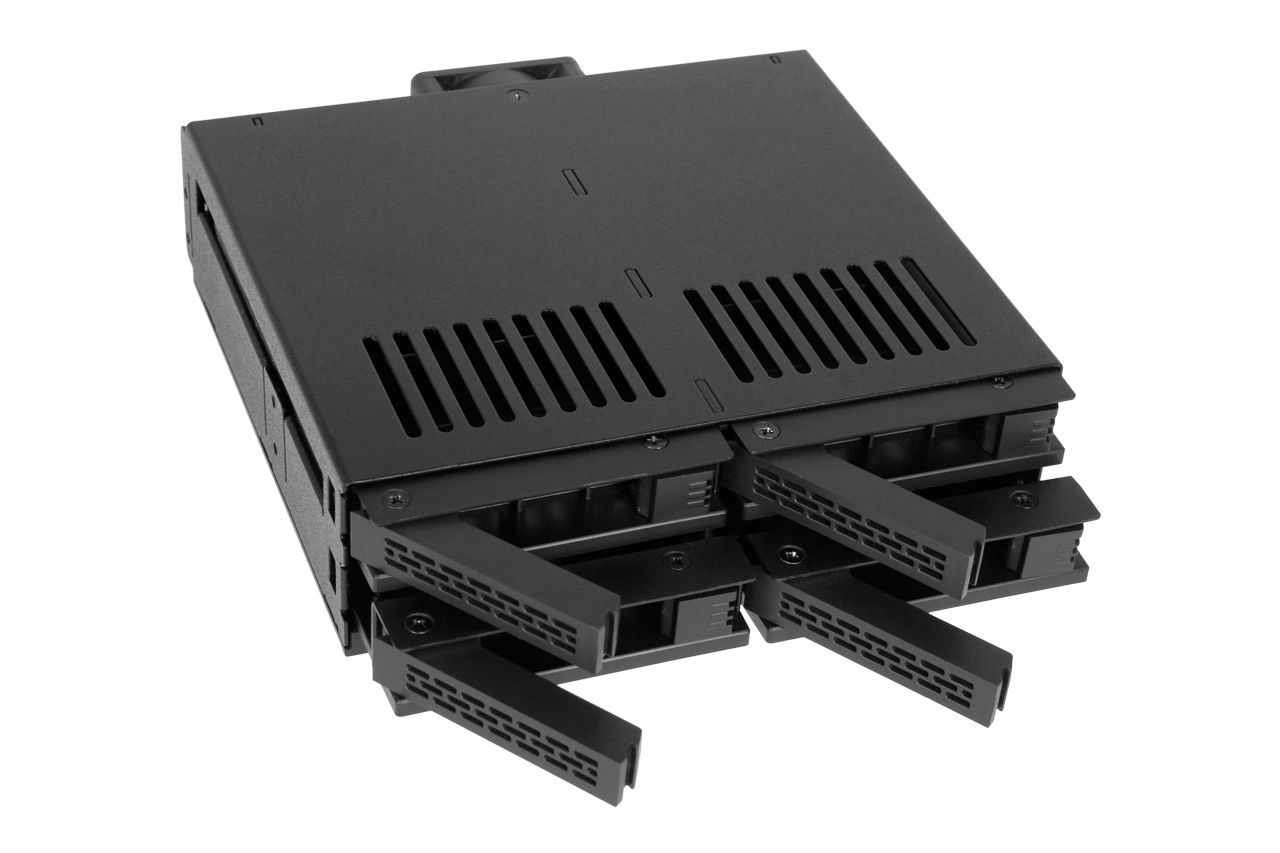

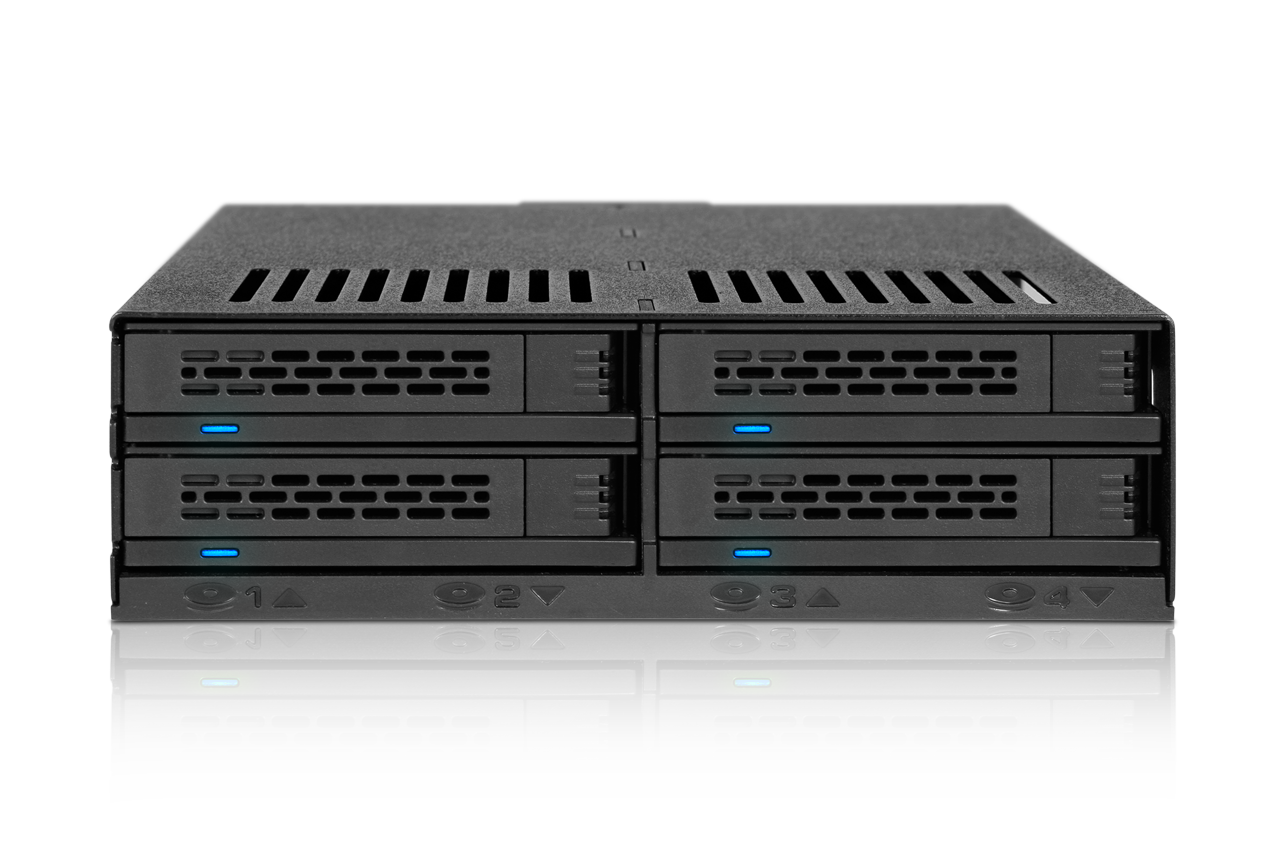

| • | Supports up to 4 x 2.5" SATA/SAS HDDs or SSDs into a single 5.25" bay |
| • | Compatible with SATA 6Gbps or SAS 3.0 12Gbps (Single channel) |
| • | Hot-swappable bays for quick and convenient drive replacement |
| • | Accommodates 2.5" drives with 5mm, 7mm, 9.5mm, and 12.5mm Height |
| • | Active Power Technology (APT) - only powers up if there is drive installed in the drive bay |

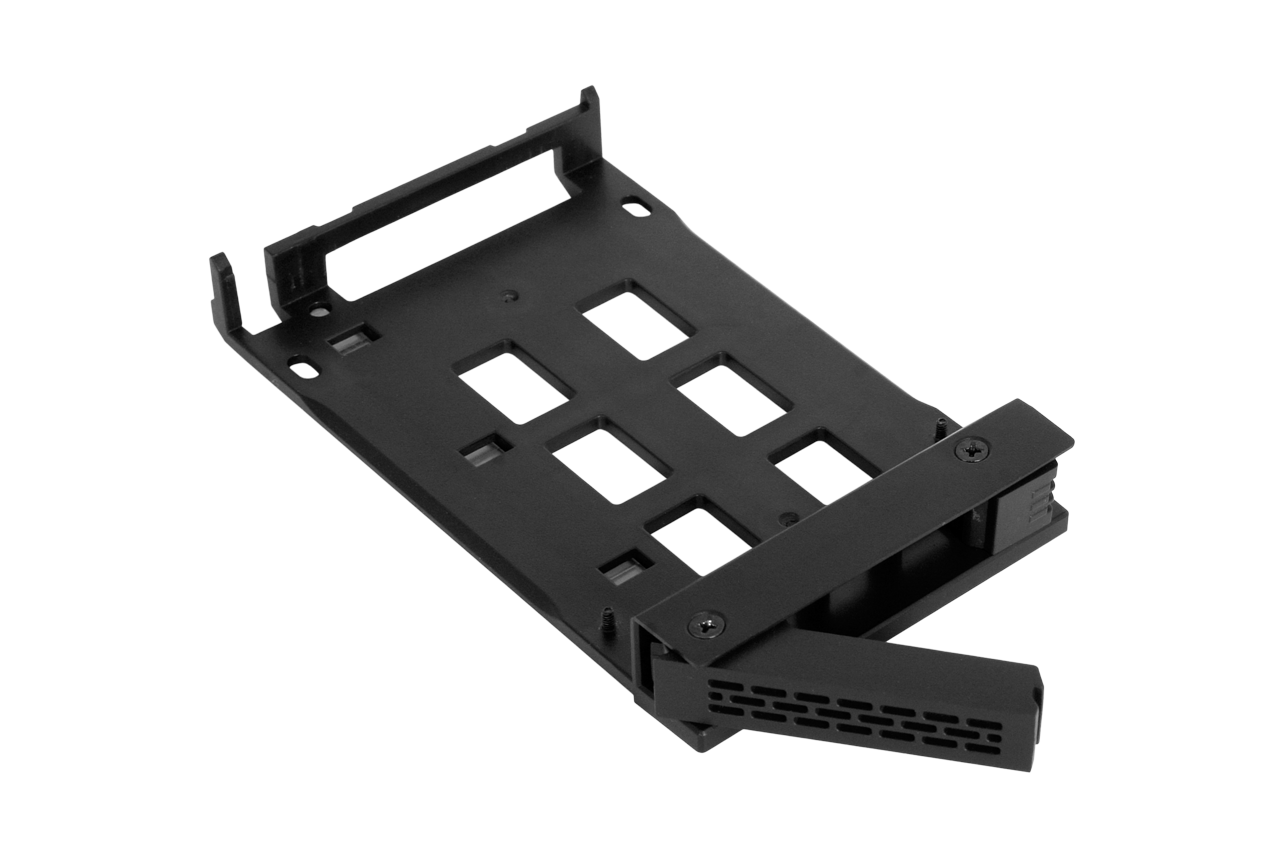

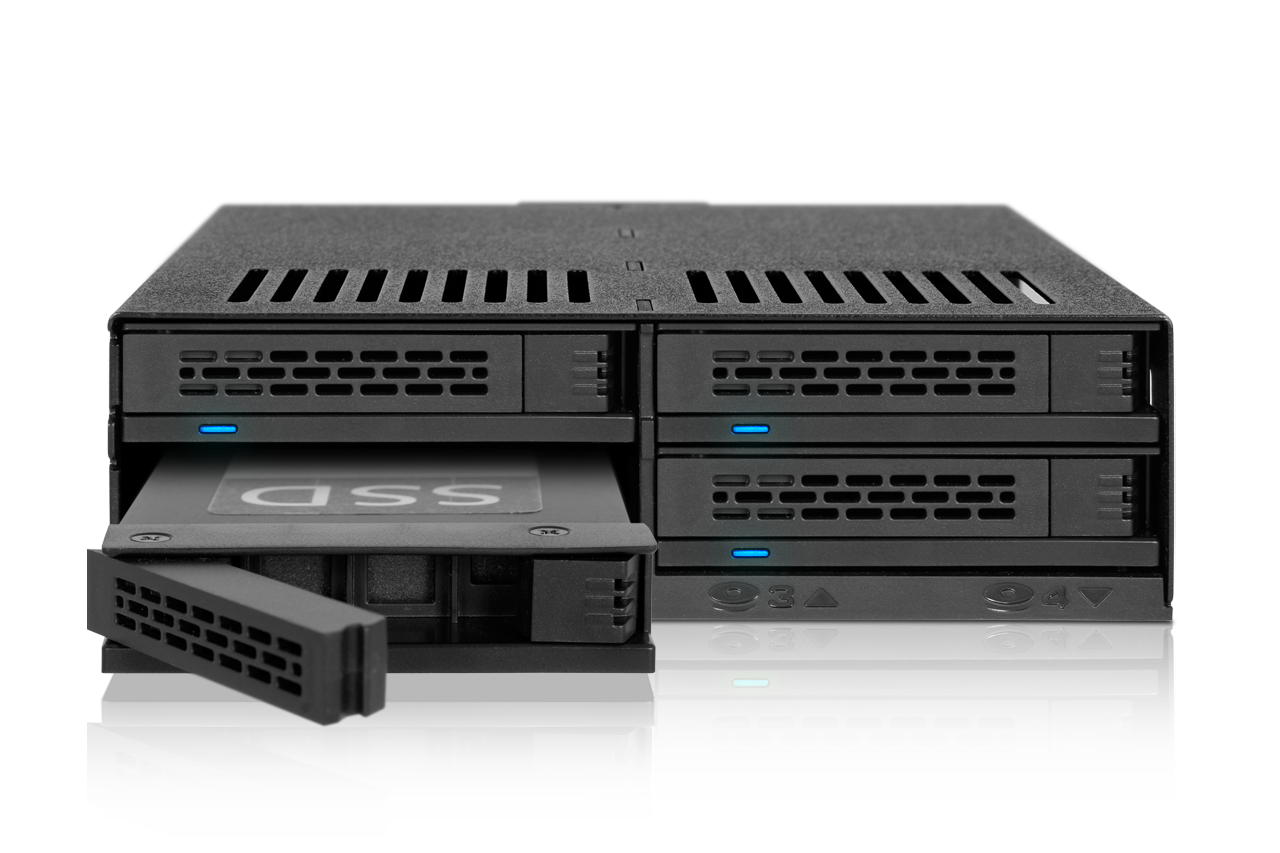

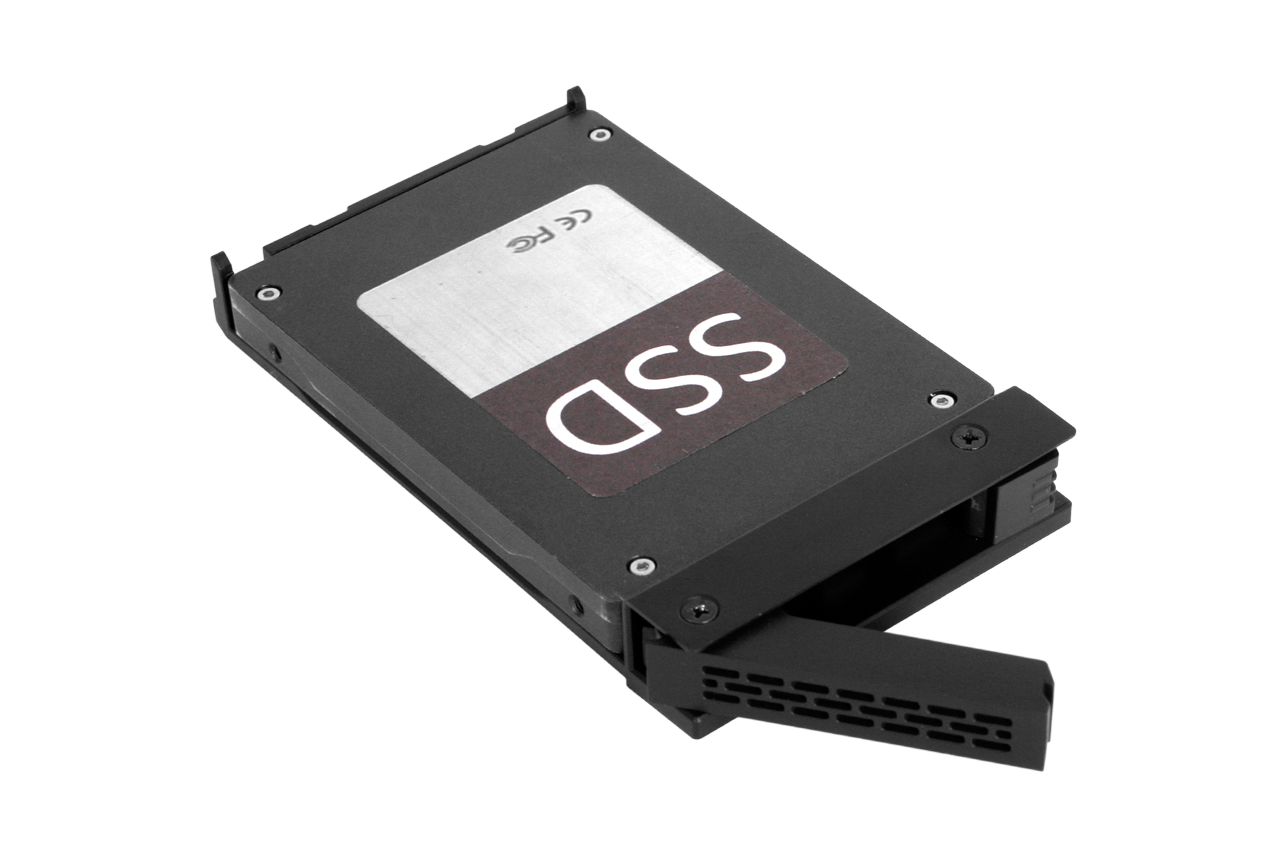

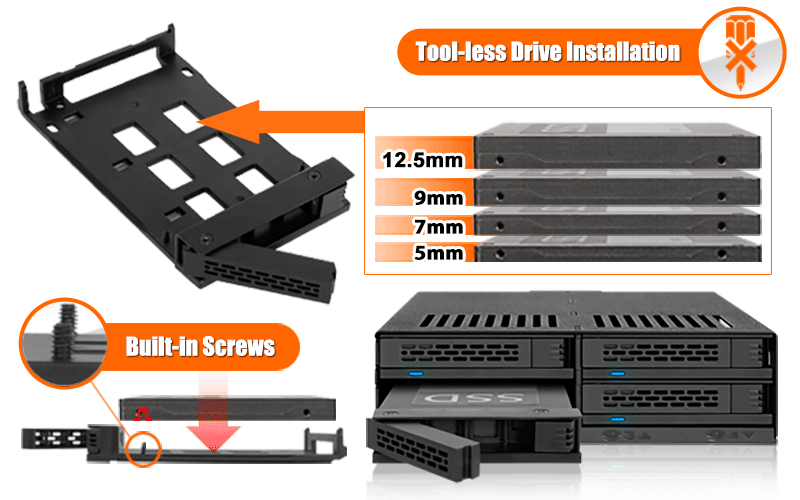

| • | ExpressTray system: tool-less, removable trays designed for easy installation while maintaining the stability of tray-based designs |

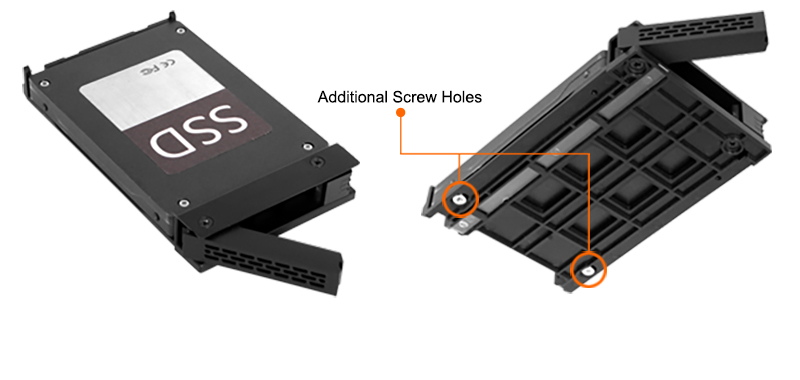

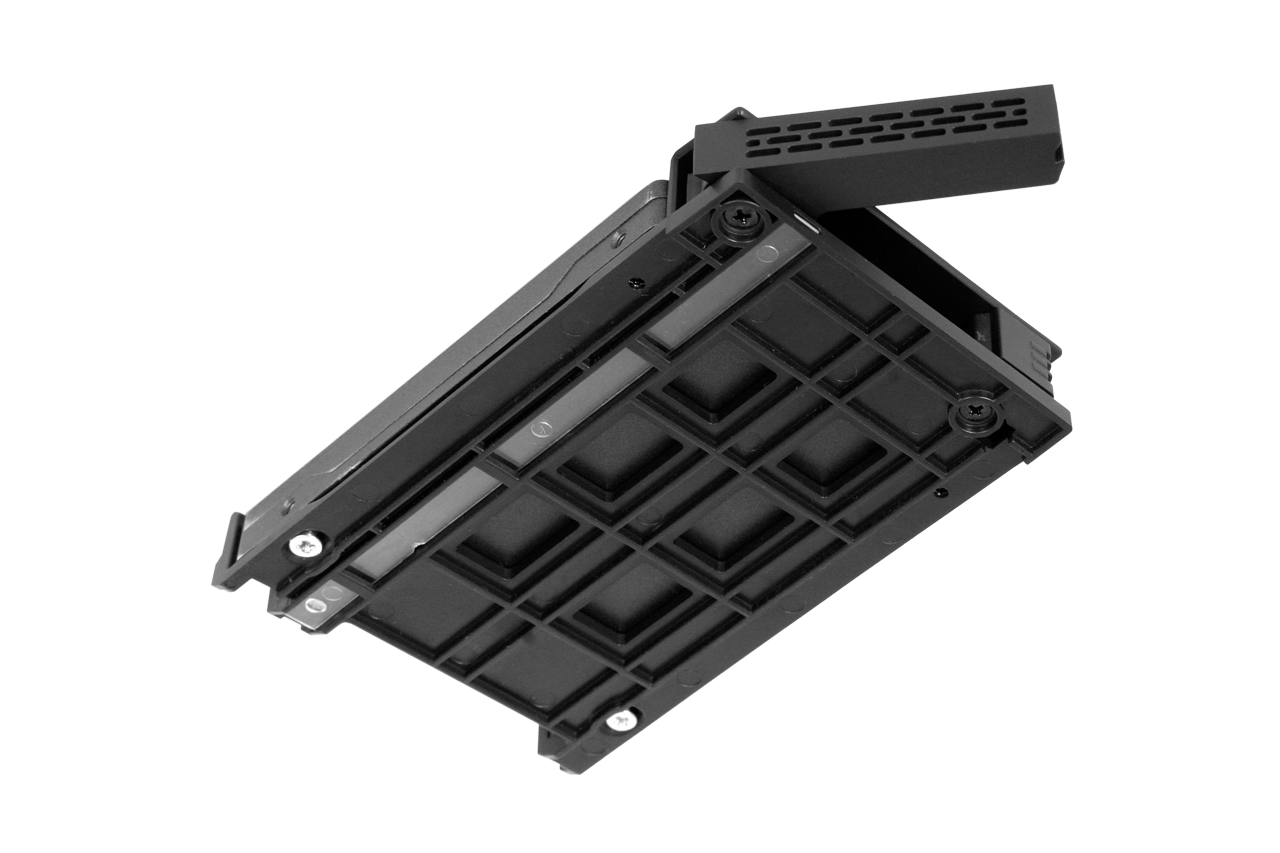

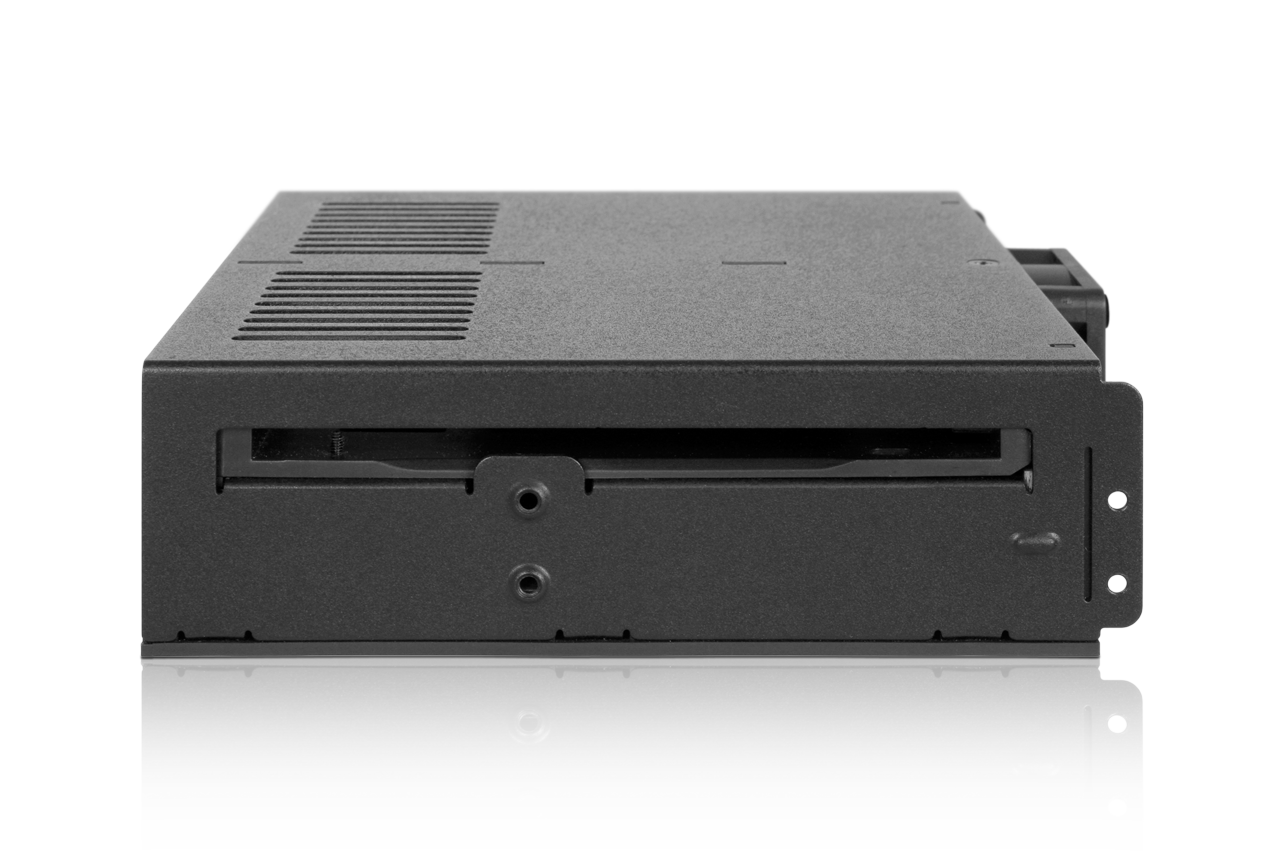

| • | Optional bottom-mounted screw holes for enhanced drive stability |

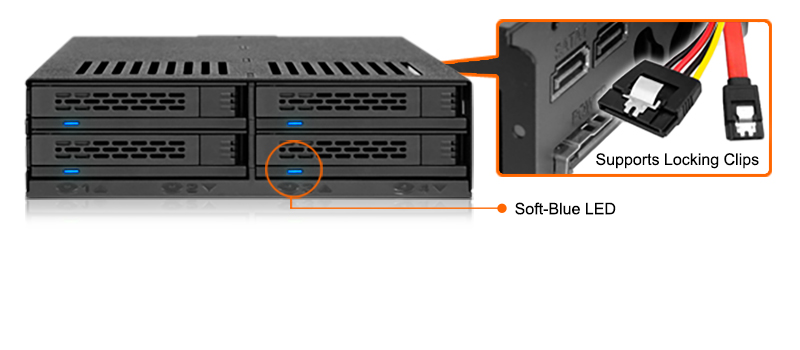

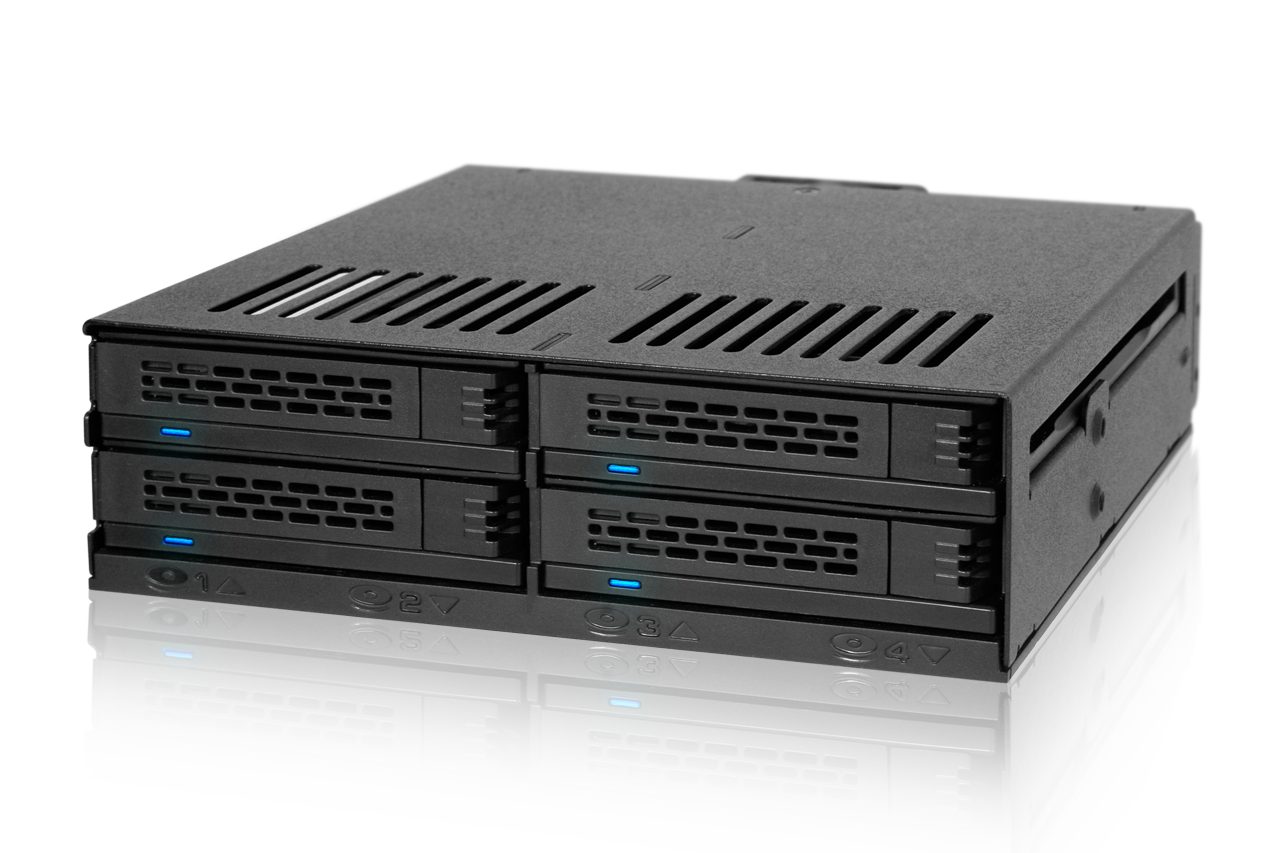

| • | Individual blue LED indicators for each bay |
| • | User-upgradeable 40mm fan for effective drive cooling |

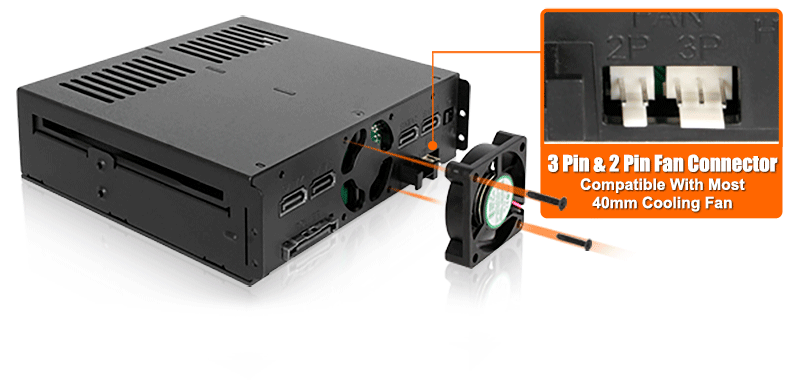

| • | Supports both 2-pin and 3-pin fan connectors for aftermarket fan upgrades |
| • | Single 15-pin SATA power connector powers all four drives |
| • | Locking latch design for both 7-pin SATA connector and 15-pin power connectors to ensure secure connections |
| • | Three-speed fan control: High / Low / Off |
| • | Durable metal enclosure with heavy-duty ABS trays and door latches |
| • | Ideal for power users, system builders, and applications requiring space-efficient 2.5" hot-swap storage solutions |
| Model Number： | MB324SP-1B |
| Color： | Black |
| Support Drive Size： | 2.5" SSD / HDD |
| Compatible Drive Type： | SATA / single channel SAS (SAS host required) |
| Number of Drives： | 4 |
| Max Drive Height： | 12.5mm |
| Drive Bay： | 1 x 5.25" half height drive bay |

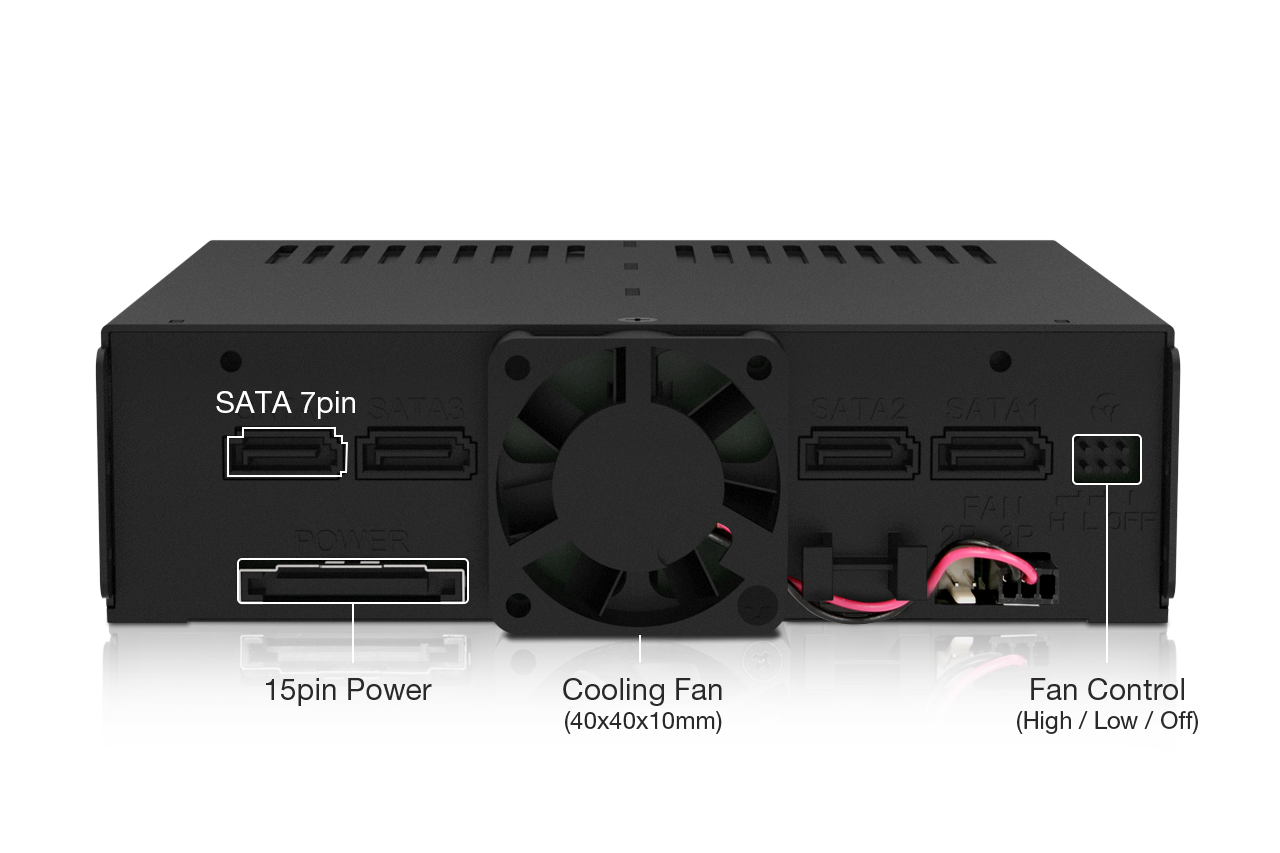

| Host Interface： | 4 x SATA 7pin |
| Power Input： | 1 x 15 pin SATA power connector |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity： | No limitation |
| Drive Cooling： | 1 x 40mm fan |
| RAID Function： | N/A |
| Structure / Material： | Metal with partial plastic |
| Support Hot-Swap： | Yes |
| Drive Security ： | N/A |
| Product Dimension (L x W x H)： | 140.5 x 145.8 x 41.3mm |
| Product Net Weight： | 440g |
| Package Gross Weight： | 516g |
| Drive Activity LED Indication： | Drive power: solid blue; Drive access: flashing blue |

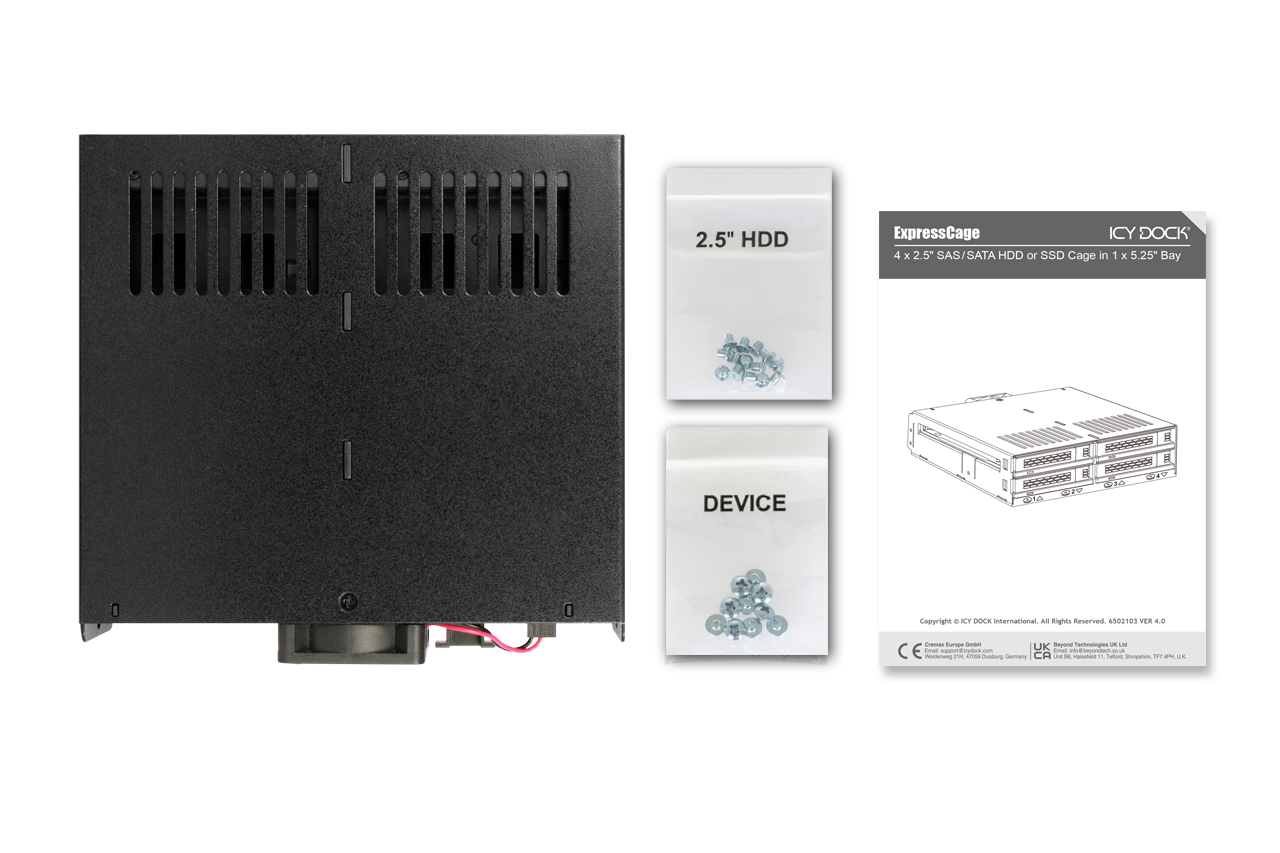

| Package Contents： | 1 - Device, 1 - user manual, 18 - screw |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, UKCA, RoHS, REACH |
| Warranty： | 3 years |
Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q: The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?
A:The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.
Q: Which specification should I check before buying the 3rd party cooling fan?
A:The following information is the fan specification requirement and compatible fan models for MB324SP-B
| Fan Dimension (LxWxH) | 40 x 40 x 10mm | 40 x 40 x 20mm |
| Connector Type | 3 Pin Wafer | |
| Rated Voltage (VDC) | 12V DC | |
| Rated Current (A) | < 0.12A (127mA) | |
| Screw Specification | Phillips Flat Head - M3 x 15mm - Steel (Came with stock fan) |
Phillips Flat Head - M3 x 25mm – Steel (Not Included) |
Compatible fan models
(without test, use it at your own risk)
