| • | Fits 2 × 2.5" SATA SSD/HDD (up to 9.5mm height) |

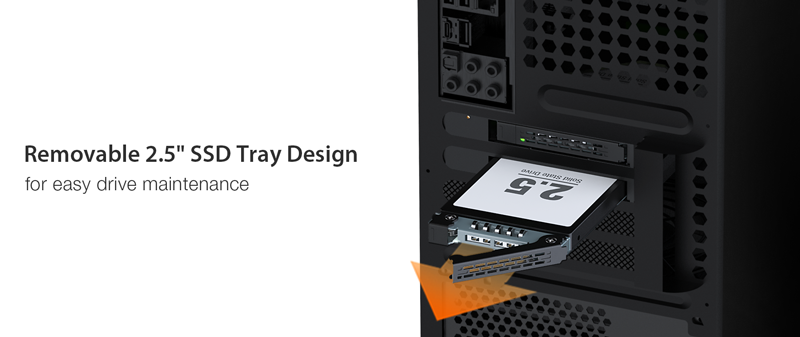

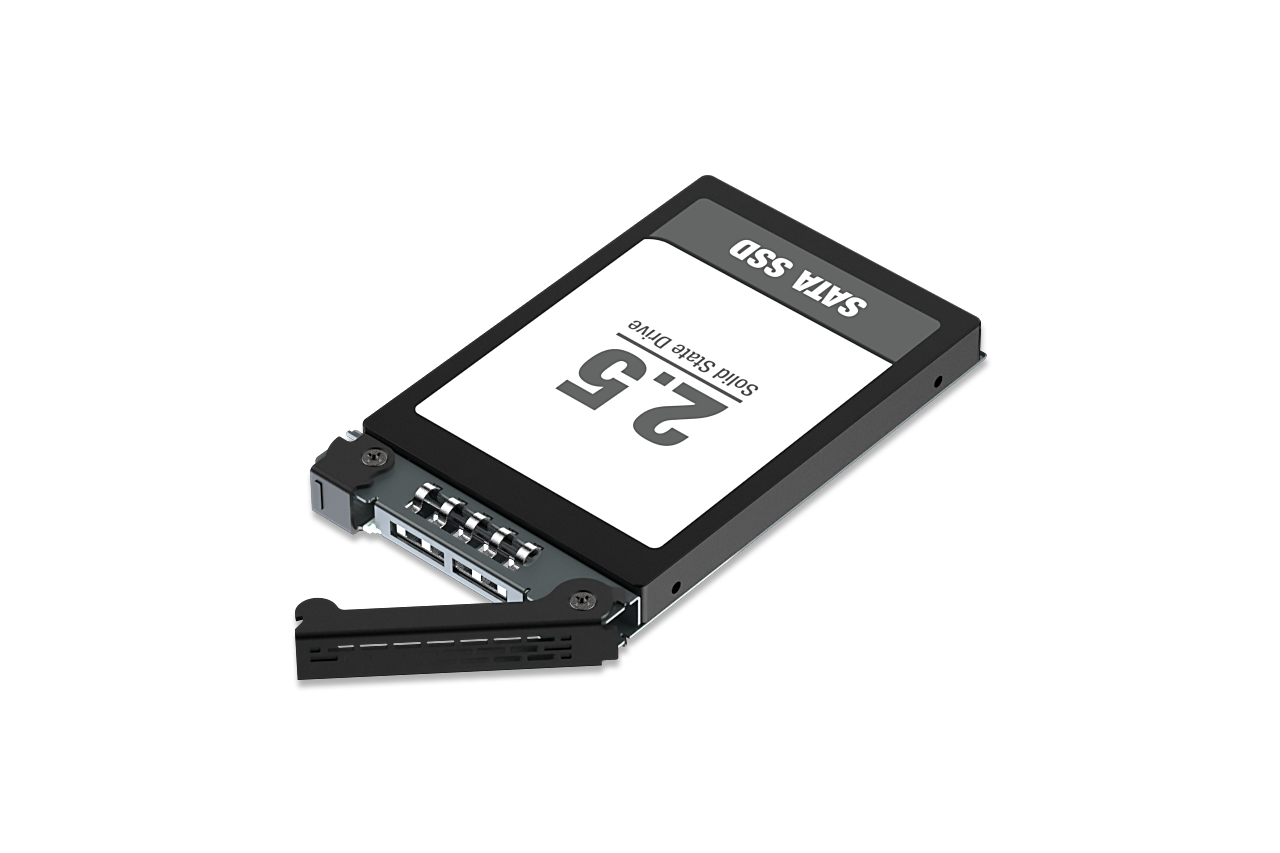

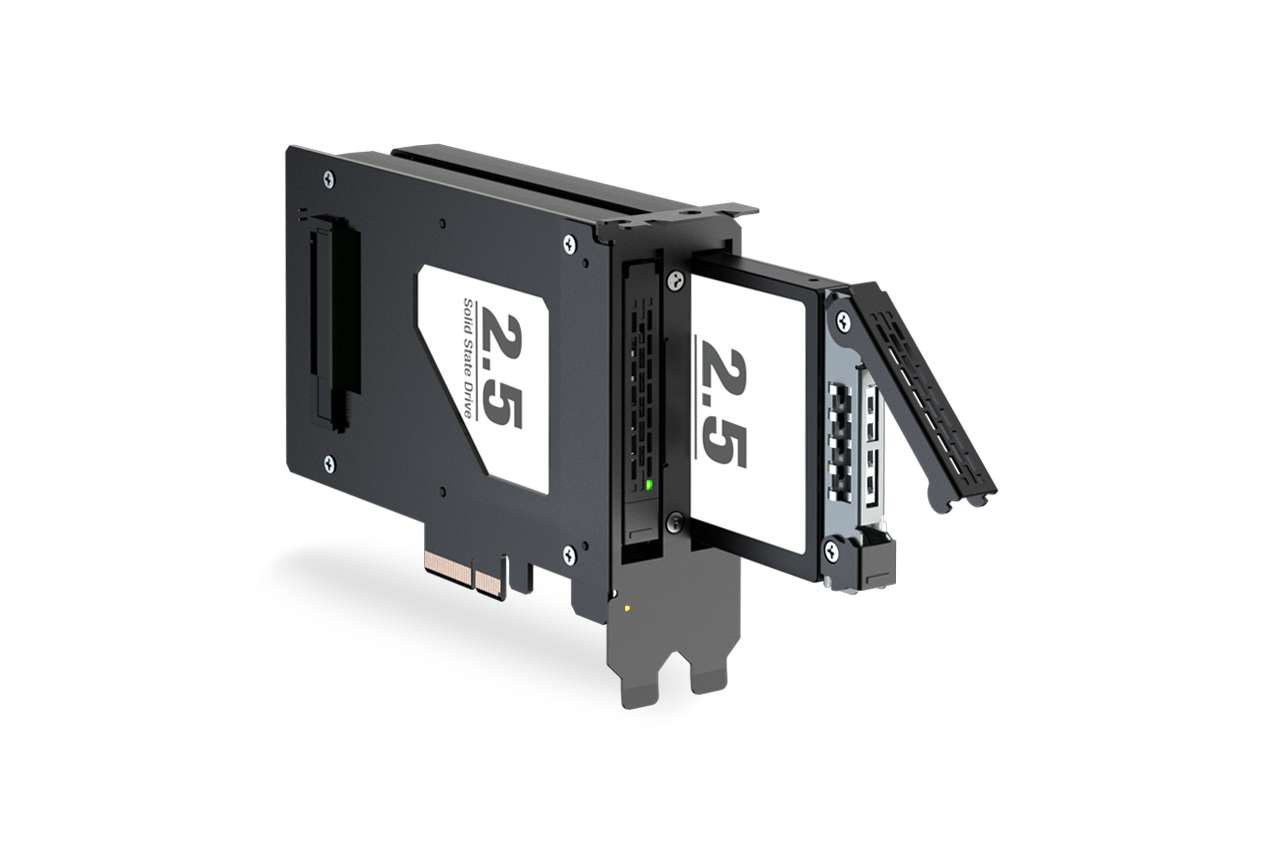

| • | Rear-swappable removable tray design for maintenance without card removal |

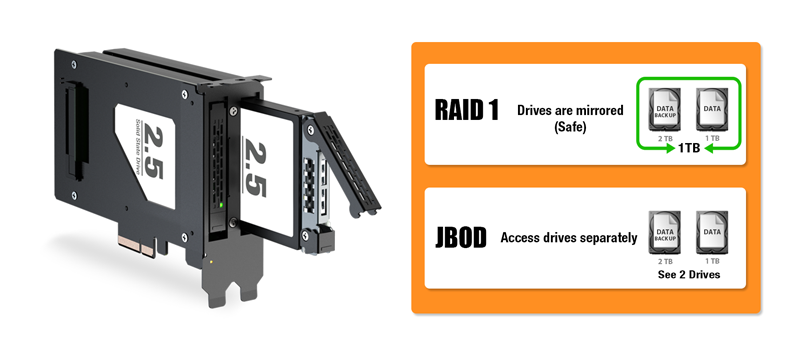

| • | Built-in PCIe RAID 1 / JBOD support for data protection or flexible storage |

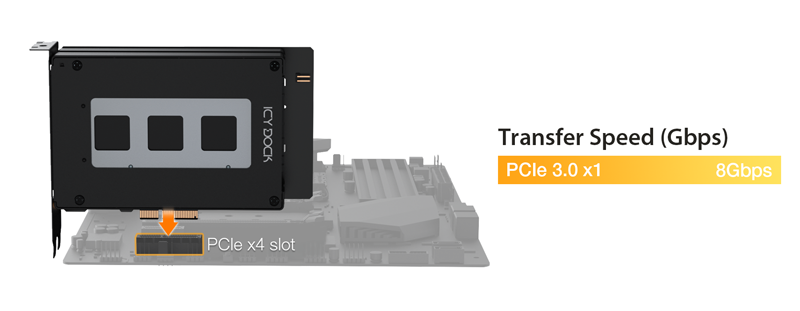

| • | PCIe x4 interface for power and data, eliminating extra cables |
| • | Ideal for automation systems, semiconductor manufacturing, industrial PCs, edge servers, media editing workstations |
| • | Fanless design for silent operation and improved reliability |
| • | Occupies dual PCIe slot space for compact integration |
| Model Number： | CP152-1 |
| Color： | Black |
| Support Drive Size： | 9.5mm 2.5" drive |
| Compatible Drive Type： | 2.5" SATA drive |
| Number of Drives： | 2 |
| Drive Bay： | Double PCIe slot |
| Host Interface： | PCIe x4 connector |
| Power Input： | Via PCIe connector |
| Transfer Rate： | Up to 8Gbps |
| Support SSD Capacity： | Unlimited |
| Drive Cooling： | Passive cooling |
| Structure / Material： | Metal with partial ABS plastic |
| Product Dimension (W x H x D)： | 165 x 110 x 38 mm (TBD) |
| Drive Activity LED Indication： | When RAID rebuild: flashing amber When RAID rebuild finished: amber LED off Drive power: solid green Drive access: flashing green Drive fail: solid red Drive not detected: green/red LED off |
| Package Contents： | Device, user manual, screws |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
