ToughArmor MB872MP-B

Rugged 12 x M.2 SATA SSD Mobile Rack Enclosure for 5.25" Bay (3 x OCuLink)
Product Details
  • Product Introduction
    The ToughArmor MB872MP-B supports 12 x M.2 SATA SSDs from 30mm to 110mm (2230 / 2242 / 2260 / 2280 / 22110) in just a single 5.25" optical drive bay. It uses 3 x high-speed OCuLink (SFF-8612) connectors in the rear to support twelve M.2 SATA SSD with 6Gb/s transfer speed per drive while reducing the amount of cable clutter for optimal system airflow and easy cable management. The removable drive tray design with an innovative adjustable M.2 locker allows you to interchange M.2 drives without using tools or screws. The 40mm fan with 3-Mode fan speed control working along with intelligently placed ventilation holes keeps your drives in optimal temperatures. The device and trays are made out of heavy-duty metal to ensure long-lasting durability.
  • High Storage Density for High-Performance PCs
    The ToughArmor MB872MP-B's high storage density design makes it suitable for high-performance systems with limited storage space, such as high-performance PCs, home servers, workstation PCs, and data centers. It's designed for systems that require high IOPS, high capacity, and low latency storage access.
  • MB872MP-B connects 12 x M.2 SATA SSD with only 3 x OCuLink (SFF-8612) data connector and 2 x SATA 15pin power connector for easy cable management and better system airflow. These are essential for high-performance PC builds.
  • Innovative Removable M.2 SATA SSD Tray
    A typical M.2 drive is installed on the motherboard or adapter card with tiny screws, which can be a troublesome and time-consuming process. However, with the MB872MP-B, the frontal removable drive tray design makes the M.2 SSD installation and removal a straightforward process without using any tools.
  • Effortless Tool-Less M.2 Drive Installation
    The ToughArmor MB872MP-B is equipped with a patent-pending M.2 adjustable locker for tool-less drive installation/removal. Simply insert the M.2 SATA SSD (2230, 2242, 2260, 2280, and 22110), move the adjustable M.2 locker until it firmly secures the SSD and closes the lid. The whole process takes less than 10 seconds to complete, saving your valuable time and resources.
  • Optimal Cooling Efficiency
    The specialized slimline tray is made with thick aluminum and acts as a heatsink to dissipate heat generated by the M.2 SATA SSD. Additionally, using 3 x OCuLink cables instead of 12 x SATA cables reduces cable clutter and improves the system airflow.
  • The included thermal pad fills the contact surfaces gap and transfers heat away from the M.2 SSD to the huge heatsink tray, allowing airflow to dissipate the heat away efficiently.
  • Powering up the twelve drives at once can accumulate heat. Therefore, we have included a 40mm cooling fan with adjustable 3-Mode fan speed control, providing airflow throughout the entire cage. Depending on your requirement, select the proper fan speed to keep the drives at optimal operating temperatures, even under heavy load.
  • Tough Protection for the Harshest Environment
    Ensuring the enclosure can be relied upon for many years, the ToughArmor MB872MP-B can hold up in the harshest environment. It comes equipped with rugged full-metal protection throughout the entire device and tray, making it perfect for industrial devices that may require a flammability rating. The high build quality is suitable for various enterprise systems, including the medical, military, law enforcement industries, and manufacturing conditions such as embedded control and factory automation systems.
  • EMI Grounding Technology
    Grounding your M.2 SSD is essential as swapping drives without proper grounding may lead to hardware damages due to static shocks. With our innovative EMI Grounding Technology, once the M.2 locker clips into the SSD screw hole, the SSD will be in a grounded state throughout the enclosure's tray and housing. After the enclosure is installed in the system with four screws on its' side, it will ground itself throughout the computer system.
  • Packed with features
    The LED status light in each of the trays gives you the current status information with a glance. With Active Power Technology, the enclosure turns on when the drives are inserted and automatically shuts off when all drives are removed.
  • Never forget which drives belong in which bays. With drive ID plugs, you'll always know which drive tray belongs in your RAID array or which drives contains specific files. Freely unplug and rearrange them to better suit your configurations or remove them for a simplified look.

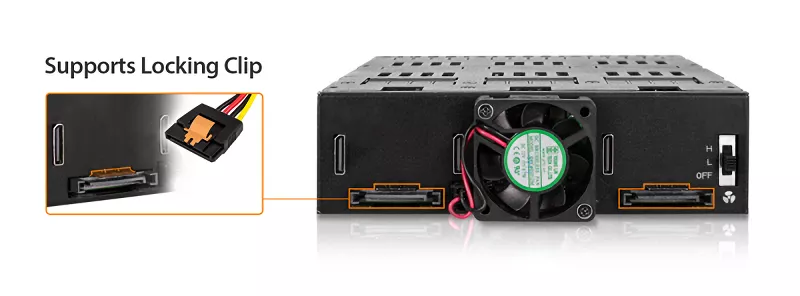

  • The ToughArmor MB872MP-B is designed to work seamlessly with SATA 15-pin power cables and OCuLink cables equipped with a locking latch. This ensures cables remain firmly attached, minimizing the risk of unintentional disconnections during vibrations or movement. Once secured, these cables maintain a steadfast connection.
  • Wide Range of Compatibility
    The specially designed MB840TP-B removable drive tray effortlessly enables seamless interchangeability across various models.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB872MP-B
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 & 502.7
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at tech@icydock.com
Main Features
Fits 12 x M.2 SATA SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110).

Installs into 1 x standard external 5.25" device bay

Powers 12 x M.2 SSD through 2 x 15-pin SATA power connector

Connects 12 x M.2 SSD through 3 x OCuLink (SFF-8612) connector

40mm cooling fan with three-mode fan speed control (high/low/off)

Removable drive tray with tool-less drive installation for easy drive maintenance

Huge heatsink tray with thermal pad included dispersing heat from the drive

Anti-Vibration Technology – Creates a safe environment for SSDs

Active Power Technology – Saves power by shutting off the device when no drive is installed

Drive ID plugs are included to keep track of your drives

Eagle-hook tray latch securely holds the tray inside the enclosure

EMI Grounding – Protects SSDs from electrical damage

Supports SATA 15-pin and OCuLink cables with locking latch design for a secure connection

Industry-leading 5 years limited warranty with exceptional customer support

Specification
Model Number: MB872MP-B
Color: Black
Support Drive Size: 12 x M.2 SATA SSD 2230/2242/2260/2280/22110
Compatible Drive Type: SATA M.2
Number of Drives: 12
Drive Bay: 1 x external 5.25" device bay
Host Interface: 3 x OCuLink (SFF-8612)
Power Input: 2 x 15pin SATA power connector
Transfer Rate: Up to 6Gbps (depending on SSD speed)
Support SSD Capacity: No limitation
Drive Cooling (Active): 1 x 40mm fan
Drive Cooling (Passive): Aluminum heat sink with thermal pad
Structure / Material: Full metal
Dimension (L x W x H) : 157.8 x 146 x 41.3mm
Product Net Weight: 1680.8g
Package Gross Weight: 1878.3g
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
Package Contents: 1 - device, 1 - user manual, 2 - ID plug, 6 - screw
M.2 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
Warranty: 5 years limited warranty

Compatible Drive Tray (Caddy):

  • MB840TP-B

Compatible Drive cable:

  • MB206L-B Cable

Related Products Series:

  • NVMe Enclosures
  • High Density Enclosures

ToughArmor Lineup:


FAQ

Q: Can you recommend an add-on card that works with MB872MP-B?

A: The following add-on cards are compatible with MB872MP-B. We highly recommend using the official cable for the best compatibility.





Note:We highly recommend purchasing the cable from a local reseller that you trust.

We are currently certifying our NVMe enclosure with the major add-on card manufacturers. We will be adding compatible add-on cards to the list.

You can click here to report a compatible add-on card/cable. If you want to check the compatibility of add-on card(s) that are not on the list, please click here.


Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?

A: The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.


Q:  Which specification should I check before buying the 3rd party cooling fan?

A:The following information is the fan specification requirement and compatible fan models for MB872MP-B



Fan Dimension (LxWxH) 40 x 40 x 10mm 40 x 40 x 20mm
Connector Type 3 Pin Wafer
Rated Voltage (VDC) 12V DC
Rated Current (A) < 0.12A (127mA)
Screw Specification Phillips Flat Head - M3 x 15mm - Steel
(Came with stock fan)
Phillips Flat Head - M3 x 25mm – Steel
(Not Included)



Compatible fan models
(without test, use it at your own risk)






Q: I'm having the difficulties closing the lid of the drive tray and unable to insert the drive tray all the way to the drive enclosure after placing the M.2 SSD onto the drive tray.

A: Make sure to lock the M.2 SSD with the adjustable M.2 locker. The tray lid will not close properly if the M.2 locker is not fully secured. If you are having difficulty secure the M.2 locker or close the cover, the M.2 SSD you are using may not follow the standard M.2 SSD thickness, which is less than 1.5mm height for each side with a total height that does not exceed 3.8mm. Using the M.2 SSD with non-standard thickness will cause improper tension on the M.2 locker and tray lid and make the M.2 connector misaligned. If you are having issues inserting the drive tray to the enclosure, please stop the operation immediately and check the drive thickness to ensure it follows the standard M.2 SSD thickness - less than 1.5mm height for each side and less than 3.8mm for total height.

Metal heat dissipation sticker



Note: Some M.2 SSD uses a metal heat dissipation sticker that causes each side's thickness more than the 1.5mm. Remove the sticker will solve the problem, but do it at your own risk (might void the warranty of SSD)



ICY DOCK enclosure is design to be compatible with M.2 SSD that has standard thickness. We highly recommend checking the drive thickness before purchase, and please refer to the incompatible M.2 SSD list below for further information:



M.2 SATA SSDs known to be incompatible due to physical fitment with ICY DOCK enclosure:




Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.

Click here to report a compatible/incompatible M.2 SSD.
