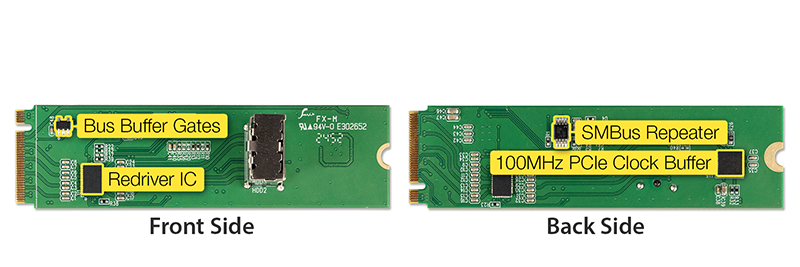

Additional embedded signal conditioning features include:

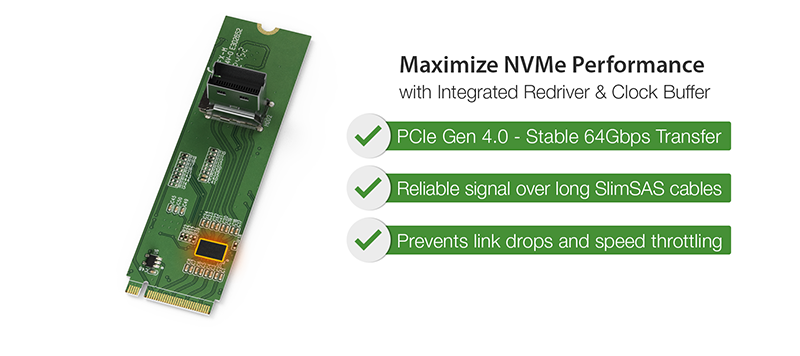

• Redriver IC ensures clean high-speed signal
• 100MHz PCIe clock buffer extends trace length
• Bus buffer gates support PERST#/WAKE#/CLKREQ# signaling
• SMBus repeater for stable device management
Even under intense workloads, these features keep your SSD cool and data safe.

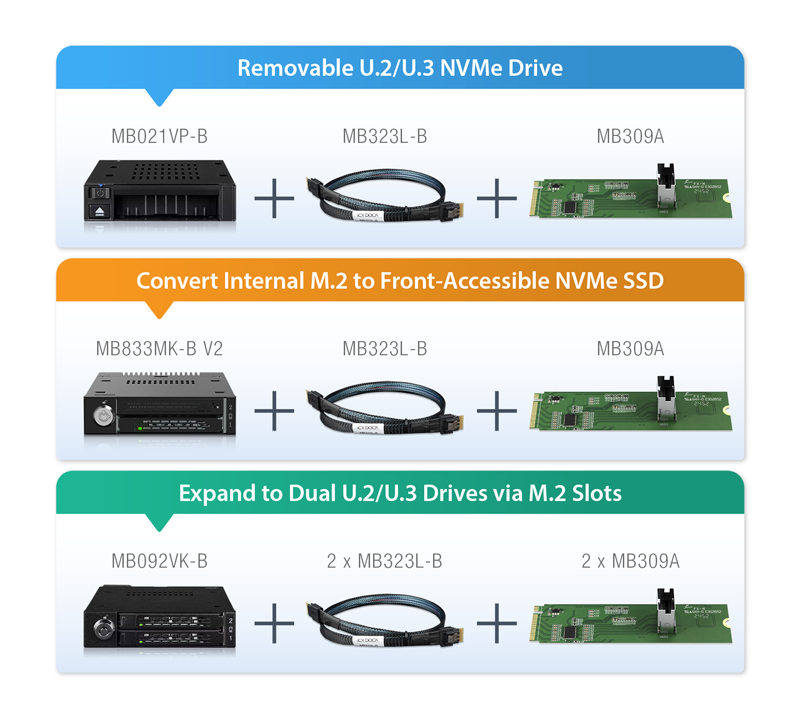

The MB309A is a key part of ICY DOCK’s EXLink ecosystem, designed to simplify the deployment of removable NVMe SSD solutions. Whether you're upgrading a single M.2 slot, building a front-access U.2 configuration, or expanding dual-drive capacity, MB309A works seamlessly with ICY DOCK’s mobile racks and SlimSAS cables to deliver a turnkey setup.
This plug-and-play compatibility removes the guesswork from system design - ensuring your enclosure, cable, and adapter card all work together out of the box. As your NVMe needs grow, the EXLink ecosystem offers scalable options that adapt to your platform with ease.
Related Models:
Compatible Drive Cables:
| • | Converts M.2 NVMe (PCIe Gen 4 x4) slot into SlimSAS 4i output |
| • | Fully compatible with ICY DOCK SlimSAS mobile racks & cables |
| • | Built-in PCIe Gen 4.0 redriver ensures high-speed signal over long cables |
| • | 100MHz clock buffer, SMBus repeater, and power signal gates for robust system integration |
| • | Supports transfer rates up to 64Gbps |
| • | Ideal for removable storage workflows in workstations, servers, edge AI systems, and industrial PCs |
| • | Compatible with PCIe Gen 2/3/4/5 M-Key M.2 slots |
| • | 2-year limited warranty |
| Model Number： | MB309A |
| Compatible Drive Type： | NVMe |
| Support Slots： | Works with M.2 M-key PCIe 2.0/3.0/4.0 or 5.0 slots on motherboards |
| Host Interface： | 1 x M.2 M-key Slot |
| Endpoint Interface： | 1 x SlimSAS 4i(SFF-8654) , pin-out defined by SFF-9402 Rev 1.1 |
| Transfer Rate： | PCIe 4.0 x4 up to 64Gbps |
| Supported Operating Systems： | No limitation |
| Package Contents： | Device, User manual |
| Dimension (D x W x H)： | 22 x 80 x 14.8mm |
| Product Net Weight： | 5.8g |
| Package Gross Weight： | 36.2g |
| Compliance： | CE, UKCA, RoHS, REACH |
| Warranty： | 2 years warranty |
