| • | Supports 1 × M.2 2230 NVMe SSD |
| • | Ultra-compact enclosure specifically designed for space-constrained and non-standard installations |

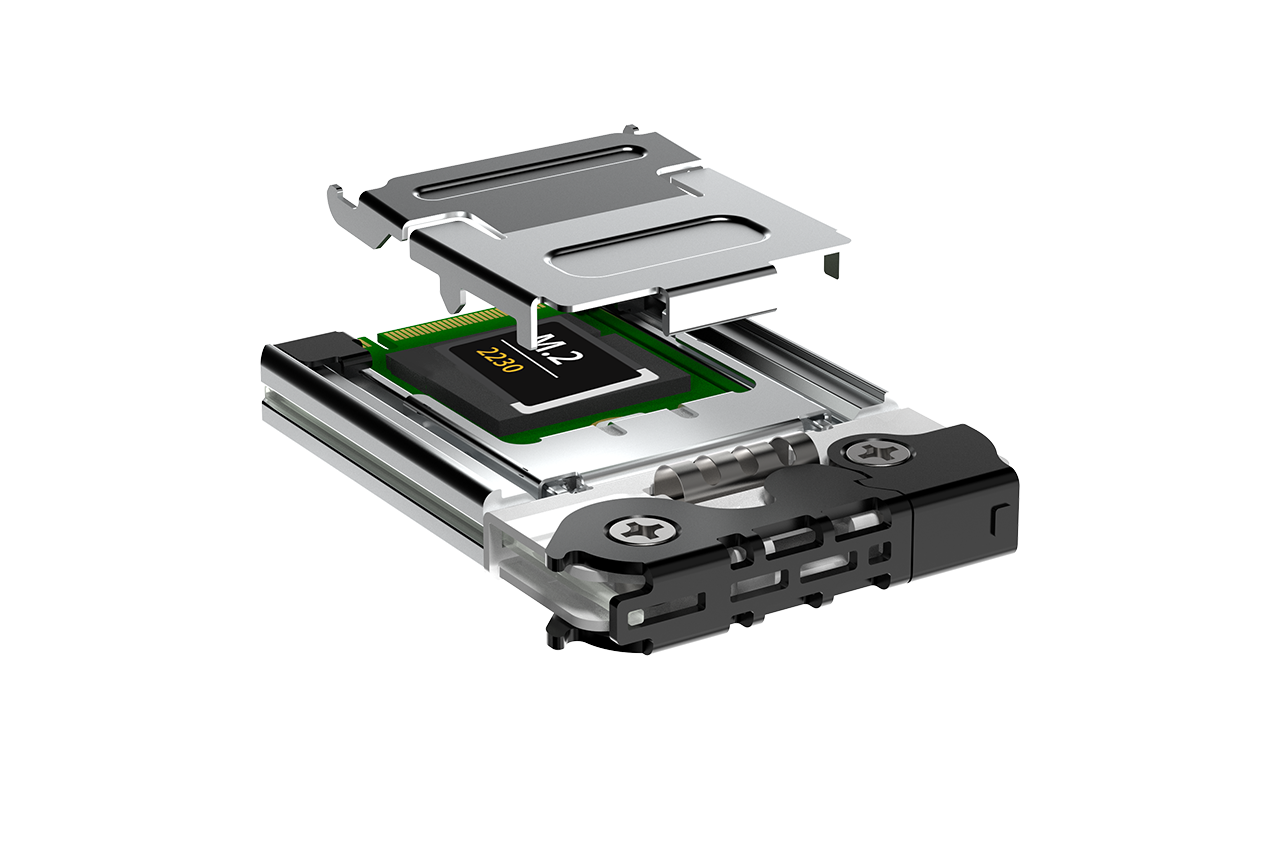

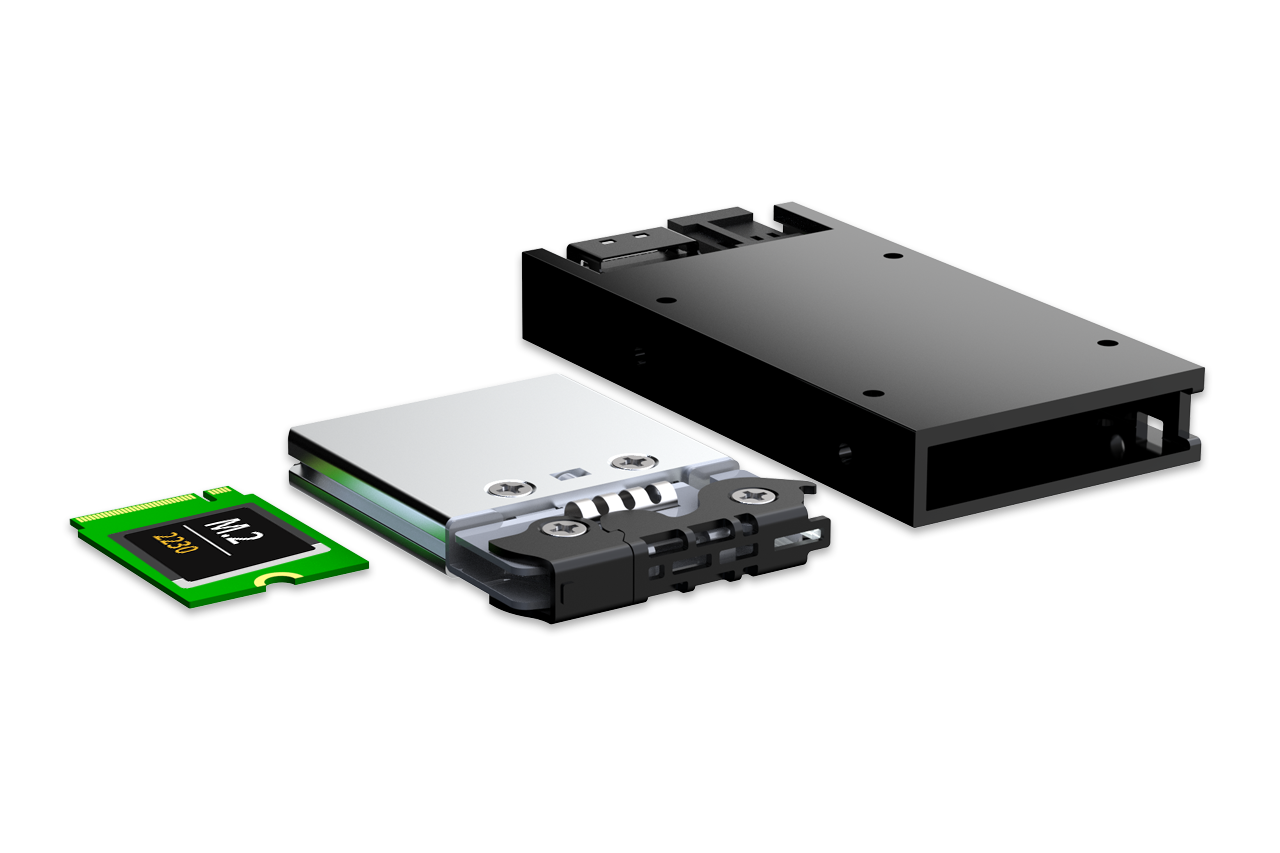

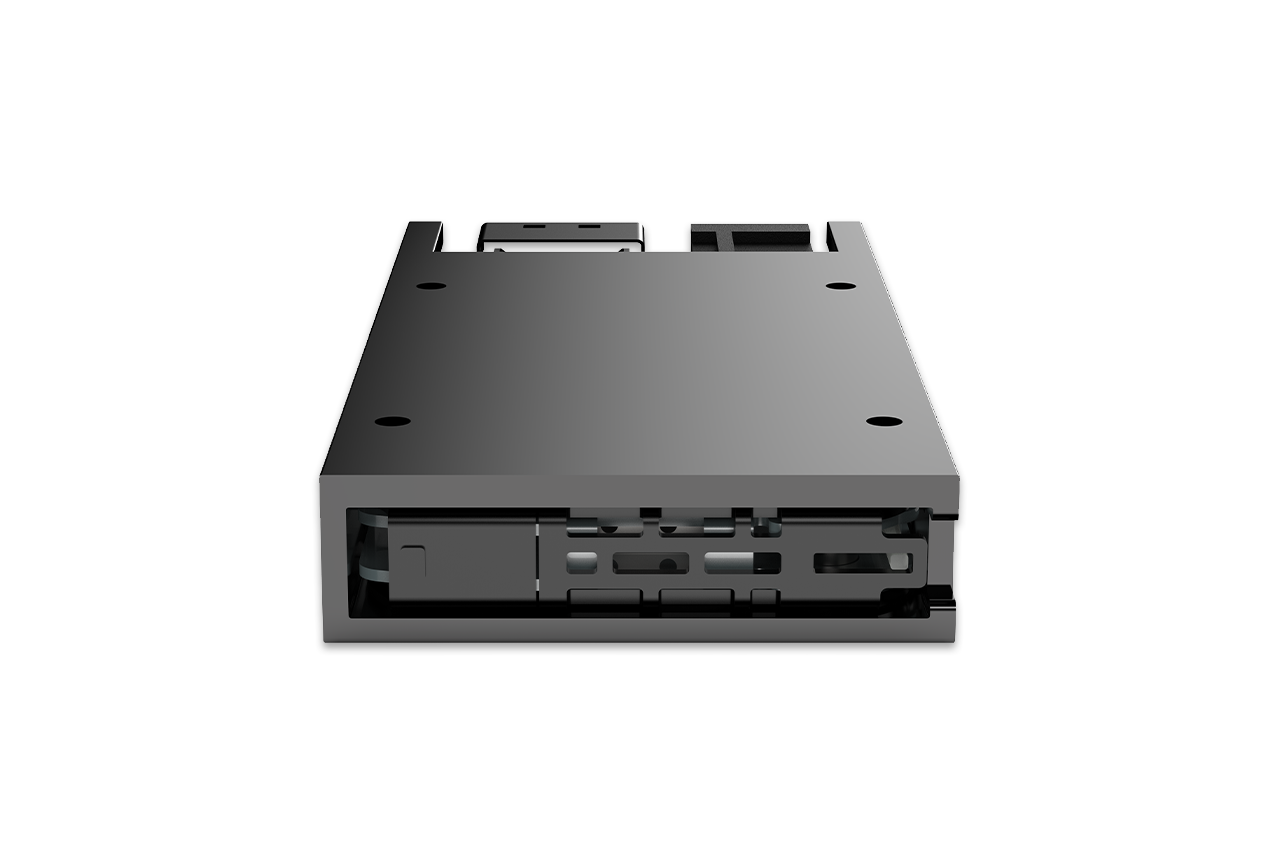

| • | Removable metal drive tray for simplified SSD maintenance and replacement |

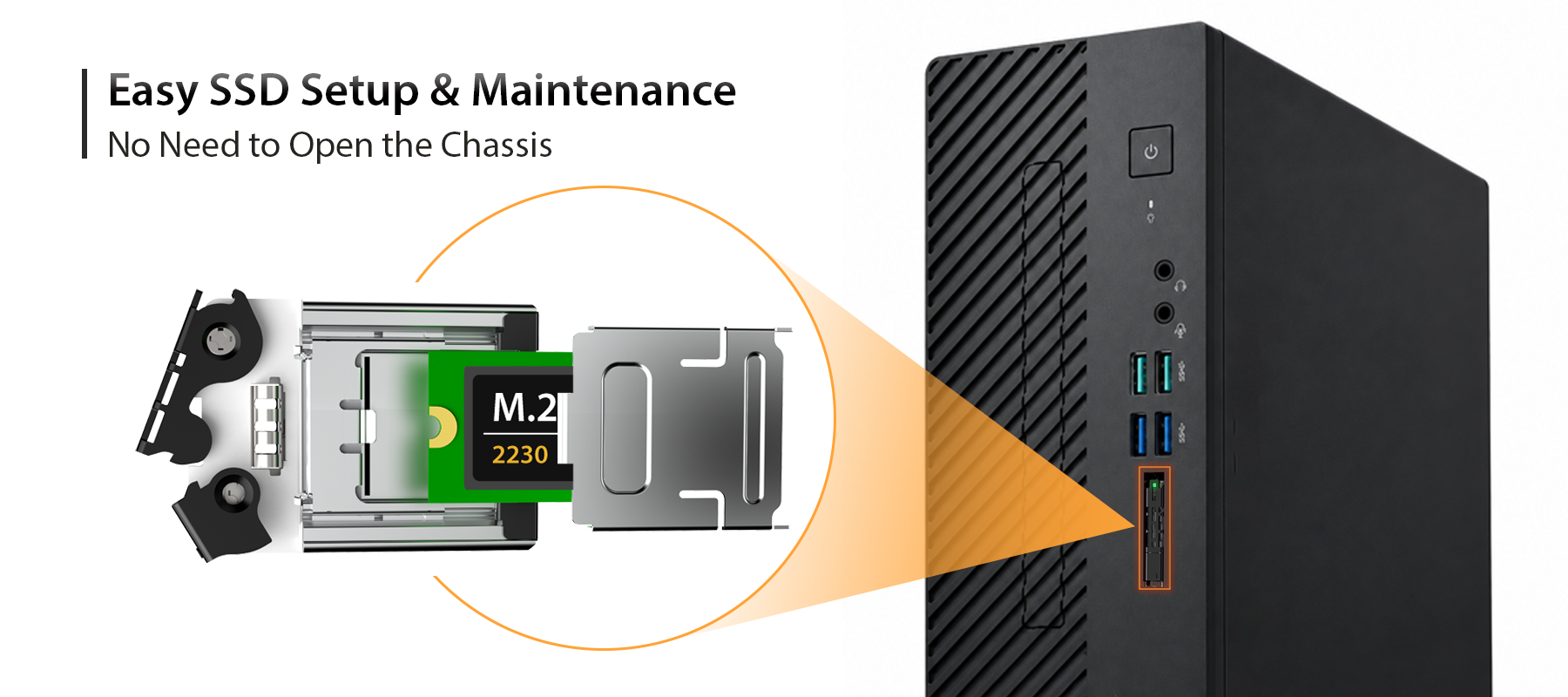

| • | Tool-less M.2 SSD installation |

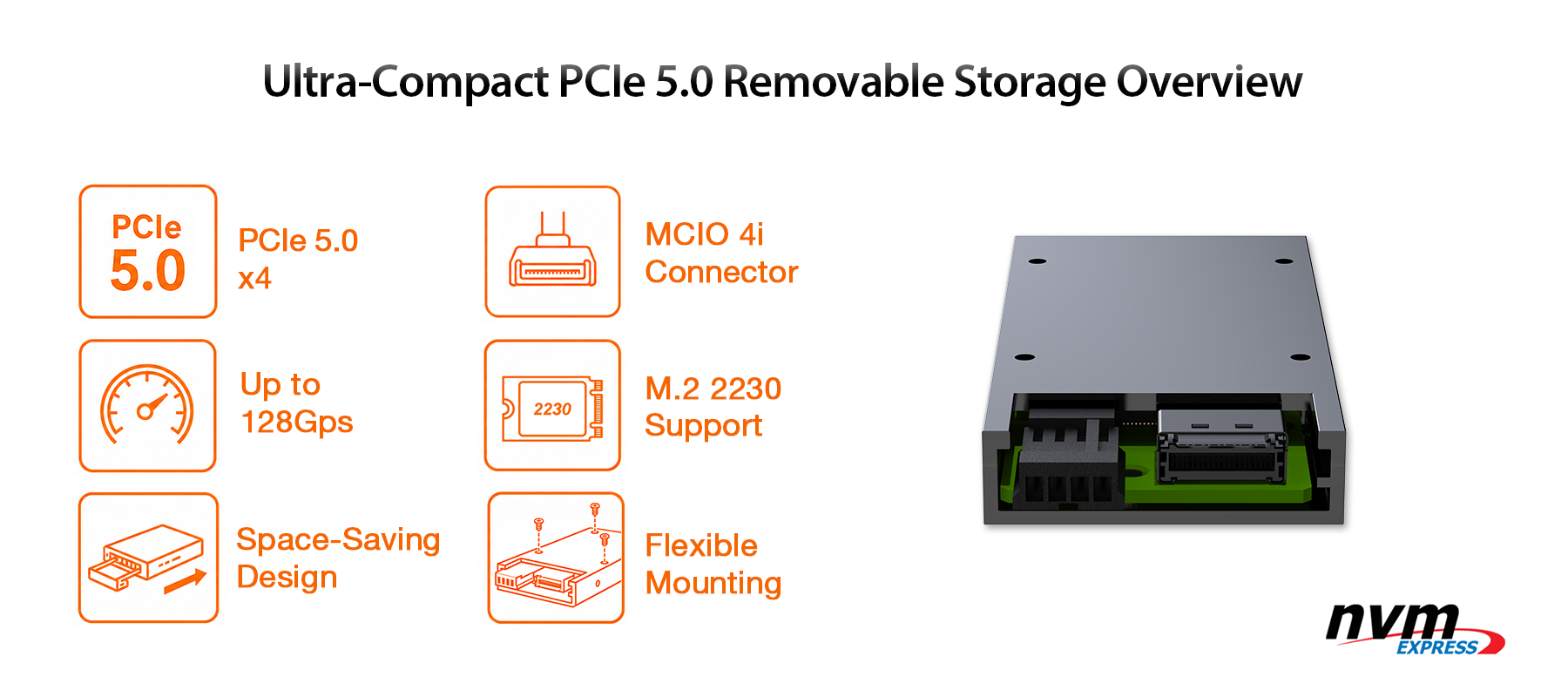

| • | PCIe 5.0 x4 interface with up to 128Gbps theoretical bandwidth (depending on SSD and host performance) |

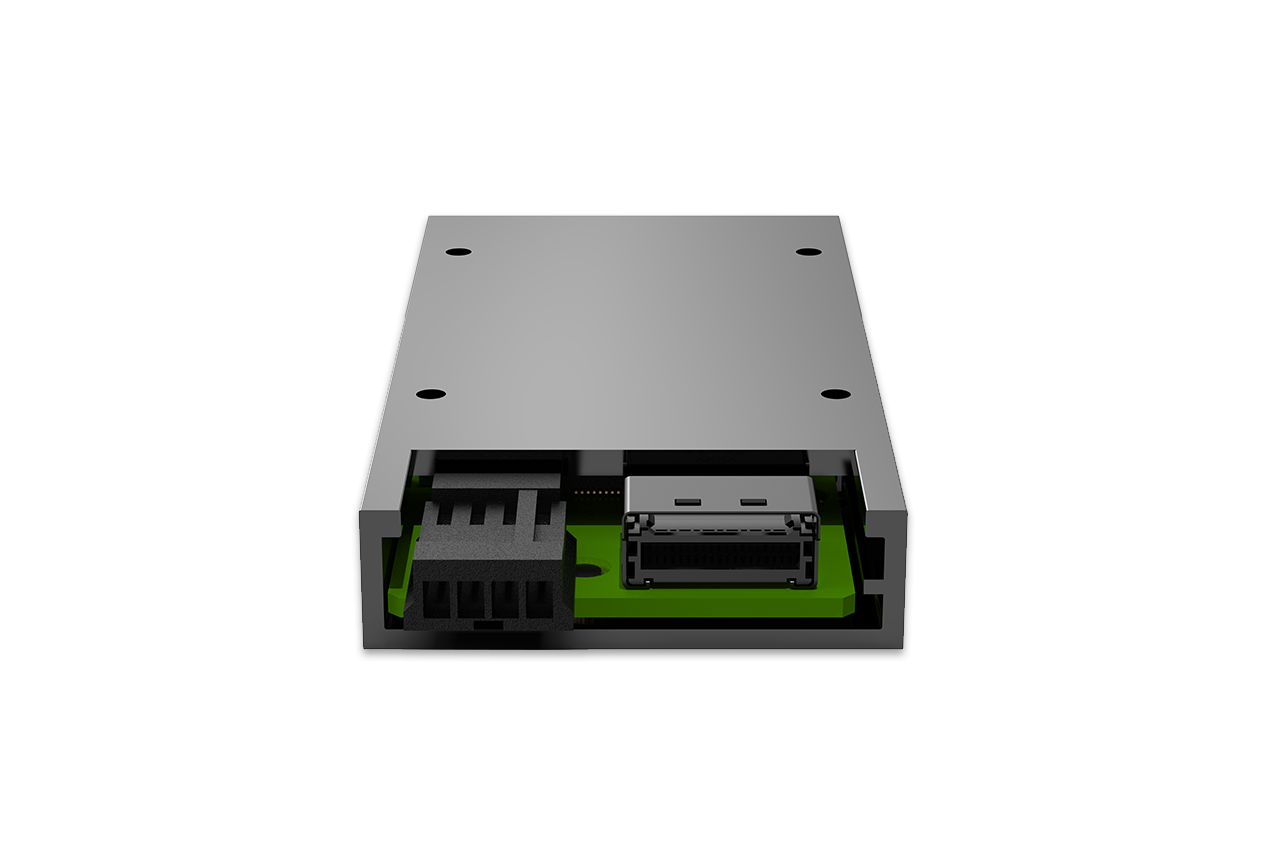

| • | 1 × MCIO 4i (SFF-TA-1016) host interface |
| • | 1 × Floppy 4-pin power connector |

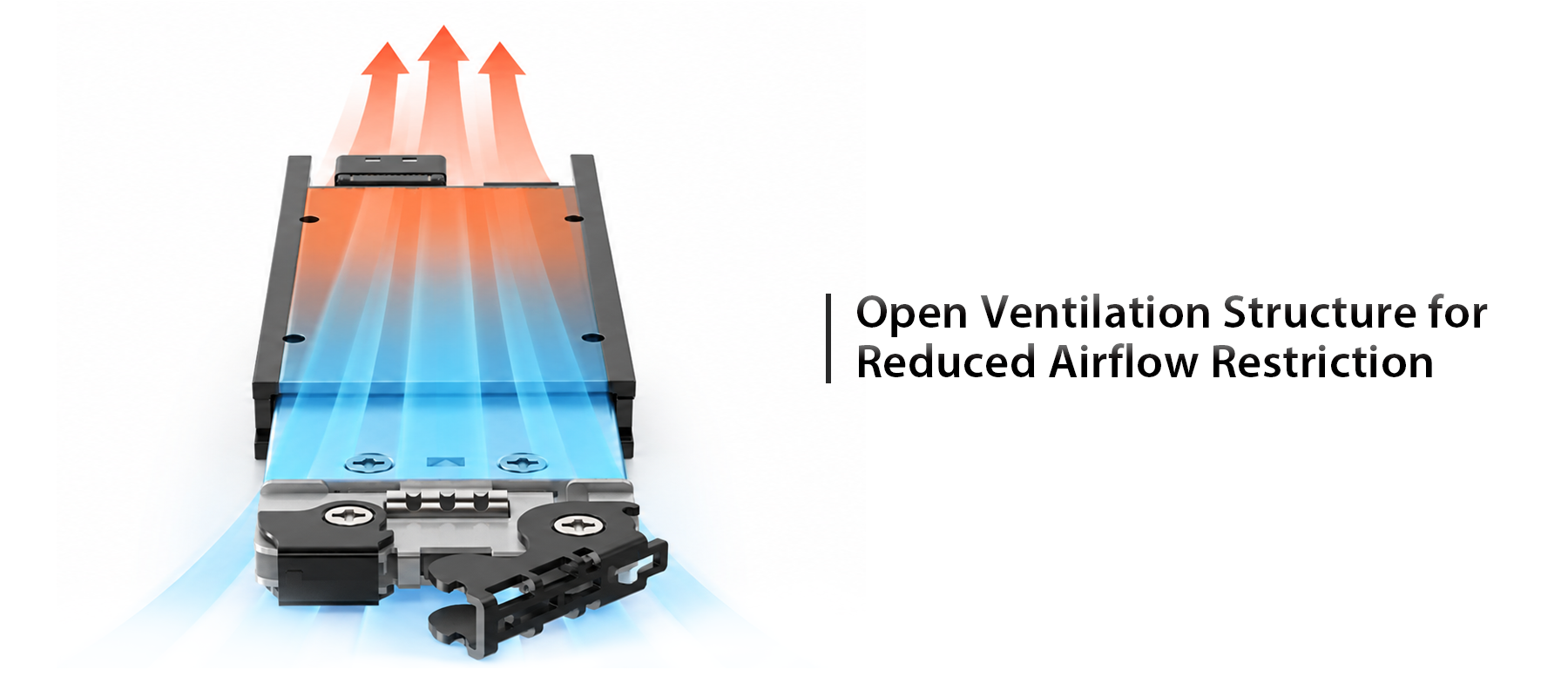

| • | Fanless design optimized for existing chassis airflow environments |
| • | Full-metal construction for durability and passive heat dissipation |
| • | Flexible mounting points for custom chassis, brackets, rackmount, and embedded system integration |
| • | LED indicator for SSD power and activity status |
| • | EMI grounding considerations for industrial and embedded applications |
| • | Suitable for modular and custom multi-unit removable storage configurations |
| Model Number： | CP160-1 |
| Color： | Black |
| Host Interface： | 1 x MCIO 4i connector |
| Drive Fit： | 1 x M.2 2230 NVMe SSD |
| Device Fit： | Non-standard space |
| Maximum Transfer Rate： | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Power Input： | 1 x Floppy 4 pin power |
| SSD Access Indicator： | SSD power: solid green; SSD access: flashing green; Empty: off |
| Fan Type： | N/A |
| Structure： | Full metal |
| Package Contents： | Device, user manual, screws, thermal pads |

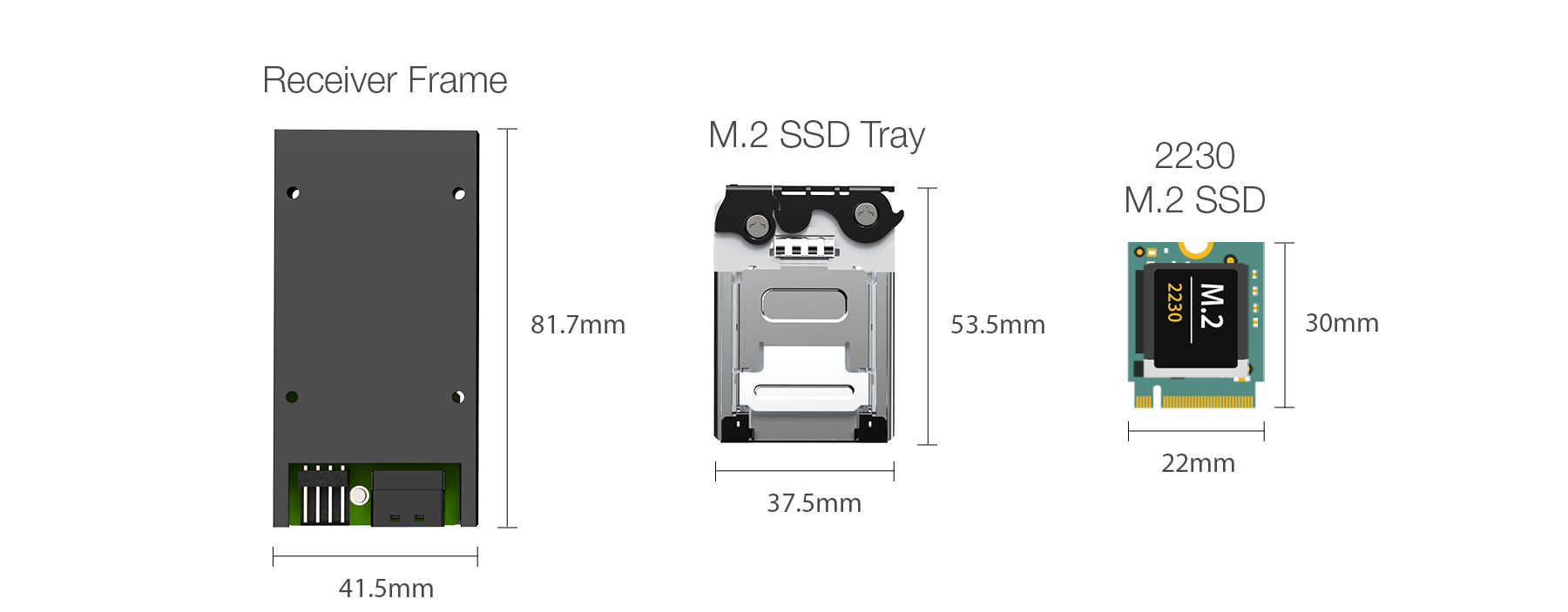

| Product Dimension (W x H x D)： | 41.5 x 11.5 x 81.7mm |
| Tray Product Dimension (W x H x D)： | 37.5 x 7.0 x 53.5mm |
| Product Net Weight： | 75g(TBD) |
