|•||Accommodates 1x 3.5" SATA HDD and 2x SATA HDD/SSD (up to 9.5mm drive height)|
|•||Installs into any standard external 5.25" device bay|
|•||Retractable dust cover for 3.5" slot to reduce the dust buildups in the system|
|•||Supports SATA 6Gbp/s transfer speed|
|•||Tool-less, screw-less, and door-less drive installation|
|•||A single 15-pin SATA power connector powers all drives|
|•||Ideal storage upgrade kit for applications that require frequent drive swappings, such as computer testing lab, PC repair center, HDD duplication, video/audio editing, daily file backup, in-vehicle data capture/record|
|•||Supports SATA 7-pin data and 15-pin power cables with locking latch design|
|•||Cool blue drive activity LED for each drive bay (Solid blue for power and flashing blue for drive activity)|
|•||Industry leading 3-year warranty against all defects|
|•||Complimentary support from professionally trained technical support agents|
|Product Name：||2x 2.5” & 1x 3.5” SATA HDD/SSD Removable Docking Enclosure for 5.25” Bay|
|Color：||Black & Silver|
|Support Drive Size：||2 x 2.5” HDD/SSD (up to 9.5mm height) &
1 x 3.5” HDD (up to 26.1mm height)
|Compatible Drive Type：||SATA / SAS (3.5” Drive Bay only / SAS host required / Single channel)|
|Number of Drives：||3|
|Drive Bay：||1 x 5.25” half height bay|
|Host Interface：||3 x SATA 7 pin|
|Power Input：||1 x 15pin SATA power connector|
|Transfer Rate：||3.5” Drive Bay: SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps
2.5” Drive Bay: SATA 3.0 up to 6Gbps
|Support HDD/SSD Capacity：||No Limitation|
|Drive Cooling：||Metal heat dispersion with passive cooling|
|Structure / Material：||Metal with partial ABS plastic|
|Dimension (W x H x D) ：||145.8 x 41.3 x 163.4mm|
|Product Net Weight：||480g|
|Package Gross Weight：||75.2g|
|Drive Activity LED Indication：||Drive power: solid blue; Drive access: flashing blue|

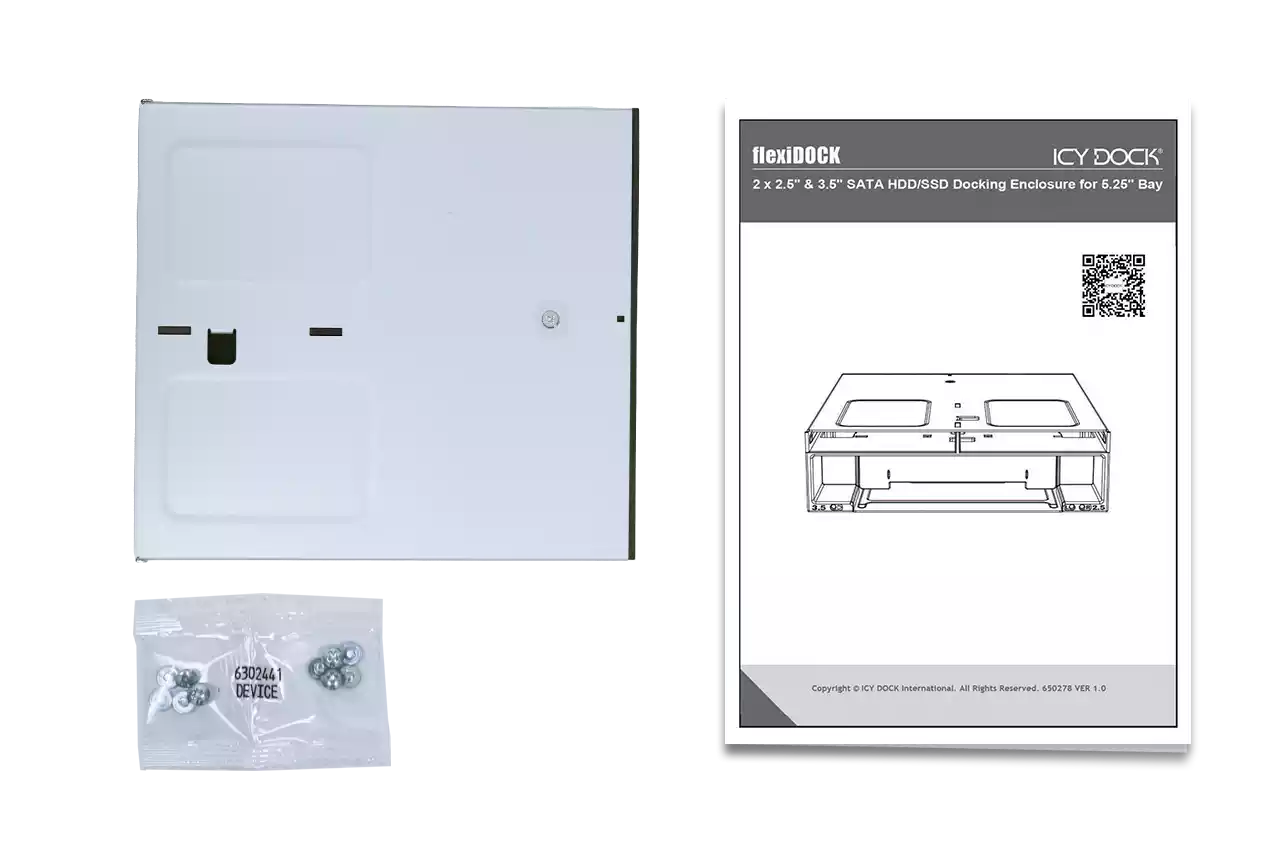

|Package contents：||Device, user manual, screws|
|SATA Connector Insertion Rate：||10,000|
|Operating Temperature：||0°C to 60°C (32°F to 140°F)|
|Storage Temperature：||-35°C to 70°C (-31°F to 158°F)|
|Compliance：||CE, RoHS, REACH|
Q: Does MB095SP-B support the new SATA 3.3 Power Disable feature (PWDIS)?
A: The MB095SP-B does not support the SATA 3.3 PWDIS feature. If you install the SATA HDD/SSD with PWDIS in MB095SP-B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA HDD/SSD with the PWDIS feature.
Known SATA HDD/SSD with Power Disable Feature (PWDIS)
|WD||Ultrastar DC HC510
|Ultrastar DC HC520
Note: the SAS hard drive or SSD does not use the Pin 3 of SATA power connector for PWDIS feature and compatible with MB095SP-B .
While we recommend to avoid using the SATA HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
|Molex to SATA Adapter||Molex to SATA Cable|
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA power connector to isolate the 3.3V power, as shown below.
Please contact firstname.lastname@example.org if the problem persists.
