Concept Product CP114

EDSFF E1.S SSD to PCIe 4.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot
Product Details
CP114 is a Concept Product based on customer suggestions. While not yet scheduled for release, with sufficient customer support and detailed feedback, we aim to bring it to market. Your insights are crucial in shaping this product and confirming market demand. Please share your thoughts and desired specifications by clicking the icons below or joining the discussion in our forum. Your input helps turn this concept into reality!
feedback Join the discussion All concept products
  • Product Introduction

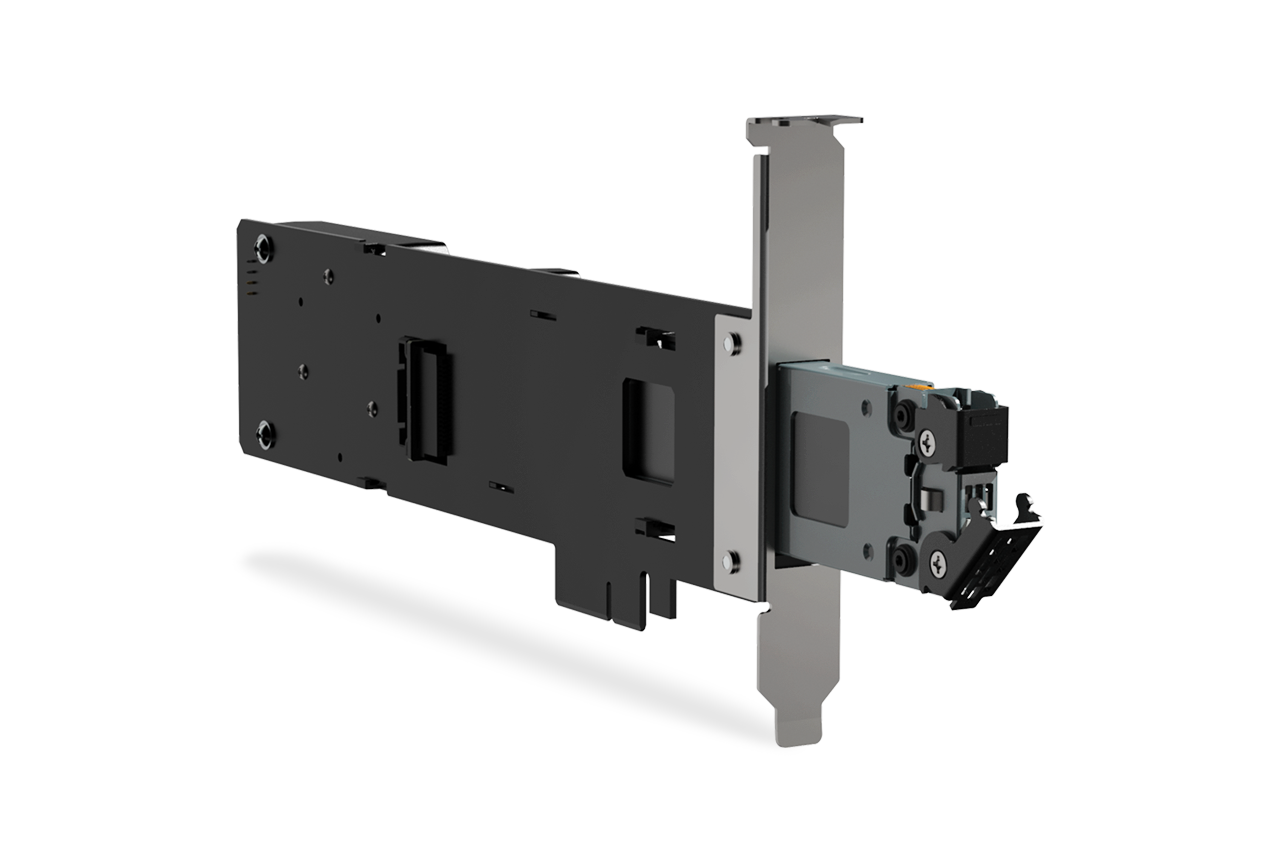

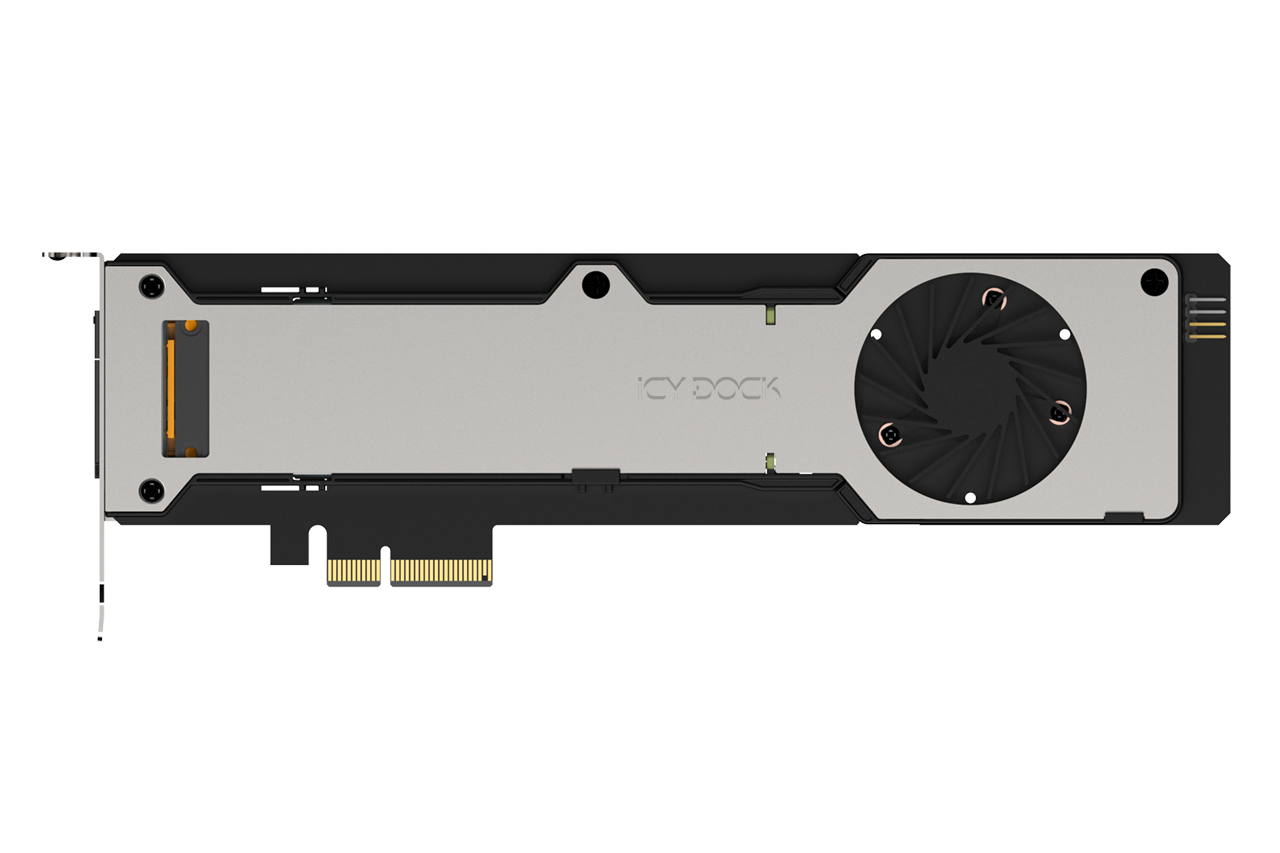

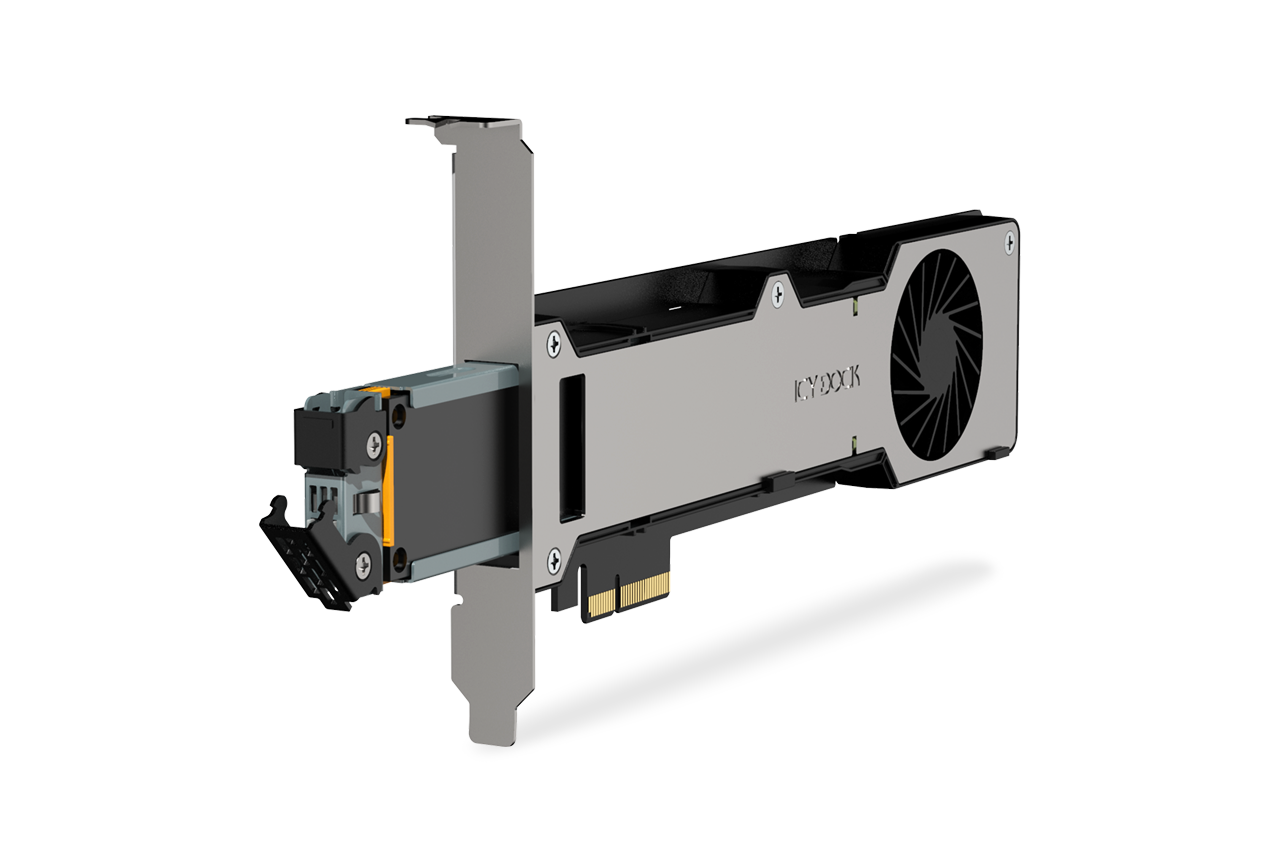

    Introducing the Concept Product CP114 Removable EDSFF E1.S SSD Mobile Rack for PCIe 4.0 x4 expansion slot. The CP114 lets you install server-grade EDSFF E1.S SSD to a desktop computer’s PCIe connection.

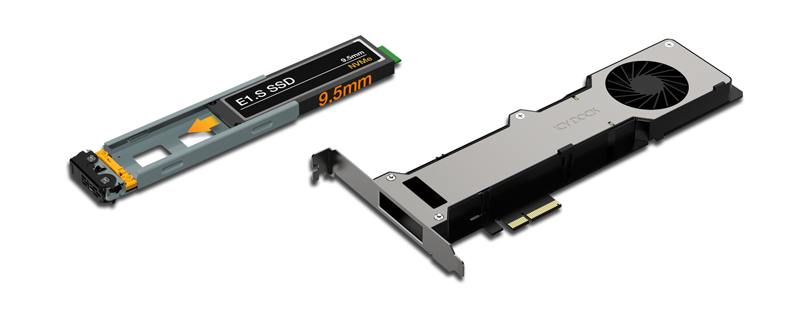

  • The removable drive tray supports tool-less drive installation and quick swaps between different EDSFF E1.S drives with 5.9mm thickness.
  • Utilizing the PCIe 4.0 x4 interface provides power and data transfer simultaneously, which ultimately reduces cable clutter in the system and supports blazing-fast transfer speed up to 64Gbps.

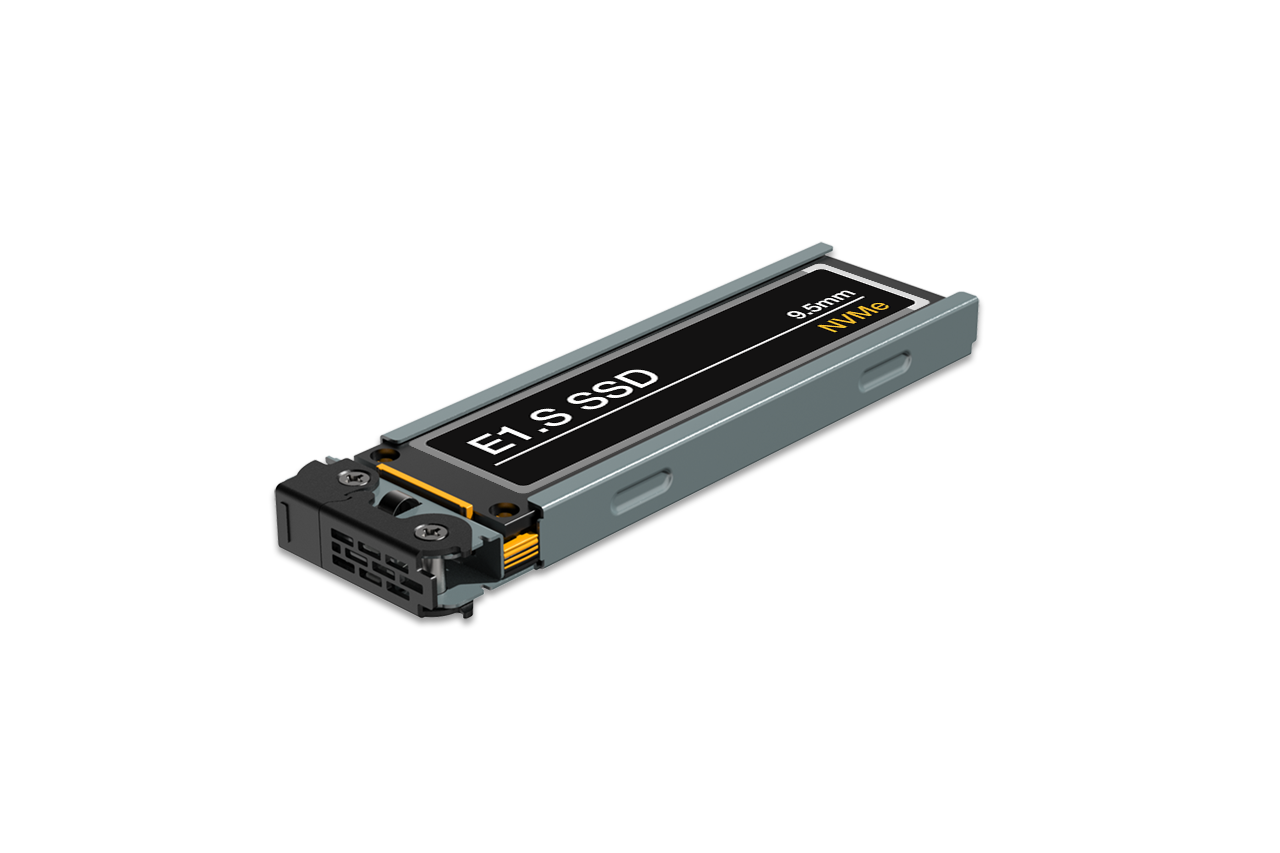

  • The full aluminum removable drive tray includes a thermal pad to provide an effective thermal contact between the SSD and aluminum tray plate for better heat dissipation. In addition, multiple ventilation holes on the enclosure offer additional airflow to maintain the drive at optimal temperature.

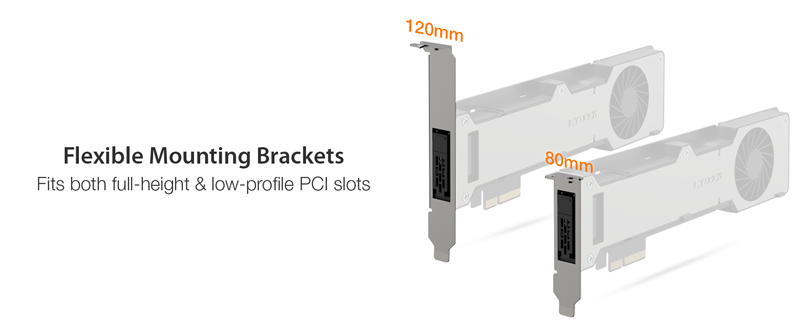

  • The CP114 comes with both full and half-height PCI bracket. Use the half-height bracket with a low-profile system and use the full-height bracket for standard desktop systems, the choice is yours.
Main Features
Fits 1x EDSFF E1.S SSD with a maximum drive thickness of 5.9mm

Use 1x PCIe 4.0 x4 interface, also supports installation into PCIe 1.0/2.0/3.0/4.0 x4, x8, and x16 slots

Support PCIe 4.0 x4 with transfer rates up to 64Gbps

Includes half-height and full-height PCIe brackets

Removable drive tray with tool-less drive installation design for easy drive maintenance

Low profile design allows for multiple bays to be installed side-by-side in a modular design

PCIe interface provides both power and data transfer which ultimately reduce cable clutter

Includes thermal pad to conducts the heat from the drive to the metal tray

Eagle-hook lock system keeps the drive secure in the enclosure

EMI grounding – protects hard drives from electrical damage

Specification
Model Number: CP114
Colors: Black and silver
Host Interface: 1 x PCIe 4.0 x4
Drive Fit: 1 x EDSFF E1.S SSD (Compatible with 5.9mm thickness)
Device Fit: 1 x single PCIe slot
Maximum Transfer Rate: PCIe 4.0 x4 up to 64Gbps (7880Mbps)
Power Input: 1 x PCIe power pin
Structure: Metal IO bracket with partial ABS plastic,PCBA and aluminum tray
SSD Access Indicator: Device power: solid green
Device activity: flashing green
Device empty: LED off
Package Content: Device, user manual, full-length and half-length I/O faceplates, thermal pads
Dimension (W x H x D) : Less than 160 x 122 x 22mm
Weight: (TBD)
