EZ-Adapter Ex MB931U-1VB

USB-C+A Gen 2 (10Gbps) to U.2 NVMe SSD Thunderbolt 4 Compatible Reader Adapter
Product Details
  • Product Introduction
    The EZ-Adapter Ex MB931U-1VB provides SMB, power users, and media professionals the quickest and easiest way to access their enterprise-level U.2 PCIe NVMe SSDs. The EZ-Adapter Ex utilizes a 10Gb/s USB 3.2 Gen 2 interface and backward compatible with the previous USB 2.0 interface for best system compatibility. The tool-less SSD installation design allows users to transfer large files from multiple U.2 drives to any computer through a USB connection without having NVMe support on the computer end.
  • Professional Adapter for Enterprise U.2 Drives
    The benefits of using U.2 NVMe SSDs are fast IOPS, high storage capacity, long lifespan, end to end path protection (ETEP), and power loss protection (PLP). However, accessing U.2 drive required NVMe host and specific cables, making the data transfer between the systems almost impossible. With EZ-Adapter Ex MB931U-1VB, simply connect the U.2 SSD to the EZ-Adapter and then plug the USB type A or C connector into the system to start the data transfer immediately.
  • The tool-less drive installation allows the MB931U-1VB to swap multiple U.2 drives within seconds and making the process seamlessly.
  • For video professionals who film 12K footage with Blackmagic URSA Mini Pro 12K camera and U.2 SSD, the EZ-Adapter MB931U-1VB is an excellent USB media reader that lets you quickly access your U.2 media drives in seconds.
  • Superior Performance
    To fully utilize the power of the U.2 PCIe NVMe SSD, the EZ-Adapter Ex uses the USB 3.2 Gen 2 interface that can provide transfer speeds up to 10Gbp/s, giving you the ability to back up large data files or store 4K/5K/8K videos in seconds. A 12V power supply is included to ensure enough power is provided for the power-hungry U.2 SSD.
  • The exposed U.2 SSD from the enclosure allows full passive heat dissipation to optimize cooling performance.
  • Compact for Portable
    The MB931U-1VB has been engineered for mobility but does not compromise functionality and durability. The EZ-Adapter Ex is made out of durable ABS plastic with a smooth finish that will not damage other equipment when placed in your carry-on bag. The compact design allows the EZ-Adapter Ex to be carried without taking too much space.
  • Ultimate Compatibility
    The MB931U-1VB comes with a USB type C to C cable for USB-C and Thunderbolt 4 ports and a USB type C to A cable for USB-A ports to cover both new and legacy systems, making the EZ-Adapter Ex a true plug and play external NVMe SSD enclosure with no drivers or software required.
  • LED Indications
    The EZ-Adapter Ex is equipped with a LED indicator that shows the drive power and activity. The individual slide-switch power button allows users to power off the SSD when not used to extend the drive’s lifespan and conserves electricity.
  • Pair it with the M.2 to U.2 NVMe SSD adapter (EZConvert MB705M2P-B)
    Converting your M.2 NVMe SSD into U.2 NVMe SSD with the EZConvert MB705M2P-B adapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs. The MB705M2P-B uses a bridge connector to link the M.2 NVMe SSD, ensuring that the gold fingers of the M.2 NVMe SSD are protected from damage during insertion and removal. This makes it an ideal solution for users who frequently swap M.2 NVMe SSDs.
  • Pair it with the ToughArmor MB601M2K-1B M.2 NVMe SSD mobile rack
    The ToughArmor MB601M2K-1B mobile rack supports PCIe 4.0 transfer speeds up to 8GB/s and fits into a computer system's standard 3.5" drive bay. Pair it with EZ-Adapter Ex MB931U-1VB gives you both PCIe 4.0 transfer speed and on-the-go convenience.
Which EZ-Adapter Ex MB931U-1VB is right for you?
Model MB931U-1VB MB931U-1VB-1
(Special Order Only)
MB931U-1VB R1
Product Appearance
Product Dimension
(L x W x H)
92 x 54.2 x 18.2mm 92 x 54.2 x 18.2mm 91.94 x 54.2x 18.2mm
Net Weight 47.5g 47.5g 46.3g
Gross Weight 314.8g 314.8g 318.9g
Power Adapter Include Customers buy separately to meet the local safety regulation Include
Compatible With • U.2 solid-state drives • U.2 solid-state drives • U.2 solid-state drives
• U.2 solid-state drives Trays
Main Features
Supports 1x U.2 PCIe NVMe SSD

10,000+ rated Insertion and Removal Cycle Connector

Supports transfer speeds up to 10Gb/s via USB 3.2 Gen 2

Backward compatible with USB 2.0 interface

Cool blue drive activity LED indicator

Large slide-switch on/off drive power button

DC 12V Power Adapter included to power U.2 NVMe SSD

Anti-slip rubber foot pads ensure the adapter will not slide on the surface

USB Type C to C & C to A cables are included for the best performance & system compatibility

Industry-leading 3-year warranty with complimentary tech support & customer service.

Compatible with M.2 NVMe PCIe SSD when paired with EZConvert MB705M2P-B
Specification
Model Number: MB931U-1VB
Color: Black
Support Drive Size: 1 x 2.5” U.2 NVMe SSD (up to 15mm height)
Host Interface: USB-C 3.2 Gen 2 (Thunderbolt 4 compatible)
Power Input: DC 12V/2A power adapter
Transfer Rate: Up to 10Gb/s (depending on hard drive speed)
Controller IC: ASMedia - ASM2362
Structure / Material: ABS plastic
Dimension (W x H x L): 92 x 18.2 x 54.2mm
Product Net Weight: 47.5g
Package Gross Weight: 280g
Drive Activity LED Indication: SSD power: solid blue; SSD access: flashing blue
Plug & Play : Yes

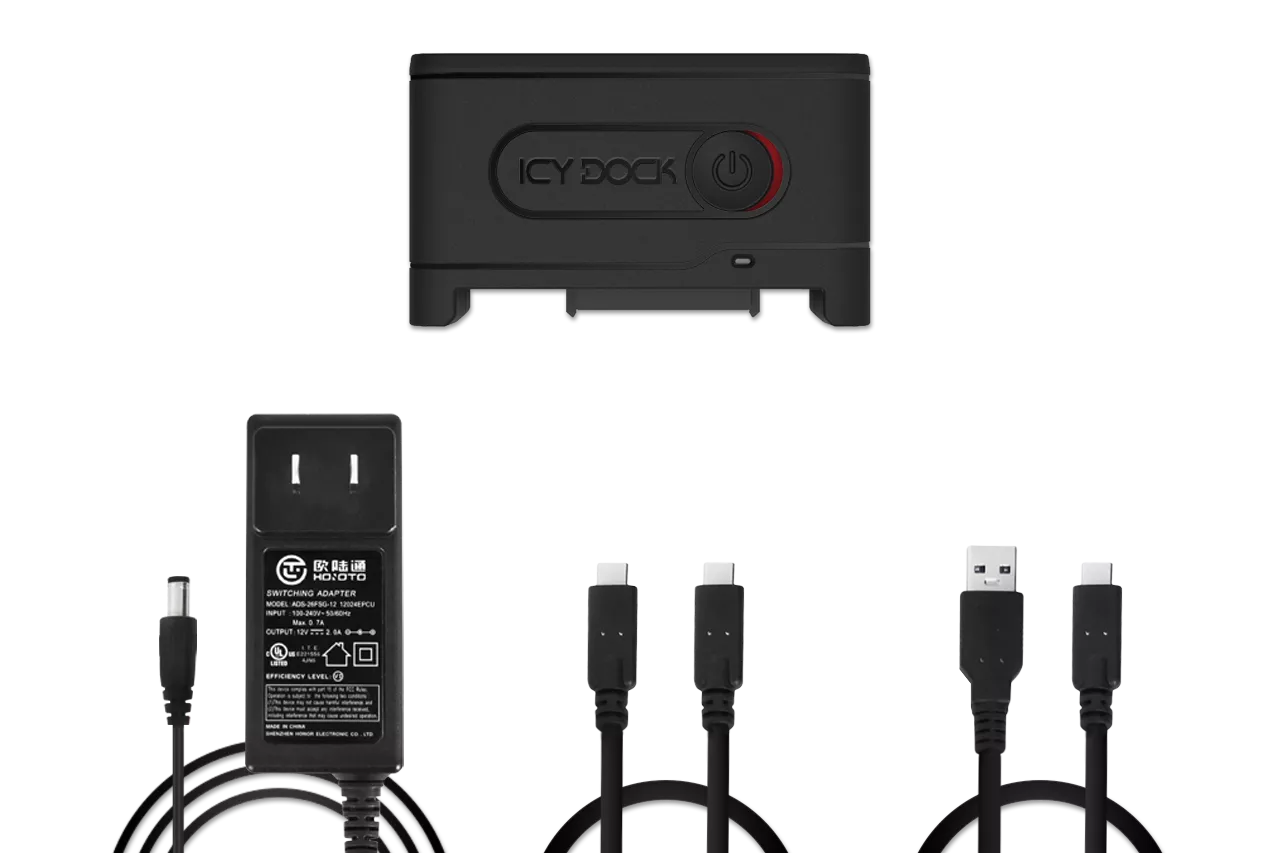

Package Contents: Device, user manual, DC power adapter, USB 3.2 Gen 2 type C to A cable & type C to C cable
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
Warranty: 3 years






Model Number: MB931U-1VB-1 (without power adapter, special order only)
Color: Black
Support Drive Size: 1 x 2.5” U.2 NVMe SSD (up to 15mm height)
Host Interface: USB-C 3.2 Gen 2 (Thunderbolt 4 compatible)
Power Input: DC 12V/2A power adapter with 5.5x2.5/2.1/1.7mm plug (not included)
Transfer Rate: Up to 10Gb/s (depending on hard drive speed)
Controller IC: ASMedia - ASM2362
Structure / Material: ABS plastic
Dimension (W x H x L): 92 x 18.2 x 54.2mm
Product Net Weight: 47.5g
Package Gross Weight: 280g
Drive Activity LED Indication: SSD power: solid blue; SSD access: flashing blue
Plug & Play : Yes
Package contents: Device, user manual, USB 3.2 Gen 2 type C to A cable & type C to C cable
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
Warranty: 3 years

Related Products:

Related Products Series:

  • NVMe Enclosures
  • SAS/SATA Enclosures
FAQ

Q: I installed the and the device is connected to my computer, but the drive is not detected.

A: There are some scenarios you can do to rule out potential problems.

Scenario 1 – Drive status LED is not lighting up






Scenario 2 - The drive status LED lights up, but the SSD is still not detectable






Scenario 3 - The SSD and the connected USB port do work normally, but the drive does not show up on my computer after connecting to my computer






Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.




Q: Is there any known compatibility issue between EZ-Adapter Ex MB931U-1VB and U.2 NVMe SSDs?

A: The EZ-Adapter Ex MB931U-1VB uses an ASMeida ASM2362 chipset and is designed to be compatible with most of the U.2 NVMe SSD available on the market. See below for the latest known issues reported by the users and a list of compatible SSDs.

Note: the SSD issues listed below have only been reported by a few customers. It is still too early to say they are not compatible as the issues may be caused by SSD firmware and host configurations. We are verifying the compatibility with ASMedia and will constantly update the compatibility list. Meanwhile, we suggest using SSDs that are known to be worked with EZ-Adapter Ex MB931U-1VB.



Click here report a compatible/incompatible U.2/U.3 NVMe SSD. Your help is greatly appreciated!



U.2 NVMe SSDs known to have an issue with MB931U-1VB







U.2 NVMe SSDs verified to work with MB931U-1VB




Intel 750
SSDPE2MW400G4X1
(400GB)
Kingston DC1000M
SEDC1000M/960G SEDC1000M/1920G SEDC1000M/3840G SEDC1000M/7680G
(960GB) (1.92TB) (3.84TB) (7.68TB)
Micron 7300 PRO
MTFDHBE960TDF-1AW1ZABYY MTFDHBE1T9TDF-1AW1ZABYY
(960GB) (1.92TB)
Samsung PM1733
MZWLJ1T9HBJR-00007
(1.92TB)
983 DCT
MZ-QLB960NE
(960GB)
Seagate Nytro 5000
XP800HE10002 XP800HE10012 XP960LE10002 XP960LE10012
(800GB) (960GB)
XP1600HE10002 XP1600HE10012 XP1920LE10002 XP1920KE10012
(1.6TB) (1.92TB)
WD SN630
WUS3BA196C7P3E3 WUS3BA119C7P3E3 WUS3BA138C7P3E3 WUS3CA180C7P3E3
(960GB) (1.92TB) (3.84TB) (800GB)
WUS3CA116C7P3E3 WUS3CA132C7P3E3
(1.6TB) (3.2TB)



ASMedia has released firmware to fix issues of detecting 2TB or above U.2 SSDs. If you encounter any problems while installing the drive, please contact tech@icydock.com for further assistance.




U.3 NVMe SSDs known to have an issue with MB931U-1VB





U.3 NVMe SSDs verified to work with MB931U-1VB




Reviews

By Level1Techs

Planning to buy a USB external enclosure for U.2 NVMe SSD? See what professionals think about our EZ-Adapter EX MB931U-1VB first!

Mar 4, 2021

By StorageReview

Want to transfer files on a U.2 NVMe SSD to another system? See what professionals think about our EZ-Adapter EX MB931U-1VB first!

May 5, 2021
Related Articles

Interchanging M.2 & U.2 NVMe Solution

The M.2 NVMe SSD originally started as an M.2 SATA SSD, which is used to describe the smallest form factor of an SSD that can be packed into the size of a gum stick.

TAA Compliance and ICY DOCK Products

One of the services we offer is assistance to those seeking to implement Trade Agreements Act (TAA) certified products in their projects.

World's First USB 3.2 Gen 2 U.2 NVMe SSD Adapter

Introducing the all-new EZ-Adapter Ex MB931U-1VB USB 3.2 Gen 2 to U.2 NVMe SSD adapter.

Making a Switch to NVMe

NVMe has brought significant changes to data storage. Despite that, data centers and Tier 1 companies continue using a mix of SATA and NVMe drives.
