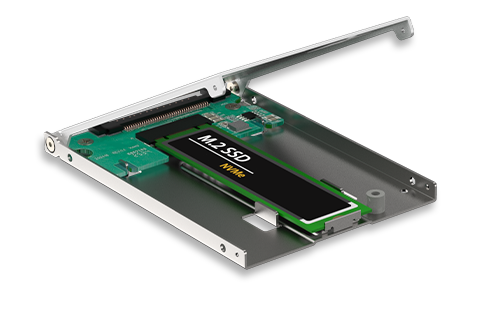

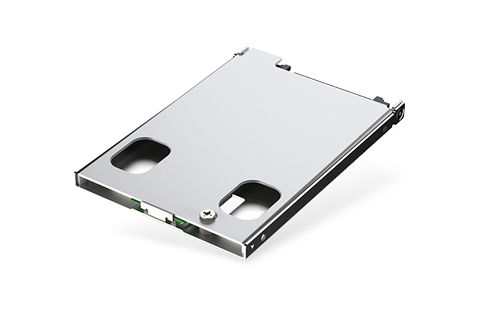

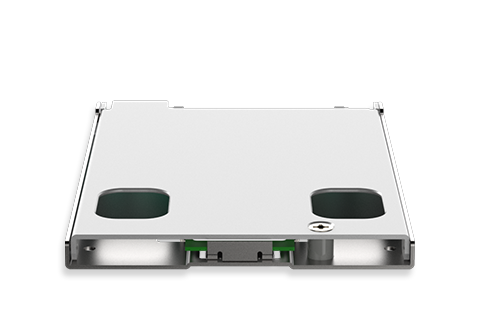

• Converts M.2 NVMe SSDs into a 7mm U.2 SSD Form Factor - Ideal for deployment in U.2 backplanes, removable storage enclosures, and hot-swap drive bays.
• Compatible with U.2 Mobile Rack Solutions - Supports integration with products such as MB998V4P-B and MB092VK-B.
• 10,000 Insertion / Removal Cycle Rated U.2 Connector - Designed for frequent drive swapping in removable storage systems and enterprise deployments.
• Tool-Less M.2 SSD Installation - Integrated locking clip supports M.2 2230 / 2242 / 2260 / 2280 SSDs without screws or tools.
• Full-Metal Construction - Provides durability, structural rigidity, and improved heat dissipation.

• Fits 8 × 15 mm U.2/U.3 NVMe SSDs in 2 × 5.25" drive bays
• 4 × MCIO 8i (SFF-TA-1016) connectors support PCIe Gen5 x4 per drive
• Tri-Mode HBA/RAID card compatible (NVMe mode only)
• Delivers up to 128 Gbps aggregate bandwidth
• Hot-swappable EZ-Slide trays for fast maintenance and secure data mobility
• Supports U.2/U.3 SSD heights from 7 mm to 15 mm (ready for 5 mm and 9.5 mm future standards)

• Converts a 9.5 mm Ultra-Slim ODD bay into a removable U.2/U.3 SSD bay
• Supports 1× U.2/U.3 NVMe SSD (up to 7 mm height)
• OCuLink 4i (SFF-8612) interface, PCIe Gen 4 x4, up to 64 Gbps
• EZ-Slide Slim tray for fast SSD maintenance
• Lightweight one-piece aluminum tray for durability and heat transfer
• Eagle-hook front latch prevents accidental tray ejection

• Hot-swappable drive support
• Fits 4× U.2/U.3 NVMe SSDs (5–15mm) into a single external 5.25" bay
• Supports PCIe 5.0 with transfer rates up to 128Gbps per SSD
• Host Interface: 2× MCIO 8i (SFF-TA-1016) connectors for simplified cabling
• Power Input: Dual 4-pin Molex connectors for secure and reliable power delivery
• Removable all-metal EZ-Slide Mini trays (MB991TRAY-B) for easy maintenance
• Lightweight aluminum housing improves cooling efficiency and reduces weight

• Fits 8× 7mm U.2/U.3 NVMe SSDs into a single external 5.25" device bay
• PCIe 4.0 x4 interface per drive, up to 64Gbps (host dependent)
• Compatible with Tri-mode HBA/RAID cards (NVMe mode only)
• 4× SlimSAS 8i (SFF-8654) host connectors (2 drives per connector)
• Full-metal construction for maximum durability and heat dissipation
• Dual 40×40×20mm fans with optimized airflow design

• Fits in a single external 3.5" device (floppy) bay
• Supports 1× U.2/U.3 NVMe SSD (7mm or 15mm height; bay supports up to 15mm)
• PCIe 4.0 x4 interface supports up to 64Gbps transfer speeds (host dependent)
• ExpressTray with tool-less SSD installation and optional screw mounting for added stability
• Compatible with onboard NVMe ports or M.2-to-U.2 adapters without occupying PCIe slots
• Easy-access drive ejection button for quick removal

• Supports 4 x U.2/U.3 PCIe 4.0 NVMe SSDs (up to 15mm height) in a single 5.25” drive bay
• Ideal for building high-speed NVMe RAID arrays or expanding flash capacity in space-limited systems
• Compatible with tri-mode HBA/RAID cards via 2 x SlimSAS 8i (SFF-8654) connectors
• PCIe 8-Pin power input ensures stable high-current delivery with cleaner cable management
• ExpressTray system supports tool-less SSD installation with optional screw mounting
• Dual 40x40x20mm fans for superior active airflow

•Fits 1 x 2.5" U.2/U.3 NVMe SSD (up to 15mm height) into a standard 3.5" external drive bay)
•Supports PCIe Gen 4.0 U.2 interface via SFF-8639 connector (up to 64Gbps transfer rate))
•Water-resistant front cover protects against dust and splashes)
•2-segment security keylock prevents unauthorized access and accidental drive ejection)
•Removable drive tray for easy maintenance and hot-swap (NVMe host must support hot-swap))

sas_sata_enclosures,tool-less_tray_enclosures,high_density_enclosures

•Dual-lock design: Metal barrel key + thumbscrew lock
•Fits 1 x U.2/U.3 NVMe SSD in a 3.5” external bay (up to 15mm height)
•PCIe 5.0 interface supports up to 128Gbps transfer rates
•Hot-swappable drive tray enables tool-free SSD maintenance
•Full-metal rugged enclosure meets flammability and durability demands

metal_tray_enclosures,nvme_enclosures,tool-less_tray_enclosures,tool-less_tray_enclosures

•Supports 1x U.2/U.3 NVMe SSD (5mm to 15mm height)
•Designed for external 3.5” drive bays
•PCIe 5.0 up to 128Gb/s transfer speed via MCIO 4i interface
•Hot-swappable removable tray for quick drive access
•Secure locking system (Eagle-hook + 2-segment key lock)
•Built-in 25mm cooling fan & passive heat dissipation design

metal_tray_enclosures,nvme_enclosures,tool-less_tray_enclosures Interface_SlimSAS4i

•Supports 6x U.2/U.3 PCIe NVMe SSD, with a 7mm height
•Designed to fit into any standard external 5.25" optical drive bay
•Utilizes 3x slimSAS 8i (SFF-8654) to support 6x U.2/U.3 SSDs
•Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
•Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
•Ruggedized full-metal enclosure that meets flammability requirements

nvme_enclosures metal_tray_enclosures Interface_SlimSAS4i

•Fits 1x 2.5" U.2/U.3 NVMe SSDs with a 7mm height
•Compatible with PCIe 4.0 x4/ x8 /x16 Slot
•Supports PCIe Gen 4.0 x 4 speed up to 64Gbps
•Supports drive hot-plug without requiring the system to be powered down
•Active Power Technology (APT) – drive activity LED only powers up if there is a drive installed in the bay
•Optional 2-pin drive activity signal output - allows for easy transfer of the drive activity signal to the front of the computer case

nvme_enclosures,metal_tray_enclosures
