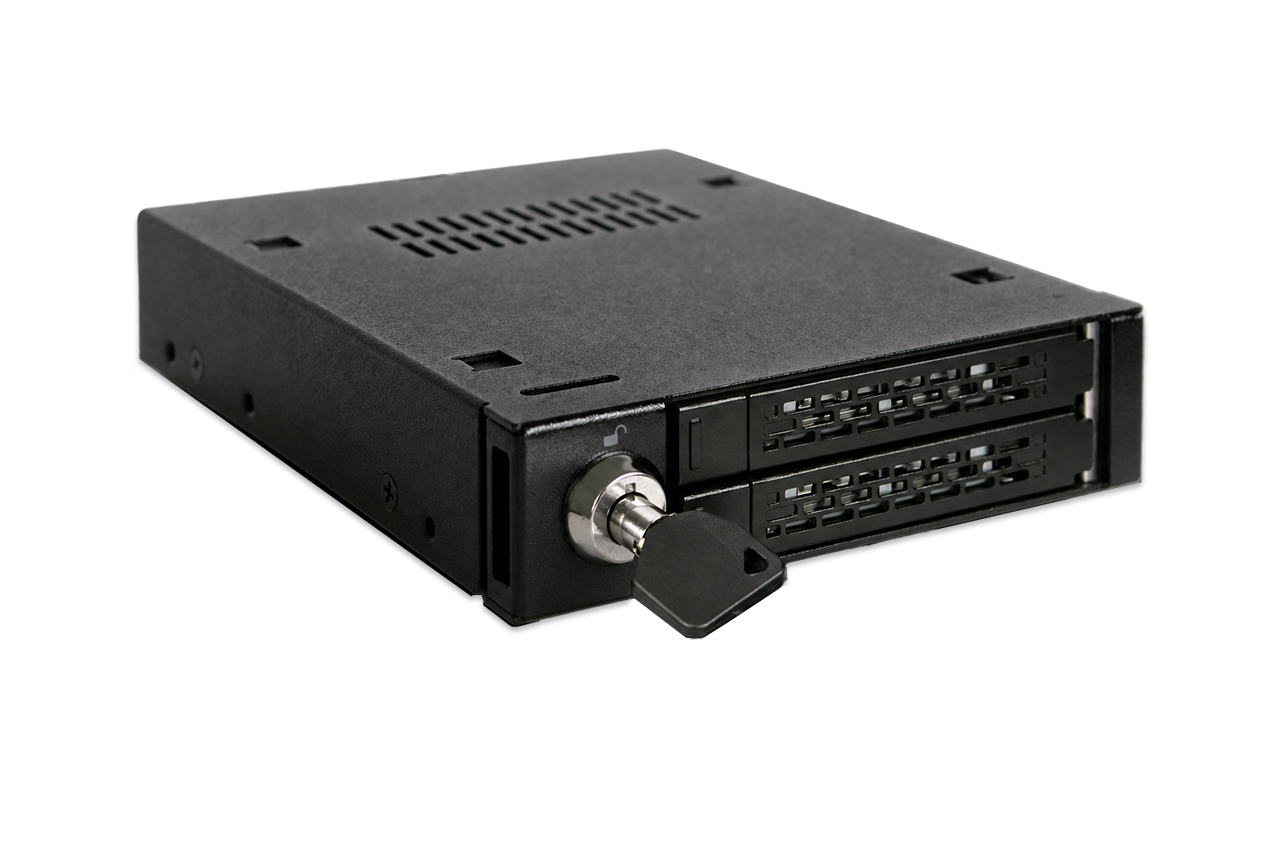

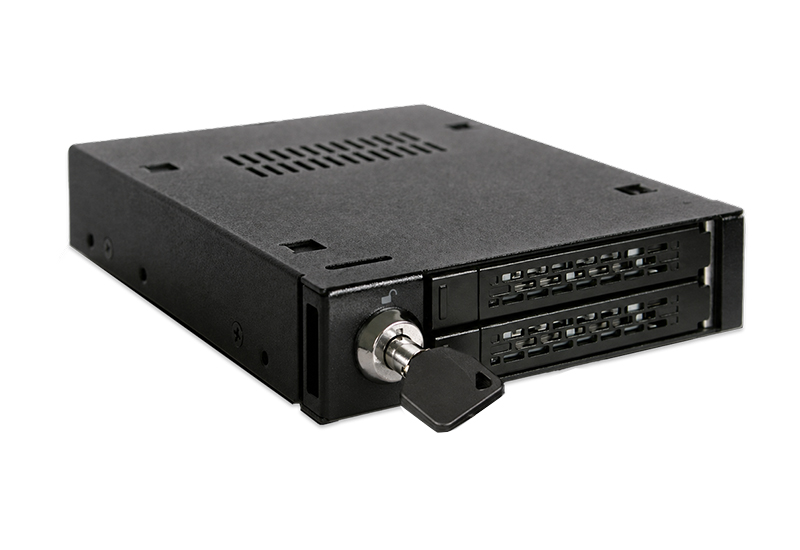

ToughArmor MB992SK-B

Full Metal 2 Bay 2.5” SATA/SAS HDD & SSD Mobile Rack for External 3.5" Drive Bay
Online Retailers
Product Details
ToughArmor_Video
ToughArmor_Video

ToughArmor
Ruggedized Removable Drive Enclosures

WATCH VIDEO



  • Product Introduction
    Every year, technology is able to become more and more advanced and is constantly improving. Also, with being physically the smallest, and performing the best is the end goal of any storage system. This is why SFF (Small Form Factor) storage systems are becoming more popular due to its low power consumption and space-saving benefits. With the advent of recent solid state technology, this allows 2.5” SSD’s to easily achieve 500MB/sec in transfer rate, which overcomes the 3.5” SATA hard drives in every category except capacity. Therefore, maximize the capacity in a limited space becomes the most important task that many storage consulting firms are faced with often. For SFF systems, we introduce the Icy Dock MB992SK-B 2.5" SATA Mobile Rack solution for use in 3.5" device bays (Floppy bay). Suggested applications in Medical & Military systems, Media servers, and IPCs, approved by Tier 1 companies for the rugged full metal construction used.
  • Complete Space Saver

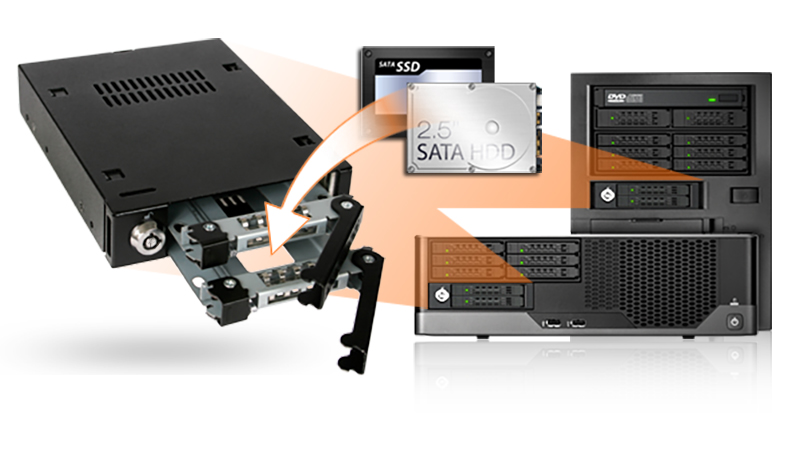

    Utilizing its small form factor, The MB992SK-B is perfect for use in industrial PCs, SMB SFF servers, mobile DVR systems, or even home servers. The ability to house 2 x SATA SSD or HDD in a single 3.5” bay makes it a valuable asset, such as, building small RAID 1 backups for SMB workstation or fast RAID 0 arrays for powerful personal computer. To keep cables from cluttering, a single SATA 15 power pin is used to ease installation. Save as much as space while maintaining the speed and capacity, which is the beauty of the MB992SK-B.
  • Protect your Investments
    Making sure your drives are in good hands and lasting as much as possible is carefully considered in any enterprise build and design. The MB992SK-B is capable of holding up in the harshest environments, with the rugged heavy duty metal construction in the entirety of the body and its smaller components. It can be used various systems including: military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. With the rugged Full Metal design, the ToughArmor is perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to be already compliant with flammability requirements.

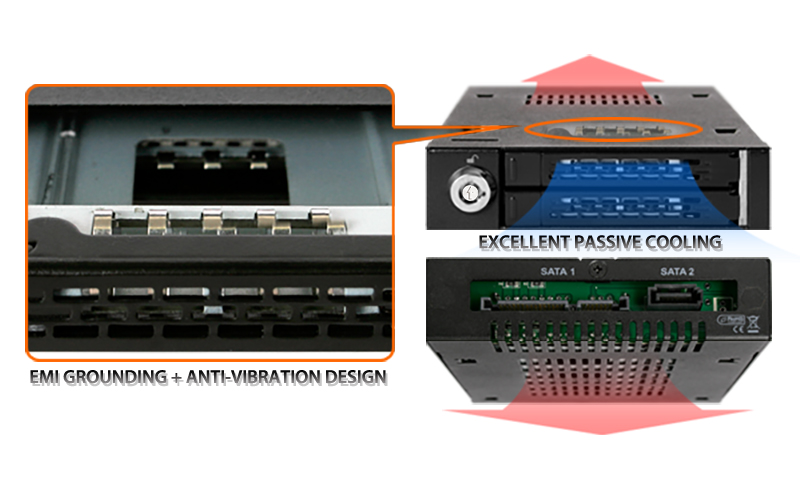

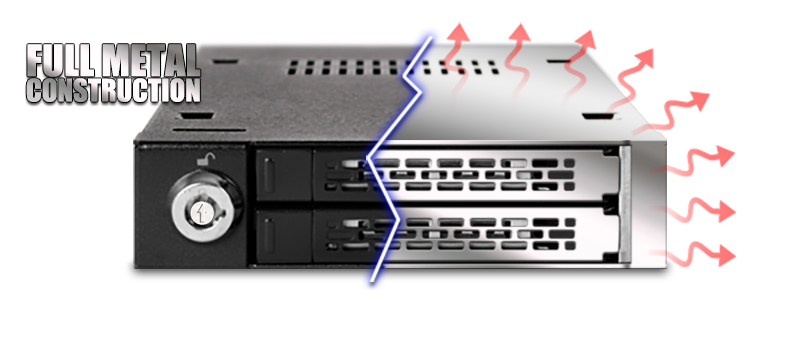

  • The metal material used grants heat dissipation transfer from the hard drives to the mobile rack. Multi-Flow Technology (MFT) effectively routes air flow correctly for excellent passive cooling, via ventilation slots on the front, rear, top and bottom (in multiple locations). Lastly, Anti-Vibration Technology (AVT) and EMI Grounding are used to provide a stable environment for the hard drives or SSD’s used to perform at its best.
  • Versatile Utility & Security

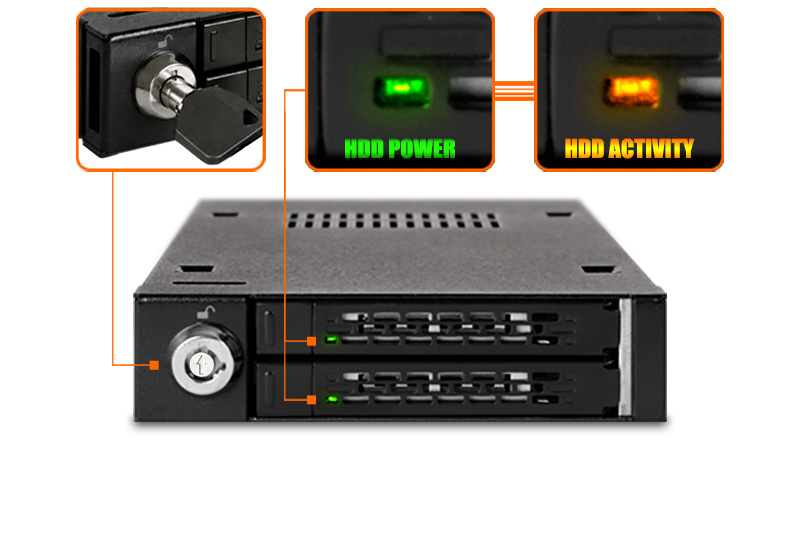

    Bringing more utility your hard drives, a LED is installed into the front of the mobile rack to provide drive status information at all times. Active Power Technology (APT) allows each LED to be on only when a hard drive is inserted into the enclosure. For drive security, the eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. Additionally, the 2 segment key lock provides extra protection to theft of hard drives as well as safeguards any sensitive data.

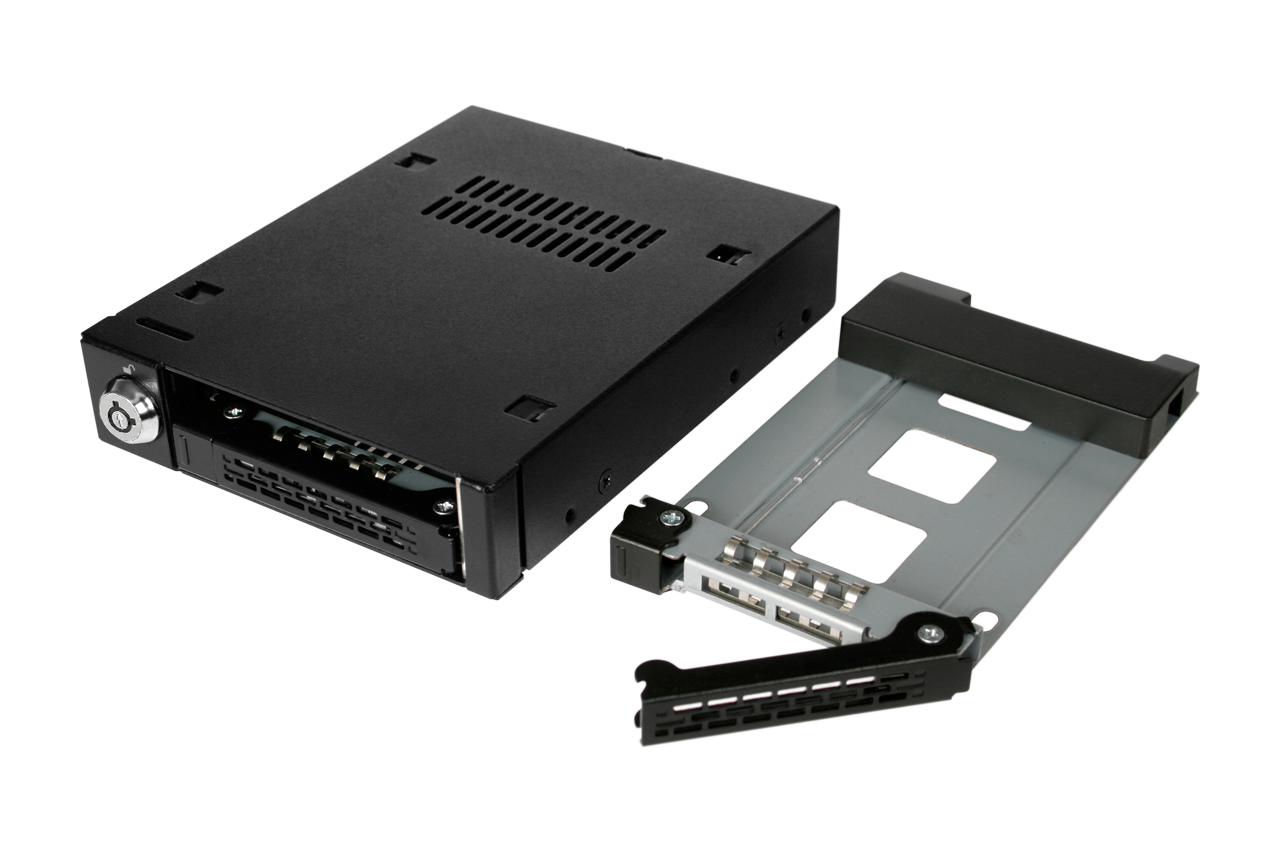

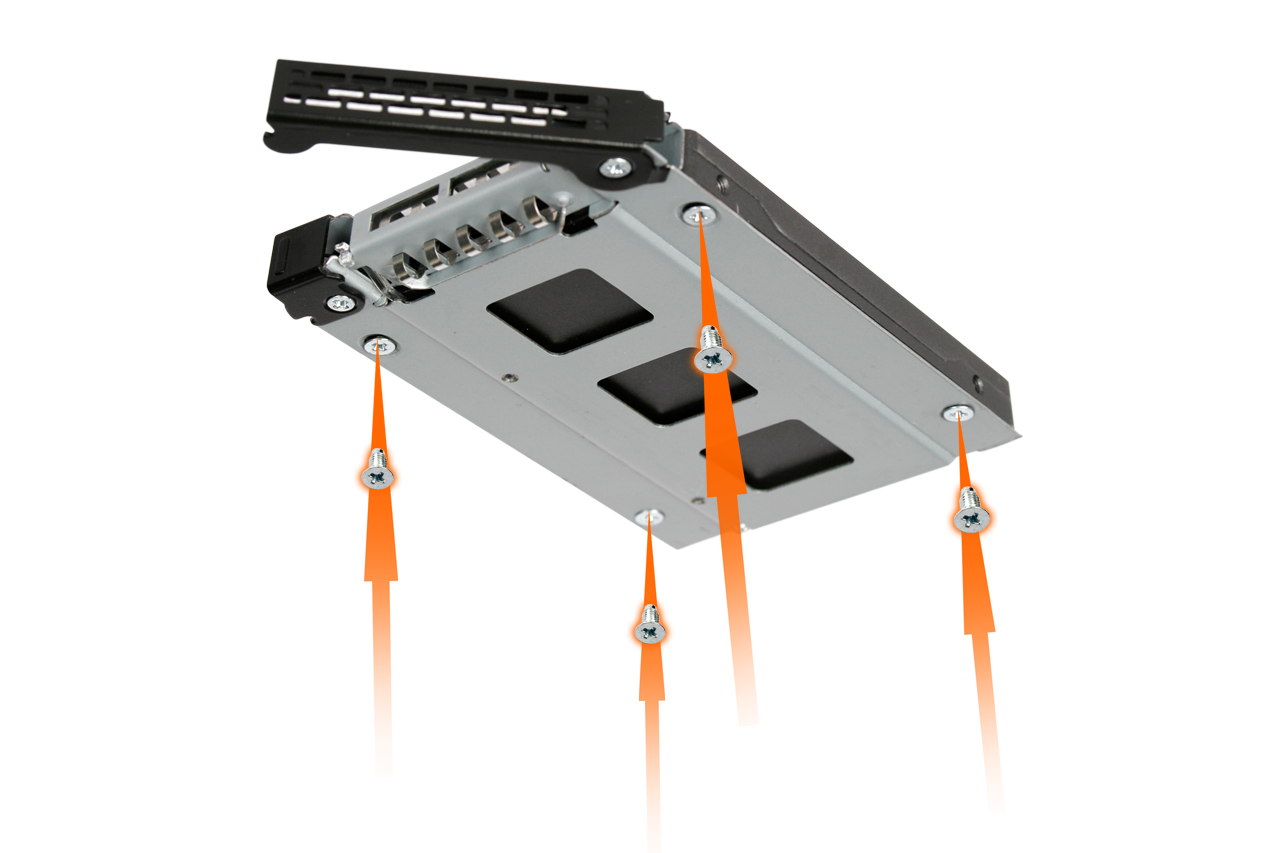

  • The brand new EZ Slide Micro trays make drive interchangeability and maintenance completely hassle free. The trays are also designed to accommodate 5mm to 9.5mm height hard drive and SSD, creating a 2.5" hot swap bay for any standard SATA hard drives and SSDs.

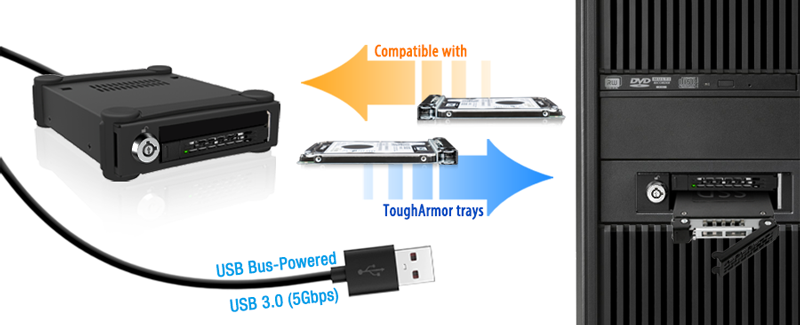

  • Make ToughArmor On-The-GO! With MB991U3-1SB
    To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB is the way to go about. The drive tray slot of MB991U3-1SB is compatible with a variety of ToughArmor drive trays including the ToughArmor MB991, MB992, MB994, MB996 and MB998 series. This allows existing ToughArmor users to access their internal drive externally without opening up the case. It is a great tool for an individual drive diagnostic test. If you need to do a safe data erase or just simply expending system storage capacity, just remove the tray from the internal ToughArmor unit and insert it in the MB991U3-1SB to perform individual tasks externally with USB 3.0 interface. Best of all, the MB991U3-1SB uses USB bus-powered and it does not require a power adapter to operate. Simply connect the USB cable to any system and you are ready to go.
  • NVMe Edition of ToughArmor MB992SK-B
    If the 6Gbps SATA transfer speed isn't satisfying your data storage needs, ToughArmor MB092VK-B is here to supercharge your storage system. This device accommodates two 5-9.5mm U.2/U.3 NVMe SSDs, delivering blistering transfer speeds of up to 64Gbps per SSD bay. Along with these high-speed capabilities, it inherits the coveted features from MB992SK-B such as hot-swap support (depending on host support), full-metal design, and a five-year warranty.
Customizable ICY DOCK Drive Enclosures:
Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB992SK-B
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 & 502.7
*IEC 60529 (IPX6) Protection against water jets

*The drive mobile rack enclosure needs to have a customized front water-resistant panel added to pass the IEC 60529 (IPX6) certification. Water resistance refers to preventing water from entering the enclosure through the front panel when the product is installed in the chassis, rather than making the entire enclosure water-resistant.

Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries, please contact us at tech@icydock.com
Need Water-Resistant Protection?
ToughCover Versions Available for Build-to-Order
If your application environment requires protection from water jets, we offer ToughCover water-resistant versions of this mobile rack enclosure on a build-to-order basis.
Series Model Number Product Description Stock Status
ExpressCage MB741SPW-B 1 x 2.5" SAS/SATA HDD/SSD (15mm) Mobile Rack with Tool-less Installation & ToughCover Build-to-order
MB742SPW-B 2 x 2.5" SAS/SATA HDD/SSD (9.5mm) Mobile Rack with Tool-less Installation & ToughCover Build-to-order
ToughArmor MB092V4KW-B 2 x U.2/U.3 NVMe SSD (7mm) PCIe 4.0 Mobile Rack with ToughCover (2 x SFF-8654 4i) Build-to-order
MB491SKL-1B 1 x 2.5” SATA/SAS HDD/SSD (15mm) Mobile Rack with Dual-Lock Design & ToughCover In-stock
MB492SKW-B 2 x 2.5” SATA/SAS HDD/SSD (15mm) Mobile Rack with Dual-Lock Design & ToughCover Build-to-order
MB601V4KW-B 1 x U.2/U.3 NVMe SSD (15mm) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8639) Build-to-order
MB601M4KW-1B 1 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8639) Build-to-order
MB833M4KW-B 1 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8643) Build-to-order
MB833M4KW-B V2 1 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8654 4i) Build-to-order
MB834M4KW-B 2 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (2 x SFF-8643) Build-to-order
MB834M4KW-B V2 2 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (2 x SFF-8654 4i) Build-to-order
MB991IKW-B 1 x 2.5" SAS/SATA HDD/SSD (15mm) Mobile Rack with ToughCover Build-to-order
MB991SKW-B 1 x 2.5" SATA HDD/SSD (15mm) Mobile Rack with ToughCover Build-to-order
MB992SKW-B 2 x 2.5” SATA/SAS HDD/SSD (15mm) Mobile Rack with ToughCover Build-to-order
MB992SKRW-B 2 x 2.5” SATA HDD/SSD (9.5mm) RAID Mobile Rack with ToughCover (RAID 0/1/BIG/JBOD) Build-to-order
MB993SKW-B 3 x 2.5” SAS/SATA HDD/SSD (7mm) Mobile Rack with ToughCover Build-to-order
These versions are perfect for environments where added durability and protection against water spray are essential. During the initial release phase, we’re offering a reduced minimum order quantity to make trial orders more accessible. Lead times may vary due to the build-to-order process.

For further information or to place an order, contact our sales team at sales01@icydock.com.

Main Features
•
Rugged Heavy duty full metal construction with suggested applications in Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies

•
Rugged Full Metal construction, perfect for rugged applications and complies with flammability requirement

•
Fits 2 x 5mm to 9.5mm 2.5” SATA HDD or SSD in external 3.5” drive bay

•
Supports SAS or SATA HDD/SSD at 6Gbps and is backwards compatible with SATA 3Gbps drives and hosts (SAS host is required for SAS drives)

•
Multi-Flow Technology (MFT) - provides excellent passive cooling

•
Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs

•
Active Power Technology (APT) - individual led only powers up if there is drive installed in each bay

•
EMI Grounding – protects hard drives from electrical damage

•

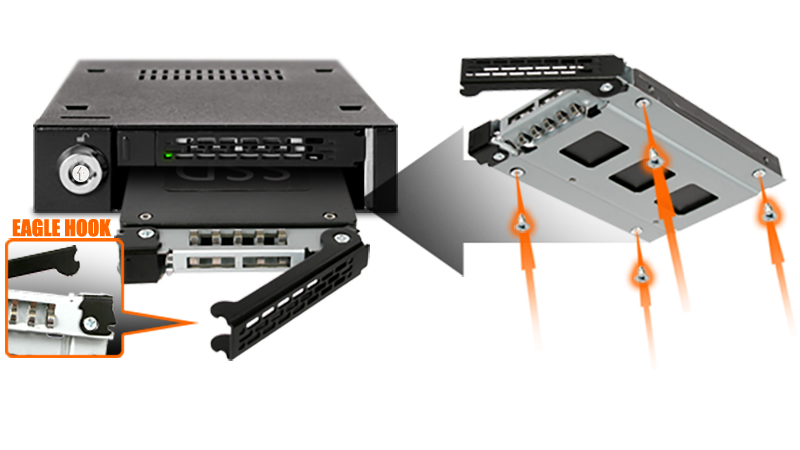

Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure

•

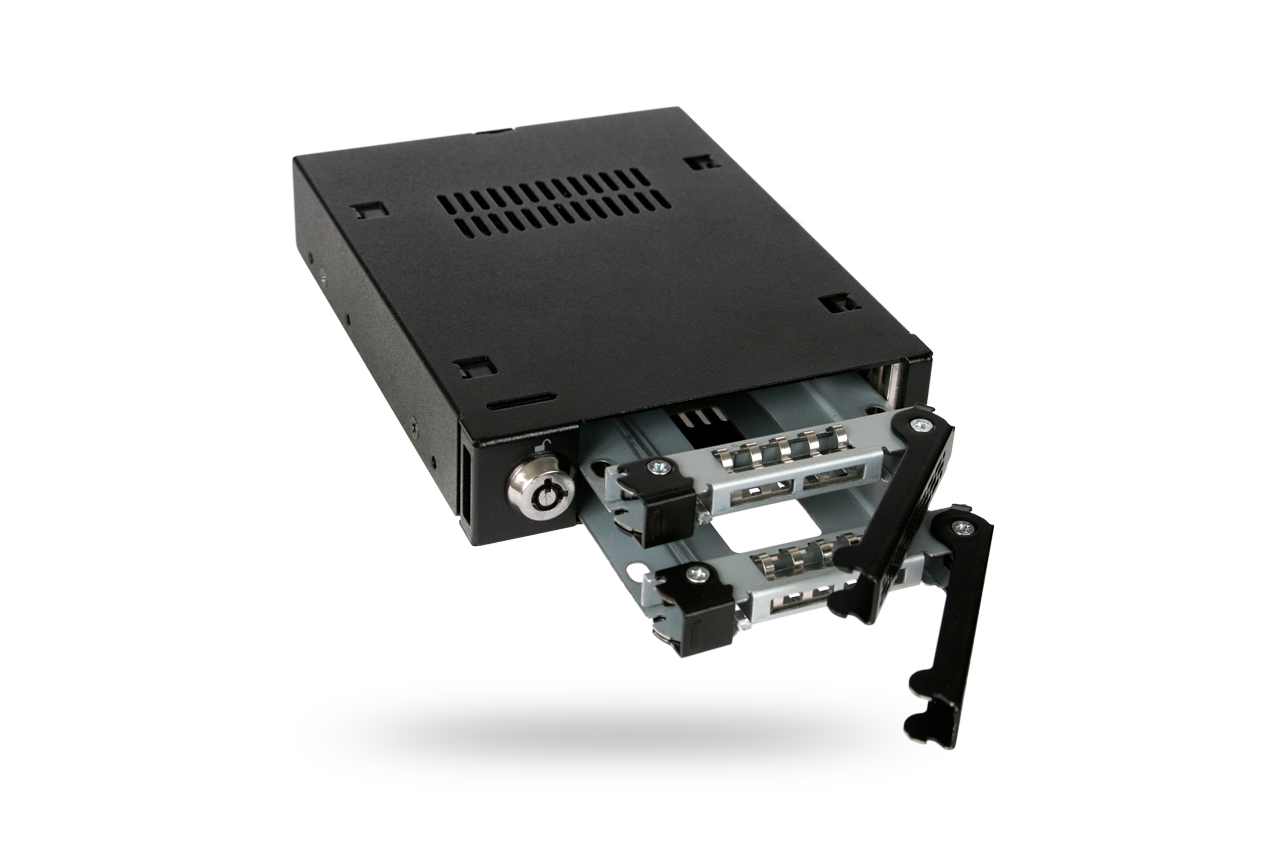

Removable tray system for easy maintenance

•
Supports SATA 6Gbps or SAS 3.0 12Gbps (single channel)

•
Single SATA 15 Pin to power entire device

Specification
Model Number： MB992SK-B
Color： Black
Support Drive Size： 2.5" SSD / HDD
Compatible Drive Type： SATA / SAS (SAS host required / single channel)
Number of Drives： 2
Max Drive Height： 9.5mm
Drive Bay： 1 x 3.5" floopply drive bay

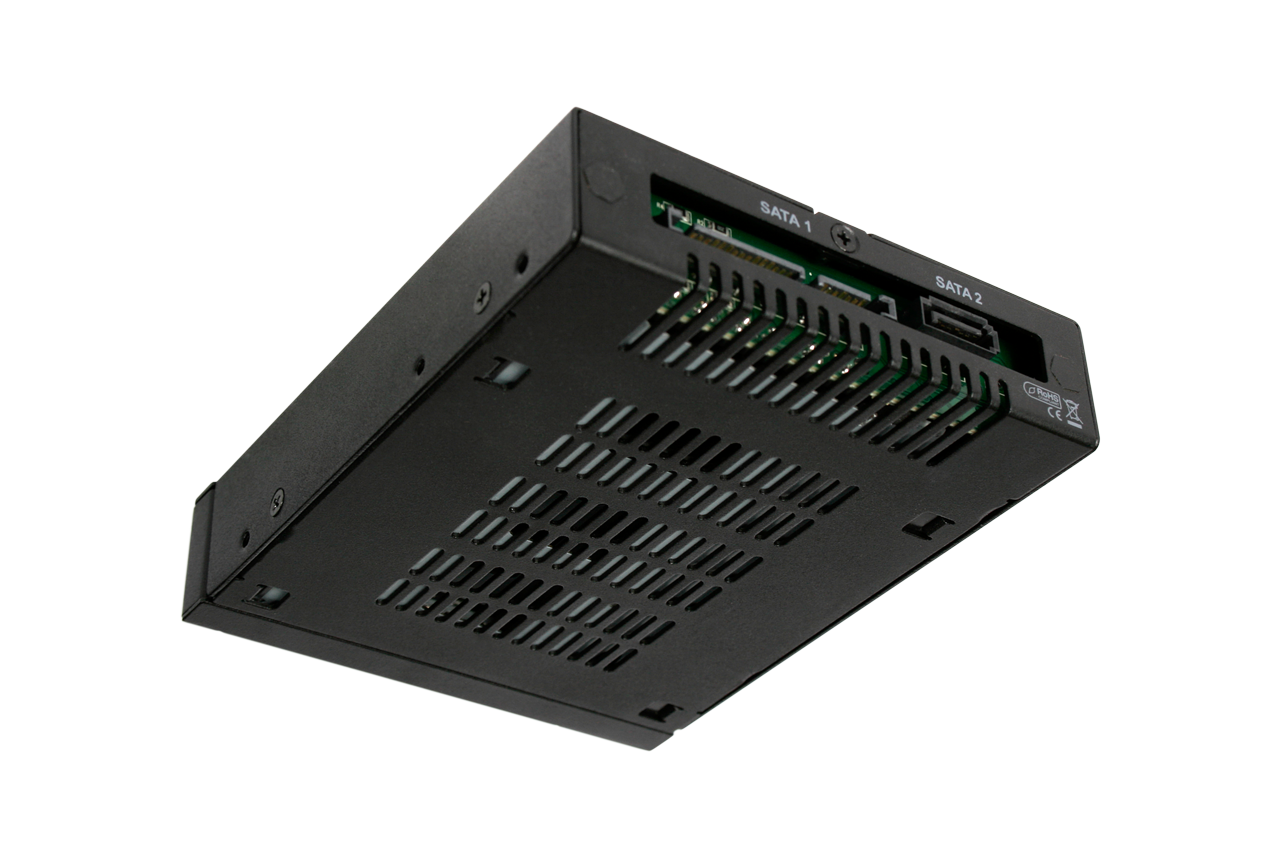

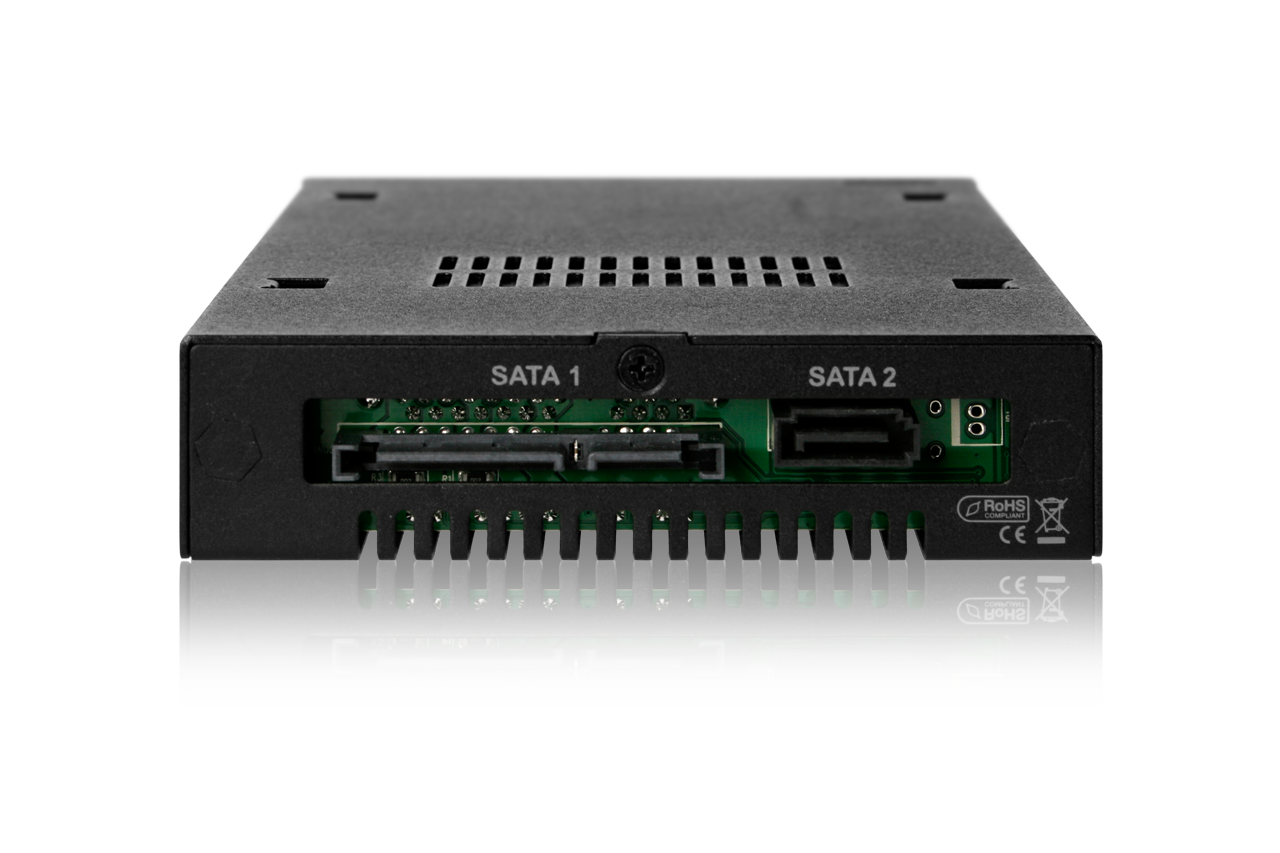

Host Interface： 2 x SATA 7pin
Power Input： 1 x 15 pin SATA power connector
Transfer Rate： SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps
Support HDD Capacity： No limitation
Drive Cooling： Metal heat dispersion
RAID Function： N/A
Structure / Material： Full metal
Support Hot-Swap： Yes
Drive Security： 2 segment key lock
Product Dimension (L x W x H)： 133 x 101.2 x 25.4mm
Product Net Weight： 398.5g
Package Gross Weight： 453.3g
Drive Activity LED Indication： Drive power: solid green; HDD access: flashing amber

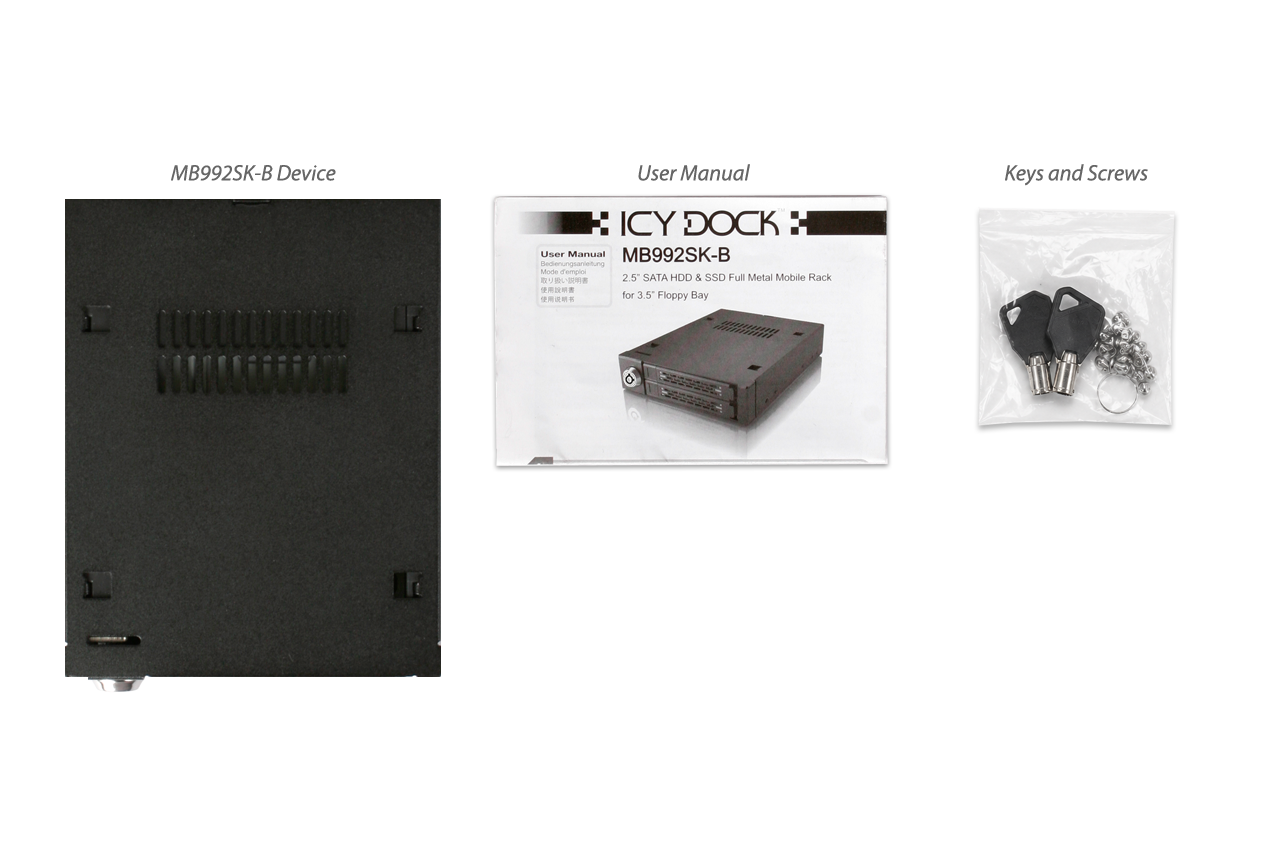

Package Contents： 1 - Device, 1 - user manual, 8 - screw, 2 - key
SATA Connector Insertion Rate： 10,000
Humidity： 5%~65% RH
Operating Temperature： 0°C to 60°C (32°F to 140°F)
Storage Temperature： -35°C to 70°C (-31°F to 158°F)
Compliance： CE, RoHS, REACH
Warranty： 5 years limited warranty

Compatible Drive Tray (Caddy):

  • MB991TRAY-B
  • MB996TK-B

Related Products Series:

  • Metal+Tray Enclosures
  • Tool-less+Tray Enclosures

ToughArmor Lineup:


FAQ

Q: Does MB992SK-B support the new SATA 3.3 / SAS 3.0 Power Disable feature (PWDIS)?

A: The MB992SK-B does not support the SATA 3.3 / SAS 3.0 PWDIS feature. If you install the SATA/SAS HDD/SSD with PWDIS in MB992SK-B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA/SAS HDD/SSD with the PWDIS feature.



While we recommend to avoid using the SATA/SAS HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:



Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.



Molex to SATA Adapter   Molex to SATA Cable
Molex to SATA Adapter   Molex to SATA Cable



Method 2 – Placing Kapton tape on Pin 1-3 of the SATA/SAS power connector to isolate the 3.3V power, as shown below.



Kapton tape SATA power connector



Please contact tech@icydock.com if the problem persists.
