ToughArmor MB991IK-B

Rugged Full Metal 2.5" SAS/SATA HDD & SSD Mobile Rack for External 3.5" Drive Bay
Online Retailers
Product Details
ToughArmor_Video
ToughArmor_Video

ToughArmor
Ruggedized Removable Drive Enclosures

WATCH VIDEO



  • Product Introduction
    Introducing the Icy Dock ToughArmor MB991IK-B 2.5" SAS / SATA Mobile Rack solution for use in external 3.5" drive bays (Floppy bay). The main purpose is to provide a small form factor device built specifically for systems in a small real estate to work with, specifically for 2.5 SAS hard drives or SSDs. Because of the high performance and reliability factor of SAS drives, it is crucial for the storage solution to be just as sturdy as the drive being used. By using a rugged heavy duty metal construction, it is capable to withstand the harshest enterprise type environments. The drive is fully secured by our proven technologies such as, the Eagle-Hook lock system and metal 2-segment safeguard key. Our full metal EZ Slide Mini Tray allows interchangeability of data between multiple systems with other compatible ToughArmor products. Suggested applications in Medical & Military systems, Media servers, and IPCs, approved by Tier 1 companies.
  • Efficient Space Use
    The MB991IK-B is perfect for use in industrial PCs, SMB SFF servers, mobile DVR systems, or even home servers. These systems tend to use components that provide the needed features, in the smallest form factor available. The ability to house one SAS / SATA SSD or HDD in a single 3.5” bay makes it a valuable asset in specific applications such as, integration into an industrial imaging or medical device.
  • Rugged Full Metal Protection
    Making sure that the material used is designed in a way where it can be relied upon for many years after its deployment. The MB991IK-B is capable of holding up in the harshest environments, with the heavy duty metal construction throughout the entire device. With the rugged Full Metal design, the ToughArmor is perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to be already compliant with flammability requirements. So because of the high build quality and compatibility, it can be used various enterprise systems including: military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems.
  • The rugged full metal design also allows efficient heat dissipation transfer from the hard drives throughout the mobile rack. In addition, Multi-Flow Technology effectively routes air flow correctly for excellent passive cooling in key ventilation slots on the front, rear, top and bottom. Lastly, Anti-Vibration Technology and EMI Grounding are used to provide a stable environment for the hard drives or SSDs used to perform at its best.
  • Convenient Utility & Accessibility
    The front of the ToughArmor includes a status LED when the drive is powered on, off and accessed. Active Power Technology (APT) allows the status LED to be on only when a hard drive is inserted into the enclosure. For drive security, the eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. Additionally, the 2 segment key lock provides extra protection to theft of hard drives as well as safeguards any sensitive data.
  • The EZ Slide Mini trays make drive interchangeability and maintenance completely hassle free, in case of a hard drive failure. With a simple swap of the hard drive, your overall down time is greatly reduced especially if this occurs when it is time sensitive. The trays are also designed to accommodate 5 to 15mm height hard drive and SSD, creating a 2.5" hot swap bay for any standard SAS / SATA hard drives and SSDs. While the tray is not installed to the MB991IK-B, the Anti-Dust Flap feature helps prevent dust from entering into the mobile rack.
  • Make ToughArmor On-The-GO! With MB991U3-1SB
    To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB is the way to go about. The drive tray slot of MB991U3-1SB is compatible with a variety of ToughArmor drive trays including the ToughArmor MB991, MB992, MB994, MB996 and MB998 series. This allows existing ToughArmor users to access their internal drive externally without opening up the case. It is a great tool for an individual drive diagnostic test. If you need to do a safe data erase or just simply expending system storage capacity, just remove the tray from the internal ToughArmor unit and insert it in the MB991U3-1SB to perform individual tasks externally with USB 3.0 interface. Best of all, the MB991U3-1SB uses USB bus-powered and it does not require a power adapter to operate. Simply connect the USB cable to any system and you are ready to go.
Customizable ICY DOCK Drive Enclosures:
Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB991IK-B
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 & 502.7
*IEC 60529 (IPX6) Protection against water jets

*The drive mobile rack enclosure needs to have a customized front water-resistant panel added to pass the IEC 60529 (IPX6) certification. Water resistance refers to preventing water from entering the enclosure through the front panel when the product is installed in the chassis, rather than making the entire enclosure water-resistant.

Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries, please contact us at tech@icydock.com
Need Water-Resistant Protection?
ToughCover Versions Available for Build-to-Order
If your application environment requires protection from water jets, we offer ToughCover water-resistant versions of this mobile rack enclosure on a build-to-order basis.
Series Model Number Product Description Stock Status
ExpressCage MB741SPW-B 1 x 2.5" SAS/SATA HDD/SSD (15mm) Mobile Rack with Tool-less Installation & ToughCover Buil-to-order
MB742SPW-B 2 x 2.5" SAS/SATA HDD/SSD (9.5mm) Mobile Rack with Tool-less Installation & ToughCover Buil-to-order
ToughArmor MB092V4KW-B 2 x U.2/U.3 NVMe SSD (7mm) PCIe 4.0 Mobile Rack with ToughCover (2 x SFF-8654 4i) Buil-to-order
MB491SKL-1B 1 x 2.5” SATA/SAS HDD/SSD (15mm) Mobile Rack with Dual-Lock Design & ToughCover In-stock
MB492SKW-B 2 x 2.5” SATA/SAS HDD/SSD (15mm) Mobile Rack with Dual-Lock Design & ToughCover Buil-to-order
MB601V4KW-B 1 x U.2/U.3 NVMe SSD (15mm) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8639) Buil-to-order
MB601M4KW-1B 1 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8639) Buil-to-order
MB833M4KW-B 1 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8643) Buil-to-order
MB833M4KW-B V2 1 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (1 x SFF-8654 4i) Buil-to-order
MB834M4KW-B 2 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (2 x SFF-8643) Buil-to-order
MB834M4KW-B V2 2 x M.2 NVMe SSD (2280-22110) PCIe 4.0 Mobile Rack with ToughCover (2 x SFF-8654 4i) Buil-to-order
MB991IKW-B 1 x 2.5" SAS/SATA HDD/SSD (15mm) Mobile Rack with ToughCover Buil-to-order
MB991SKW-B 1 x 2.5" SATA HDD/SSD (15mm) Mobile Rack with ToughCover Buil-to-order
MB992SKW-B 2 x 2.5” SATA/SAS HDD/SSD (15mm) Mobile Rack with ToughCover Buil-to-order
MB992SKRW-B 2 x 2.5” SATA HDD/SSD (9.5mm) RAID Mobile Rack with ToughCover (RAID 0/1/BIG/JBOD) Buil-to-order
MB993SKW-B 3 x 2.5” SAS/SATA HDD/SSD (7mm) Mobile Rack with ToughCover Buil-to-order
These versions are perfect for environments where added durability and protection against water spray are essential. During the initial release phase, we’re offering a reduced minimum order quantity to make trial orders more accessible. Lead times may vary due to the build-to-order process.

For further information or to place an order, contact our sales team at sales01@icydock.com.

Main Features
•
Rugged heavy duty full metal construction with suggested applications in Imaging, Medical, and Military systems, Media servers, and IPCs, approved & used by Tier 1 companies.

•
Fits 1 x 5mm to 15mm 2.5” SAS/SATA HDD or SSD in external 3.5” drive bay.

•
Rugged heavy Duty Full Metal construction, perfect for enterprise applications.

•
Multi-Flow Technology - provides excellent passive cooling.

•
Anti-Vibration Technology - creates a safe environment for hard drives or SSDs.

•
Active Power Technology (APT) - individual led only powers up if there is drive installed in the drive bay.

•
EMI Grounding – protects hard drives from electrical damage.

•
Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure.

•
Anti-Dust Flap prevents dust from entering when device not used.

•
Removable EZ Slide Mini Tray system for easy maintenance.

•
Supports SAS 3.0 (Dual channel) / SATA 6Gbps and hot swap.

•
Single SATA 15 Pin to power entire device.
Specification
Model Number： MB991IK-B
Color： Black
Support Drive Size： 2.5" SSD / HDD
Compatible Drive Type： SATA / SAS (SAS host required / dual channel)
Number of Drives： 1
Max Drive Height： 15mm
Drive Bay： 1 x 3.5" device bay
Host Interface： 2 x SATA 7pin
Power Input： 1 x 15 pin SATA power connector
Transfer Rate： SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps
Support HDD Capacity： No limitation
Drive Cooling： Metal heat dispersion
Structure / Material： Full metal
Support Hot-Swap： Yes
Drive Security： 2 segment key lock
Product Dimension (L x W x H)： 133 x 101.2 x 25.4mm
Product Net Weight： 399g
Package Gross Weight： 457.3g
Drive Activity LED Indication： Drive power: solid green; HDD access: flashing green

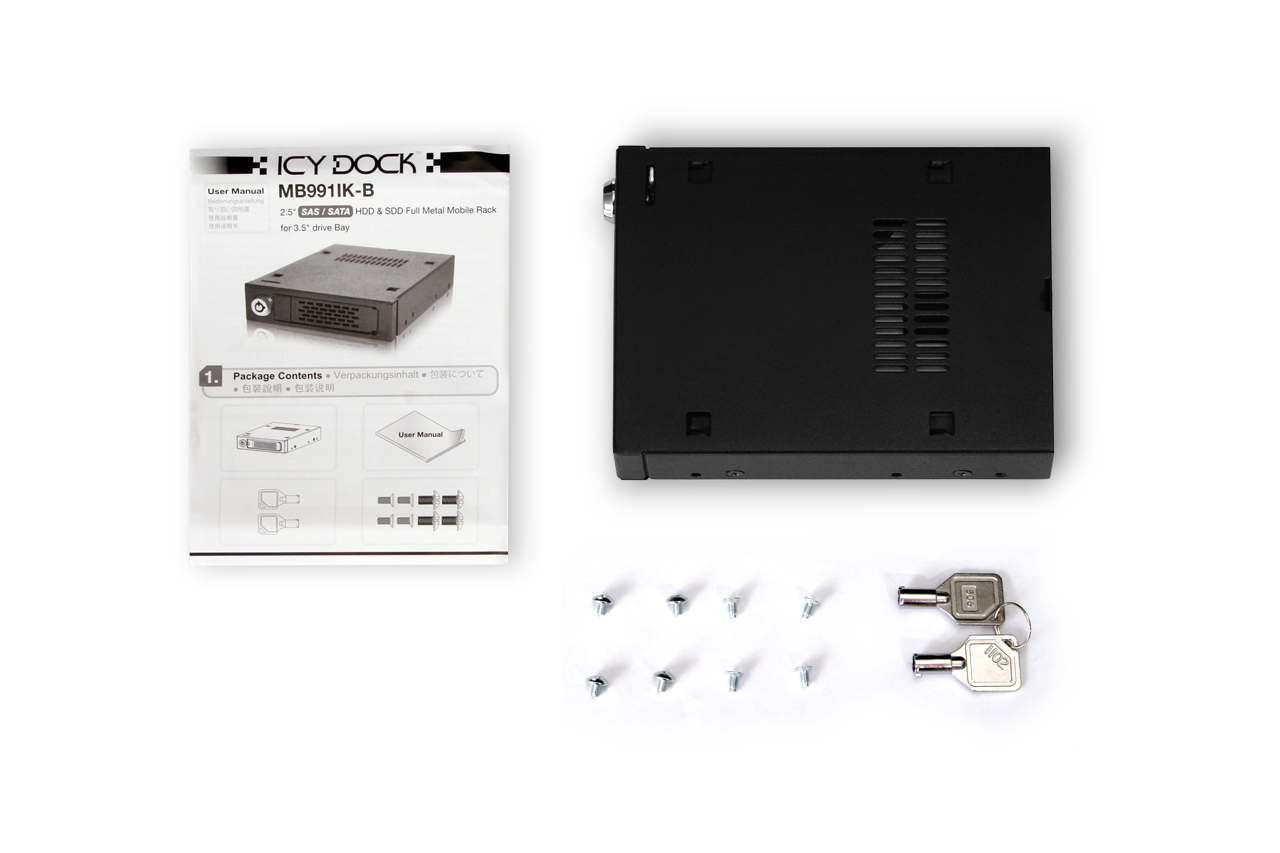

Package Contents： 1 - device, 1 - user manual, 8 - screw, 2 - key
SATA Connector Insertion Rate： 10,000
Humidity： 5%~65% RH
Operating Temperature： 0°C to 60°C (32°F to 140°F)
Storage Temperature： -35°C to 70°C (-31°F to 158°F)
Compliance： CE, RoHS, REACH
Warranty： 5 years limited warranty

Compatible Drive Tray (Caddy):

  • MB991TRAY-B tray

Related Products Series:

  • Metal+Tray Enclosures
  • NVMe Enclosures

ToughArmor Lineup:


FAQ

Q: I feel that the drive tray's upper and lower metal spring is stuck when inserting the drive tray. What should I do?

A: Remove the drive tray from the enclosure and reinsert the tray without putting excessive pressure on the metal mesh sheet in front of the tray. Excessive force on the front metal mesh sheet may bend the top and bottom metal spring, causing difficulties when inserting the drive tray. Therefore, please do not forcingly insert the drive tray when this happens as it may cause damage to the metal spring.



metal spring
Please DO NOT put excessive pressure on the metal mesh sheet as shown

Q: After installing a drive in the MB991IK-B, the LED indicator does not flash orange when accessing data but remains solid green. What could be the cause and what is the solution?

A: The MB991IK-B is designed according to the standard signal specifications for SSDs/HDDs and is compatible with the vast majority of drives on the market. However, differences in voltage settings for some specific drives may cause the LED indicator to remain solid green during data read/write operations. This situation will not affect the performance or lifespan of the hard drive, so please use it with confidence. If the hard drive reading indicator light is a necessary feature, consider using other brands and models of drives. Additionally, refer to the list below reported by users of drives that have this issue to avoid using those models with this product.


Brand Name Series Model Drive Type
Seagate Barracuda ST5000LM000
ST4000LM024
ST3000LM024		 2.5" 15mm SATA
