• Supports 1 × E1.S NVMe SSD up to 9.5mm height • Removable tray design for simplified SSD maintenance and replacement • Tool-less SSD installation design • PCIe 5.0 x4 interface up to 128Gbps (depending on SSD performance) • MCIO 4i host interface • Ultra-slim enclosure optimized for non-standard installation spaces

• Ultra-compact, non-standard module size tailored for OEM and rackmount system integration • Supports 4 × 15mm E1.S NVMe SSDs • PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance) • 2 × MCIO 8i (SFF-TA-1016) host interfaces • Open rear-panel ventilation design for reduced airflow restriction • Horizontal PCB layout optimized for rackmount airflow

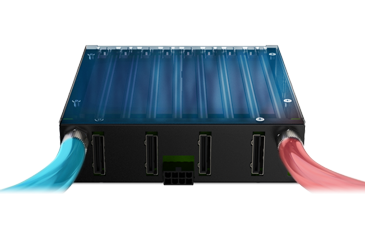

• Supports 8 × 9.5mm E1.S NVMe SSDs
• Fits one standard 5.25” drive bay
• PCIe 5.0 x4 bandwidth up to 128Gbps per SSD (depending on SSD performance)
• 4 × MCIO 8i (SFF-TA-1016) host interfaces
• Removable E1.S SSD tray design for easier maintenance and serviceability
• Liquid-cooling architecture for high-efficiency thermal management

Compatible E1.S SSD tray (caddy) for ICY DOCK ToughArmor MB218E5P-B/MB218E5P-1B series mobile rack enclosures.

Compatible E1.S SSD tray (caddy) for ICY DOCK ExpressSlot Elite MB221E5P-B / MB303E5P-B series mobile rack enclosures.

• Supports 4 x E1.S PCIe NVMe SSDs (9.5mm thickness)
• Uses 1x PCIe 5.0 x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x is required to access four drives)
• Occupies 2 PCIe slot spaces but requires only 1 x PCIe x16 interface
• Removable tray design enables tool-less drive access without opening the chassis
• PCIe interface provides power and data transfer to reduce cable clutter
• PCIe 5.0 x4 interface per drive for up to 128Gbps high-speed data transfer

•Supports 8 x 15mm / 9.5mm E1.S SSDs in a single 5.25" bay.
•PCIe Gen 5.0 x4 interface — up to 128Gbps per drive.
•Complies with UBM (SFF-TA-1005) backplane management standard.
•4 x MCIO 8i connectors support PCIe bifurcation (x4/x2/x1).
•Compatible with Broadcom, HighPoint, Areca, and other HBA/RAID cards.
•Supports Hot-Plug drive swapping.

•Converts 5.9mm or 8.01mm E1.S SSDs to 9.5mm E1.S mechanical form factor
•Converts 5.9mm or 8.01mm E1.S SSDs to 9.5mm E1.S mechanical form factor
•Fully compatible with standard 9.5mm E1.S trays, tool-less carriers, and hot-swap drive bays
•Full-metal construction enhances protection and passive cooling
•Includes both thin and thick thermal pads for optimal heat transfer
•Tool-less SSD installation

•Converts standard M.2 NVMe SSDs (2230/2242/2260/2280) to 9.5mm E1.S SSD form factor
•Fully matches E1.S mechanical and electrical specifications (SFF-TA-1006 + SFF-TA-1002)
•Compatible with PCIe Gen 3/4/5 NVMe SSDs for up to 128Gbps data rate
•Ideal for E1.S drive bays in enterprise servers, AI edge systems, and modular compute nodes
•Internal bridge connector minimizes M.2 connector wear from frequent insertions
•Full-metal housing ensures structural integrity, EMI shielding, and thermal dissipation
•Ideal for system builders, server OEMs, and platform engineers validating E1.S systems

• Supports 8 x E1.S NVMe SSDs (9.5mm/15mm) in a single external 5.25" drive bay
• PCIe 5.0 x4 per slot, up to 128Gbps (depending on SSD speed)
• Front LED indicators: Green (power/activity)
• 4× MCIO 8i (SFF-TA-1016) ports; pin-out defined by SFF-9402 Rev 1.1
• Designed for broad integration with major HBA/RAID ecosystems (Broadcom, HighPoint, Areca, etc.)
• Hot-plug drive swapping support (platform support required)

• Supports 2 × E1.S NVMe SSDs (9.5mm) with screwless SSD installation
• Fits single-slot, full-height 3/4-length PCIe card specification
• PCIe 5.0 x4 interface per SSD, up to 128Gbps each
• Requires PCIe bifurcation:
✓ PCIe x8 slot (x4/x4), or
✓ PCIe x16 slot (x4/x4/x4/x4)
• Compatible with PCIe 5.0 x8 / x16 slots (with bifurcation support)
• Integrated 50mm frameless fan for active cooling
• Sealed airflow chamber design for maximized cooling efficiency

• Supports 1 × E1.S NVMe SSD (9.5mm) with screwless installation
• Fits single-slot, half-height 3/4-length PCIe card specification
• PCIe 5.0 x4 interface, up to 128Gbps per SSD
• Compatible with PCIe 5.0 x4 / x8 / x16 slot
• Integrated 50mm frameless fan for active cooling
• Sealed airflow chamber design for maximized cooling efficiency

•Supports RAID 0 / 1 / JBOD / BIG
•Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
•Adapts two 9.5mm height E1.S SSDs within a single PCIe slot space
•Single slot, full-height 3/4 length card specifications
•Includes a 50mm frameless fan for effective heat dissipation
•Sealed space design for maximized cooling efficiency
•Removable SSD caddy design for quick drive maintenance and replacements

•Designed for a 3.5" floppy bay in either a computer case or rackmount.
•Holds 2 x EDSFF E1.S NVMe SSDs (compatible with 9.5mm and 15mm heights).
•Uses a MCIO 8i connector, supporting PCIe 5.0 x4 with transfer speeds up to 128GB/s.
•Features a removable drive tray with tool-less SSD installation for user-friendly maintenance.
•Comes equipped with two 25mm fans, which can be replaced without disassembling the entire unit.
•Supports hot-swap functionality for EDSFF E1.S SSD (dependent on host environment).

•Fits 2 x E1.S NVMe SSD, compatible with 9.5mm thickness.
•Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
•Supports hot-swap/hot-plug E1.S NVMe SSD.
•Removable drive tray with tool-less drive installation for easy drive maintenance.
•The eagle-hook lock system keeps the drive secured in the enclosure.
•Equipped with a 50mm blower fan for maximum thermal performance.

•Fits in Standard 5.25" Drive Bay.
•Supports 8 x E1.S (EDSFF) NVMe SSDs (9.5mm/15mm height).
•Uses 4 x MCIO 8i (SFF-TA-1016 8i) port supports PCIe 5.0 x4 of up to 128Gbps data transfer rates.
•Ability to mix and match E1.S in a single enclosure.
•Supports tool-less drive installation for both E1.S NVMe SSDs.
•Equipped with dual 40mm detachable fans for superior cooling performance.

•Fits 4 x E1.S (EDSFF) NVMe SSD (9.5mm/15mm/25mm) in a 5.25" external drive bay.
•Uses 2 x MCIO 8i (SFF-TA-1016 8i) port supports PCIe 5.0x4 of up to 128Gbps data transfer rates.
•Full-metal housing and drive tray provide excellent durability and robustness - ideal for the enterprise-level data storage environment.
•Equipped with dual 40mm detachable fans for superior cooling performance.
•The Eagle-hook tray latch design securely holds the drive trays within the enclosure.
•Anti-Vibration (AVT) technology provides a stable and safe operating environment for SSDs.

• Fits 1x EDSFF E1.S SSD with a maximum drive thickness of 9.5mm
• Use 1x PCIe 5.0 x4 interface, also supports installation into PCIe 1.0/2.0/3.0/4.0/5.0 x4, x8, and x16 slots
• Support PCIe 5.0 x4 with transfer rates up to 128Gbps
• Includes half-height and full-height PCIe brackets
• Removable drive tray with tool-less drive installation design for easy drive maintenance
