•Supports 8 x 15mm / 9.5mm E1.S SSDs in a single 5.25" bay.
•PCIe Gen 5.0 x4 interface — up to 128Gbps per drive.
•Complies with UBM (SFF-TA-1005) backplane management standard.
•4 x MCIO 8i connectors support PCIe bifurcation (x4/x2/x1).
•Compatible with Broadcom, HighPoint, Areca, and other HBA/RAID cards.
•Supports Hot-Plug drive swapping.
•Tool-less metal trays for fast and easy SSD installation.
•Front-panel green and amber LED indicators.
•BMC 5-pin interface for drive power/status control.
•Backplane ID jumper for multi-unit system management.
•Dual 40mm fans with optimized airflow and EMI shielding.
•Rugged, full-metal construction.

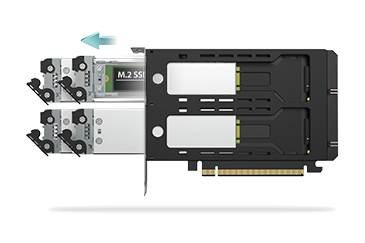

• Supports 4 x M.2 PCIe NVMe SSDs (2230/2242/2260/2280/22110)
• Uses 1x PCIe 5.0 x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x is required to access four drives)
• Occupies 2 PCIe slot spaces but requires only 1 x PCIe x16 interface
• Removable tray design enables tool-less drive access without opening the chassis
• PCIe interface provides power and data transfer to reduce cable clutter

•Converts 5.9mm or 8.01mm E1.S SSDs to 9.5mm E1.S mechanical form factor
•Converts 5.9mm or 8.01mm E1.S SSDs to 9.5mm E1.S mechanical form factor
•Fully compatible with standard 9.5mm E1.S trays, tool-less carriers, and hot-swap drive bays
•Full-metal construction enhances protection and passive cooling
•Includes both thin and thick thermal pads for optimal heat transfer
•Tool-less SSD installation

•Converts standard M.2 NVMe SSDs (2230/2242/2260/2280) to 9.5mm E1.S SSD form factor
•Fully matches E1.S mechanical and electrical specifications (SFF-TA-1006 + SFF-TA-1002)
•Compatible with PCIe Gen 3/4/5 NVMe SSDs for up to 128Gbps data rate
•Ideal for E1.S drive bays in enterprise servers, AI edge systems, and modular compute nodes
•Internal bridge connector minimizes M.2 connector wear from frequent insertions
•Full-metal housing ensures structural integrity, EMI shielding, and thermal dissipation
•Ideal for system builders, server OEMs, and platform engineers validating E1.S systems

•Designed for Intel motherboards with x8/x8 and x8/x4/x4 PCIe bifurcation settings
•Fits 2x M.2 PCIe NVMe SSD from 30-110mm (2230, 2243, 2260, 2280, 22110)
•Uses 1x PCIe 5.0 x16 slot (PCIe Bifurcation is required to access both drives)
•Installs to a single-width full-height PCIe express slot
•Removable drive tray with tool-less drive installation for easy drive maintenance
•Eagle-hook lock system keeps the drive secured in the enclosure

•SlimSAS 4i Connectivity: Delivers PCIe 4.0 x4 performance with data transfer rates up to 64Gbps
•Supports 1 x M.2 PCIe NVMe SSD in 2230, 2242, 2260, and 2280 form factors
•Install into a single-width full-height or half-height PCIe expansion slot
•Tool-less removable M.2 NVMe SSD tray for quick and easy SSD maintenance
•Quick release knob for fast SSD tray removal and installation
•Aluminum heatsink lid and included thermal pad for optimal heat dissipation

•IPX5 water-resistant cover
•Fits 4x PCIe NVMe U.2/U.3 SSD, up to 15mm drive height
•Installs into any standard external 5.25" optical drive bay
•Uses 2x MCIO (SFF-TA-1016 8i) to connect
•Supports PCIe 5.0 specification with transfer rates up to 128Gb/s per drive bay
•Removable tray system for easy maintenance

•Supports PCIe 4.0 x8 up to 64Gbps transfer speeds
•Supports 2 x M.2 PCIe NVMe SSD (30-80mm length) in 2230, 2242, 2260, and 2280 form factors
•PCIe 4.0 x8 interface, also compatible with x16 slots
•Slim, single-width full-height PCIe expansion slot design
•Tool-less removable M.2 NVMe SSD trays for quick and easy SSD maintenance
•Quick release knob for fast SSD tray removal and installation

nvme_enclosures,tool-less_tray_enclosures,high_density_enclosures

•Supports 4 x 7.5mm E3.S NVMe SSDs
•Fits into a single external 5.25" optical drive bays
•Connects via 2 x MCIO 8i (SFF-TA-1016 8i) interfaces
•Supports NVMe hot-plug function (requires hot-plug support from both host and SSD)
•Complies with PCIe 5.0 specifications, offering transfer rates up to 128Gbps per drive bay
•Durable, full-metal enclosure meets flammability standards
•Equipped with dual high-performance 40 x 40 x 20mm cooling fans
•Removable drive tray design for easy drive maintenance
•Active Power Technology - Saves power by shutting off the enclosure when no drive is installed
•EMI Grounding - Protects SSDs from electrical damage
•Eagle-hook tray latch - Securely holds the drive tray inside the enclosure

•Supports 12 x 7.5mm E3.S NVMe SSDs
•Fits into 2 x standard external 5.25" optical drive bays
•Connects via 6 x MCIO 8i (SFF-TA-1016 8i) interfaces
•Supports NVMe hot-plug function (requires hot-plug support from both host and SSD)
•Complies with PCIe 5.0 specifications, offering transfer rates up to 128Gbps per drive bay

•Durable construction using heavy-duty metal, ideal for demanding environments in medical, industrial, and military applications
•Meets stringent flammability standards, ensuring safety across various sectors
•Accommodates two U.2/U.3 PCIe 5.0 SSDs, up to 15mm in height, and one slim optical disk drive (12.7mm)
•Supports fast PCIe 5.0, enabling speeds up to 128Gbps for quick data transfer
•Features a removable caddy system for U.2/U.3 and slim optical disk drives, simplifying maintenance

•Fits 2x E3.S NVMe SSDs up to 7.5mm height
•Installs into standardized external 3.5” device bay (floppy bay)
•Uses a MCIO 8i connector, supporting PCIe 5.0 x4 with transfer speeds up to 128GB/s
•Supports hot-plug functionality for E3.S SSD (dependent on host environment)
•Comes equipped with a 25mm fan, which can be replaced without disassembling the entire unit
•Ruggedized full-metal enclosure and drive trays
